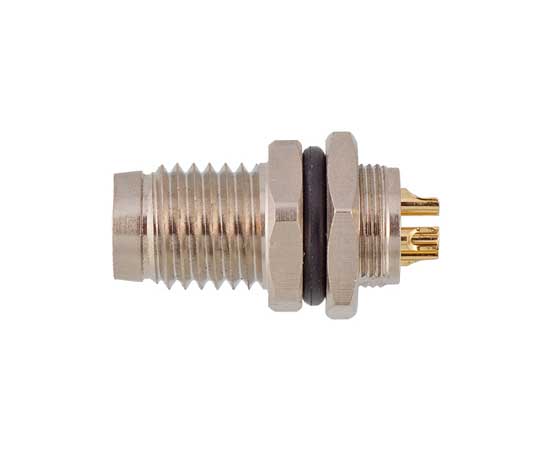

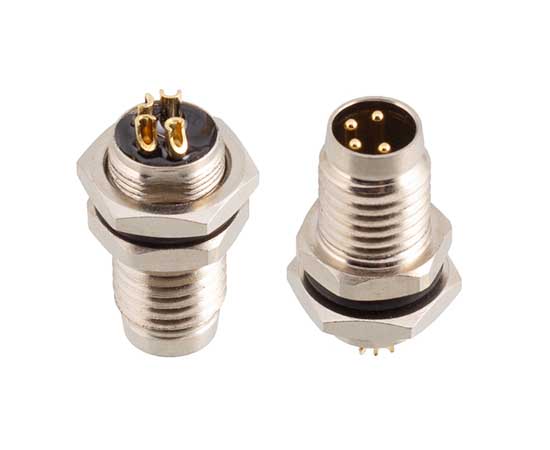

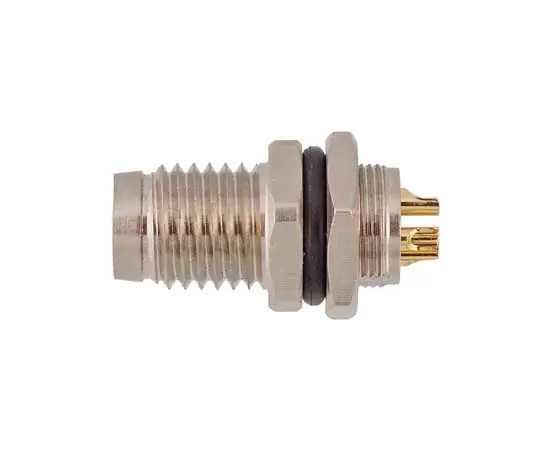

Home / Products / Circular Connector / M8 Connector / Front Mount Socket / M8 Male Front Mount Socket(Solder, Screw M8*0.5, Metal interface)
Front Mount Socket
uropean standard connector: M8 series
Structure type: Front Mount Socket
Connection method: Solder
Pin type: Male
Contacts number: 3，4，5，6，8pins
Cable material: Single wires
Shielded: No
Cable length: 10cm/20cm/30cm (customizable)
Certification: CE,RoHS,UL
Standard: IEC 61076-2-104
-
Merchant Code:
M8-P3A-GWBM8-GK
Product information
PRODUCT PARAMETERS
| Shell material： | Brass nickel-plated/Zinc alloy nickel-plated |
| Insulator material： | PA66 |
| Sealing material： | Epoxy resin/Rubber |
| Contact material： | Brass/Phosphorus copper gold-plated |
| Waterproof grade： | IP65/IP67 |
| Insulation impedance： | ≥100 mΩ |
| Contact impedance： | ≤5 mΩ |
| Durability： | ≥500 Cycles |
| Applicable temperature： | -25℃ ~ +80℃ |
| Execution standard： | IEC 61076-2-104 |
M8 ELECTRICAL PARAMETERS
Electrical diagram

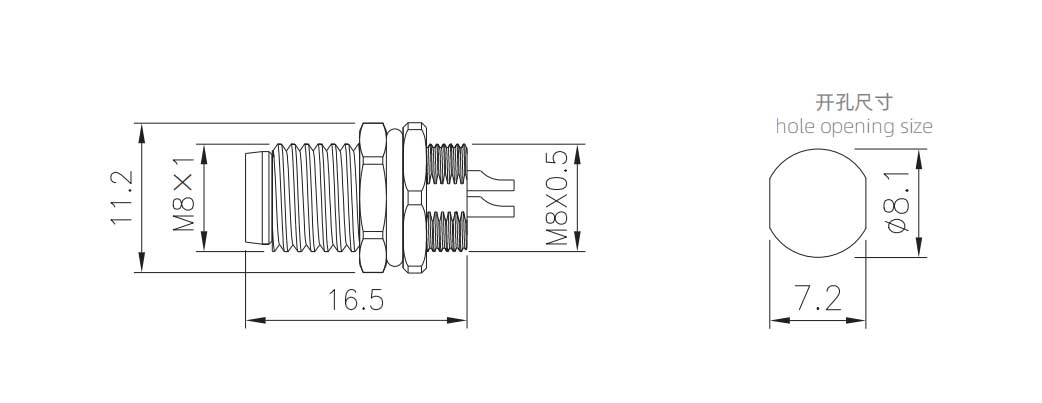

DIMENSION DRAWING
WIRE DEFINITION
Product Ordering
| Product Name | Product No. | Pins | 3D Download | 2D Download |
| M8 Male Front Mount Socket（ Metal interface） | M8-P3A-GWBM8-GK | 3 Pin A-code | ||
| M8 Male Front Mount Socket（ Metal interface） | M8-P4A-GWBM8-GK | 4 Pin A-code | ||
| M8 Male Front Mount Socket（ Metal interface） | M8-P5B-GWBM8-GK | 5 Pin B-code |
