Straight Plug

PRODUCT CENTER

Straight Plug

Filter

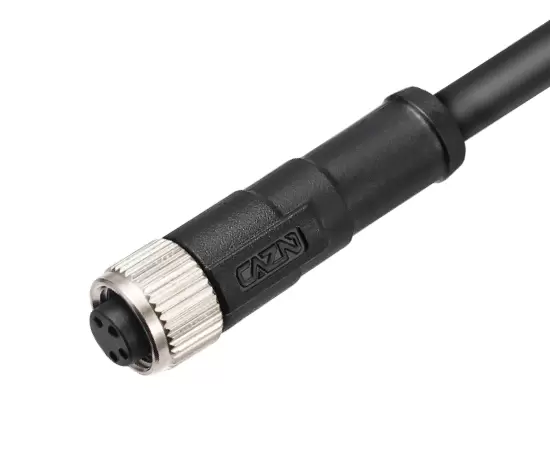

M8 Straight Female Overmolded Plug

European standard connector: M8 series
Structure type: Straight overmolded plug
Pin type: Female
Contacts number: 3，4，5，6，8pins
Wire material: PVC/PUR
Shielded: Two options，Shielded/Unshielded
Cable length: 1M/2M/5M (customizable)
Certification: CE, RoHS, UL
Standard: IEC 61076-2-104

LEARN MORE

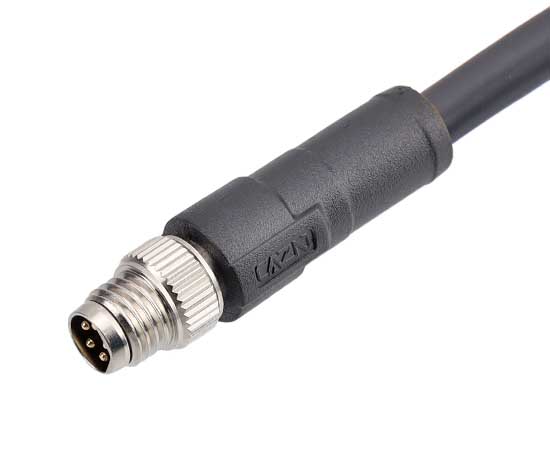

M8 Straight Male Overmolded Plug

European standard connector: M8 series
Structure type: Straight overmolded plug
Pin type: Male
Contacts number: 3，4，5，6，8pins
Wire material: PVC/PUR
Shielded: Two options，Shielded/Unshielded
Cable length: 1M/2M/5M (customizable)
Certification: CE, RoHS, UL
Standard: IEC 61076-2-104

LEARN MORE

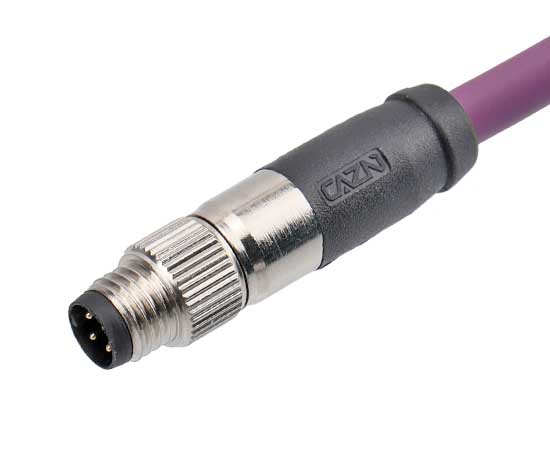

M8 Straight Male Overmolded Plug (Metal interface)

European standard Connectors M8 Series
Structure type: Straight Overmolded Plug
Pin type: Male type
Contacts number: 3, 4, 5 pin
Cable material: PVC/PUR
Cable length: 1/2/5 Meters (customizable)
Shield: Yes/No two options
Certification: CE,RoHS,UL
Standard: IEC 61076-2-104

LEARN MORE

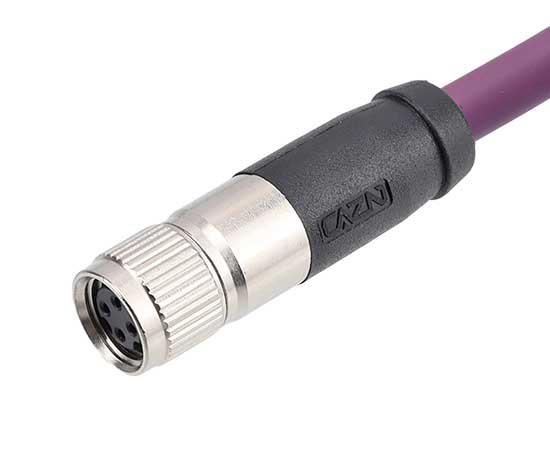

M8 Straight Female Overmolded Plug (with damping)

European standard connectors: M8 Series
Structure type: Straight Overmolded Plug
Pin type: Female
Contacts number: 3, 4 , 5 , 6 , 8 pin
Cable material: PVC/PUR
Cable length: 1/2/5 Meters (customizable)
Shielded: Two options，Shielded/Unshielded
Certification: CE,RoHS,UL
Standard: IEC 61076-2-104

LEARN MORE
M8 Straight Male Overmolded Plug (with damping)

European standard connectors: M8 Series
Structure type: Straight Overmolded Plug
Pin type: Male
Contacts number: 3, 4 , 5 , 6 , 8 pin
Cable material: PVC/PUR
Cable length: 1/2/5 Meters (customizable)
Shielded: Two options，Shielded/Unshielded
Certification: CE,RoHS,UL
Standard: IEC 61076-2-104

LEARN MORE

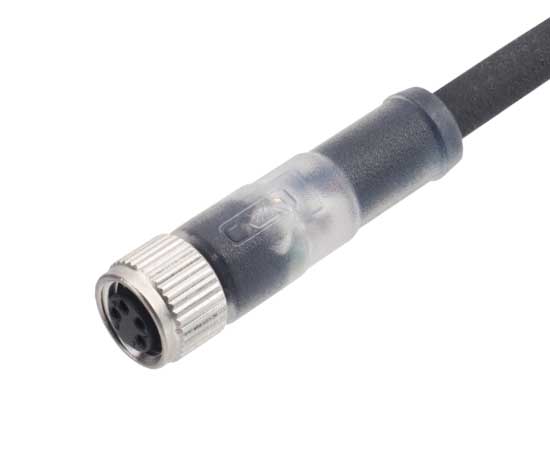

M8 Straight Female Overmolded Plug (LED)

European standard Connectors: M8 Series
Structure type: Straight Overmolded Plug
Pin type: Female type
Contacts number: 3, 4 pin
Cable material: PVC/PUR
Cable length: 1/2/5 Meters (customizable)
Shielded: Yes/No two options
Certification: CE, RoHS, UL
Standard: IEC 61076-2-104

LEARN MORE

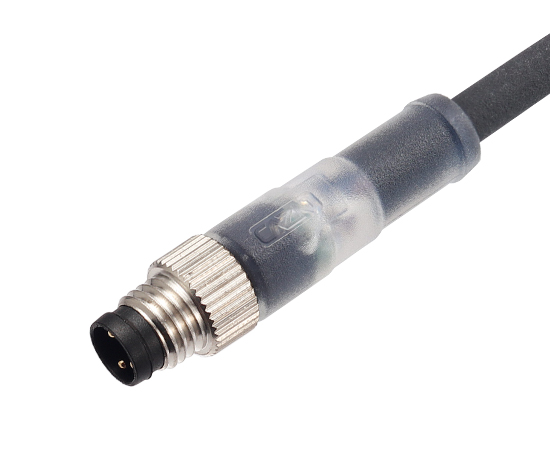

M8 Straight Male Overmolded Plug (LED)

European standard Connectors: M8 Series
Structure type: Straight Overmolded Plug
Pin type: Male type
Contacts number: 3, 4 pin
Cable material: PVC/PUR
Cable length: 1/2/5 Meters (customizable)
Shielded: Yes/No two options
Certification: CE, RoHS, UL
Standard: IEC 61076-2-104

LEARN MORE

Regular products can provide some free samples for testing according to your needs,
and can also provide customized specifications and materials according to your special needs.
