Plug(Bayonet)

PRODUCT CENTER

Plug(Bayonet)

Filter

Category: Plug(Bayonet)
Core number: All
- 2~4
- 5~6
- 7~8
- 9~17
- 18
- 19~24
Interface Type: All
- A
- B
- C
- D
- standard
- X
- Y
- S
- T
- K
- L
- M
Wiring method: All
Waterproof level: All
- IP54
- IP65
- IP67
- IP68
- IP69K

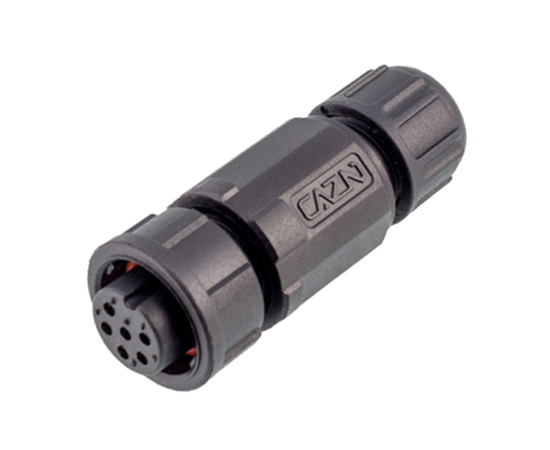

E10 Straight Female Field Installable Plug(Bayonet)

Plastic waterproof connector: E10 series
5/8 "-27UNS U.S. standard screw
Structure type: Straight Field Installable Plug
Pin type: Female
Coupling: Bayonet(B)
Number of cores: 2, 3, 4, 5, 6, 7, 8, 10, 12 pins
Termination way: Solder
Shielded: No

LEARN MORE

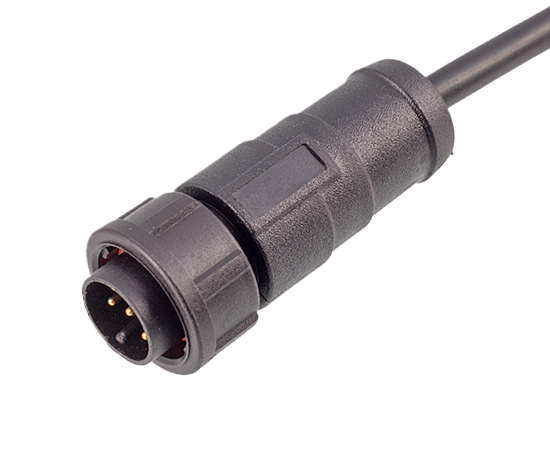

E10 Straight Male Field Installable Plug(Bayonet)

Plastic waterproof connector: E10 series
5/8 "-27UNS U.S. standard screw
Structure type: Straight Field Installable Plug
Pin type: Male
Coupling: Bayonet(B)
Number of cores: 2, 3, 4, 5, 6, 7, 8pins
Termination way: Solder
Shielded: No

LEARN MORE

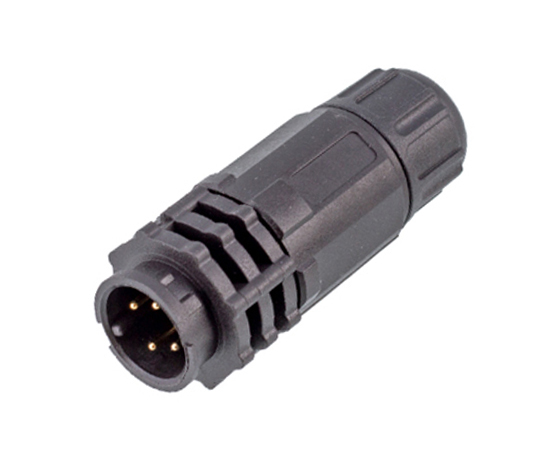

E10 Straight Male Field Installable Mating Plug(Bayonet)

Plastic waterproof connector: E10 series
5/8 "-27UNS U.S. standard screw
Structure type: Straight Field Installable Mating Plug
Pin type: Male
Coupling: Bayonet(B)
Number of cores: 2, 3, 4, 5, 6, 7, 8, 10, 12 pins
Termination way: Solder
Shielded: No

LEARN MORE

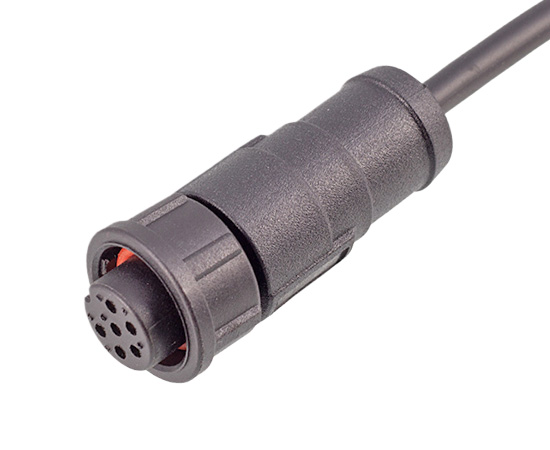

E10 Straight Female Overmolded Plug(Bayonet)

Plastic waterproof connector: E10 series
5/8 "-27UNS U.S. standard screw
Structure type: Straight Overmolded Plug
Pin type: Female
Coupling: Bayonet(B)
Number of cores: 2, 3, 4, 5, 6, 7, 8, 10, 12 pins
Termination way: Solder
Shielded: No

LEARN MORE

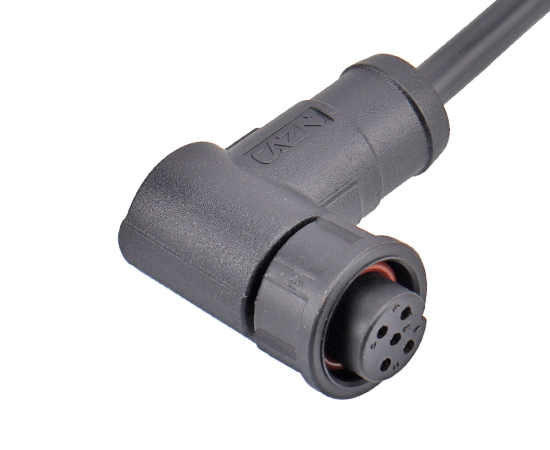

E10 Right Angle Female Overmolded Plug(Bayonet)

Plastic waterproof connector: E10 series
5/8 "-27UNS U.S. standard screw
Structure type: Right Angle Female Overmolded Plug
Pin type: Female
Coupling: Bayonet(B)
Number of cores: 2, 3, 4, 5, 6, 7, 8, 10, 12 pins
Termination way: Solder
Shielded: No

LEARN MORE

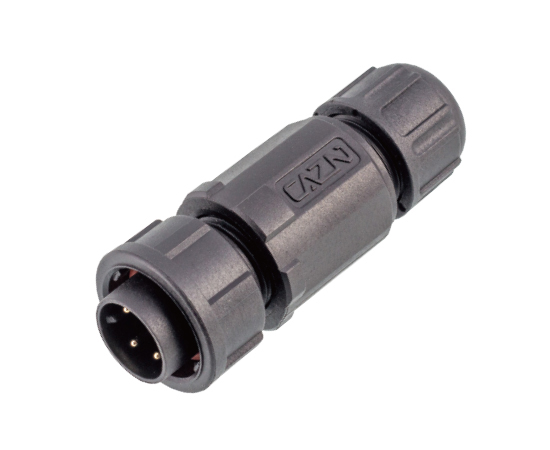

E10 Straight Male Overmolded Mating Plug(Bayonet)

Plastic waterproof connector: E10 series
5/8 "-27UNS U.S. standard screw
Structure type: Straight Overmolded Mating Plug
Pin type: Male
Coupling: Bayonet(B)
Number of cores: 2, 3, 4, 5, 6, 7, 8, 10, 12 pins
Termination way: Solder
Shielded: No

LEARN MORE

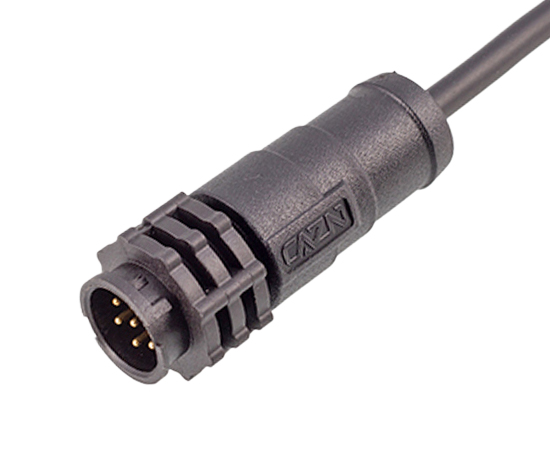

E10 Straight Male Overmolded Plug(Bayonet)

Plastic waterproof connector: E10 series
5/8 "-27UNS U.S. standard screw
Structure type: Straight Overmolded Plug
Pin type: Male
Coupling: (Bayonet)
Number of cores: 2, 3, 4, 5, 6, 7, 8pins
Termination way: Solder
Shielded: No

LEARN MORE

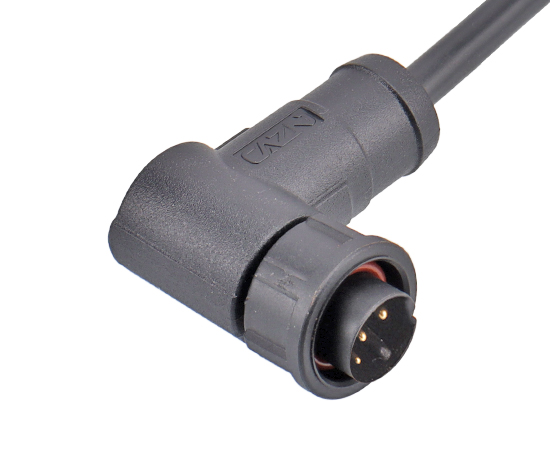

E10 Right Angle Male Overmolded Plug(Bayonet)

Plastic waterproof connector: E10 series
5/8 "-27UNS U.S. standard screw
Structure type: Right Angle Overmolded Plug
Pin type: Male
Coupling: Bayonet(B)
Number of cores: 2, 3, 4, 5, 6, 7, 8pins
Termination way: Solder
Shielded: No

LEARN MORE

Regular products can provide some free samples for testing according to your needs,
and can also provide customized specifications and materials according to your special needs.
