Plastic Angled Plug

PRODUCT CENTER

Plastic Angled Plug

Filter

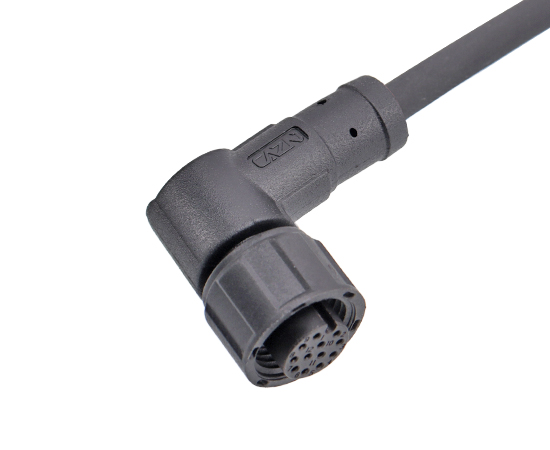

M12 Angled Female Overmolded Plug (Plastic style)

European standard connector: M12 series
Structure type: Curved overmolded plug
Connection method: Solder
Pin type: Female type
Contacts number:2, 3, 4, 5, 6, 8, 12 pins
Wire material: PVC/PUR
Shielded: Two options，Shielded/Unshielded
Cable length: 1M/2M/5M (customizable)
Certification: CE,RoHS,UL
Standard: IEC 61076-2-101

LEARN MORE

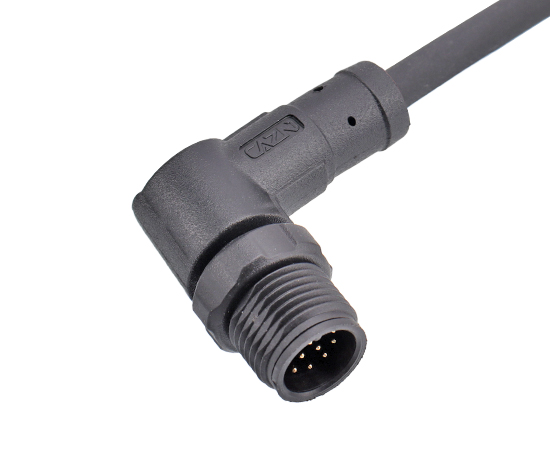

M12 Angled Male Overmolded Plug (Plastic style)

European standard connector: M12 series
Structure type: Curved overmolded plug
Connection method: Solder
Pin type: Male type
Contacts number:2, 3, 4, 5, 6, 8, 12 pins
Wire material: PVC/PUR
Shielded: Two options，Shielded/Unshielded
Cable length: 1M/2M/5M (customizable)
Certification: CE,RoHS,UL
Standard: IEC 61076-2-101

LEARN MORE

Regular products can provide some free samples for testing according to your needs,
and can also provide customized specifications and materials according to your special needs.
