Overview Of CAZN M5 Male Connector

M5 male connector also called male M5 cable connector , can be M5 plug or M5 socket . It’s male type circular connector with 5mm thread and O shape rubber ring to make the male female connection waterproof .

Overview Of CAZN M5 Male Connector

M5 male connector also called male M5 cable connector , can be M5 plug or M5 socket . It’s male type circular connector with 5mm thread and O shape rubber ring to make the male female connection waterproof .

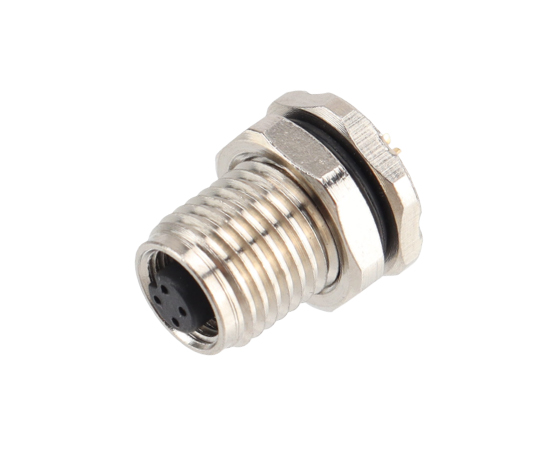

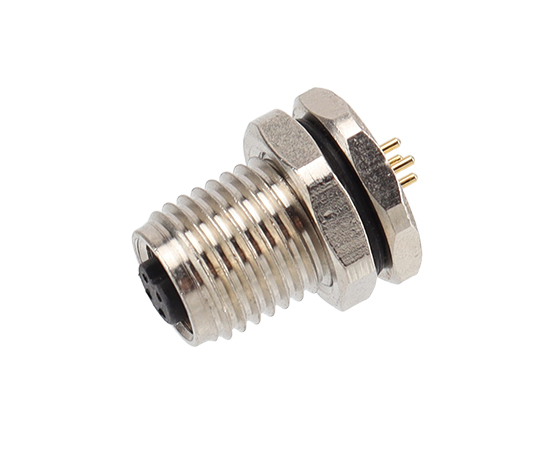

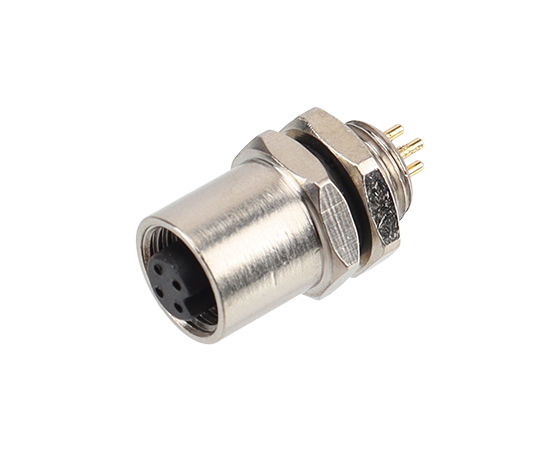

CAZN have 3 type different M5 socket : front mount or back mount and PCB type , the gender of the socket can be male or female , pole number have 3 pole , 4 pole .

The PCB type could be connected to PCB , and others need to be soldered to the wires .

The material of the M5 male connector panel mount socket is copper alloy , thread M5×0.5 , rated current is 1 A , rated voltage 60V , conduct size is 26AWG , or 0.14mm² .

CAZN M5 connector male and female are compatible with other brands , we’re ISO9001 manufacture in China .

European standard connector M5 series, structural type: molded straight plug, pin type: hole type, core number: 3, 4pin, wire: PVC/PUR, shielding: no, wire length: 1/2/5M (customized length), certification: CE, RoHS, UL, standard: IEC 61076-2-104

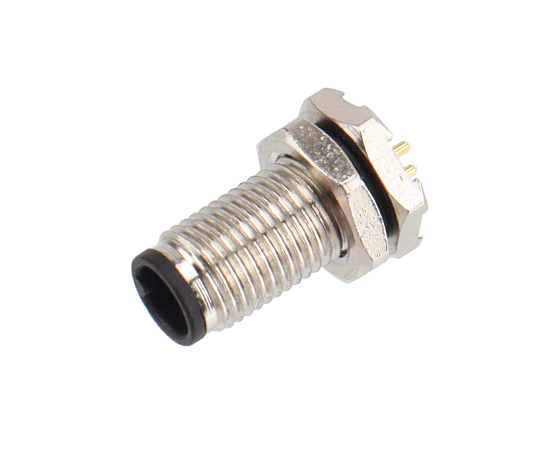

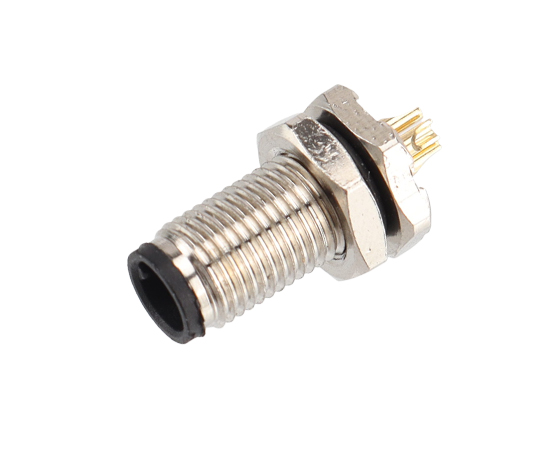

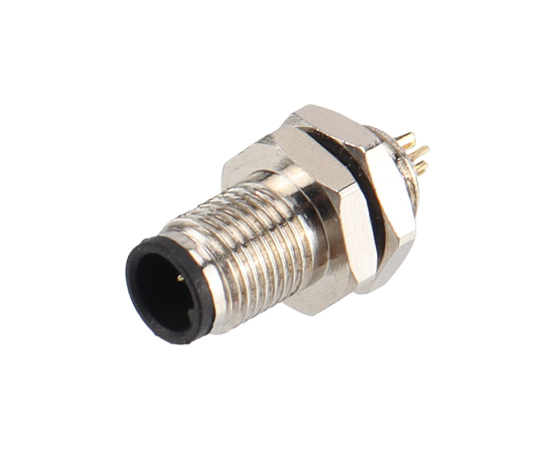

European standard connector M5 series Structure type: Front Mount Socket Pin type: Male Solder Contacts number: 3, 4 pins Cable material: Single wires Shield: No Cable length: 10cm/20cm/30cm (customizable) Certification: CE,RoHS,UL, Standard: IEC 61076-2-104

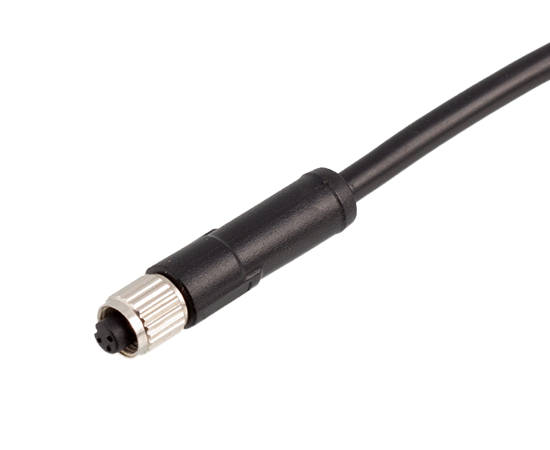

European standard connector M5 series Structure type: Straight Overmolded Plug Pin type: Female Contacts number: 3, 4 pins Cable material: PVC/PUR Shield: No Cable length: 1/2/5Meters (customizable) Certification: CE,RoHS,UL, Standard: IEC 61076-2-104
