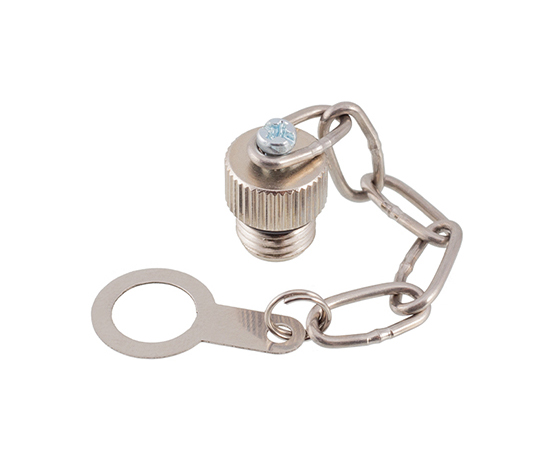

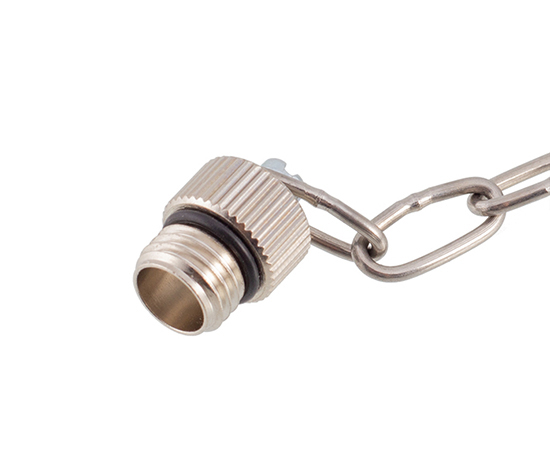

Dust Cover
European standard Connectors M8 Series
Structure type：Dust Cover
Material：Metal
Ring inner diameter: ∅8、∅10、∅12mm
Type: Outer screw
Connection method: Screw
Certification：CE,RoHS,UL
Standard：IEC 61076-2-104
Product information
MECHANICAL PARAMETERS
PRODUCT PARAMETERS
| Shell material： | Brass nickel-plated/Zinc alloy nickel-plated |
| Insulator material： | PA66 |
| Sealing material： | Epoxy resin/Rubber |
| Contact material： | Brass/Phosphorus copper gold-plated |
| Waterproof grade： | IP65/IP67 |
| Insulation impedance： | ≥100 mΩ |
| Contact impedance： | ≤5 mΩ |
| Durability： | ≥500 Cycles |
| Applicable temperature： | -25℃ ~ +80℃ |
| Execution standard： | IEC 61076-2-104 |
M8 ELECTRICAL PARAMETERS
Electrical diagram

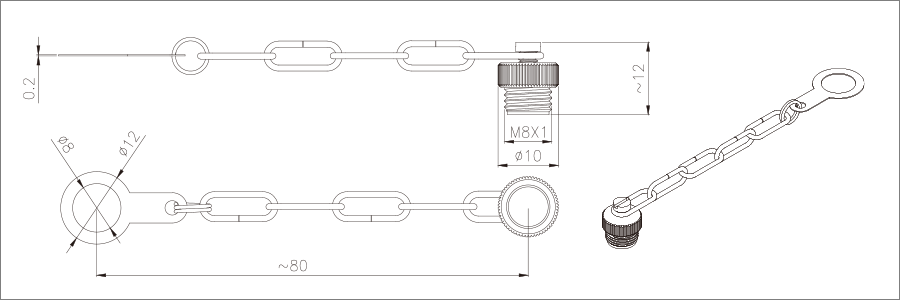

DIMENSION DRAWING
Product Ordering
| Product Name | Product No. | Ring inner diameter | 3D Download | 2D Download |
| M8 Metal Dust Cover (Outer screw, Screw: M8X1、M8X0.5) | M8G-TV1S-8-N | Φ 8mm | ||
M8 Metal Dust Cover (Outer screw, Screw: M10X0.75) | M8G-TV1S-10-N | Φ 10mm | ||
| M8 Metal Dust Cover (Outer screw, Screw: M12X1) | M8G-TV1S-12-N | Φ 12mm |
Downloads
| Product Catalog | CAZN-European Standard Product Selection Manual |
| CAZN Proportional Valve Connector Manual | View |
| CAZN Zhengcheng Vibration Sensor Connector Manual | View |
| CAZN Zhengcheng - Heavy Duty Selection Manual - H2023-2 | View |
| CAZN Zhengcheng Plastic Waterproof Connector Selection Brochure-E2024-1 | View |
| CAZN Zhengcheng push-pull self-locking series selection manual T2023-2 | View |
| CAZN Zhengcheng European Standard Connector Selection Brochure-M2023-2 | View |
| CAZN Zhengcheng-RJ45 Industrial Network Signal Plug-2023-2 | View |
| CAZN Zhengcheng NMEA Special Connector-N2023-1 | View |
| CAZN Zhengcheng American standard connector-26482-MD2023-1 | View |
| CAZN-RJ45 Industrial network signal plug-2023-2-English version | View |
| CAZN-Proportional valve dedicated connector 23-1-English version | View |
| CAZN-Connectors for Vibration Sensors 23-1-English version | View |
