Home / Products / Circular Connector / M12 Connector / Front Mount Socket / M12 Male Front Mount Socket Solder Screw M16*1.5/PG9

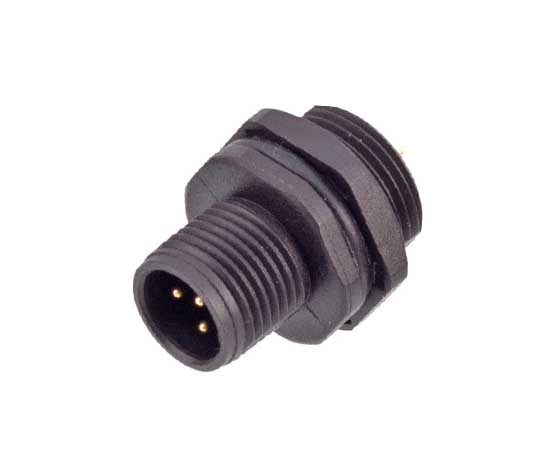

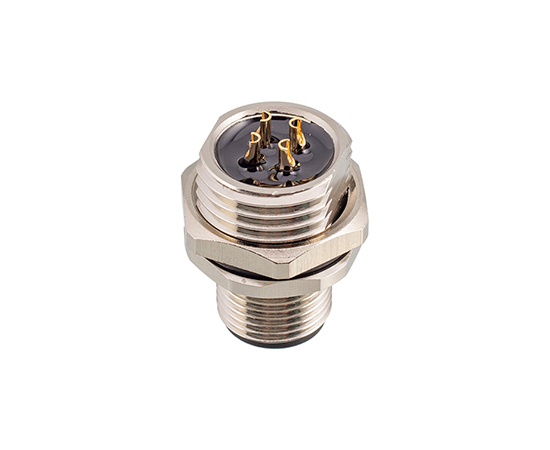

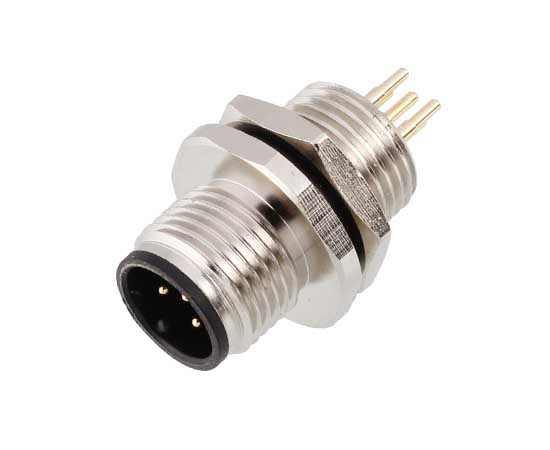

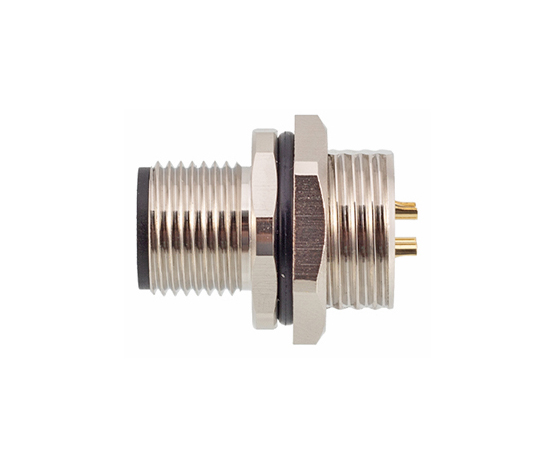

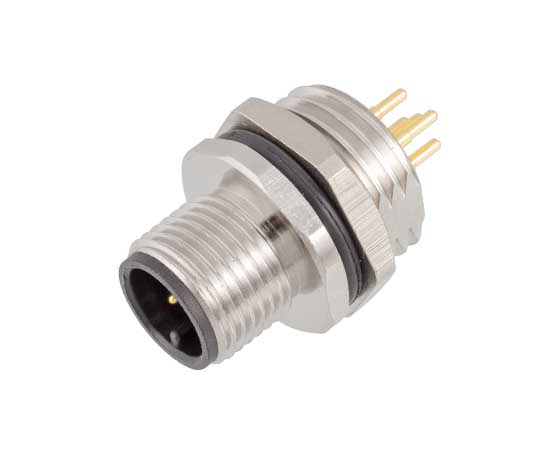

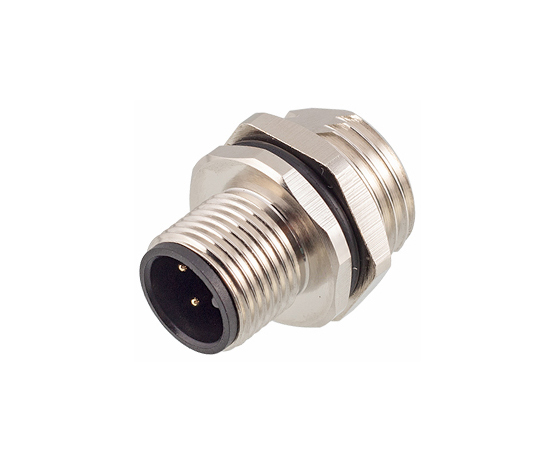

Front Mount Socket
European standard connector: M12 series
Structure type: Front Mount Socket
Connection method: Solder
Pin type: Male
Contacts number:2, 3, 4, 5, 6, 8, 12, 17pins
Shielded: No
Cable length: 10cm/20cm/30cm (customizable)
Certification: CE,RoHS,UL
Standard: IEC 61076-2-101
-
PG9:
-
Merchant Code:
M12-P2A-GWBP9
Product information
PRODUCT PARAMETERS
| Shell material： | Brass nickel-plated/Zinc alloy nickel-plated/PA |
| Insulator material： | PA/TPU |
| Sealing material： | Epoxy resin/Rubber |
| Contact material： | Brass/Phosphorus copper gold-plated |
| Waterproof grade： | IP65/IP67 |
| Insulation impedance： | ≥100 mΩ |
| Contact impedance： | ≤5 mΩ |
| Durability： | ≥500 Cycles |
| Applicable temperature： | -25℃ ~ +80℃ |
| Execution standard： | IEC 61076-2-101 |
M12 ELECTRICAL PARAMETERS
Electrical diagram

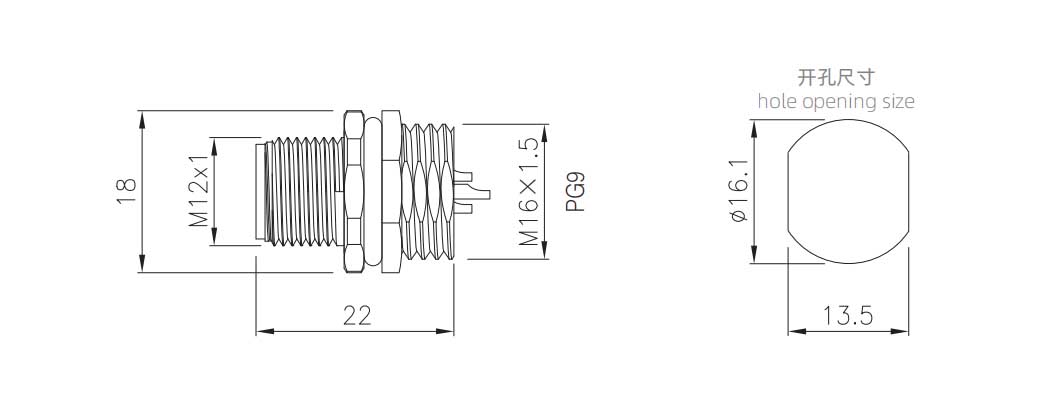

DIMENSION DRAWING
WIRE DEFINITION
Product Ordering
| Product Name | Screw size: M16x1.5 | Screw size: PG9 | Pins | 3D Download | 2D Download |
| M12 Male Front Mount Socket (Solder) | M12-P2A-GWBM16 | M12-P2A-GWBP9 | 2A | ||
| M12 Male Front Mount Socket (Solder) | M12-P3A-GWBM16 | M12-P3A-GWBP9 | 3A | ||
| M12 Male Front Mount Socket (Solder) | M12-P3C-GWBM16 | M12-P3C-GWBP9 | 3C | ||
| M12 Male Front Mount Socket (Solder) | M12-P4A-GWBM16 | M12-P4A-GWBP9 | 4A | ||
| M12 Male Front Mount Socket (Solder) | M12-P4B-GWBM16 | M12-P4B-GWBP9 | 4B | ||
| M12 Male Front Mount Socket (Solder) | M12-P4C-GWBM16 | M12-P4C-GWBP9 | 4C | ||
| M12 Male Front Mount Socket (Solder) | M12-P4D-GWBM16 | M12-P4D-GWBP9 | 4D | ||
| M12 Male Front Mount Socket (Solder) | M12-P5A-GWBM16 | M12-P5A-GWBP9 | 5A | ||
| M12 Male Front Mount Socket (Solder) | M12-P5B-GWBM16 | M12-P5B-GWBP9 | 5B | ||
| M12 Male Front Mount Socket (Solder) | M12-P5C-GWBM16 | M12-P5C-GWBP9 | 5C | ||
| M12 Male Front Mount Socket (Solder) | M12-P5D-GWBM16 | M12-P5D-GWBP9 | 5D | ||
| M12 Male Front Mount Socket (Solder) | M12-P6A-GWBM16 | M12-P6A-GWBP9 | 6A | ||
| M12 Male Front Mount Socket (Solder) | M12-P6C-GWBM16 | M12-P6C-GWBP9 | 6C | ||
| M12 Male Front Mount Socket (Solder) | M12-P8A-GWBM16 | M12-P8A-GWBP9 | 8A | ||
| M12 Male Front Mount Socket (Solder) | M12-P12A-GWBM16 | M12-P12A-GWBP9 | 12A | ||
| M12 Male Front Mount Socket (Solder) | M12-P17A-GWBM16 | M12-P17A-GWBP9 | 17A |
Downloads
| Product Catalog | CAZN-European Standard Product Selection Manual |
| CAZN Proportional Valve Connector Manual | View |
| CAZN Zhengcheng Vibration Sensor Connector Manual | View |
| CAZN Zhengcheng - Heavy Duty Selection Manual - H2023-2 | View |
| CAZN Zhengcheng Plastic Waterproof Connector Selection Brochure-E2024-1 | View |
| CAZN Zhengcheng push-pull self-locking series selection manual T2023-2 | View |
| CAZN Zhengcheng European Standard Connector Selection Brochure-M2023-2 | View |
| CAZN Zhengcheng-RJ45 Industrial Network Signal Plug-2023-2 | View |
| CAZN Zhengcheng NMEA Special Connector-N2023-1 | View |
| CAZN Zhengcheng American standard connector-26482-MD2023-1 | View |
| CAZN-RJ45 Industrial network signal plug-2023-2-English version | View |
| CAZN-Proportional valve dedicated connector 23-1-English version | View |
| CAZN-Connectors for Vibration Sensors 23-1-English version | View |
