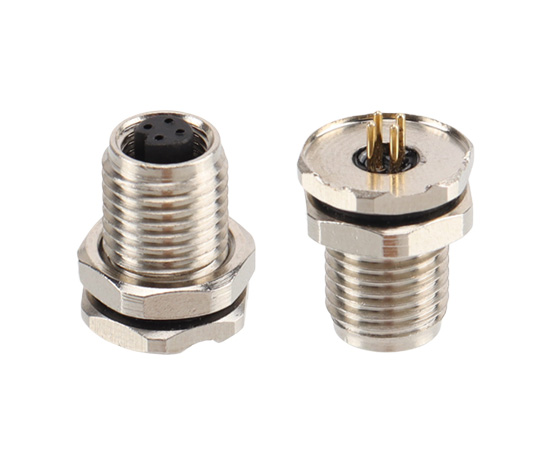

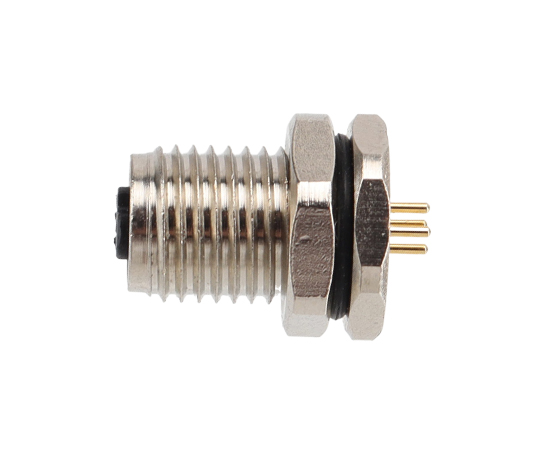

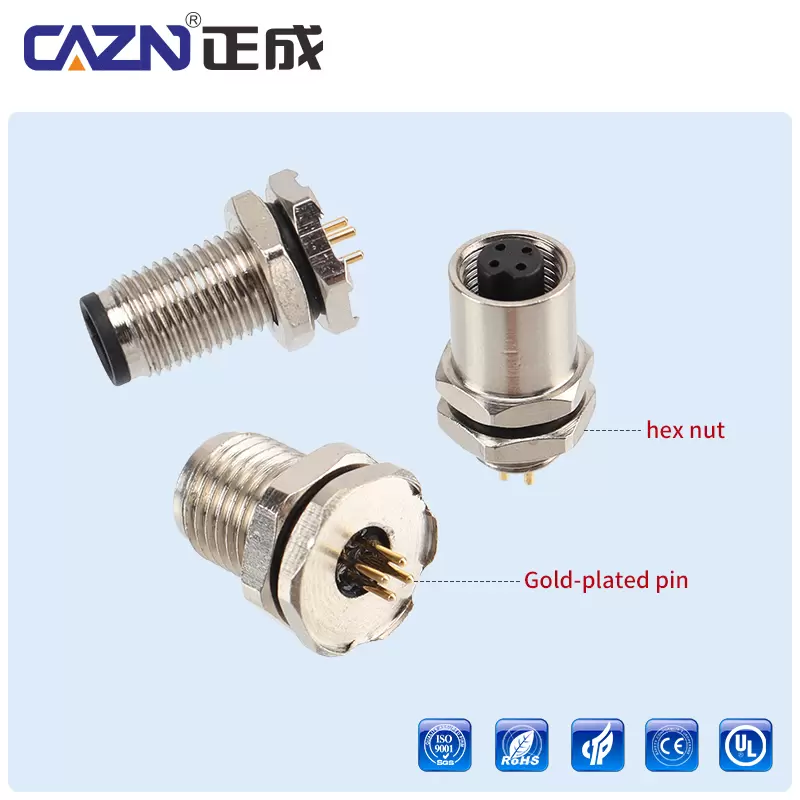

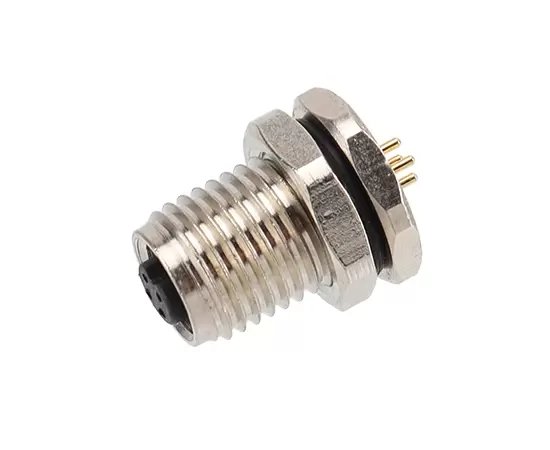

M5 Female Back Mount Socket ( PCB )
<>

European standard connector: M5 series

Structure type: Back Mount Socket

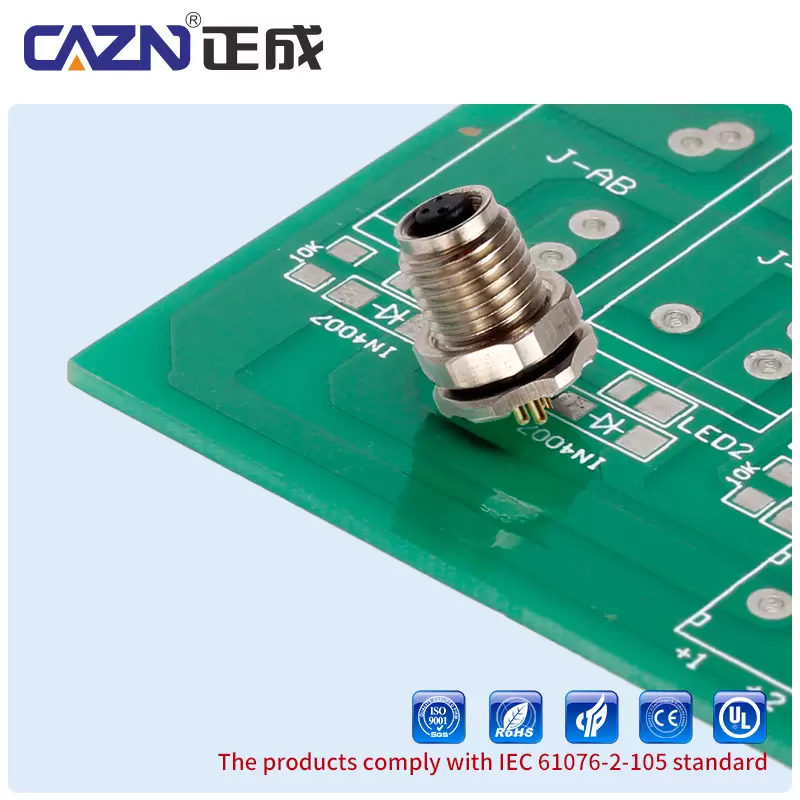

Connection method: PCB

Pin type: Female

Contacts number: 3, 4 pins

Shielded: No

Certification: CE,RoHS,UL

Standard: IEC 61076-2-105


Product information
MECHANICAL PARAMETERS
PRODUCT PARAMETERS
Shell material: Brass nickel-plated
Insulator material: PA66
Sealing material: Epoxy resin/Rubber
Contact material:Phosphorus copper gold-plated/Brass copper gold-plated
Waterproof grade: IP65/IP67
Insulation impedance: ≥100 mΩ
Contact impedance: ≤5 mΩ
Durability: ≥500 Cycles
Applicable temperature: -25℃ ~ +80℃
Execution standard: IEC 61076-2-105
M5 ELECTRICAL PARAMETERS


What is an M5 Connector?

The M5 connector is a type of circular connector that is characterized by its 5mm diameter. It is commonly used in applications where space is limited, yet a reliable connection is required. M5 connectors are typically used for sensor connections, actuators, and other devices in industrial automation, robotics, and IoT (Internet of Things) applications.

In the world of electronics and industrial automation, connectors play a crucial role in ensuring reliable and efficient connections between various components. Among the many types of connectors available, the M5 connector stands out for its compact size and versatility.


Key Features of M5 Connectors:

1. SizeThe M5 connector has a diameter of 5 mm, making it compact and suitable for applications where space is limited.

2. Pin ConfigurationsM5 connectors typically come in various pin configurations, including 2, 3, 4, and 5 pins, allowing for different types of signal and power connections.

3. DurabilityThese connectors are designed to be robust and can withstand harsh environments, making them suitable for industrial applications.

4. SealingMany M5 connectors are available with IP67 or higher ratings, providing protection against dust and water ingress.

5. Applications: M5 connectors are commonly used in sensors, actuators, cameras, and other devices in automation and control systems.

6. Connection TypesThey can be found in both male and female versions, and they often feature screw-lock or push-pull locking mechanisms for secure connections.


Applications of M5 Connectors and Sockets

M5 connectors and sockets are widely used in various industries, including:

Industrial Automation: M5 connectors are commonly used to connect sensors, actuators, and other devices in automated systems, ensuring reliable data transmission and control.

Robotics: In robotic applications, M5 sockets facilitate connections between different components, allowing for efficient communication and control.

IoT Devices: As the demand for IoT solutions grows, M5 connectors are increasingly used in smart devices, enabling seamless connectivity and data exchange.

Automotive: M5 connectors are also found in automotive applications, where they connect various sensors and control units.


Considerations When Choosing M5 Sockets

When selecting M5 sockets for your application, consider the following factors:

Pin Configuration: Ensure that the socket matches the pin configuration of the M5 plug you intend to use.

Environmental Ratings: Check the environmental ratings of the sockets to ensure they can withstand the conditions of your application.

Mounting OptionsConsider how the sockets will be mounted in your system, whether through panel mounting or cable assembly.

Compatibility: Ensure that the M5 sockets are compatible with the devices and systems you are using.


Conclusion

M5 connectors and sockets are essential components in modern electronic and industrial applications. Their compact size, durability, and versatility make them ideal for a wide range of uses, from industrial automation to IoT devices. By understanding the features and applications of M5 sockets, you can make informed decisions when selecting connectors for your projects, ensuring reliable and efficient connections that meet your specific needs.


If you have questions about specific applications or usage scenarios for M5 connectors, please provide more details and feel free to contact us.

Electrical diagram

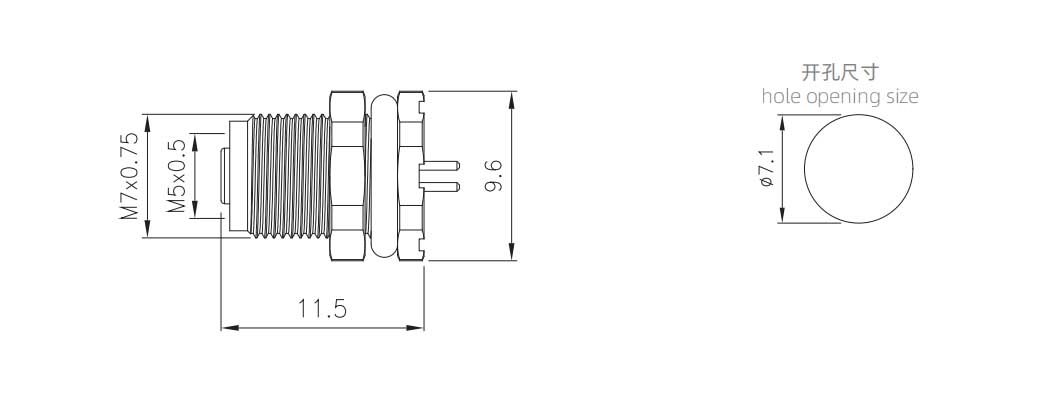

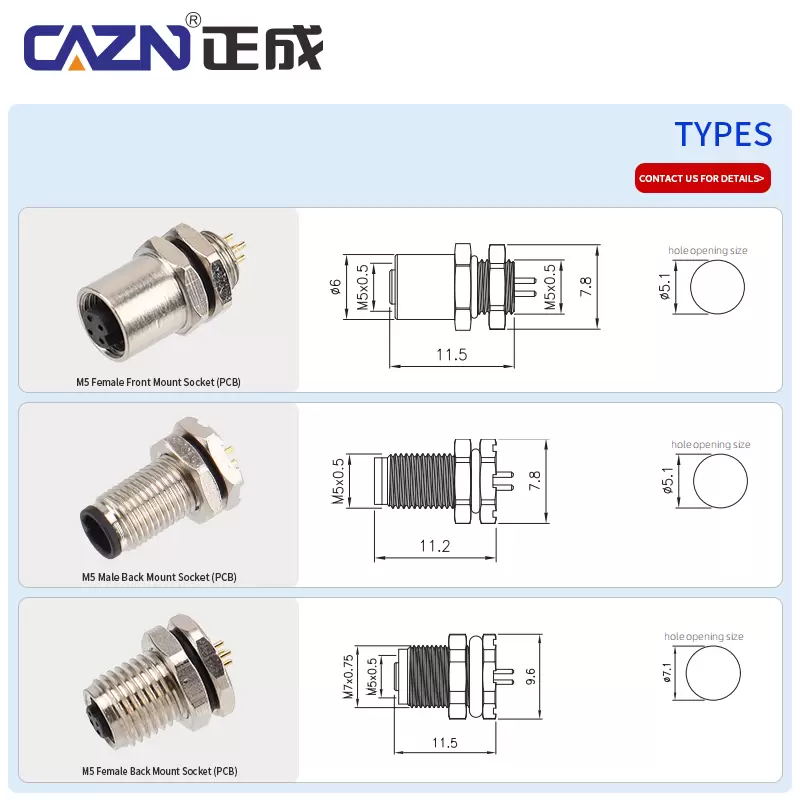

DIMENSION DRAWING

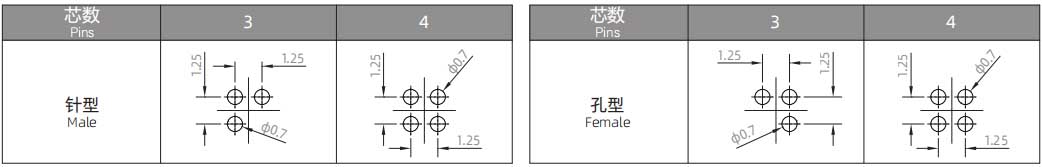

M5 PCB PINS ARRANGEMENT

Product Ordering
Product Name Product No. Pins 3D Download 2D Download
M5 Female Back Mount Socekt(PCB) M5-S3-GPFM7 3
M5 Female Back Mount Socekt(PCB)M5-S4-GPFM7 4
