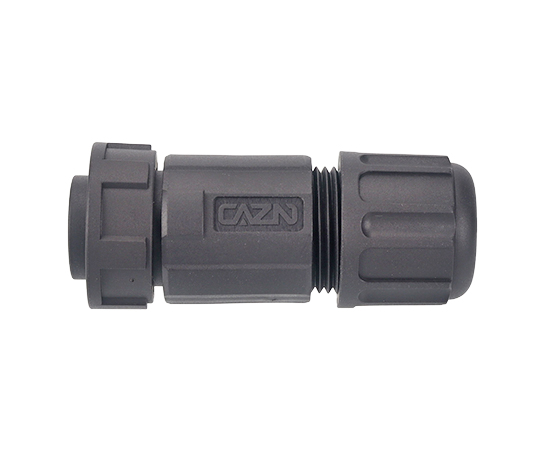

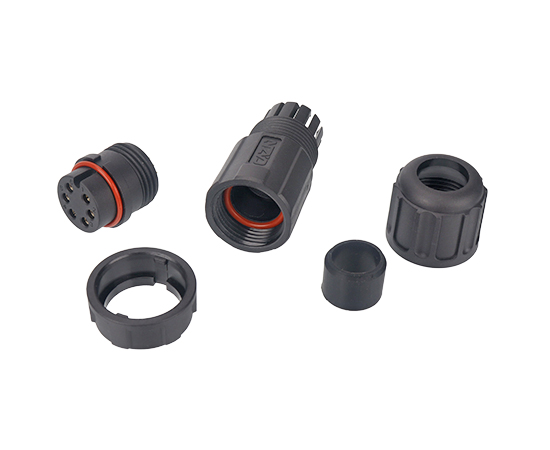

Plug(Bayonet)
Plastic waterproof connector: E16 series
1"-20UNEF U.S. standard screw
Structure type: Straight Assembled Plug
Pin type: Female
Coupling: Bayonet(B)
Number of cores: 2, 3, 4, 5, 6, 7, 18, 20, 21, 22pins
Termination way: Solder
Shielded: No
Certification: CE、RoHS
Product information
PRODUCT PARAMETERS
| Shell material： | Thermoplastic plastic PA66, flame retardand grade: V-0 |
| Contact material： | Copper gold-plated |
| Pins number： | 2-22 pins，Current: high current、low current and Mix-current |
| Coupling: | Bayonet(B) |
| Termination Way: | Solder |
| Insulation impedance： | 2000 mΩ |
| Cable diameter: | 6.0mm~13.0mm |
| Durability： | ≥500 Cycles |
| Applicable temperature： | -40℃ ~ +105℃ |
| Waterproof grade： | IP67，IP68 |
| Screw size: | 1"-20UNEF |
E16 ELECTRICAL PARAMETERS
Electrical diagram

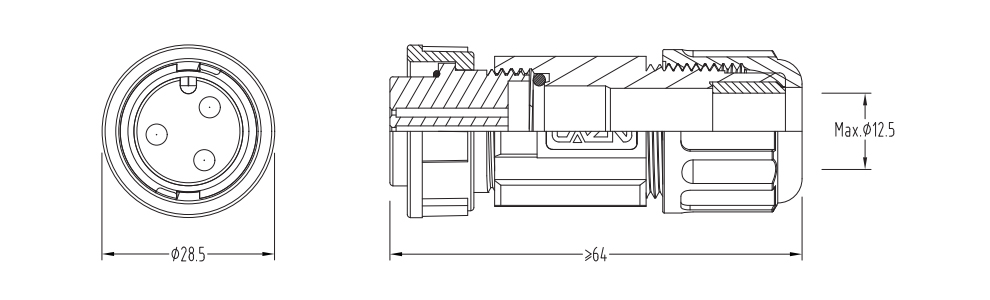

DIMENSION DRAWING
Product Ordering
| Product Name | Rated Voltage | Rated Current | P/N | Pins | 3D Download | 2D Download |
| E16 Straight Female Field Installable Plug(Bayonet) | 250~500V | 20A | E16B-S2-PWA12.5 | 2 | ||
| E16 Straight Female Field Installable Plug(Bayonet) | 250~500V | 20A | E16B-S3-PWA12.5 | 3 | ||
| E16 Straight Female Field Installable Plug(Bayonet) | 250~500V | 20A | E16B-S4-PWA12.5 | 4 | ||
| E16 Straight Female Field Installable Plug(Bayonet) | 250V | 20A | E16B-S5-PWA12.5 | 5 | ||
| E16 Straight Female Field Installable Plug(Bayonet) | 250V | 20A | E16B-S6-PWA12.5 | 6 | ||
| E16 Straight Female Field Installable Plug(Bayonet) | 250V | 20A | E16B-S7-PWA12.5 | 7 | ||
| E16 Straight Female Field Installable Plug(Bayonet) | 50V | 5A | E16B-S18-PWA12.5 | 18 | ||
| E16 Straight Female Field Installable Plug(Bayonet) | 50V | 2A | E16B-S20-PWA12.5 | 20 | ||
| E16 Straight Female Field Installable Plug(Bayonet) | 50V | 2A | E16B-S21-PWA12.5 | 21 | ||
| E16 Straight Female Field Installable Plug(Bayonet) | 50V | 2A | E16B-S22-PWA12.5 | 22 |
Downloads
| Product Catalog | CAZN-European Standard Product Selection Manual |
| CAZN Proportional Valve Connector Manual | View |
| CAZN Zhengcheng Vibration Sensor Connector Manual | View |
| CAZN Zhengcheng - Heavy Duty Selection Manual - H2023-2 | View |
| CAZN Zhengcheng Plastic Waterproof Connector Selection Brochure-E2024-1 | View |
| CAZN Zhengcheng push-pull self-locking series selection manual T2023-2 | View |
| CAZN Zhengcheng European Standard Connector Selection Brochure-M2023-2 | View |
| CAZN Zhengcheng-RJ45 Industrial Network Signal Plug-2023-2 | View |
| CAZN Zhengcheng NMEA Special Connector-N2023-1 | View |
| CAZN Zhengcheng American standard connector-26482-MD2023-1 | View |
| CAZN-RJ45 Industrial network signal plug-2023-2-English version | View |
| CAZN-Proportional valve dedicated connector 23-1-English version | View |
| CAZN-Connectors for Vibration Sensors 23-1-English version | View |
