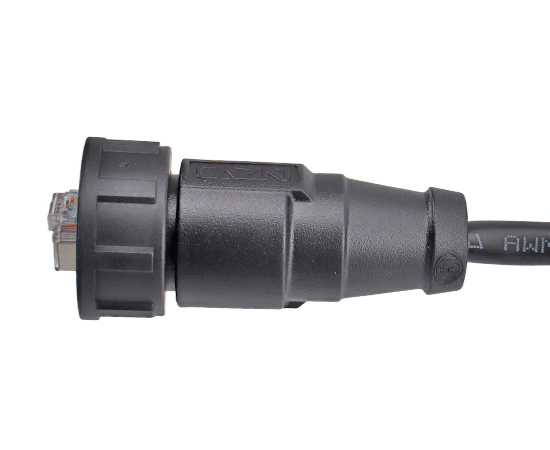

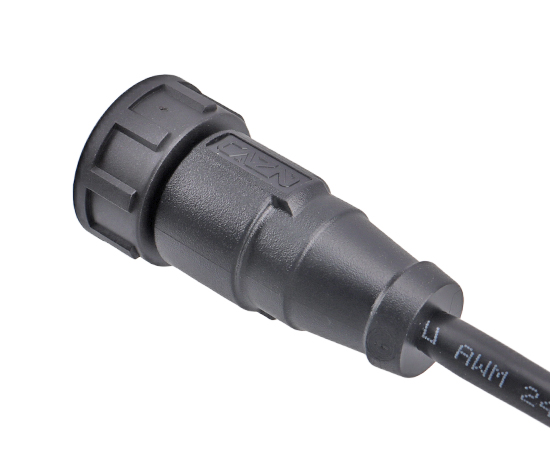

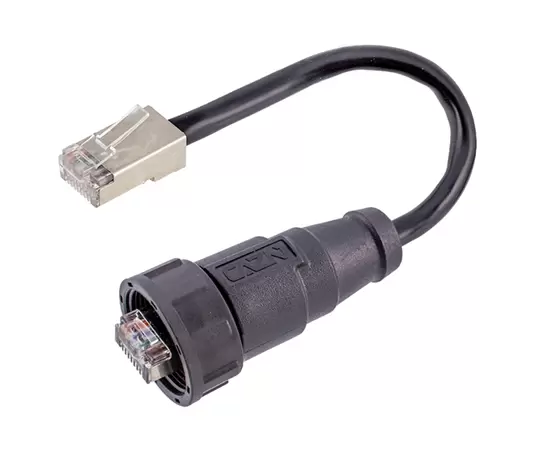

Overmolded Plug
Plastic waterproof connector: E-RJ45 series
Structure type: RJ45 Straight Overmolded Plug
Pin type: Male
Coupling: Threaded(T)
Standard: CAT5e, CAT6a
Shielded: Yes
Certification: CE、RoHS
Product information
PRODUCT PARAMETERS
| Shell material： | Thermoplastic plastic PA66, flame retardand grade: V-0 |
| Contact material： | Phosphorus copper gold-plated |
| Sealing material： | Epoxy resin/Rubber |
| Conform standard: | CAT5e, CAT6a |
| Durability： | ≥750 Cycles |
| Contact impedance： | ≤5mΩ |
| Wiring range: | 5.5mm~7.0mm |
| Waterproof grade： | IP67 |
| Applicable temperature： | -30℃ ~ +105℃ |
Electrical diagram

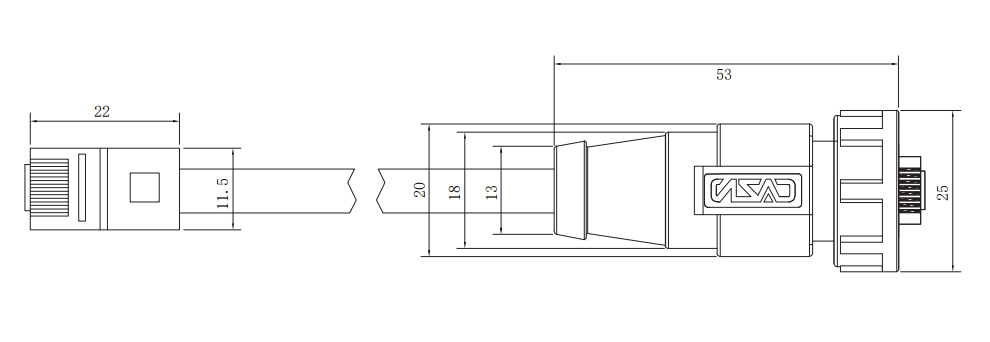

DIMENSION DRAWING
Product Ordering
| Product Name | Specification | Wire Length | P/N | 3D Download | 2D Download |
| RJ45 Straight Male Overmolded Plug(Threaded) | 5E | 0.5M | E13T-MR5-MCA/NCA-0.5PV-S | ||
| RJ45 Straight Male Overmolded Plug(Threaded) | 5E | 1M | E13T-MR5-MCA/NCA-1PV-S | ||
| RJ45 Straight Male Overmolded Plug(Threaded) | 5E | 2M | E13T-MR5-MCA/NCA-2PV-S |
*If need to order other collocation or wire, please consult customer service
