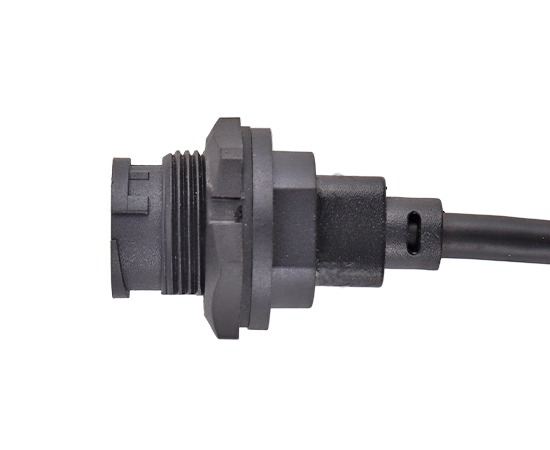

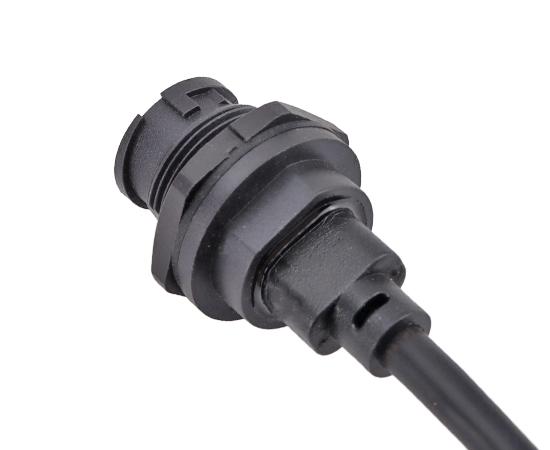

Micro USB Plug
Plastic waterproof connector：Micro USB series
Structure type: Back Mount Receptacle
Gender: Female to USB Male with cable
Coupling: Bayonet(B)
Standard: USB2.0
Shielded: Customization
Certification: CE、RoHS
Product information
PRODUCT PARAMETERS
| Shell material: | Thermoplastic plastic PA66, flame retardant grade: V-0 |
| Contact material: | Brass |
| Cable material: | PVC |
| Coupling: | Thread (T); Bayonet(B) |
| Waterproof grade: | IP67，IP68 |
| Rated voltage | 30V |
| Rated current | 1.5A |
| Insulation resistance: | 2000 mΩ |
| Applicable temperature: | -40℃ ~ +105℃ |
| Durability: | ≥500(Cycles) |
Electrical diagram

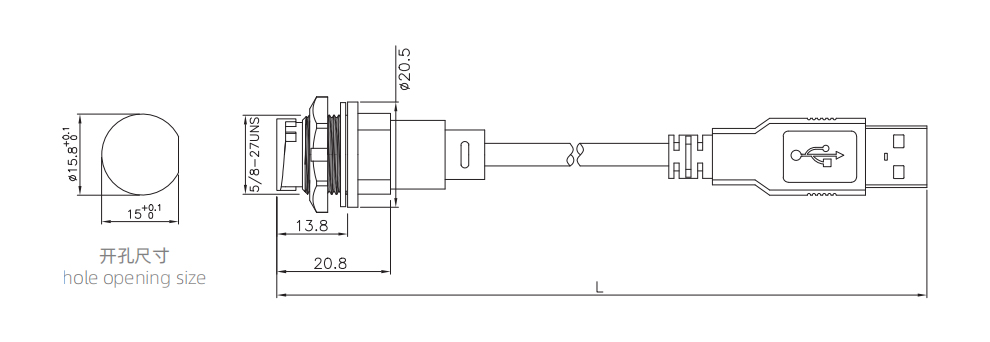

DIMENSION DRAWING
Product Ordering
| Product Name | Shielded | Wire Length | P/N | 3D Download | 2D Download |
| MICRO USB Female Back mount Receptacle to USB 2.0 Male Overmolded Cable(Bayonet) | YES | 0.3M | E10B-FUM-PWF/MU2-NWA-0.3PV-S | ||
| MICRO USB Female Back mount Receptacle to USB 2.0 Male Overmolded Cable(Bayonet) | YES | 0.5M | E10B-FUM-PWF/MU2-NWA-0.5PV-S | ||
| MICRO USB Female Back mount Receptacle to USB 2.0 Male Overmolded Cable(Bayonet) | YES | 1M | E10B-FUM-PWF/MU2-NWA-1PV-S |
*If need to order other collocation or wire, please consult customer service
