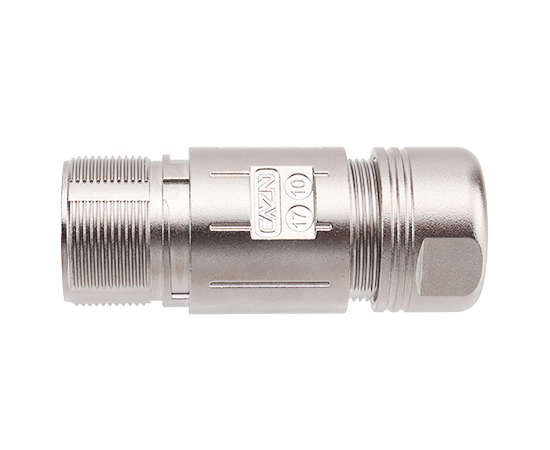

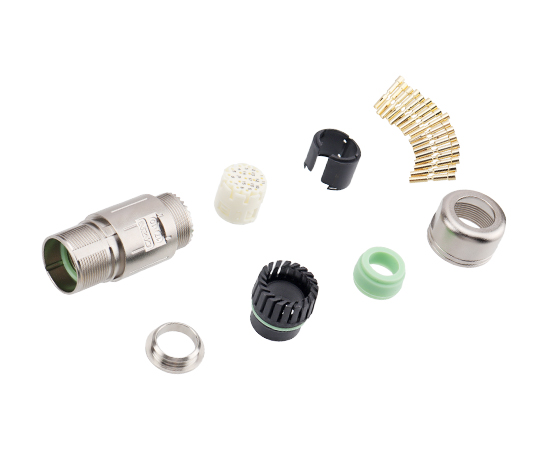

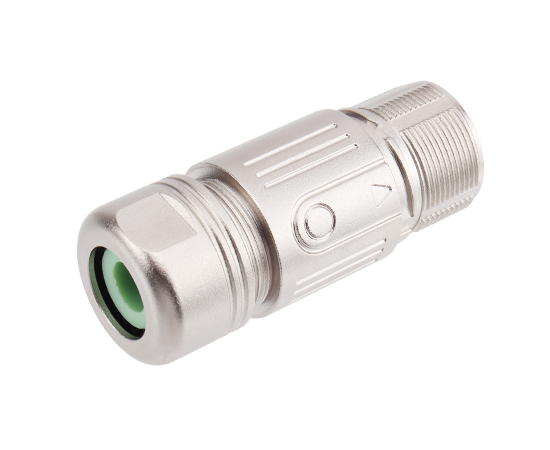

M623 Signal Plug
European standard connector: M23 Series, Signal Type
Structure type: Straight Mating Metal Assembled Plug
Connection method: Crimp
Pin type: Male
Contacts number: 6, 7, 9, 12, 17 pins
Shielded: Yes
Certification: CE, RoHS, UL
-
Insert Type:
-
Merchant Code:
M623-P6P-GCKP11
Product information
PRODUCT PARAMETERS
| Shell material： | Bass nickel plated |
| Insulator material： | PBT/PA66 |
| Sealing material： | Epoxy resin/Rubber |
| Contact material： | Brass/Phosphorus copper gold-plated |
| Waterproof grade： | IP67 |
| Wiring range： | 6~10mm |
| Contact impedance： | ≤5 mΩ |
| Durability: | ≥ 500 cycles |
| Applicable temperature： | -40℃ ~ +125℃ |
M623 SIGNAL TYPE ELECTRICAL PARAMETERS
Electrical diagram

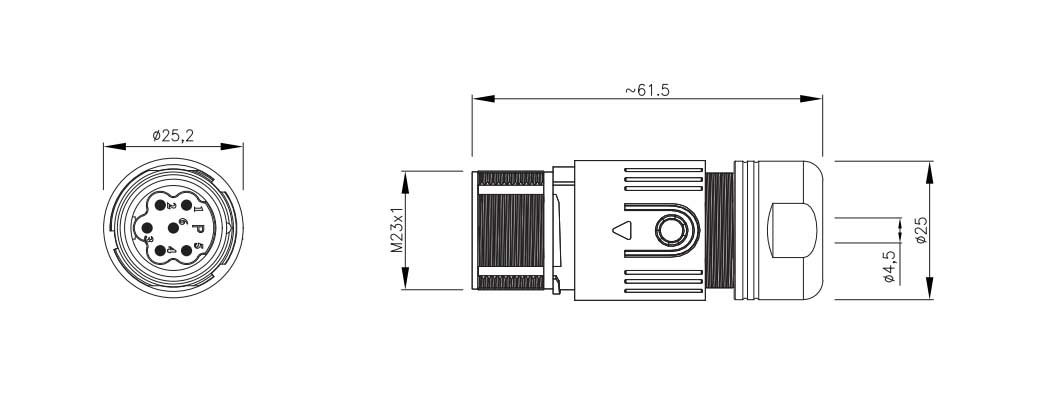

DIMENSION DRAWING
M623 WIRE DEFINITION
Product Ordering
| Product Name | Product No. P-Code | Product No. E-Code | Pins | 3D Download | 2D Download |
| M623 Signal Straight Mating Male Metal Assembled Plug（Crimp） | M623-P6P-GCKP11 | M623-P6E-GCKP11 | 6 Pin | ||
| M623 Signal Straight Mating Male Metal Assembled Plug（Crimp） | M623-P7P-GCKP11 | M623-P7E-GCKP11 | 7 Pin | ||
| M623 Signal Straight Mating Male Metal Assembled Plug（Crimp） | M623-P9P-GCKP11 | M623-P9E-GCKP11 | 9 Pin | ||
| M623 Signal Straight Mating Male Metal Assembled Plug（Crimp） | M623-P9PP-GCKP11 | M623-P9PE-GCKP11 | 9P Pin | ||
| M623 Signal Straight Mating Male Metal Assembled Plug（Crimp） | M623-P12P-GCKP11 | M623-P12E-GCKP11 | 12 Pin | ||
| M623 Signal Straight Mating Male Metal Assembled Plug（Crimp） | M623-P17P-GCKP111 | M623-P17E-GCKP111 | 17 Pin |
