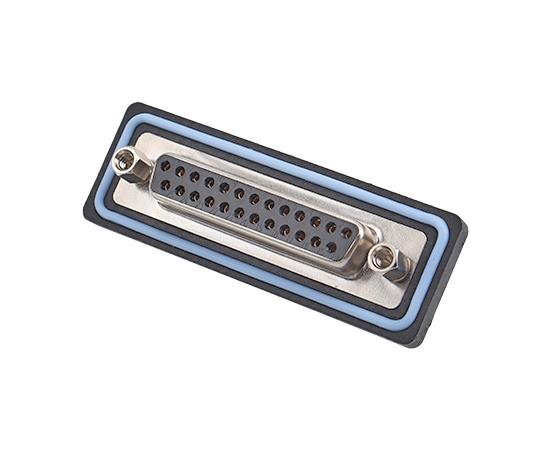

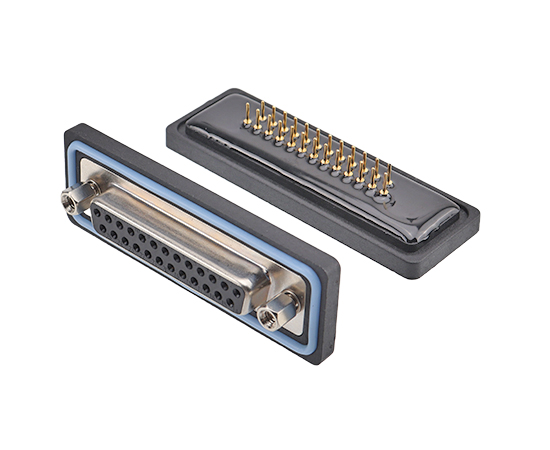

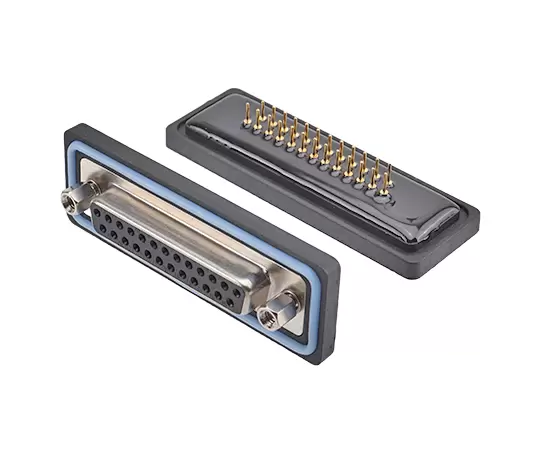

Home / Products / E Waterproof Connector / D-SUB / EDB3 Socket / EDB3-Straight Female Socket(PCB)

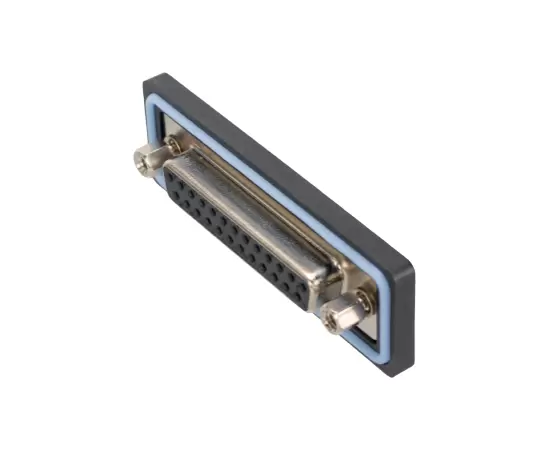

EDB3 Socket
Plastic waterproof connector：EDB series
Structure type: Straight Female Socket
Gender: Female
Termination：PCB
Number of cores: 25, 44H, 5W5, 9W4, 13W3, 17W2, 21W1 pins
Shielded: Yes/NO
Certification: CE、RoHS
Product information
PRODUCT PARAMETERS
| Rated current： | 10A/20A/30A/40A |
| Rated voltage： | 1000 V |
| Withstand voltage： | 500 V |
| Insulation resistance： | 5000 MΩ |
| Contact resistance： | 10 mΩ |
| Pulling and unplug force： | Products comply with IEC60807-3 |
| Wiring bound： | 8mm~14mm |
| Durability： | ≥500(Cycles) |
| Applicable temperature: | 55℃ ~ +105℃ |
| Product size： | Size1, 2, 3, 4 with four different shell sizes |
| Waterproof grade : | IP65/IP67 |
Electrical diagram

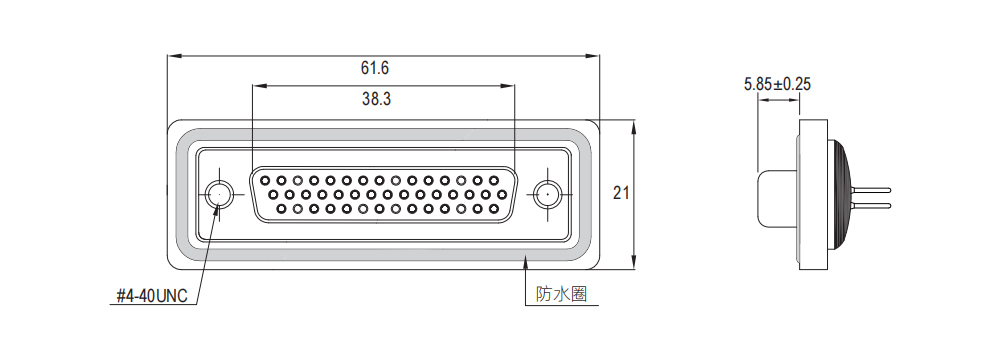

DIMENSION DRAWING
Product Ordering
| Product Name | Pins | Max Pi Wire gauge | Rated current | Model-Shielded | 3D Download | 2D Download |
EDB3-Straight Female socket(PCB) | 25 | 20 AWG | 5A | E-DB3-F25-PPA-N | ||
| EDB3-Straight Female socket(PCB) | 5W5 | 10 AWG | 20A | E-DB3-F5W5-PPA10-N | ||
| EDB3-Straight Female socket(PCB) | 9W4 | 10 AWG | 20A | E-DB3-F9W4-PPA10-N | ||
| EDB3-Straight Female socket(PCB) | 13W3 | 10 AWG | 20A | E-DB3-F13W3-PPA10-N | ||
| EDB3-Straight Female socket(PCB) | 17W2 | 10 AWG | 20A | E-DB3-F17W2-PPA10-N | ||
| EDB3-Straight Female socket(PCB) | 21W1 | 10 AWG | 20A | E-DB3-F21W1-PPA10-N |
*If need to order other collocation or wire, please consult customer service
