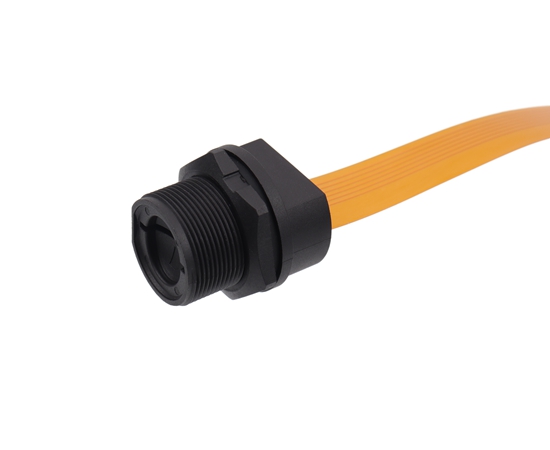

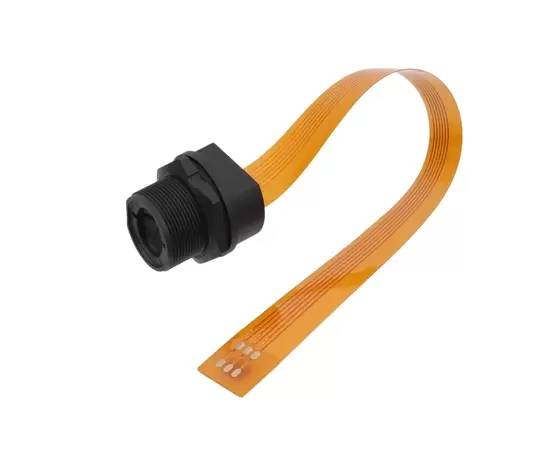

E-Mini SIM Female Back Mount Solder Receptacle Threaded

Home / Products / E Connector / E-TF/SIM / E-SIM Card Board / E-Mini SIM Female Back Mount Solder Receptacle(Threaded)

PRODUCT CENTER

E-SIM Card Board

E-Mini SIM Female Back Mount Solder Receptacle(Threaded)

E-Mini SIM Female Back Mount Solder Receptacle(Threaded)

Plastic waterproof connector：E-Mini SIM Board

Structure type: Back Mount Socket

Gender: SIM Female Back Mount to FPC Type

Coupling: Threaded(T)

Gender: Female

Cable Length: Customization

Certification: CE、RoHS

Cable length:
0.2M
Merchant Code:
E13T-FSM-PWF/MSM-NRA-0.2FPC-01

INQUIRY

DOWNLOAD

Product information

MECHANICAL PARAMETERS

PRODUCT PARAMETERS

Shell material:	Thermoplastic plastic PA66, flame retardant grade: V-0
Conductor material:	Brass
Coupling:	Thread (T)
Waterproof grade:	IP67，IP68
Durability:	≥500 Cycles
Rated voltage	30V AC
Rated current	≥0.5A
Insulation resistance:	1000 mΩ
Applicable temperature:	-40℃ ~ +105℃
Withstand Voltage:	500V AC/min

Electrical diagram

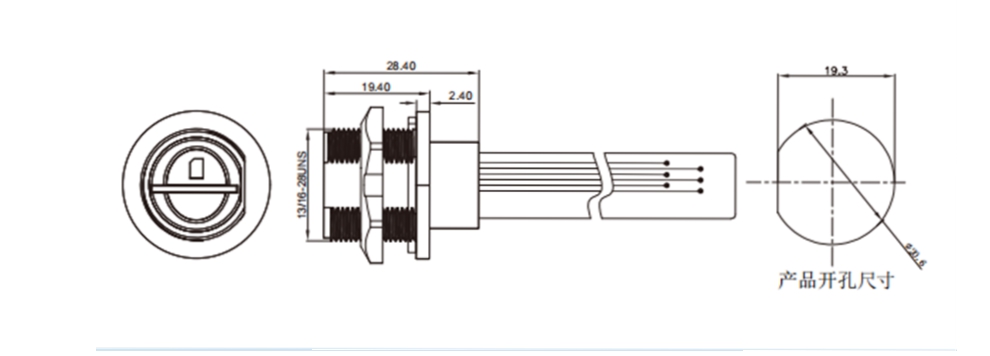

DIMENSION DRAWING

Product Ordering

Product Name	Wire Length	P/N	3D Download	2D Download
E-Mini SIM Female Back Mount Solder Receptacle(Threaded)	0.2M	E13T-FSM-PWF/MSM-NRA-0.2FPC-01

*If need to order other collocation or wire, please consult customer service
