M8 Angled Male Back Mount Plastic Socket(PCB, Screw M8*1, Plastic)
Home / Products / Circular Connector / M8 / Angled Socket / M8 Angled Male Back Mount Socket(PCB, Screw M8*1, Grounded type)

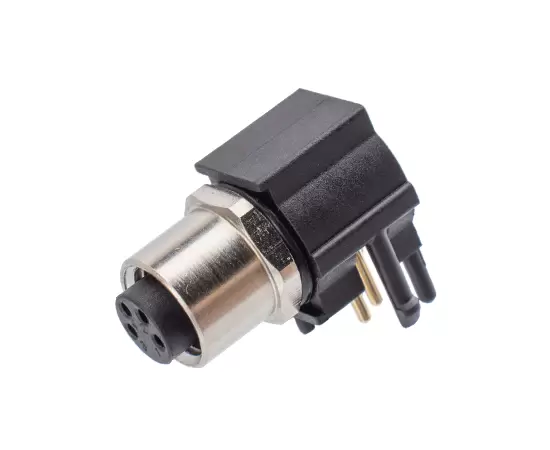

M8 Angled Male Back Mount Socket(PCB, Screw M8*1, Grounded type)
2025-02-27
PRODUCT PARAMETERS
| Shell material： | Brass nickel-plated/Zinc alloy nickel-plated |
| Insulator material： | PA66 |
| Sealing material： | Epoxy resin/Rubber |
| Contact material： | Brass/Phosphorus copper gold-plated |
| Waterproof grade： | IP65/IP67 |
| Insulation impedance： | ≥100 mΩ |
| Contact impedance： | ≤5 mΩ |
| Durability： | ≥500 Cycles |
| Applicable temperature： | -25℃ ~ +80℃ |
| Execution standard： | IEC 61076-2-104 |
M8 ELECTRICAL PARAMETERS
