How to Choose the Right Custom RF Cable Assembly for Your Project

In today’s fast-evolving industrial and communication sectors, RF (Radio Frequency) cable assemblies play a crucial role in ensuring precise, stable, and high-frequency signal transmission. Whether used in telecommunication systems, smart manufacturing, or renewable energy projects, selecting the right custom RF cable assembly is essential for achieving optimal performance and long-term reliability.

CAZN Electronic, a professional enterprise specializing in industrial connection technology, has become a trusted name in the field of RF connectivity. With applications spanning wind power generation, high-speed rail, automotive manufacturing, intelligent transportation, and smart manufacturing, CAZN strictly adheres to IEC, GB/T, and UL standards, delivering products that combine precision, durability, and safety.

This guide will help you understand the key factors to consider when choosing the right custom RF cable assembly for your project.

1. Understand Your Application Requirements

The first step in selecting a suitable RF cable assembly is to clearly define your application needs. Different industries and devices have specific requirements for frequency, impedance, and environmental performance.

Ask yourself these questions before beginning the selection process:

• What is the frequency range of the system?

• What are the signal integrity and attenuation requirements?

• Will the cable operate in a high-vibration or high-temperature environment?

• What are the space and routing limitations within your equipment?

For example, in high-speed rail and automotive manufacturing, RF assemblies must handle vibration, temperature fluctuations, and long operational cycles. CAZN Electronic’s engineering team designs customized assemblies that meet these demanding conditions while ensuring consistent electrical performance.

2. Choose the Appropriate Cable Type

The cable type determines how efficiently signals travel through your system. For high-frequency applications, coaxial cables are the most common choice due to their ability to minimize interference and signal loss.

When choosing the right cable type, consider:

• Frequency Range: Higher frequencies require cables with lower loss characteristics.

• Impedance: Typically 50Ω or 75Ω, depending on the system design.

• Shielding: Double or triple shielding offers superior protection against EMI (electromagnetic interference).

• Flexibility: Flexible cables are ideal for tight installations, while semi-rigid cables provide stability in fixed configurations.

CAZN Electronic’s custom RF cable assemblies are designed with premium coaxial materials and advanced shielding to ensure maximum signal integrity in demanding environments.

3. Select the Right Connector Type

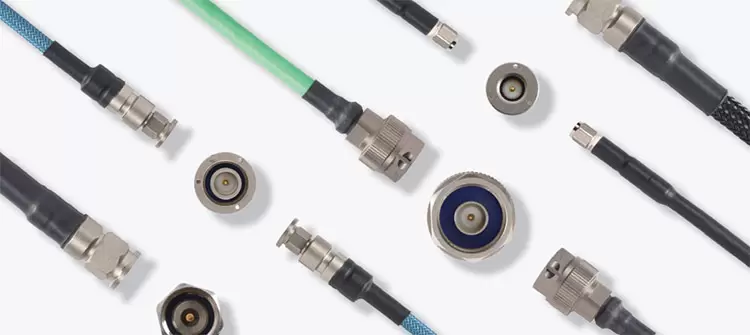

Connectors are critical components in any RF cable assembly, directly influencing signal quality and mechanical durability. Some common connector types include:

• SMA – Compact, high-performance connectors ideal for microwave frequencies.

• N-Type – Robust and weather-resistant, suitable for outdoor or industrial applications.

• BNC – Quick connect/disconnect design for lab and test environments.

• TNC – Threaded version of BNC for improved vibration resistance.

Choosing the right connector ensures compatibility with your equipment and enhances the assembly’s reliability. CAZN Electronic offers a variety of connector types and configurations tailored to meet the specific needs of industrial clients.

4. Evaluate Performance Specifications

To ensure the custom RF cable assembly performs effectively, evaluate the following key specifications:

• Insertion Loss: Lower values indicate better transmission efficiency.

• Return Loss: High return loss values reflect superior impedance matching.

• VSWR (Voltage Standing Wave Ratio): Indicates signal reflection levels—lower is better.

• Power Handling: Determines the assembly’s ability to carry high-frequency power without degradation.

• Phase Stability: Important in systems requiring synchronized signals.

CAZN Electronic performs rigorous quality testing—including impedance, attenuation, and mechanical stress tests—to ensure each cable assembly meets international standards and performs consistently in real-world applications.

5. Consider Environmental Conditions

Industrial RF assemblies are often exposed to harsh conditions such as heat, moisture, vibration, and chemical exposure. Selecting materials that can withstand these challenges is crucial.

Look for the following features:

• Temperature Resistance: Suitable for environments ranging from –40°C to +85°C or higher.

• Corrosion Resistance: Ideal for outdoor or marine applications.

• UV Protection: Prevents degradation when exposed to sunlight.

• Mechanical Durability: Reinforced jackets and strain reliefs to handle physical stress.

CAZN Electronic’s RF cable assemblies are built with high-quality insulation, advanced shielding, and robust outer jackets, ensuring durability and reliability in extreme industrial environments.

6. Ensure Compliance with International Standards

Compliance with international standards ensures safety, performance, and interoperability. CAZN Electronic’s manufacturing process strictly follows IEC, GB/T, and UL guidelines, ensuring that every assembly meets global reliability benchmarks.

This commitment to quality and compliance not only ensures optimal system performance but also helps customers reduce downtime, maintenance costs, and safety risks.

7. Partner with a Reliable Manufacturer

Finally, the success of your RF system depends largely on the expertise and reliability of your manufacturing partner. Partnering with a professional supplier like CAZN Electronic offers several advantages:

• Custom Engineering: Tailored designs that meet specific electrical and mechanical requirements.

• Consistent Quality Control: Advanced testing ensures stable and repeatable performance.

• Global Standard Compliance: Products certified under IEC, GB/T, and UL standards.

• Application Expertise: Proven experience across multiple industries including smart manufacturing, transportation, and renewable energy.

CAZN Electronic’s strong R&D capability and automated production processes make it a trusted partner for enterprises seeking reliable and high-performance RF connectivity solutions.

Conclusion

Choosing the right custom RF cable assembly is vital for ensuring signal integrity, reliability, and efficiency in high-frequency systems. From defining application requirements to selecting the correct cable, connector, and manufacturer, every decision plays a crucial role in system performance.

CAZN Electronic, with its expertise in industrial connection technology and commitment to global standards, provides tailored RF cable assemblies that meet the most demanding industry requirements. By partnering with CAZN, you gain not only high-quality products but also technical excellence and reliable service that drive success across your projects.

Whether you are building next-generation communication systems or optimizing industrial automation, CAZN Electronic’s custom RF cable assemblies ensure you achieve superior performance and lasting reliability.
