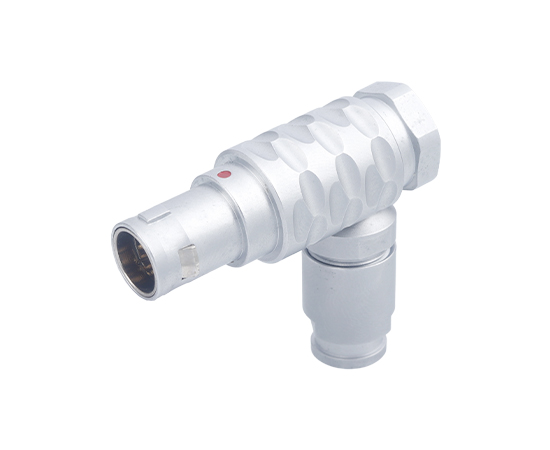

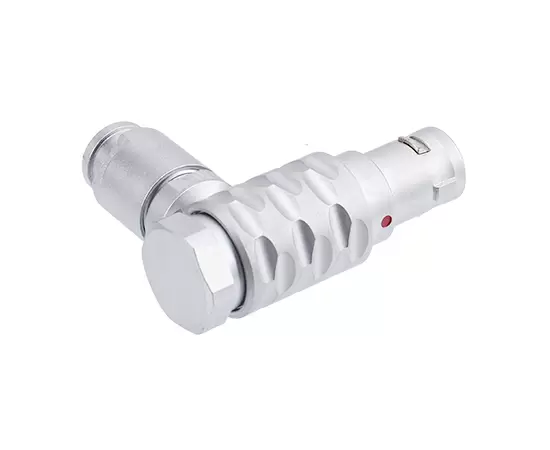

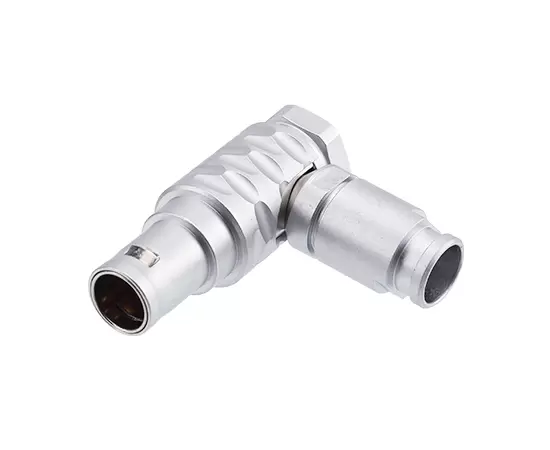

TPG Elbow (90°) Plug
– Quick push-pull self-locking system ;
– Waterproof connection (IP50) ;
– Multipole types 2~32 Contacts ; High-density installtion for space savings
– Multiple Key options to avoid cross mating of similar connectors;
– 360° screening for full EMC protection(Anti-electromagnetic interferenc)
– Connector shape: Bent
– Keying System, "G" key standard for connector alignment
-
Merchant Code:
TPG.00.302.CLAD32
Product information
MECHANICAL PARAMETERS
TECHNICAL PARAMATERS
| Coupling： | Push pull self-locking |
| Operating temperature： | -55℃ ~ +200℃ |
| Humidity： | Up to 95% at 60°C/140°F |
| Anti-vibration performance： | 15g [10-2000 Hz] |
| Impact resistance： | 100g, 6ms |
| Salt spray corrosion test： | >144 h |
| Protection level： | IP50 |
| Insulation impedance： | ≥100 mΩ |
| Shielding performance： | >95dB (10MHz); >80dB (1GHz) |
| Mechanical life： | >5000 Cycles |
Electrical diagram
Dimensions
Product Ordering
Downloads
| Product Catalog | CAZN-European Standard Product Selection Manual |
| CAZN Proportional Valve Connector Manual | View |
| CAZN Zhengcheng Vibration Sensor Connector Manual | View |
| CAZN Zhengcheng - Heavy Duty Selection Manual - H2023-2 | View |
| CAZN Zhengcheng Plastic Waterproof Connector Selection Brochure-E2024-1 | View |
| CAZN Zhengcheng push-pull self-locking series selection manual T2023-2 | View |
| CAZN Zhengcheng European Standard Connector Selection Brochure-M2023-2 | View |
| CAZN Zhengcheng-RJ45 Industrial Network Signal Plug-2023-2 | View |
| CAZN Zhengcheng NMEA Special Connector-N2023-1 | View |
| CAZN Zhengcheng American standard connector-26482-MD2023-1 | View |
| CAZN-RJ45 Industrial network signal plug-2023-2-English version | View |
| CAZN-Proportional valve dedicated connector 23-1-English version | View |
| CAZN-Connectors for Vibration Sensors 23-1-English version | View |
