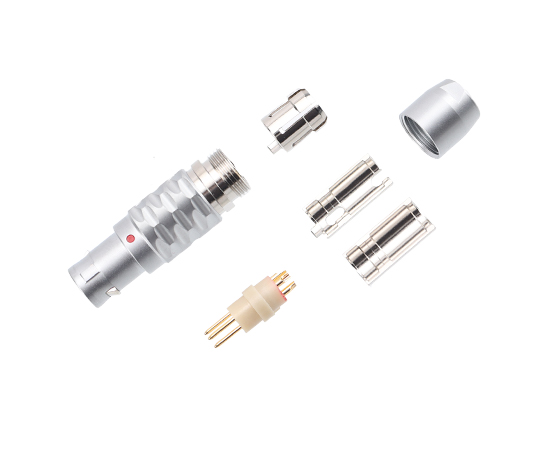

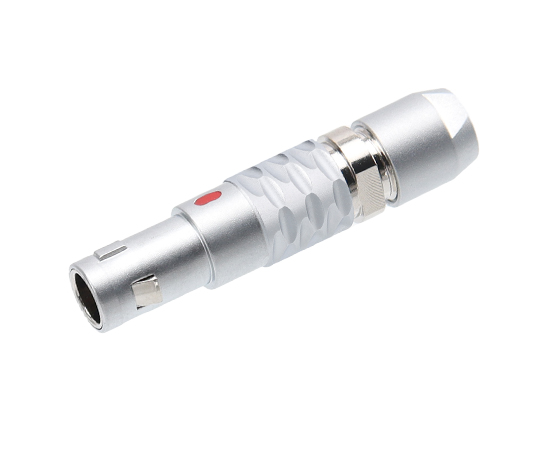

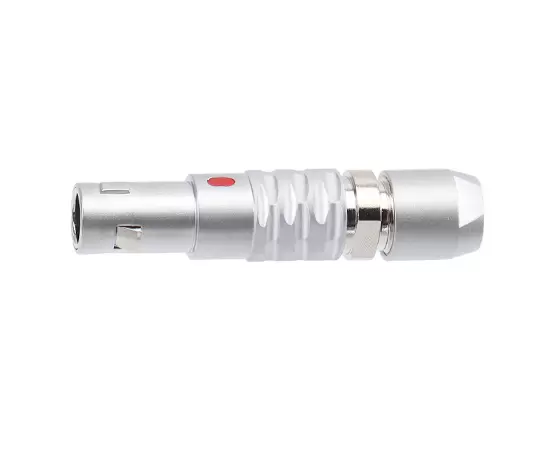

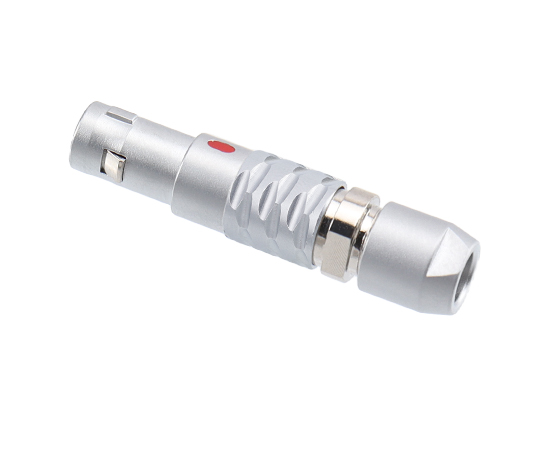

TGG Straight Plug
– Quick push-pull self-locking system
– Waterproof connection (IP50)
– Multipole types 2~32 Contacts，high-density installtion for space savings
– Multiple Key options to avoid cross mating of similar connectors
– 360° screening for full EMC protection(Anti-electromagnetic interference)
– Straight, Right angle
– Keying system, "G" key standard for connector alignment
-
Threaded:
-
Merchant Code:
E13T-VP-ST
Product information
MECHANICAL PARAMETERS
| Shell material： | Thermoplastic plastic PA66, flame retardand grade: V-0 |
| Contact material： | Brass/Phosphorus copper gold-plated |
| Pins number： | 2-12 pins，Current: high current and low current |
| Coupling: | Thread (T); Bayonet(B) |
| Termination Way: | Solder |
| Insulation impedance： | 2000 mΩ |
| Cable diameter: | 4.0mm~8.0mm |
| Durability： | ≥500 Cycles |
| Applicable temperature： | -40℃ ~ +105℃ |
| Waterproof grade： | IP67，IP68 |
| Screw size: | 5/8"-27UNS |
Electrical diagram
DIMENSION DRAWING

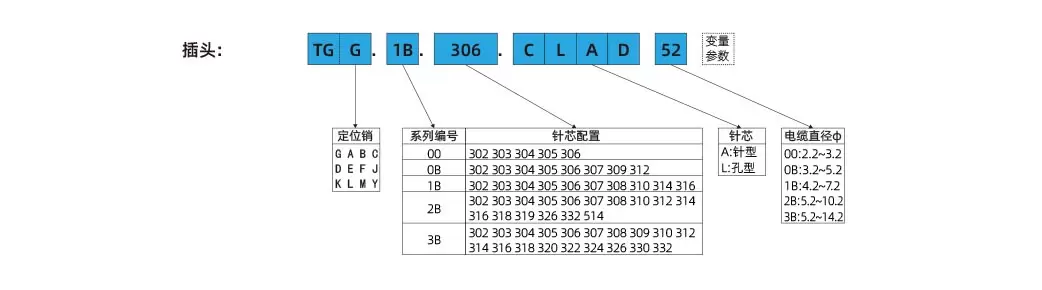

Product Ordering
Downloads
| Product Catalog | CAZN-European Standard Product Selection Manual |
| CAZN Proportional Valve Connector Manual | View |
| CAZN Zhengcheng Vibration Sensor Connector Manual | View |
| CAZN Zhengcheng - Heavy Duty Selection Manual - H2023-2 | View |
| CAZN Zhengcheng Plastic Waterproof Connector Selection Brochure-E2024-1 | View |
| CAZN Zhengcheng push-pull self-locking series selection manual T2023-2 | View |
| CAZN Zhengcheng European Standard Connector Selection Brochure-M2023-2 | View |
| CAZN Zhengcheng-RJ45 Industrial Network Signal Plug-2023-2 | View |
| CAZN Zhengcheng NMEA Special Connector-N2023-1 | View |
| CAZN Zhengcheng American standard connector-26482-MD2023-1 | View |
| CAZN-RJ45 Industrial network signal plug-2023-2-English version | View |
| CAZN-Proportional valve dedicated connector 23-1-English version | View |
| CAZN-Connectors for Vibration Sensors 23-1-English version | View |
