A Complete Guide to M9 Angled Female Metal Plugs: Solder Type, Shielding, and Multi-Pin Options

Industrial equipment is becoming smaller, smarter, and more interconnected. In this landscape, connectors have evolved from simple transmission interfaces to precision components that directly influence system reliability and long-term operational stability. Among the compact industrial connector families, the M9 series stands out for its European standard design, space-efficient structure, and broad applicability across automation, sensors, robotics, transportation, and intelligent manufacturing.

This guide provides a complete, practical overview of M9 Angled Female Metal Plugs, explaining their structural features, advantages, solder-type construction, shielding performance, pin configuration options, and real industry applications. The goal is to help engineers, equipment manufacturers, and system integrators choose the right M9 connector for long-term performance and compliance.

1. Understanding the M9 Series: A European Standard Connector

The M9 connector family follows European industrial interface standards commonly used in compact devices and signal transmission environments. It is designed for:

• Stable signal connections

• Durable cable interfaces

• High vibration resistance

• Space-limited installation scenarios

Compared to larger M12 or M16 connectors, the M9 format is ideal for lightweight sensor systems, compact automation modules, and mobile industrial devices that require a smaller form factor without compromising electrical performance.

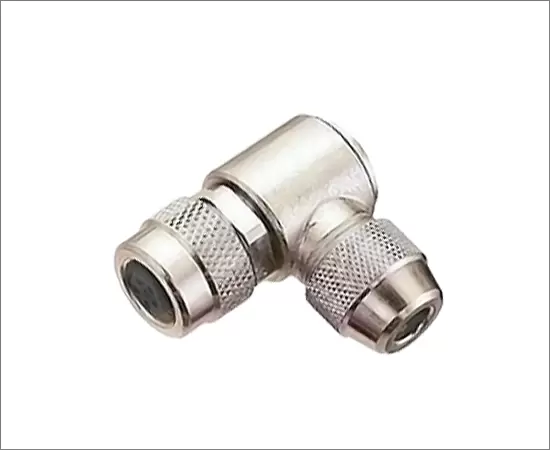

One widely adopted model in this family is the M9 Angled Female Metal Plug, a space-saving connector with a strong metal housing suitable for various industrial electrical equipment.

2. Structural Design: Why the Angled Format Matters

A. Space Optimization

The angled structure allows cables to exit the equipment at a controlled 90-degree angle. This design is essential for:

• Narrow installation enclosures

• High-density equipment layouts

• Cable routing in machinery with moving parts

• Robot joints where cable clearance is limited

By reducing outward protrusion, the angled plug prevents cable bending stress and increases long-term cable life.

B. Assembled Metal Housing

The M9 angled plug uses a metal shell, which provides:

• Excellent mechanical strength

• Improved resistance to vibration

• Protection against accidental impacts

• Better shielding support

In environments such as rail transportation, wind turbines, automotive plants, and industrial automation lines, the metal housing significantly enhances reliability.

C. Maintainability

The assembled structure makes it easier to:

• Inspect solder joints

• Replace internal components

• Perform field maintenance

This reduces equipment downtime, a critical factor in factories operating long hours or continuous production shifts.

3. Solder-Type Construction: Stable and Reliable Signal Transmission

Many industrial connectors offer crimp or screw-type terminations. However, the M9 Angled Female Metal Plug uses a solder connection, which is preferred in high-reliability systems due to its:

• Strong electrical contact

• Resistance to vibration

• Stable long-term performance

• Low contact resistance

• Minimal risk of loosening under mechanical stress

A soldered joint creates a permanent and highly conductive interface between cable and pin. For motion-control systems, sensor interfaces, and compact automation modules, soldering ensures years of stable performance even in vibrating or mobile environments.

4. Shielding: Essential for Harsh Industrial EMC Conditions

Modern European industrial environments involve significant electromagnetic activity from:

• Servo motors

• High-frequency drives

• Power converters

• Communication modules

• Automated welding systems

To maintain signal integrity, the M9 angled female plug is fully shielded, providing:

• Reduced electromagnetic interference (EMI)

• Signal integrity over longer distances

• Reliable communication for sensors

• Compliance with European EMC requirements

This shielding advantage becomes especially important in industries such as wind energy monitoring, rail signaling systems, and automated production lines.

5. Pin Configurations: 2 to 8 Contacts for Versatile Applications

The M9 series provides 2, 3, 4, 5, 6, 7, and 8-pin options, covering a wide range of signal and low-power applications.

Examples of typical use cases include:

2 pins

• Basic power feeds

• Simple indicator devices

3 pins

• Basic sensors

• Temperature and positioning probes

4 pins

• Signal and ground configurations

• RS-485 or balanced communication

5 pins

• Encoders

• Multifunction industrial modules

6–8 pins

• Complex sensor assemblies

• Small automation controllers

• Multi-channel signal systems

This pin flexibility allows engineers to standardize across multiple devices while maintaining compatibility with the same connector family.

6. Certifications: Meeting Global Industrial Requirements

The M9 angled female plug complies with recognized safety and environmental standards:

• CE – European product safety compliance

• RoHS – Restriction of hazardous substances

• UL – International product safety recognition

These certifications ensure that the connector can be integrated into global product lines without additional approval procedures, simplifying procurement and manufacturing.

7. Why Industrial Companies Choose CAZN as Their Connector Supplier

Behind reliable industrial connectors is a manufacturer that understands the demands of automation and harsh operating environments.

Shenzhen CAZN Electronic Co., Ltd. is a specialized enterprise deeply engaged in industrial connection technology. Since its establishment in 2014, CAZN has grown into a recognized supplier in industries such as:

• Wind power generation

• High-speed railway systems

• Automotive manufacturing

• Intelligent transportation

• Smart factories and Industry 4.0 applications

• Unmanned driving systems

CAZN offers advantages such as:

• Complete product lines

• Competitive industrial-grade performance

• Strong R&D capabilities

• Modern manufacturing and quality control

• International system certifications (ISO9001, ISO14001, ISO45001, IATF16949)

• Standardized 6S on-site management

The company also continues to expand its presence in major Chinese cities and deepen partnerships worldwide. With a philosophy of "professional focus on making every product" and a service culture centered on “highest quality, sincere service,” CAZN has earned trust across multiple industrial sectors.

8. Applications Where M9 Angled Female Metal Plugs Deliver Strong Performance

A. Rail and Vehicle Communication Systems

Their shielding and durability make them ideal for monitoring modules, control boxes, and sensor connections on trains and utility vehicles.

B. Wind Power Control and Monitoring

Wind turbines require connectors that withstand vibration and deliver reliable long-distance signal transmission.

C. Factory Automation and Robotics

The angled design prevents cables from interfering with robot movements or automated production units.

D. Automotive Component Manufacturing

Small footprint and robust performance support sensors, actuators, and inspection modules.

E. Testing and Measurement Equipment

Laboratory and field instruments often require compact, shielded connectors for precise signal acquisition.

Across all these applications, the M9 angled plug’s combination of shielding, solder-type stability, and metal housing provides consistent long-term reliability.

9. Choosing the Right M9 Connector for Your System

When selecting an M9 angled female metal plug, consider:

• Required pin count

• Space constraints

• Environmental vibration

• EMC requirements

• Maintenance needs

• Long-term reliability expectations

Conclusion

The M9 angled female metal plug is more than just a space-saving connector. Its soldered construction, multi-pin options, durable metal structure, and strong shielding performance make it well-suited to the demands of modern industrial systems. Whether used in Europe’s railway infrastructure, wind energy facilities, automotive plants, or automated production lines, the M9 series provides dependable performance and long-term stability.

For companies requiring reliable, certified, and professionally engineered connectors, CAZN continues to be a dependable supplier backed by strong technical expertise and a commitment to quality.
