CAZN Custom M12 Field-Assembly Connectors: Modular Solutions

As industrial automation continues to advance, M12 circular connectors have become a standard connection solution for sensors, actuators, industrial cameras, robots, and intelligent equipment. Based on the IEC 61076-2-101 international standard, standardized M12 connectors offer consistent threading, IP67 protection, and interchangeability, significantly reducing equipment wiring complexity and procurement costs over the decades. However, as applications in smart manufacturing, new energy, smart agriculture, and machine vision continue to evolve, standard connector configurations are increasingly unable to meet the specific requirements of compact equipment structures, harsh operating environments, and mixed-signal transmission.

Standard components make connections possible; customized components make them fit the application. The evolution from general-purpose products to application-specific, non-standard customization has become a clear trend in the M12 connector industry. CAZN, a national-level High-Tech Enterprise specializing in industrial connectivity, leverages more than a decade of connector R&D and manufacturing experience to provide custom M12 field-assembly connector solutions.

Rather than following the traditional route of developing entirely new molds for non-standard products, CAZN adopts a modular assembly architecture built around standard M12 interfaces. This approach combines international interchangeability with project-specific customization, balancing performance, lead time, and cost while providing equipment manufacturers with a one-stop ODM connectivity solution.

The Limitations of Standard Components Are Driving Modular Customization

Traditional standard M12 connectors come with predefined specifications for pin count, coding, cable exit direction, cable material, and shielding structure. These fixed configurations can struggle to accommodate the evolving demands of modern equipment:

• Compact robot joints and sensor modules: Standard straight connectors may interfere with surrounding structures in confined installation spaces.

• High-speed machine vision systems: Conventional M12 D-coded connectors may not provide the shielding and transmission performance required for demanding high-speed communication applications.

• New-energy agricultural machinery and outdoor equipment: Specialized cables with resistance to extreme temperatures, oil, and ultraviolet exposure may be necessary.

• Highly integrated equipment: Combined power and signal transmission, or customized pin assignments for different functions, may not be supported by standard pin configurations.

• Medical and food-processing equipment: Special requirements may apply to jacket materials and resistance to chemical cleaning and disinfection.

Traditional fully customized solutions often require entirely new molds, resulting in substantial tooling investment and development cycles that can extend over several months. This increases both project costs and the risks associated with design iterations.

CAZN's M12 field-assembly connectors address these challenges through a modular design approach. The external M12 thread and mounting dimensions remain aligned with the standard interface, while internal contacts, shielding components, cable clamps, sealing structures, and cables can be selected and customized according to application requirements. By avoiding the need for a completely new set of molds, CAZN bridges the gap between standard components and fully customized products through a standardized interface combined with a configurable internal design.

CAZN M12 Field-Assembly Connectors: Customization Across Multiple Dimensions

CAZN M12 field-assembly connectors support a wide range of customization options, helping equipment manufacturers adapt electrical and mechanical configurations to their specific operating environments.

Customized Electrical Configurations

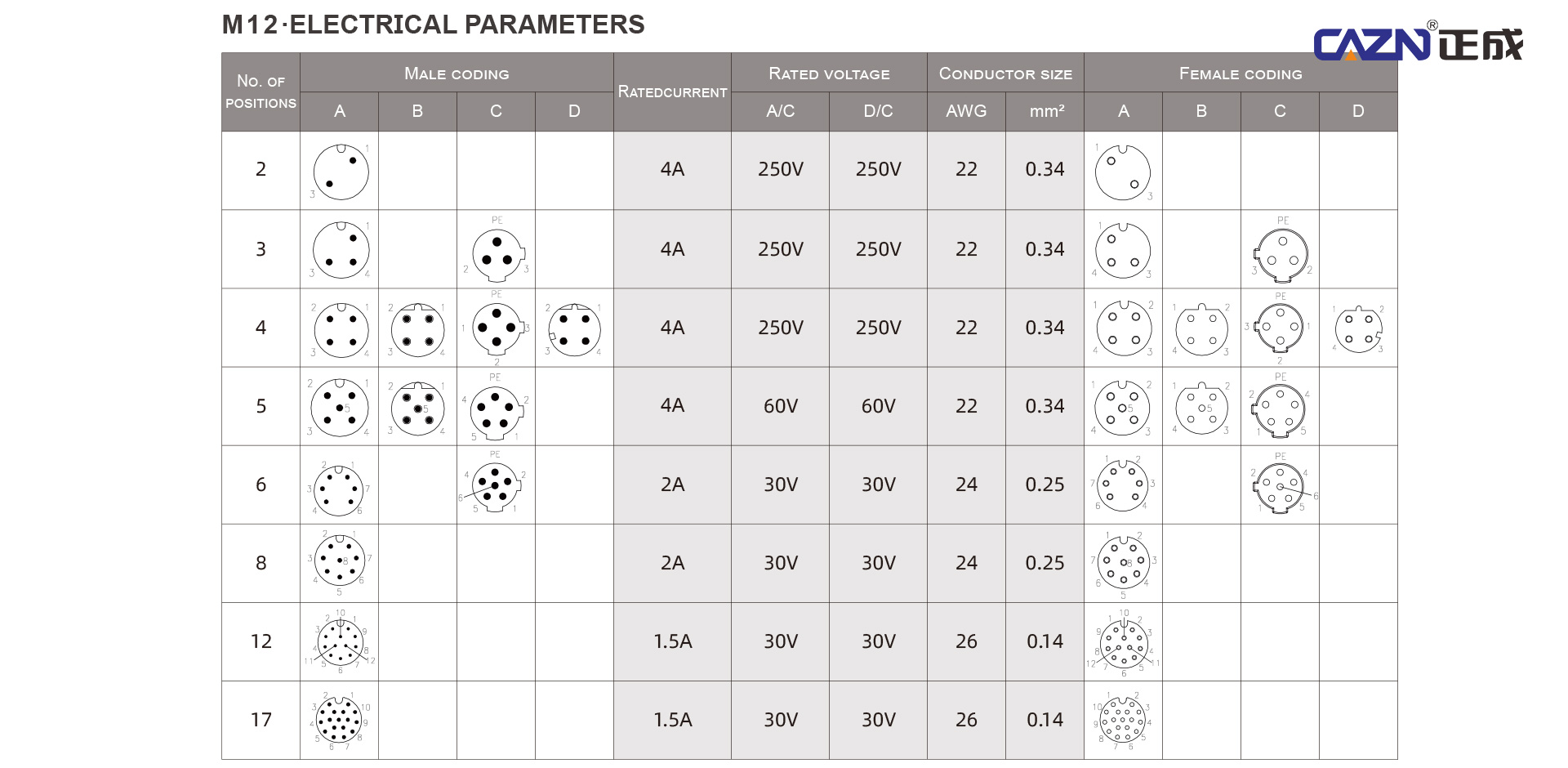

Available coding options include A, B, C, D, X, K, and L coding, with pin configurations ranging from 2 to 17 pins. Depending on the selected design, solutions can support signal transmission, power delivery, industrial Ethernet, and integrated connectivity requirements.

Contact configurations, contact specifications, impedance matching, and 360-degree shielding structures can be tailored to the application. For high-speed machine vision systems, customized X-coded M12 Ethernet solutions can be developed to support 10 Gigabit Ethernet communication, subject to the specified connector, cable, and transmission requirements.

Customized Mechanical Structures

CAZN offers straight and 90-degree angled configurations, along with front-mount and rear-mount panel receptacles. Locking mechanisms, keying features, strain-relief clamps, and multi-stage sealing structures can be adapted to suit installation constraints and operating conditions.

These options are particularly useful in applications involving frequent mating cycles, mechanical vibration, limited installation space, or demanding environmental exposure. For compact robot joints, for example, an angled connector may help reduce interference and simplify cable routing. The final configuration should be validated against the equipment's mechanical envelope and installation requirements.

Customized Cable Materials and Assemblies

Available cable options include PVC, PUR, TPU, low-smoke halogen-free materials, oil-resistant cables, and specialized cables designed for high- or low-temperature environments. Cable lengths can be customized, and high-flexibility drag-chain cable solutions can be specified for applications involving repeated movement and bending.

For AGVs and mobile robots, cable flexibility, minimum bend radius, torsional requirements, and expected movement cycles should be evaluated together. Selecting a cable solely by its outer material is insufficient; the complete cable construction must match the application's mechanical and environmental conditions.

CAZN also provides customized cable assemblies to help simplify equipment integration and reduce the need for additional on-site wiring operations.

According to the specified product configurations, CAZN's connector portfolio supports IP67, IP68, and IP69K protection options and includes products with CE, RoHS, and UL certifications. The applicable protection rating and certification should be verified for the exact model and assembly configuration, as they may vary by product.

Customized M12 Solutions for Multiple Industries

CAZN's custom M12 field-assembly connectors are designed for a broad range of industrial applications, including industrial robotics, automated guided vehicles (AGVs), machine vision inspection equipment, new-energy storage systems, smart agricultural harvesting robots, construction machinery, intelligent logistics, and medical testing equipment.

In smart agriculture, connectors may be exposed to vibration, mud, water, temperature changes, and outdoor weather conditions. A customized M12 assembly with suitable sealing and a weather-resistant cable can help maintain reliable connections between field sensors and actuators. Material selection and environmental validation remain essential to ensuring long-term performance.

In industrial machine vision, high-speed data transmission places greater demands on connector coding, cable performance, shielding continuity, and impedance control. An appropriately specified X-coded M12 solution can support high-speed Ethernet connectivity while helping manage electromagnetic interference. Actual transmission performance depends on the complete channel, including the connector, cable, mating interfaces, and installation environment.

For compact robotic joints, angled connectors and customized cable exits can help address spatial interference and improve routing efficiency. In automated logistics systems, flexible cable assemblies can be designed around repetitive movement and the installation constraints of mobile equipment.

From initial solution assessment and structural simulation to sample testing, mass production, and after-sales technical support, CAZN's engineering team can participate early in project development. By evaluating operating conditions and equipment requirements before finalizing the connector configuration, the team helps reduce the likelihood of mechanical interference, electrical mismatches, and costly design changes later in the project.

Industry Trend: From Selling Standard Products to Delivering Customized Connectivity Solutions

The industrial connector industry is undergoing a fundamental shift. In the past, manufacturers often competed primarily on product availability, model variety, and unit price. Increasingly, their competitiveness also depends on their ability to respond quickly to application-specific requirements through engineering support and flexible manufacturing.

M12 field-assembly customization represents this transition. It preserves the benefits of the established M12 standard ecosystem while allowing internal modules and cable configurations to be adapted to different operating conditions. Equipment developers no longer need to redefine an established interface for every project or compromise equipment design simply to accommodate an off-the-shelf connector.

A modular approach can also reduce the need for dedicated tooling, simplify design iterations, and help control development costs. The actual savings and lead-time advantages depend on the extent of customization, component availability, validation requirements, and production volume.

Guided by its commitment to professional expertise and product quality, CAZN continues to strengthen its customized industrial connectivity capabilities through its manufacturing facilities, R&D resources, and established ISO-based quality management system. These capabilities support equipment manufacturers seeking dependable connectivity solutions and alternatives to existing supply arrangements.

Build Your Custom M12 Connector Solution with CAZN

When a standard M12 connector cannot meet the requirements of your equipment, you do not have to choose between an unsuitable off-the-shelf product and an expensive, time-consuming fully custom design.

CAZN custom M12 field-assembly connectors combine standardized interfaces with modular customization, helping preserve interchangeability while accommodating application-specific requirements. Whether your project needs a special pin configuration, an angled connector, specialized cable materials, enhanced shielding and sealing, or a customized cable assembly, CAZN can work with you to develop a suitable industrial connectivity solution.

Contact the CAZN technical team with your drawings, samples, or operating parameters to discuss your application and identify a connector configuration that meets your equipment's electrical, mechanical, and environmental requirements.
