M8 Connectors

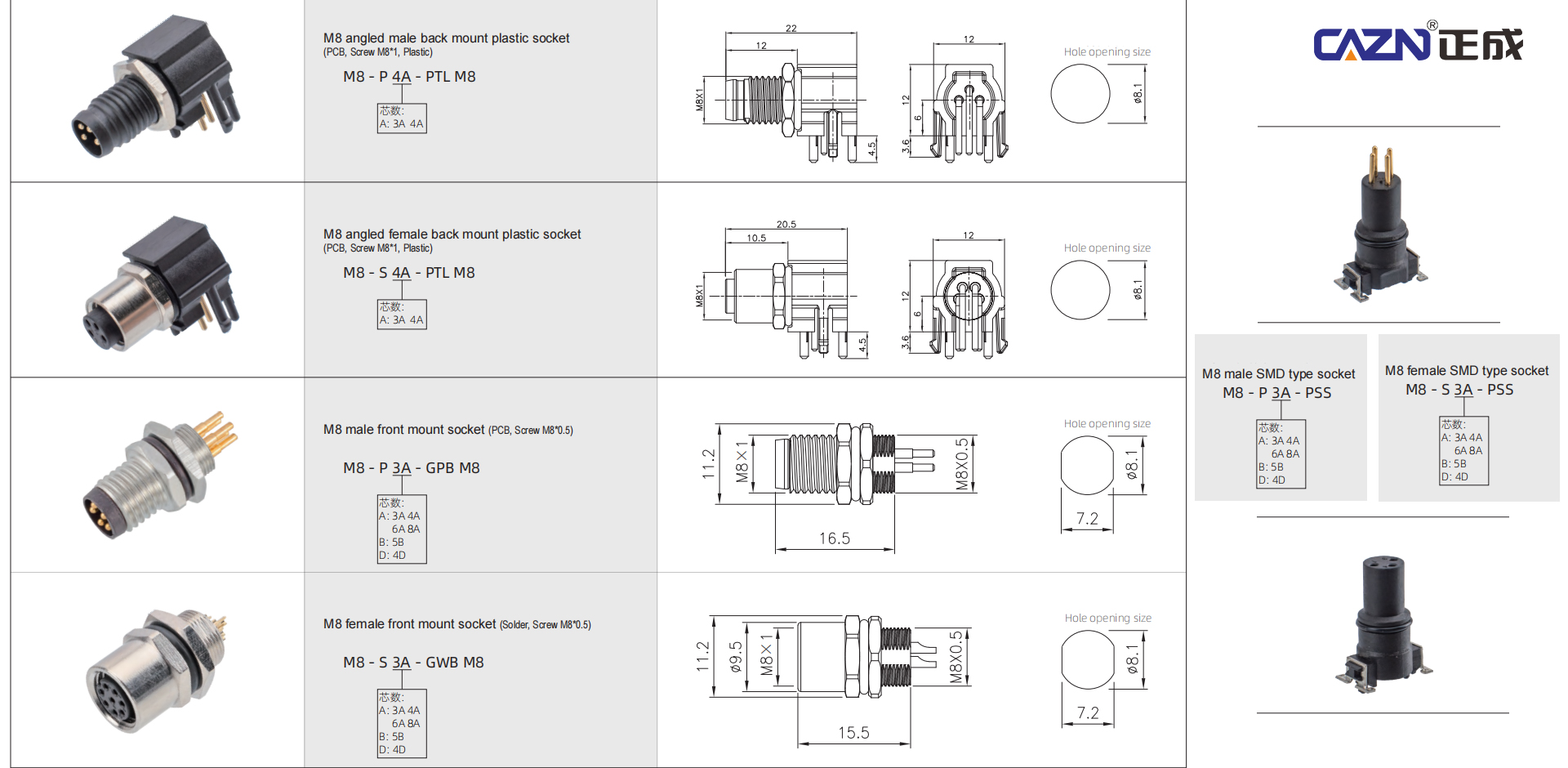

Panel-Mount Type (Panel / PCB Socket): Fixed to the equipment enclosure panel or PCB, with pins soldered to the PCB and externally mated with a cable-end plug.

Cable-End Type (Plug, Pre-Molded / Field-Assembly): Integrated at the end of the cable and used as the movable mating end.

1. Key Installation Differences

Panel-Mount M8 (Fixed Equipment Side)

1. Panel Mounting: A mounting hole is made in the panel. The threaded connector body passes through the panel and is secured with a nut on the inside of the equipment. The rear solder pins / solder cups are located inside the enclosure and connect to the PCB or internal wires.

2. PCB Direct-Solder Type: The pins are directly soldered to the PCB. The connector body passes through the enclosure opening, exposing the mating interface externally. Two structures are available: straight pins and 90° right-angle pins.

3. Space Distribution: Part of the connector is located outside the equipment enclosure (the mating thread), while part of it occupies internal equipment space (solder pins and mounting nut).

Cable-End M8 (Movable Cable Side)

There are two types: pre-molded one-piece construction and field-assembly screw/crimp construction. The entire connector body is located outside the equipment, with only the cable entering the enclosure. The connector body does not occupy internal enclosure space. Straight and 90° right-angle cable outlet configurations are available.

2. Impact on Equipment Space Utilization

1. Equipment Enclosure and External Space

Panel-Mount Type

The enclosure only needs to reserve a standard M8 mounting hole. The interface is flush with the enclosure, with very little external protrusion, making it suitable for dense multi-connector layouts. The minimum connector center-to-center distance is approximately 12 mm, allowing high-density interface arrangements.

Clearance must be reserved for wrench operation when tightening or loosening the threaded connection. When a straight cable-end plug is connected, the mating cable-end plug will extend outward from the equipment by a certain length.

Cable-End Type (Equipment Side Using a Panel-Mount Socket with Cable Tail)

If the equipment side uses a "panel-mount socket with cable tail," the enclosure opening is simple, but the connector body and molded cable jacket are completely located outside the equipment. When multiple connectors are arranged side by side, the larger outer diameter of the molded cable jacket requires greater spacing between interfaces, making high-density layouts more difficult.

Additional Note: A right-angle cable-end connector can change the cable routing direction, allowing the cable to run close to the enclosure surface and reducing the space occupied by external cable bending.

2. Internal Equipment Enclosure Space — Key Difference

Panel-Mount Type with Internal Nut Locking: The internal enclosure must accommodate the locking nut, washer, and rear solder cup / solder wire. These components occupy depth behind the panel. Interference can easily occur in thin enclosures or applications where the connector is positioned close to the PCB. Rear-panel installation can reduce internal protrusion and is suitable for thin housings.

Panel-Mount PCB Right-Angle Type: The 90° right-angle pins allow the PCB to be arranged parallel to the panel, significantly saving space in the enclosure depth direction. This configuration is the preferred choice for small sensors and miniature I/O modules. A straight-pin panel-mount connector occupies more space in the direction perpendicular to the PCB and panel.

Cable-End Type (Plug Only, Without Panel Socket): The connector body is completely outside the enclosure. Only the cable needs to be routed inside the equipment. There is no space occupied by a mounting nut or solder pins, meaning the connector body itself occupies zero internal enclosure space.

Disadvantage: A cable-end plug cannot be directly used on the equipment side. The equipment side still requires a panel-mount socket. The cable-end connector is only one side of the cable connection.

3. PCB Space Occupation

Panel-Mount PCB-Solder Type: The M8 connector occupies a pad area on the PCB. Straight pins occupy vertical height, while right-angle pins mainly occupy PCB planar space and have very low height, making them suitable for low-profile enclosures.

Cable-End Type: The connector is not directly soldered to the PCB. If the equipment uses a panel-mount connector with a cable tail, the cable tail must then be connected to the PCB, which requires additional wiring space. This provides a more flexible PCB layout but increases wiring complexity.

3. M8 Connector Selection: Trade-Offs From a Space Perspective

The panel-mount type is more suitable for "converging" the connection interface onto the equipment panel / PCB and optimizing external space, but this comes at the cost of installation and wiring space on the inner side of the panel.

The cable-end type shifts the space requirement to external cable routing. Its right-angle option provides greater flexibility for narrow routing channels and does not require a panel opening when used as a cable-end connector.

In actual equipment design, the panel-mount type is often fixed to the enclosure panel as the equipment interface and paired with a right-angle cable-end plug for compact external cable routing. This combination can achieve an optimal balance between internal and external space constraints.
