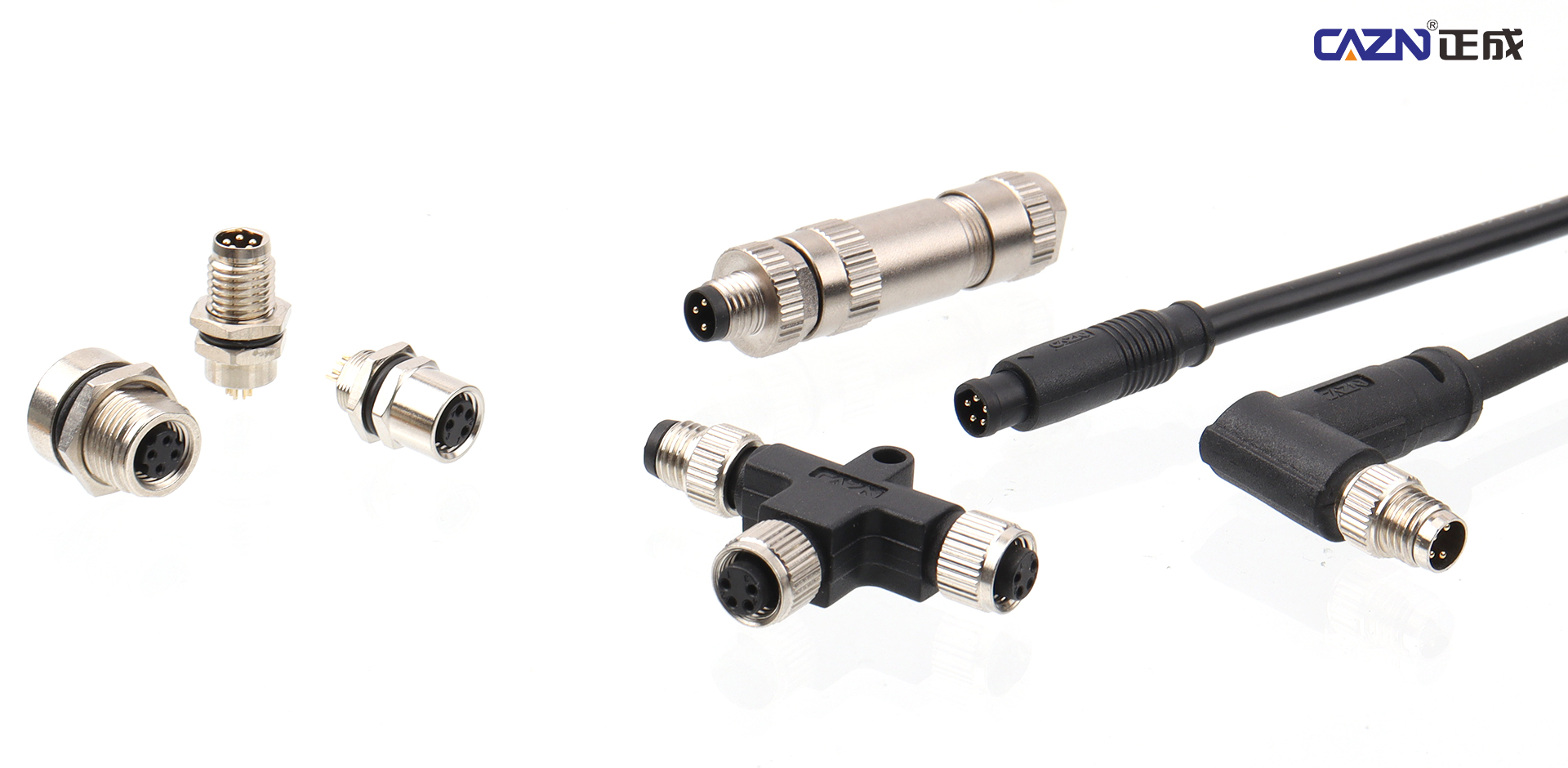

M8 connectors are compact circular industrial connectors with an outer diameter of 8 mm. They offer key advantages including compact size, IP67/IP68 protection, vibration resistance, resistance to high and low temperatures, and simplified wiring. They are designed for signal and low-voltage power connections in confined installation spaces and demanding operating environments. M8 connectors are widely used in industrial automation, robotics, new energy systems, medical equipment, smart logistics, and other applications, making them an essential connection solution for compact precision equipment.

1. Industrial Automation — The Core Application

As a fundamental connection component in industrial automation, M8 connectors are primarily used for signal transmission in compact sensors and control modules. They are suitable for various space-constrained automation systems and can replace conventional terminal wiring to improve equipment stability and maintenance efficiency.

Typical applications include miniature sensors such as proximity switches, photoelectric sensors, temperature/pressure/flow sensors, and displacement sensors, as well as small solenoid valves, miniature pneumatic cylinders, encoders, PLC distributed I/O modules, fieldbus control units, machine-tool inspection points, and inspection modules on automated production lines.

M8 connectors are particularly suitable for applications where panel space is limited, lightweight wiring is required, and the number of signal circuits is relatively small. Their sealed connection structure can help reduce wiring failures caused by dust, moisture, and oil contamination in industrial environments.

M8 connectors serve as standard interfaces for many miniature industrial sensors, providing both signal transmission and power supply:

Note: A-coded configurations with 3–5 contacts are commonly used to support 24V DC power supply and signal transmission.

2. Industrial Robots and Smart Mobile Equipment

With their high vibration resistance, flexibility, and compact dimensions, M8 connectors are well suited to the confined internal spaces and dynamic motion environments of robotic equipment.

In lightweight industrial robotic arms and collaborative robots, M8 connectors are used for signal and power connections to end-effectors, joint sensors, and servo motor encoders. A 6-contact configuration can accommodate both power and signal transmission, while shielded metal housing designs can help reduce interference caused by continuous mechanical movement.

M8 connectors are also widely used in AGVs and AMRs for obstacle-detection sensors, travel signal modules, and status-monitoring interfaces. Their compact design and vibration-resistant connection help maintain stable electrical connections during high-frequency movement and reduce the risk of contact failures caused by vibration.

Different coding configurations allow M8 connectors to support different levels of industrial communication:

Note: D-coded connectors use a mechanically keyed structure to ensure correct connection of Ethernet differential signals and prevent incorrect mating that could potentially damage equipment.

3. Machine Vision and Precision Inspection Equipment

M8 connectors provide stable connection solutions for compact machine vision systems and precision data-acquisition equipment where reliable signal transmission is required.

Typical applications include miniature industrial cameras, vision illumination systems, and image-acquisition modules, where M8 connectors can be used for power and trigger signal interfaces. Shielded configurations help improve resistance to electromagnetic interference, supporting stable transmission in precision imaging systems.

M8 connectors are also used in semiconductor packaging equipment, wafer inspection systems, and precision inspection instruments for miniature sensor interfaces. Their compact size makes them suitable for semiconductor manufacturing environments where equipment requires high precision, limited installation space, and controlled cleanliness.

4. New Energy and Outdoor Smart Equipment

With their strong outdoor protection capabilities, M8 connectors are suitable for demanding outdoor environments found in new energy and smart outdoor equipment.

In photovoltaic and energy storage systems, M8 connectors can be used for signal connections to string monitoring modules, ambient temperature and humidity sensors, and light sensors. Their protective design allows them to withstand outdoor temperature variations, rain, and other environmental exposure.

M8 connectors are also widely used in LED displays, outdoor smart lighting controls, landscape lighting, and outdoor security cameras for module interconnection and signal control.

IP67-rated configurations can withstand exposure to rain, dust, and sunlight, helping maintain stable operation of outdoor equipment over extended periods.

5. Food, Medical, and Laboratory Equipment

With water resistance, corrosion resistance, and suitability for cleanable environments, M8 connectors can be used in equipment operating under strict hygiene or cleaning requirements.

In food processing, M8 connectors are used for CIP cleaning systems, valve-position detection on filling equipment, and sensor and control interfaces on food packaging machinery. Stainless steel configurations combined with high protection ratings can withstand frequent water washing and exposure to cleaning or disinfecting solutions.

In medical and laboratory equipment, M8 connectors are commonly used for probe connections in portable medical testing devices, handheld ultrasound equipment, blood oxygen monitors, and microfluidic chip systems.

Gold-plated contacts can provide stable transmission of low-level biological electrical signals, while suitable environmentally friendly materials can support the safety requirements of compact precision medical equipment.

6. Smart Logistics and Automated Retail Equipment

M8 connectors are suitable for the dense wiring and high-frequency operating conditions found in logistics automation and material-handling equipment.

Typical applications include sensors, counting modules, and limit switches installed on smart conveyor systems, sorting machines, and parcel scanning equipment.

The compact size of M8 connectors allows them to fit into densely arranged wiring layouts commonly found on conveyor and sorting equipment. This can simplify cable routing and reduce maintenance difficulty.

Their resistance to wear and vibration also makes them suitable for logistics equipment operating continuously over extended periods.

7. Automotive and Construction Equipment

M8 connectors are also used in compact automotive electronic control systems and monitoring modules for construction machinery.

In automotive applications, they can be used for miniature vehicle sensors, parking-assistance cameras, and small signal interfaces for vehicle ECUs. Their design can withstand vibration during vehicle operation and variations in operating temperature.

In construction machinery, mining equipment, and steel-production equipment, M8 connectors can be used with hydraulic machinery, pressure transmitters, and equipment condition-monitoring sensors. These applications require connection solutions capable of operating reliably in demanding industrial environments while supporting accurate equipment data acquisition.

Note: M8 connectors can be configured with different contact counts, such as 3-, 4-, and 5-contact versions, as well as different coding options including A-coded, B-coded, and D-coded designs. These configurations support different electrical functions, including power plus signal transmission, bidirectional communication, and fieldbus communication. In practical applications, the connector should be selected according to the equipment interface and required transmission function.

Quick M8 Connector Selection Guide

Conclusion

M8 connectors are primarily designed for compact equipment requiring low-power, small- and medium-signal connections under demanding environmental conditions. Compared with M12 connectors, which are more commonly associated with higher-current and higher-density signal applications, M8 connectors focus on lightweight and precision connectivity for compact intelligent equipment and precision industrial systems.

Different contact configurations allow M8 connectors to address different application requirements. 3- and 4-contact versions are commonly used for standard sensors and lighting-control signals, while 6- and 8-contact configurations can support multiple signal circuits in robotics and precision inspection equipment.

For equipment designers, selecting the correct M8 connector requires consideration of installation space, electrical function, coding, contact count, environmental protection, electromagnetic interference, and cable-routing requirements. Through the appropriate combination of these specifications, CAZN M8 connectors can provide a compact and reliable connection solution for a wide range of industrial and intelligent equipment applications.
