Why Is M12 X-Coded Connectivity Essential for Edge Computing?

As Industry 4.0, the Internet of Things (IoT), and artificial intelligence become increasingly integrated into industrial operations, edge computing has emerged as a critical link between cloud computing resources and end devices. Unlike traditional data centers, which operate in controlled environments, edge computing systems are often deployed in factory workshops, outdoor communication stations, and intelligent equipment terminals. These environments impose demanding requirements on data transmission speed, stability, electromagnetic interference resistance, and environmental adaptability.

As a key interface standard in industrial connectivity, M12 connectors are widely used in industrial applications thanks to their compact design and secure connections. Among them, the M12 X-coded connector stands out for its high-speed transmission capabilities and enhanced interference resistance. It addresses the performance limitations of traditional industrial connectors and serves as a critical medium for high-speed data exchange in edge computing systems. As a foundational component of industrial edge connectivity, M12 X-coded technology supports the reliable implementation of industrial digitalization.

The importance of M12 X-coded connectors in edge computing stems from their ability to address two fundamental challenges simultaneously: processing massive volumes of high-speed data while maintaining reliable operation in harsh environments characterized by vibration, dust, and other industrial hazards. Like a high-performance data courier, an M12 X-coded connector delivers information quickly and accurately, even in demanding factory environments.

High-Speed Transmission: Meeting the Bandwidth Demands of Edge Computing

The core value of edge computing lies in reducing dependence on cloud transmission latency by enabling local, real-time data acquisition, analysis, processing, and feedback. Industrial machine vision, real-time equipment monitoring, and AI-powered edge recognition systems can generate massive amounts of data every second. Traditional low-speed connectivity interfaces can no longer meet the transmission requirements of these data-intensive applications.

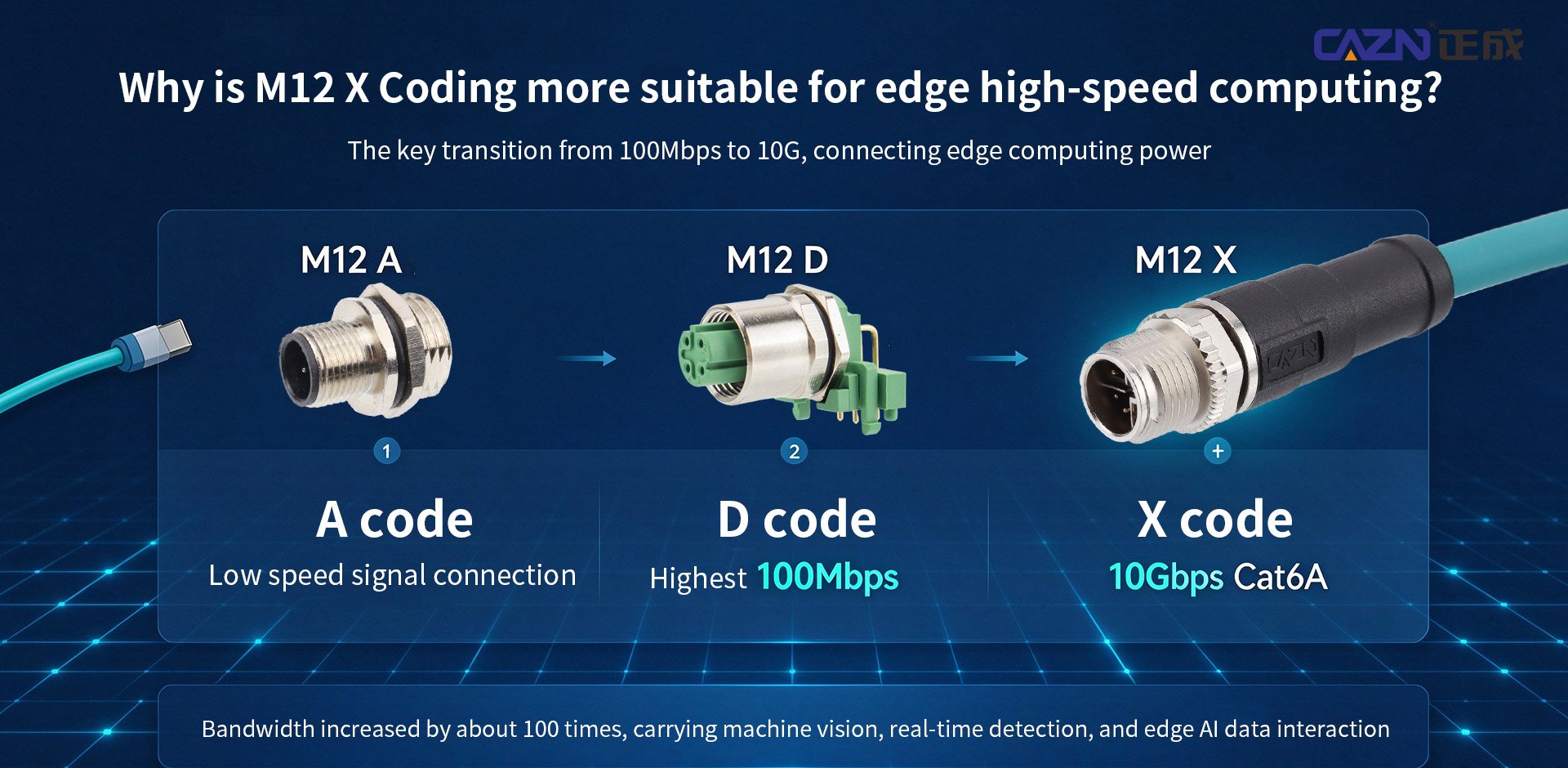

Compared with conventional M12 A-coded and D-coded connectors, M12 X-coded connectors offer a significant advantage in transmission performance. Featuring an eight-contact configuration with four differential pairs, they comply with the IEC 61076-2-109 standard and support Category 6A cabling requirements. They enable data transmission speeds of up to 10 Gbps, providing bandwidth approximately 100 times greater than the maximum 100 Mbps supported by D-coded connectors. This makes them well suited to high-speed industrial Gigabit Ethernet and 10 Gigabit Ethernet applications.

In demanding applications such as machine vision inspection, real-time data exchange with edge servers, and high-definition image transmission from intelligent equipment, M12 X-coded connectors help overcome bandwidth limitations that can cause interruptions, dropped frames, and transmission delays. They support the real-time transfer of large data volumes and responsive command delivery, helping edge computing systems achieve their intended low-latency, high-efficiency performance.

Shielding Architecture: Addressing Electromagnetic Interference at the Industrial Edge

Electromagnetic interference is a persistent challenge in industrial edge computing environments. Motors, variable-frequency drives, and heavy machinery generate electromagnetic noise that can disrupt data transmission, potentially causing data corruption, communication interruptions, and reduced system reliability. These problems can directly affect edge computing accuracy and equipment stability.

A key feature of M12 X-coded connectors is their X-shaped internal shielding architecture. The eight contacts are arranged into four independent differential pairs, with physical separation helping reduce crosstalk between signal pairs. Combined with an appropriate overall shielding design, this structure helps protect high-frequency, high-speed signals against electromagnetic interference in industrial environments.

Unlike conventional connector designs that may provide less effective separation between signal pairs, M12 X-coded connectors are engineered to address the relationship between high-speed transmission and interference resistance at the hardware level. Even in installations with densely packed equipment and significant electromagnetic interference, a properly designed and installed connection system can support reliable, continuous data transmission, helping reduce packet loss, processing errors, and communication-related failures.

Harsh-Environment Performance: Supporting Deployment Across Diverse Edge Applications

Edge computing equipment does not always benefit from the temperature-controlled, humidity-regulated conditions of a data center. Instead, devices are frequently installed outdoors, on walls, or within embedded equipment, where they must withstand dust, water, vibration, and temperature extremes. The reliability and durability of connectivity interfaces directly affect system service life and maintenance costs.

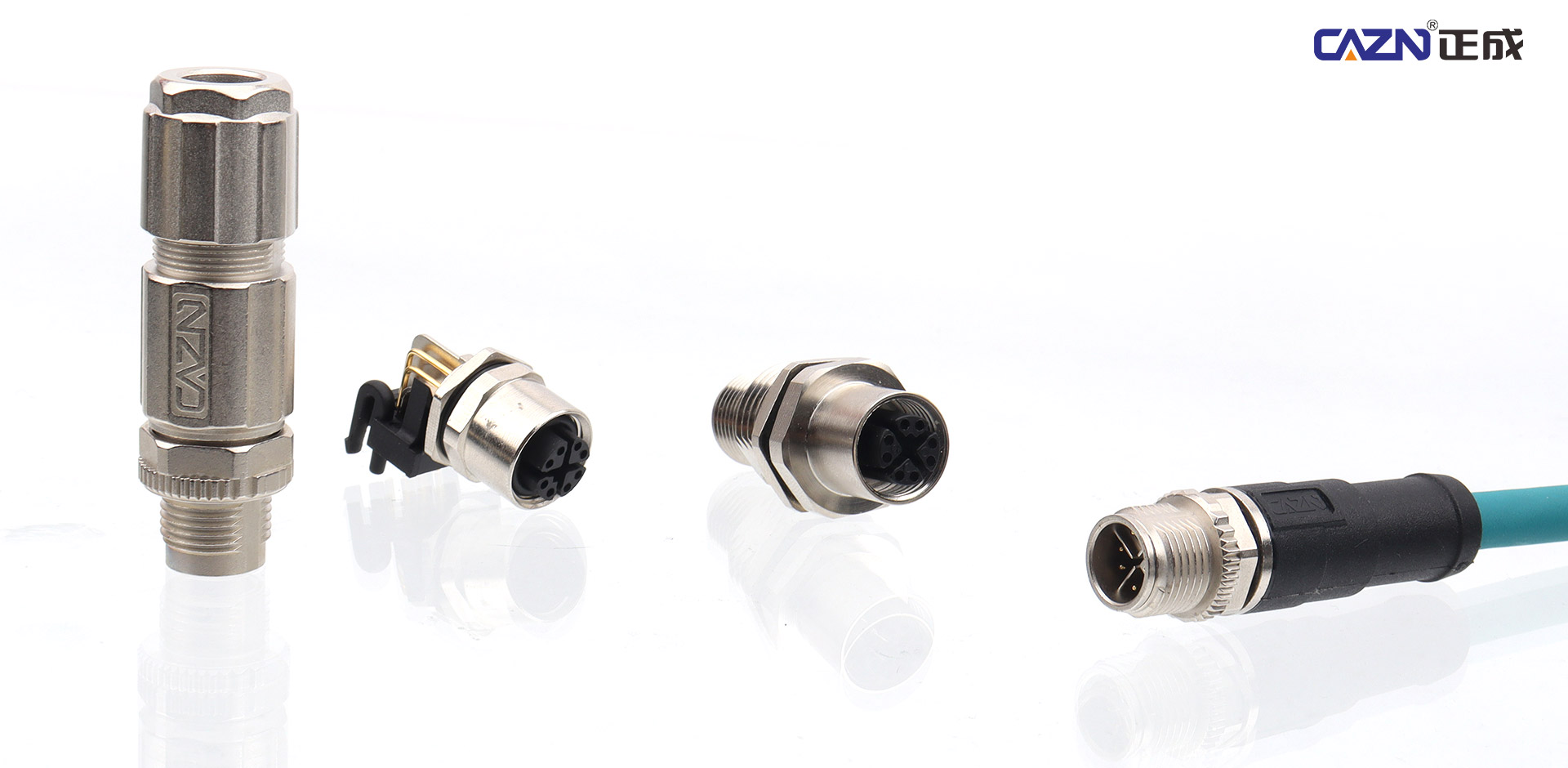

M12 X-coded connectors feature industrial-grade threaded locking mechanisms and sealing designs. Depending on the specific product configuration, they can achieve IP67 or higher ingress protection, helping prevent the entry of dust and water under specified test conditions. Their industrial-grade materials and mechanical construction can also be selected to withstand vibration, temperature fluctuations, and mechanical stress. Secure mating helps reduce the risk of intermittent connections and system downtime caused by poor electrical contact.

Whether deployed on industrial automation production lines, outdoor intelligent monitoring systems, railway transit equipment, smart manufacturing installations, or intelligent logistics systems, M12 X-coded connectors provide a robust connectivity option for edge computing applications. Their industrial design helps reduce equipment failure risks and ongoing maintenance requirements, supporting more reliable system deployment.

Standardized Compatibility: Enabling Scalable Edge Computing Deployments

The widespread adoption of industrial edge computing depends on standardized, interoperable interfaces. As a widely used industrial high-speed connectivity format, M12 X-coded technology supports integration with various edge devices, including edge gateways, embedded industrial computers, machine vision cameras, and industrial sensors. Depending on the network architecture and equipment configuration, these connections can be used in industrial Ethernet environments running protocols such as PROFINET and EtherNet/IP.

The compact, lightweight design of M12 X-coded connectors also aligns with the trend toward smaller, more integrated edge computing equipment. By minimizing interface space requirements and supporting convenient mating and disconnection, they help improve installation, commissioning, and maintenance efficiency.

As industrial digital transformation expands from individual applications to large-scale deployments, M12 X-coded connectors provide a standardized, high-speed connectivity option for edge computing networks. Their combination of compact construction, high bandwidth, and industrial-grade reliability helps facilitate broader adoption of edge computing across industrial environments.

CAZN: Building a Reliable Connectivity Foundation for Industrial Edge Computing

The competitive advantage of edge computing begins with processing power but ultimately depends on reliable data transmission. M12 X-coded connectors play a critical role because they address four essential requirements of industrial edge applications: high-speed transmission, electromagnetic interference resistance, operational reliability, and adaptability to diverse deployment environments.

From overcoming bandwidth limitations and maintaining data integrity to withstanding harsh operating conditions, reducing maintenance costs, and supporting scalable network deployments, M12 X-coded connectors are an important component of modern industrial connectivity architectures.

CAZN is committed to providing industrial connectivity solutions that support reliable data transmission in demanding operating environments. By integrating high-speed connector technology into industrial edge computing systems, CAZN helps establish a dependable connectivity foundation for industrial intelligence and digital transformation, enabling edge computing to deliver greater value across a wide range of industrial applications.
