M12 Connector SKTL High-Current Pin Configurations and Applications

The M12 connector is one of the most widely used circular threaded-locking connectors in industrial automation. In accordance with the relevant IEC 61076 series standards, M12 connectors use mechanical coding to prevent incorrect mating. Different coding types feature distinct pin arrangements and keyway positions, ensuring that only compatible plugs and receptacles can be properly connected. In addition to signal codings such as A, B, D, and X, which are used for sensors, actuators, and industrial Ethernet, four dedicated power codings—S, K, T, and L, collectively known as SKTL—are designed for reliable AC and DC power transmission.

Compared with earlier approaches that used A-coded or C-coded connectors for power transmission, dedicated SKTL power codings offer higher rated voltage and current capabilities in suitable configurations. Their mechanical keying also helps separate power connections from signal connections, reducing the risk of equipment damage, voltage mismatch, communication interruptions, and electrical safety hazards caused by incorrect mating. SKTL-coded connectors are covered by IEC 61076-2-111 and can support rated voltages of up to 630 V and rated currents of up to 16 A, depending on the coding and product configuration. Combined with IP67 or higher protection ratings where specified, they are widely used in automation equipment, motors, robotics, and industrial control systems.

As a specialist brand in industrial connectivity, CAZN designs and manufactures M12 SKTL power connectors in accordance with applicable IEC requirements. Through continued optimization of material selection, contact manufacturing, ingress protection, and electrical reliability, CAZN provides compact, dependable power connection solutions for industrial automation, robotics, motor drives, new energy equipment, and rail transportation.

Overview of the Four SKTL Power Codings

CAZN M12 SKTL Connector Specifications and Typical Applications

Note: The rated voltage of K-coded connectors under the applicable IEC standard is 630 V, although some manufacturers offer models rated up to 800 V. Pin configurations include protective earth (PE) options where indicated. For example, 4+PE means four power contacts plus one protective earth contact, for a total of five contacts.

Pin Configurations and Electrical Parameters by Coding

1. S-Coded: AC Power, 630 V / 12 A

S-coded connectors are designed for AC power transmission, with a rated voltage of 630 V and a rated current of 12 A. Available configurations include 2-pin, 3-pin, and 4-pin versions. Typical cable assemblies may use 16 AWG conductors, approximately 1.5 mm², subject to the cable specification and applicable current-rating requirements.

With a compact design and compatibility with suitable PVC, PUR, and high-flexibility cables, S-coded connectors are suitable for reliable AC power distribution. Typical applications include industrial power distribution networks, AC power connections inside automation control cabinets, single-phase AC loads, and connections between control cabinets and trackside sensors in rail signaling and power systems. IP67 protection and vibration-resistant construction, where specified, help support operation in demanding industrial environments.

CAZN S-coded connectors use precision copper-alloy contacts with gold or silver plating options, depending on the product configuration, to support low contact resistance and stable electrical performance in AC power applications. They are suitable for industrial distribution, control cabinets, and rail transportation systems when matched to the relevant electrical and environmental requirements.

2. K-Coded: High-Voltage AC Power, 630 V / 16 A

K-coded connectors are designed for high-voltage AC power transmission, with a rated voltage of 630 V and a rated current of 16 A under the applicable IEC requirements. Some manufacturers offer models with ratings of up to 800 V, which must be verified against the specific product documentation. Available configurations include 2-pin, 2+PE-pin, 3+PE-pin, and 4+PE-pin options, allowing protective earth to be incorporated where required.

K-coded connectors are suited to high-power loads and heavy-duty equipment where installation space is limited. They support compact power connections for machinery, industrial drive systems, and AC-powered equipment that requires protective grounding.

CAZN K-coded connectors are designed with attention to insulation structure and contact current-carrying capability. Configurations with protective earth support the grounding requirements of compatible equipment, providing a compact connection solution for demanding AC power applications.

3. T-Coded: DC Power, 63 V / 12 A

T-coded connectors are intended for low-voltage DC power transmission, with a rated voltage of 63 V and a rated current of 12 A. Available configurations include 2-pin, 2+PE-pin, and 3+PE-pin versions, providing options for different power and grounding requirements.

Typical applications include fieldbus equipment power supply, compact DC motors, low-voltage power modules, and IO-Link components. Their compact design supports convenient power connections for distributed I/O and intelligent sensor and actuator networks.

CAZN T-coded connectors combine a compact form factor with reliable DC power transmission, making them suitable for fieldbus modules, IO-Link components, and other low-voltage DC devices. The appropriate configuration should be selected according to the load current, grounding requirements, and equipment interface.

4. L-Coded: High-Current DC Power, 63 V / 16 A

L-coded connectors are among the higher-current DC power options in the M12 connector family, supporting a rated voltage of 63 V and a rated current of 16 A. Available configurations include 2-pin, 3-pin, 3+PE-pin, 4-pin, and 4+PE-pin versions, providing flexibility for different power distribution and grounding arrangements.

To support a 16 A current rating, L-coded cable assemblies may use 14 AWG conductors, approximately 2.5 mm², depending on cable construction, installation conditions, and the manufacturer's specifications. The larger conductor cross-section helps reduce voltage drop and resistive heating when appropriately selected for the application.

L-coded connectors are widely used in 24 V DC distribution and industrial I/O power systems. They are also suitable for robotics, servo drives, AGVs, LED lighting, and motor control applications that require compact connections with higher DC current capacity.

CAZN L-coded connectors are designed with contact geometry and conductor compatibility in mind to support reliable 16 A DC power transmission. Multiple pin configurations, including protective earth options, make them suitable for distributed power applications in industrial automation.

Matching Pin Configurations to High-Current Applications

The number of contacts should be selected according to the power circuit, grounding arrangement, and auxiliary connection requirements. A higher pin count does not automatically mean a higher current rating, since the permitted current depends on the coding, contact design, conductor size, and operating conditions.

When choosing a pin configuration, evaluate the power type (AC or DC), required voltage and current, protective earth requirements, available installation space, and ingress protection rating. SKTL coding provides mechanical keying between compatible connectors, while the available pin arrangements allow the interface to be adapted to different power requirements.

Typical Application Scenarios

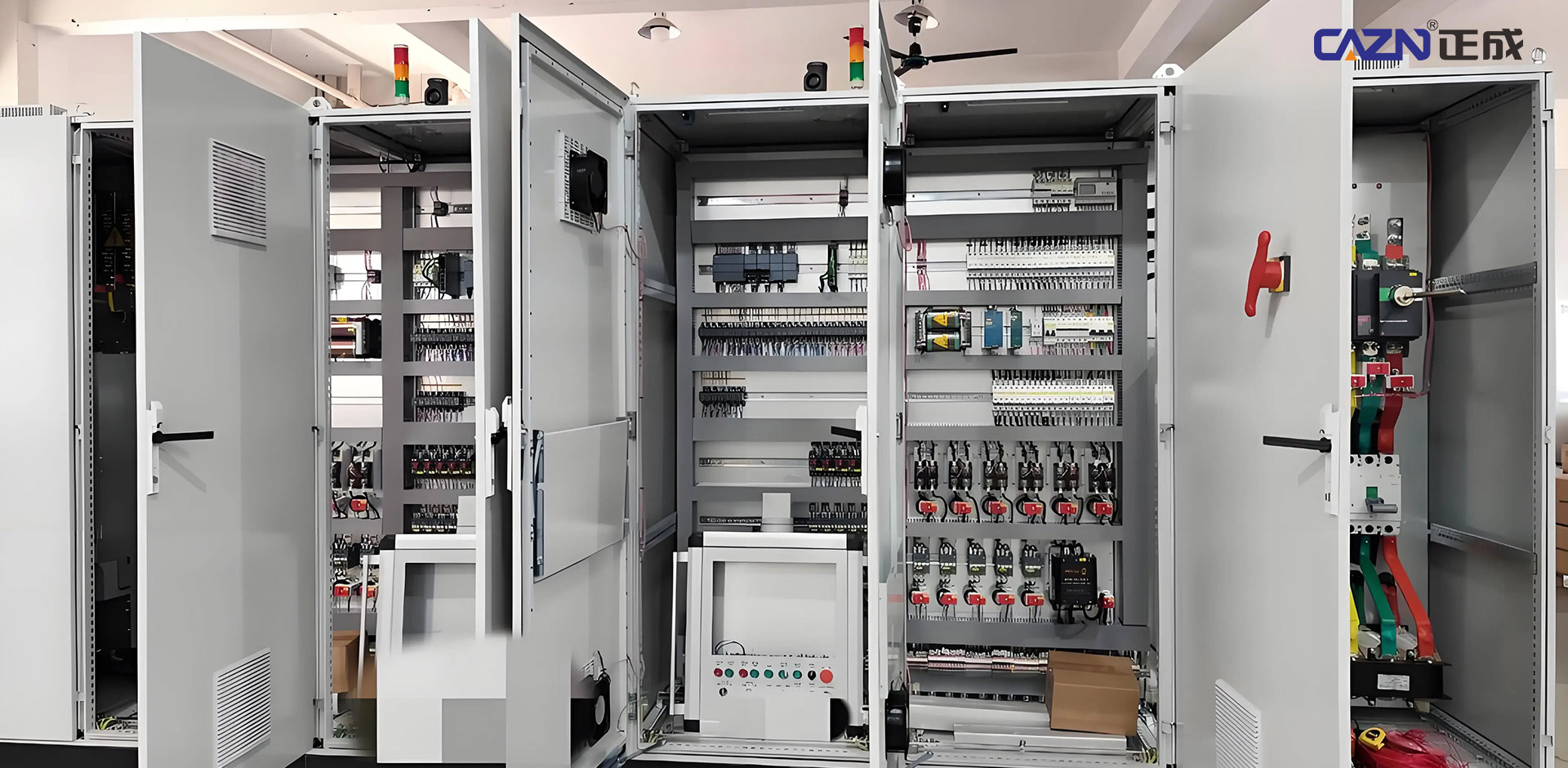

1. Industrial Automation and Control Cabinets

S-coded and K-coded connectors are used for AC power distribution in industrial control cabinets, transferring power from distribution units to compatible equipment and loads. L-coded connectors can support 24 V DC power distribution for industrial I/O systems, creating a compact connection between distributed power supplies and field devices.

CAZN SKTL connectors with IP67 protection and suitable vibration-resistant construction can support industrial installations inside or outside control cabinets. Their compact interfaces can also simplify wiring and maintenance when the selected configuration meets the application's electrical and environmental requirements.

2. Robotics and Servo Drives

Industrial robots, AGVs, robotic arms, and servo drive systems require reliable power connections that can tolerate vibration and repeated movement. L-coded connectors provide up to 16 A DC capability in specified configurations and are suitable for power distribution to compatible robotic equipment and servo systems. K-coded connectors can be used where AC power and protective grounding are required.

CAZN L-coded and K-coded connectors are available in configurations intended for pre-assembled cable assemblies and field termination, depending on the product series. Straight and angled housing options can help accommodate limited space around robot joints, bases, and mobile platforms.

3. Motors and Drive Systems

Compact DC motors, stepper motors, and linear actuators commonly require reliable field power connections. T-coded connectors are suitable for lower-current DC applications within their specified ratings, while L-coded connectors support higher-current DC distribution for compatible motor drives and equipment.

CAZN T-coded and L-coded products offer different contact configurations to accommodate varying power and grounding requirements. Selection should account for motor starting current, continuous current, cable length, voltage drop, and the operating environment rather than relying on nominal current alone.

4. Fieldbus and I/O Systems

Powering fieldbus modules and distributed I/O equipment is a typical application for T-coded and L-coded connectors. T-coded connectors can supply low-voltage DC power to field devices and communication modules, while L-coded connectors can distribute higher DC currents where required.

Because dedicated power coding is mechanically differentiated from standard M12 signal codings, compatible SKTL connectors help reduce the risk of connecting power circuits to signal ports. CAZN T-coded and L-coded connectors can support more organized wiring and maintainable power distribution in industrial networks.

5. Intelligent and Industrial Lighting

LED lighting systems, industrial luminaires, and outdoor lighting installations may use L-coded connectors for DC power distribution when the electrical ratings are suitable. Their current capacity can support compatible lighting loads, while suitable PUR cable assemblies and IP67-rated connector configurations can help protect connections in dusty, damp, or outdoor environments.

CAZN L-coded connectors can be specified with suitable weather-resistant cable options for factory lighting, outdoor luminaires, and landscape lighting. Actual suitability depends on the connector's rated current, cable temperature rating, UV resistance, and the environmental requirements of the installation.

6. New Energy Equipment and Rail Transportation

In new energy equipment, charging infrastructure, and rail transportation systems, SKTL connectors can provide power connections between control cabinets and compatible devices. S-coded connectors may be used in AC power distribution, while K-coded connectors are intended for higher-voltage AC power applications within their specified ratings.

Protection against dust and moisture, combined with suitable vibration resistance, can support reliable connections in mobile or demanding environments. CAZN SKTL connectors designed to applicable IEC 61076-2-111 requirements can be evaluated for these applications according to the equipment's voltage, current, environmental, and certification requirements.

7. Demanding Environments: Food Processing and Pharmaceutical Facilities

Food and beverage production and pharmaceutical manufacturing may involve frequent washdowns, moisture, cleaning agents, and strict maintenance procedures. Connectors with appropriate materials and higher ingress protection, including IP69K-rated configurations where available, may be considered for installations exposed to high-pressure cleaning.

Suitable PUR cable jackets can provide resistance to oils and selected chemicals, depending on the specific formulation. CAZN can evaluate connector and material options against application requirements, but IP69K protection, corrosion resistance, and chemical compatibility should be verified for the exact product rather than assumed across the entire SKTL series.

Selection and Installation Considerations

Applicable standards: SKTL power connectors fall under IEC 61076-2-111, which addresses relevant dimensional, coding, safety, and interchangeability requirements. Confirm the standard edition and product-specific compliance documentation for the selected CAZN connector.

Ingress protection: IP67-rated models are designed for protection against dust ingress and temporary immersion under defined test conditions. Applications involving high-pressure or high-temperature washdown may require a specifically rated IP69K product.

Cable selection: PUR high-flexibility cables are often preferred for dynamic applications such as robotic motion and drag chains, while PVC cables may suit certain fixed installations. S-coded assemblies may use 16 AWG conductors, approximately 1.5 mm², while L-coded assemblies rated for 16 A may use 14 AWG conductors, approximately 2.5 mm². Final sizing must account for cable length, ambient temperature, bundling, installation method, and applicable electrical requirements.

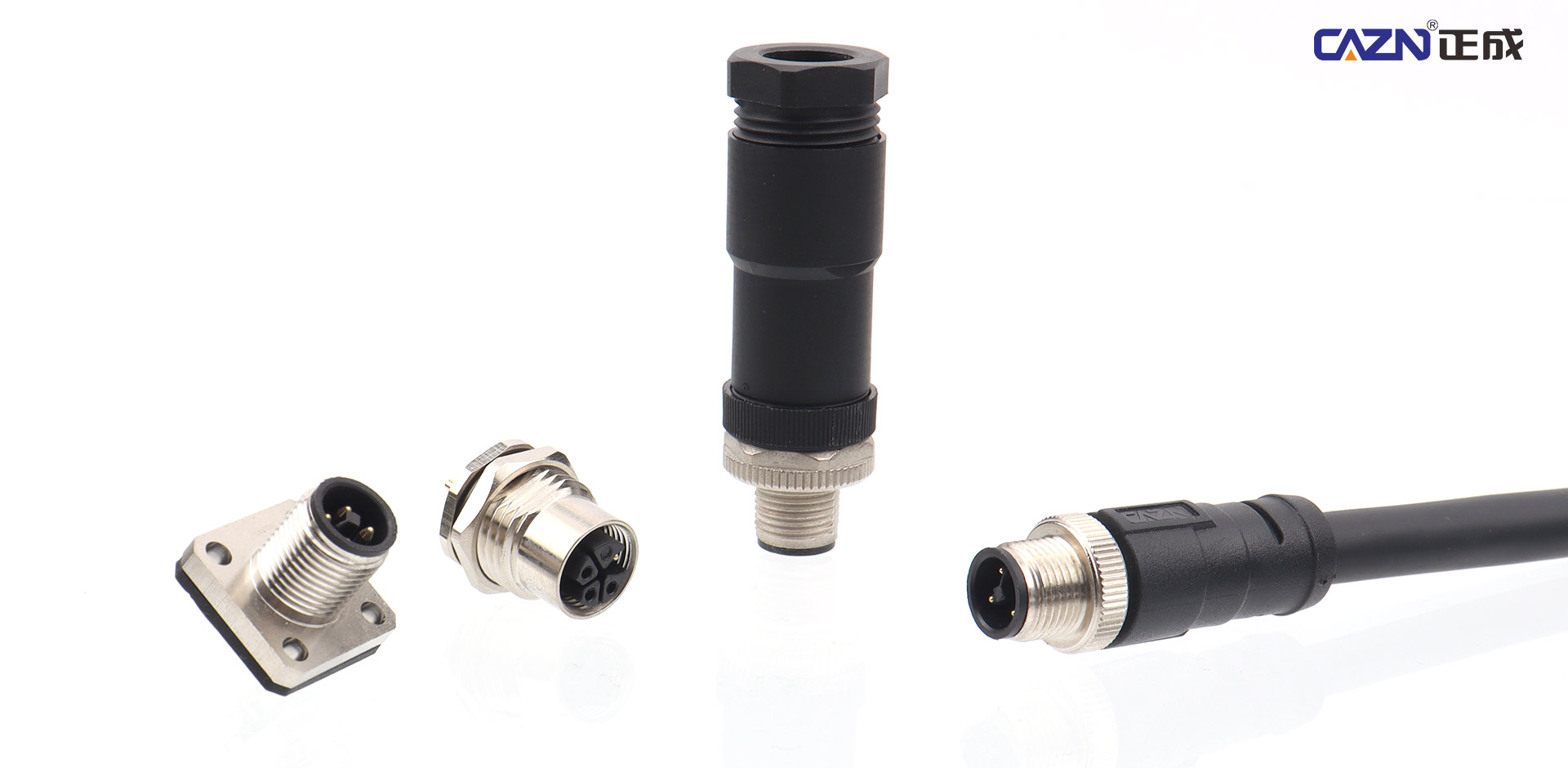

Installation options: Depending on the product series, available arrangements may include overmolded cordsets, field-wireable connectors, panel-mount or bulkhead connectors, and straight or angled housings. The appropriate option depends on serviceability, installation space, and whether the cable connection is fixed or subject to repeated movement.

Operating conditions: A temperature range of approximately −25°C to +80°C, contact resistance of no more than 5 mΩ, and durability of around 500 mating cycles may be available for particular product models. These values are product-specific examples, not universal requirements for all M12 SKTL connectors, and should be confirmed in the relevant CAZN datasheet.

Selection sequence: First determine whether the application requires AC or DC power. Then identify the required voltage, continuous current, pin configuration, and protective earth arrangement. Finally, specify the protection rating, cable construction, mounting method, and operating environment. CAZN offers SKTL connector configurations for different installation requirements, subject to the specifications of each product series.

Conclusion

The four M12 SKTL power codings provide distinct solutions for industrial power transmission. S-coded connectors support AC applications up to their specified 630 V / 12 A ratings, while K-coded connectors address higher-current AC requirements with ratings of up to 630 V / 16 A under the applicable IEC requirements. For DC systems, T-coded connectors support applications rated up to 63 V / 12 A, while L-coded connectors provide up to 63 V / 16 A for compatible high-current DC distribution.

Choosing the right pin configuration requires more than counting contacts. Electrical ratings, conductor size, protective earth requirements, ingress protection, cable flexibility, and installation conditions must all be considered to achieve safe and reliable operation.

CAZN continues to develop industrial connectivity solutions, with M12 SKTL power connectors covering S, K, T, and L coding options and a range of pin configurations and mounting styles. By matching the connector coding and configuration to the application requirements and verifying the relevant technical documentation, users can build safer, more reliable, and easier-to-maintain industrial power distribution systems.
