Humanoid Robot Systems Exceed Half of Global Total! CAZN Builds the Foundation of Embodied Intelligence Industry with Advanced Connection Technology

On July 20, 2026, the State Council Information Office held a press conference, where relevant officials from the Ministry of Industry and Information Technology (MIIT) released a series of encouraging data: in the first half of the year, China’s intelligent robotics sector experienced explosive growth. Quadruped robots accounted for nearly 70% of global sales, while more than 400 humanoid robot products have been developed, representing over half of the global total. This marks that China’s embodied intelligence industry has fully moved beyond the “policy-driven” stage and officially entered the first year of large-scale implementation and order realization.

At the critical transition point where humanoid robots are shifting from “demonstration mode” to real industrial and specialized operation scenarios, the coordinated operation of hundreds or even thousands of precision components inside a complete robot system has created unprecedented challenges for the underlying supply chain. As an industrial connection technology expert, CAZN Electrical has recognized the industry opportunity and is providing highly reliable and highly integrated connection solutions to build an unbreakable “neural hub” for these Chinese-made humanoid robots, which account for more than half of the global market.

Humanoid robots contain dozens of degrees of freedom joints. Under conditions involving high-frequency movement, severe vibration, and limited internal space, even a minor connection failure can cause the entire robot system to stop operating. CAZN Electrical directly addresses these industry challenges and, through its flagship product portfolio, provides comprehensive support for the robot’s “skeleton” and “senses”:

Joint Control and Power Transmission:For the dynamic bending and strong vibration conditions at robot joints, CAZN Electrical’s M12 anti-vibration connectors combined with high-frequency motion industrial cable assemblies adopt specially designed stress relief structures, achieving a bending life of ≥1.5 million cycles during high-frequency joint movement and becoming a core solution for joint fatigue resistance. At the same time, push-pull self-locking connectors and heavy-duty connectors ensure accurate transmission of high-current drive commands through their precision elastic locking structures.

“Zero Attenuation” of Sensor Data Transmission:The robot’s vision and tactile perception systems rely on high-speed data transmission channels. CAZN’s M12 shielded connectors and TNC/N-type RF connectors adopt 360° full shielding design and precise impedance control, perfectly supporting high-frequency interaction of LiDAR point cloud data and servo system commands. This enables “zero attenuation” signal transmission, making robot perception more sensitive and response speed faster.

Extreme Space Utilization:Facing the extremely limited wiring space inside robots, CAZN provides M12 modular hybrid connectors that integrate power, high-speed data, and optical fiber signal transmission within a single interface. This significantly simplifies internal wiring and improves complete robot assembly efficiency.

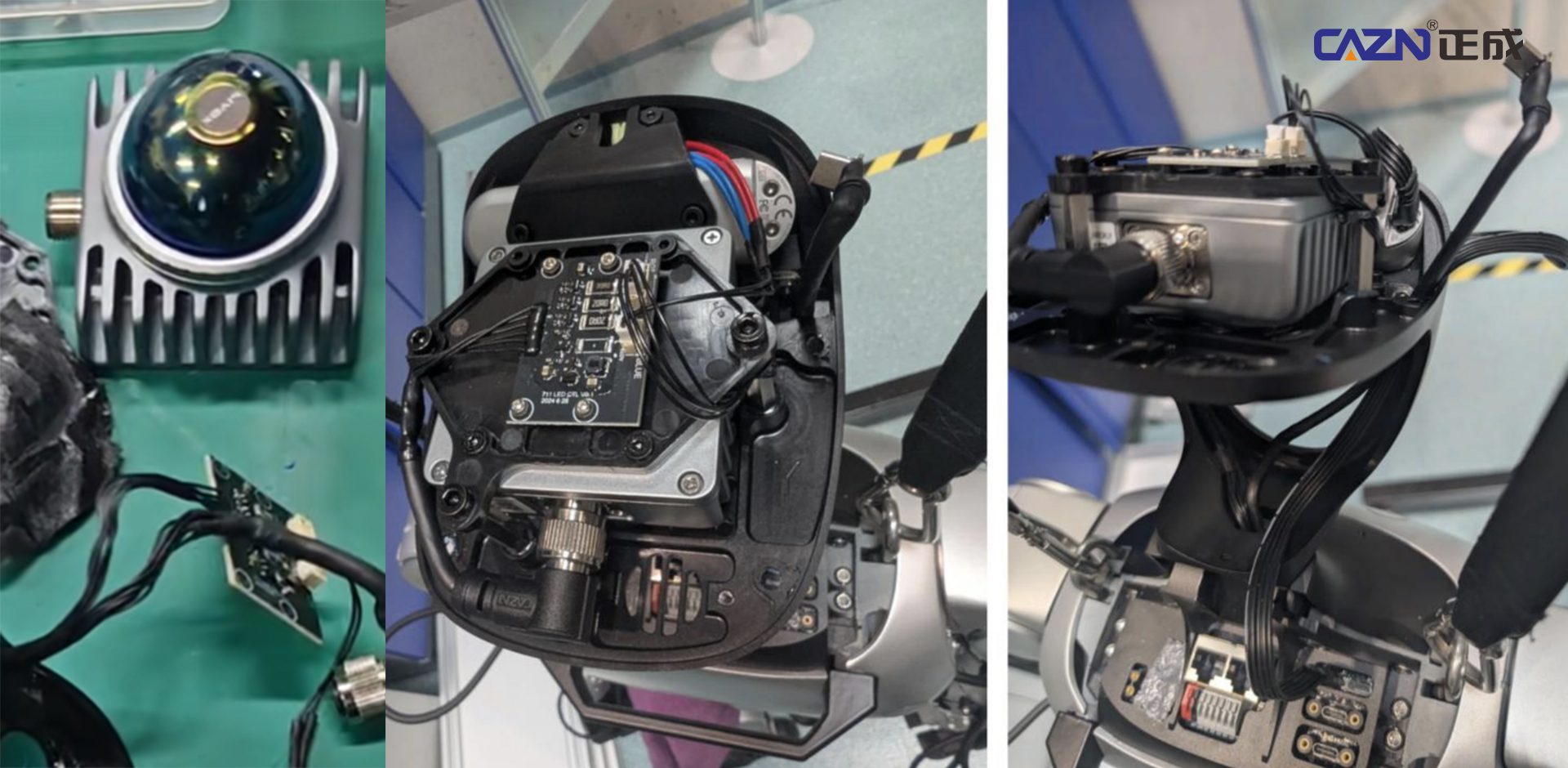

Head Wiring Connection

MIIT has clearly proposed that by the end of 2026, China will develop a large-scale deployment capability reaching tens of thousands of robot units, promoting robot applications in complex environments such as underground operations, high-voltage tunnels, and automotive welding production lines. This places extremely strict requirements on connector environmental adaptability.

CAZN Electrical relies on strict quality control standards (ISO9001 system and 6S management) as its foundation. Its M12 overmolded waterproof cable assemblies and customized RF connectors provide IP67/IP68 protection, high and low temperature resistance (-55℃ to 125℃), and salt spray corrosion resistance. Whether operating in dust-filled mining environments or outdoor warehouses with strong electromagnetic interference, CAZN connectors ensure a 100% data transmission success rate, providing strong support for long-term stable robot operation.

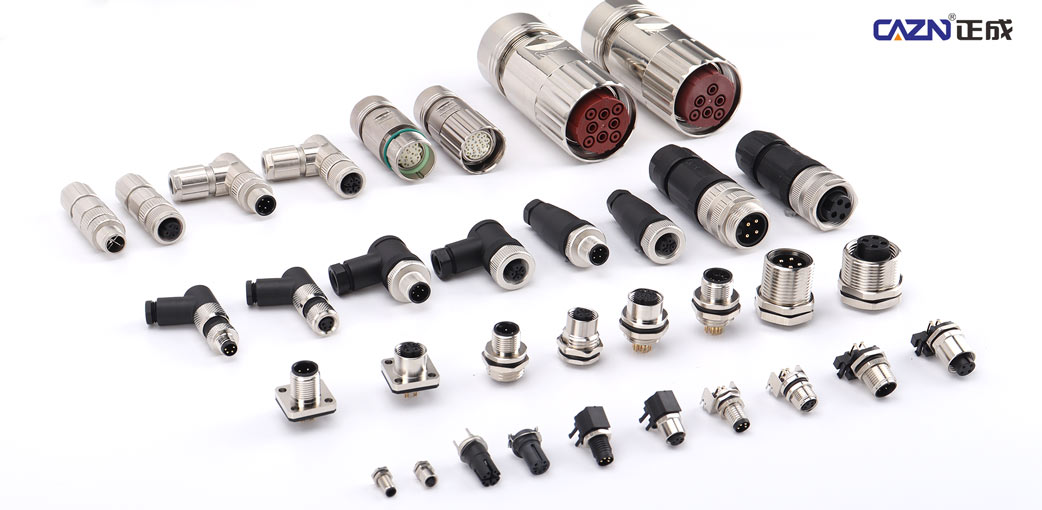

CAZN M12 Product Specifications

Basic Specifications and Classifications

Product Form:Provides straight and 90° angled structures. The angled design can better save installation space.

Male and Female Types:Covers pin-type male connectors (external thread) and socket-type female connectors (internal thread), as well as multiple installation methods including front-panel mounting, rear-panel mounting, and PCB soldering types.

Number of Pins:Provides high-density options from 2 pins to 17 pins, meeting different integrated signal and power transmission requirements.

Anti-Mating Coding:Supports multiple coding designs including A-code, B-code, D-code, and X-code to prevent incorrect connection.

Electrical Performance Parameters

Contact Resistance:Initial value ≤5mΩ (some models ≤100mΩ), ensuring low-loss power transmission.

Insulation Resistance:≥100MΩ (some high-requirement models ≥1000MΩ).

Rated Current:Depending on pin count and model, typically ranges from 1.5A to 4A (some single-pin current capacity can reach 7A-12A).

Withstand Voltage:1000VAC/1min without breakdown.

High-Speed Transmission:Supports CAT6A protocol and enables 10Gbps high-speed data transmission (such as X-coded data connectors).

Environmental Adaptability and Protection

Protection Rating:Reaches IP67/IP68 waterproof and dustproof standards (tested under 1-meter water depth for 30 minutes).

Operating Temperature:Standard operating temperature ranges from -25℃ to +80℃. Some high-performance models can operate under extreme temperature variations from -40℃ to 85℃ or even 105℃.

Corrosion Resistance:Zinc alloy housings provide high wear resistance and pass 500-hour continuous salt spray testing without surface rust. Some stainless steel customized versions achieve 96 hours without corrosion.

Materials and Manufacturing Process

Housing Materials:Nickel-plated brass, zinc alloy, 316 stainless steel, or high-strength engineering plastics (such as PA66+30%GF flame-retardant material).

Terminal Materials:Phosphor bronze terminals with gold-plated pin and socket surfaces to improve conductivity and oxidation resistance.

Insulation and Molding Materials:Nylon PA66, with molding materials available including PVC, PUR, and TPU.

Manufacturing Precision:Dimensional tolerances are controlled within ±0.05mm, with full inspection of pin alignment accuracy deviation ≤0.1mm.

Standards and Certifications

Applicable Standards:IEC 61076-2-101 / IEC 61076-2-109

International Certifications:Passed CE, RoHS, REACH, UL certifications, and complies with quality management systems including ISO9001:2015 and IATF16949 (automotive industry).

With the rapid growth of humanoid robot systems, the localization process of core components is accelerating. For a long time, the high-end robot connector market has been dominated by international brands. CAZN Electrical is gradually breaking this technological monopoly through more than 30 patented technologies, high-precision mold development capabilities, and high-speed signal simulation testing capabilities.

Looking ahead, CAZN Electrical has already established strategic plans in three major technological development directions:

First, supporting high-speed data transmission above 10Gbps (such as M12 X-coded gigabit network connectors) to meet the requirements of multi-modal perception systems.

Second, further developing multifunctional hybrid integration and promoting the evolution of connectors toward integrated “power + data + optical fiber” solutions.

Third, exploring intelligent connection technologies by integrating temperature monitoring and contact status monitoring functions to support predictive maintenance for robots.

The fact that humanoid robot products account for more than half of the global total is not only a symbol of the rise of China’s manufacturing industry but also represents a historic opportunity for supply chain enterprises. In this wave of embodied intelligence development, CAZN Electrical will continue to uphold the principles of “technological innovation and quality first,” working together with industry partners through more compact, durable, and intelligent electrical connection products to inject strong momentum into the high-quality development of China’s robotics industry.
