Bearing Safety, Powering the Urban Arteries: CAZN Heavy-Duty Connectors Deliver Reliable Performance for Rail Transit

Rail transit is the lifeline connecting modern cities. Its safe and efficient operation depends on tens of thousands of electrical connection points distributed throughout the system. These connection points function like the “nerves and blood vessels” of the entire network, required to withstand long-term exposure to high vibration, large current loads, and complex electromagnetic environments.

Challenges Everywhere: Demanding Connection Requirements in Rail Applications

Rail transit environments impose four critical challenges on connector systems.

High mechanical stress is constant during train operation. Continuous vibration, frequent acceleration and deceleration, and dynamic impact loads require connectors with excellent anti-vibration performance and strong mechanical locking structures to prevent loosening or intermittent contact.

High-current power transmission is essential for traction and auxiliary power systems. Connectors must support high current-carrying capacity while maintaining controlled temperature rise and high electrical safety margins to ensure stable power delivery under continuous load.

Complex signal transmission is equally critical. Train control networks, braking systems, and onboard sensors rely on stable, interference-free signal pathways. This demands strong electromagnetic compatibility (EMC) shielding performance to prevent signal distortion or data loss.

Harsh environmental adaptability is another key requirement. Connectors must operate reliably in underground tunnels with humidity and dust, outdoor exposure to rain and UV radiation, and even extreme low-temperature conditions. This requires robust waterproofing, dust resistance, corrosion resistance, and wide operating temperature tolerance.

Solution: Heavy-Duty Design Ensuring Every Kilometer of Safe Operation

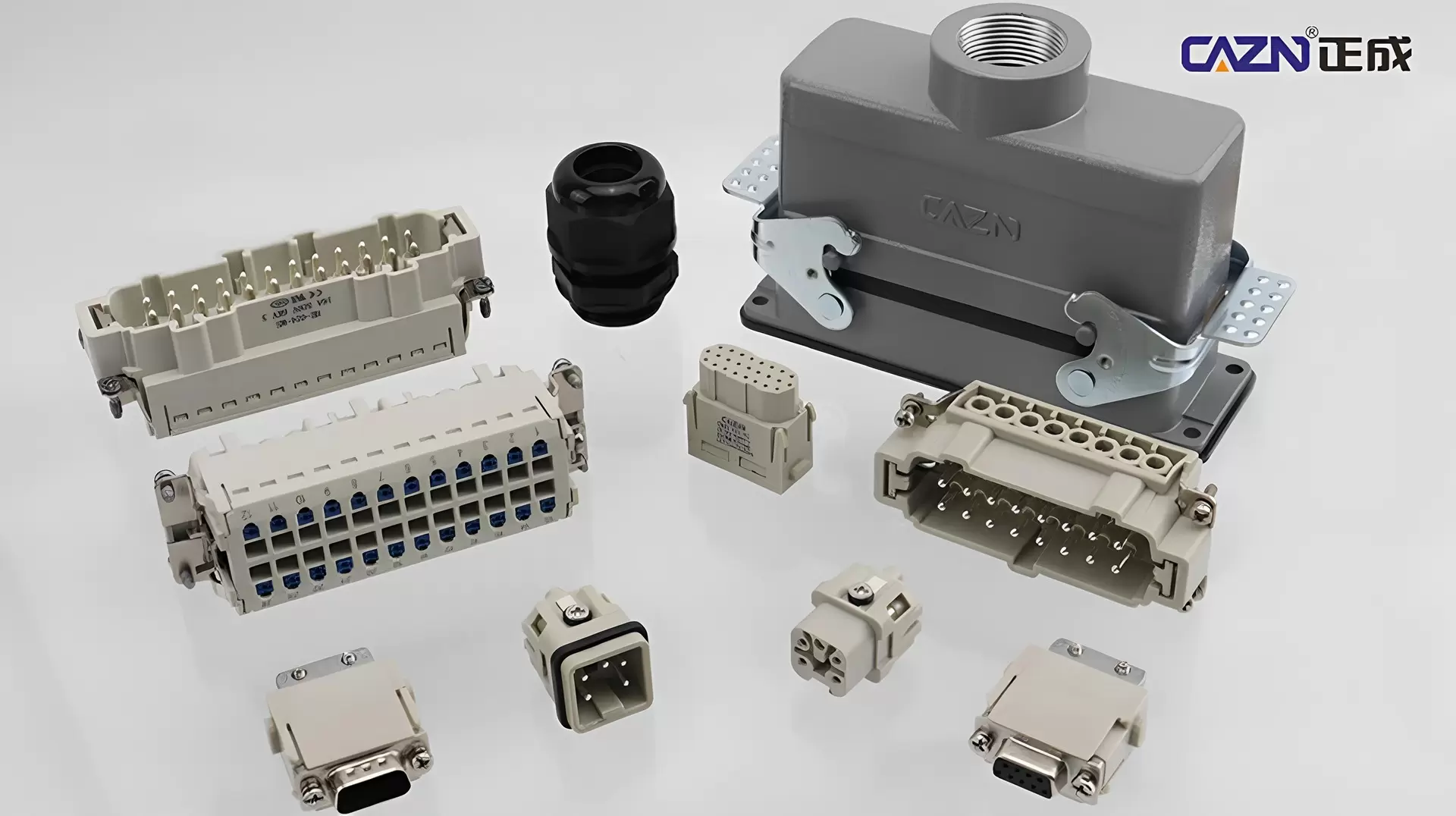

CAZN heavy-duty connectors are engineered with robust structures and high-performance materials to meet the demanding needs of rail transit systems across multiple critical applications.

In train-to-train interconnections, connectors are used for electrical power, control signals, and communication links between carriages. Multi-pin hybrid designs enable simultaneous transmission of power and data. Reinforced metal housings combined with multi-layer locking mechanisms ensure stable connections during high-speed operation and frequent curve navigation, preventing signal interruption under dynamic conditions.

In bogie-to-car body interfaces, where vibration levels are significantly higher, M23 high-current connectors and vibration-resistant M12 sensor connectors are commonly deployed. These connectors feature anti-vibration contact structures and high-elastic sealing materials, ensuring long-term stability of critical signals such as braking control and traction monitoring even under continuous mechanical stress.

For trackside equipment, including signaling units and switch actuators, connectors provide both power supply and communication interfaces. With protection ratings up to IP67/IP68, they resist rain, dust, and environmental exposure. Flame-retardant housing materials further meet strict fire safety requirements, ensuring uninterrupted operation of ground-based infrastructure systems in all weather conditions.

In charging and maintenance systems, including overhead line power collection systems, charging stations, and depot maintenance equipment, high-current modular connectors enable efficient transmission of high-power energy. Their extended mating cycle life supports frequent plug-and-unplug operations, improving operational efficiency while maintaining electrical safety during maintenance activities.

Core Value: Safety, Reliability, and Operational Efficiency

Choosing CAZN heavy-duty connectors means selecting a connection system built around three core values.

The first is maximum safety. These connectors are designed to fully comply with industry standards, forming a foundational safeguard for the safe operation of rail transit systems.

The second is long-term reliability. Throughout the decades-long lifecycle of rail vehicles, connectors maintain stable electrical and mechanical performance, significantly reducing failure rates and minimizing maintenance costs caused by connection degradation.

The third is system-level efficiency. Modular and high-density designs save installation space, while pre-assembled configurations and clear coding systems reduce assembly errors. These features improve both vehicle manufacturing efficiency and on-site maintenance speed, contributing to overall system productivity.

Conclusion

CAZN heavy-duty connectors continue to safeguard every safe journey in rail transit systems. Looking ahead, CAZN Electric will remain committed to technological leadership and quality excellence, continuously advancing connector performance in response to the industry’s shift toward intelligent and green transportation.

By focusing on high-reliability connectivity and high-speed data transmission technologies, CAZN aims to support the ongoing evolution of modern rail systems and contribute to the high-quality development of global rail transportation infrastructure.
