CAZN Smart Agriculture Solutions: Engineering Reliable Sensor Fusion

The biggest challenge in agricultural robot perception has never been simply seeing clearly, but making sense of too much diverse data. Multi-sensor fusion is not inherently a safety redundancy; without proper engineering, it can become an amplifier of system noise.

This statement is frequently discussed in agricultural automation, yet few provide an engineering-level solution. An agricultural robot capable of continuous operation in muddy, dusty, brightly lit, and highly vibratory environments requires far more than simply mounting cameras, LiDAR, IMUs, and GNSS receivers on a vehicle. Behind reliable performance lies a systematic architecture integrating perception, connectivity, edge computing, and motion control.

Since its establishment, CAZN has remained committed to developing and implementing comprehensive smart agriculture solutions. We treat this principle as a fundamental rule of product design: every sensor, every wiring harness, and every synchronization process must undergo engineering validation. Otherwise, adding more sensors only introduces more noise rather than improving perception.

1. The Core Problem: Why Simply Adding Sensors Fails in Agricultural Fields

Multi-sensor fusion often performs well in laboratories or controlled environments. However, three categories of challenges become significantly more pronounced in real agricultural fields.

Environmental interference: Dust, moisture, mud, direct sunlight, and uneven nighttime illumination can introduce substantial outliers into raw visual and LiDAR data.

Mechanical vibration: Agricultural machinery engines, uneven terrain, and impacts from operating equipment can cause IMU bias drift and intermittent connector disconnections, resulting in transient signal spikes.

Electromagnetic compatibility (EMC): Variable-frequency drives, solenoid valves, wireless communication equipment, and high-frequency power battery systems can introduce interference into analog and digital signals through cables and ground loops.

When these three factors interact, common symptoms include sudden positioning jumps after hundreds of meters of operation, fluctuating object-recognition confidence, and occasional false emergency braking.

In many cases, the root cause is not the algorithm itself, but insufficient engineering consistency throughout the perception data chain.

2. CAZN’s Four-Layer Architecture for Smart Agriculture Solutions

CAZN organizes its comprehensive smart agriculture solutions into four functional layers, each with clearly defined technical requirements and deliverables.

2.1 Perception Layer: Select Sensors for Specific Applications Instead of Installing Everything

We do not advocate equipping every agricultural robot with every available sensor. Instead, CAZN provides calibrated sensor configurations tailored to different operating environments.

Open-field seeding and crop protection: GNSS RTK, dual-antenna IMU, millimeter-wave radar, and multiple RGB cameras, focusing on high-precision positioning and obstacle avoidance.

Orchard harvesting and inspection: 3D LiDAR, depth cameras, and joint torque sensors, focusing on three-dimensional perception of plants and fruit.

Greenhouses and controlled-environment agriculture: 2D vision, multispectral cameras, and soil moisture sensor arrays, focusing on crop growth assessment and environmental monitoring.

Before delivery, all sensors undergo extrinsic calibration, timestamp alignment using hardware triggering, and baseline noise characterization. The target synchronization error is less than 1 ms, reducing the uncertainties associated with manual calibration at the deployment site.

2.2 Connectivity Layer: Automotive-Grade Wiring Harnesses to Suppress Noise at the Physical Layer

The connectivity layer is one of the most frequently overlooked components, yet it has a substantial impact on overall system stability. CAZN’s solution follows standardized connectivity specifications.

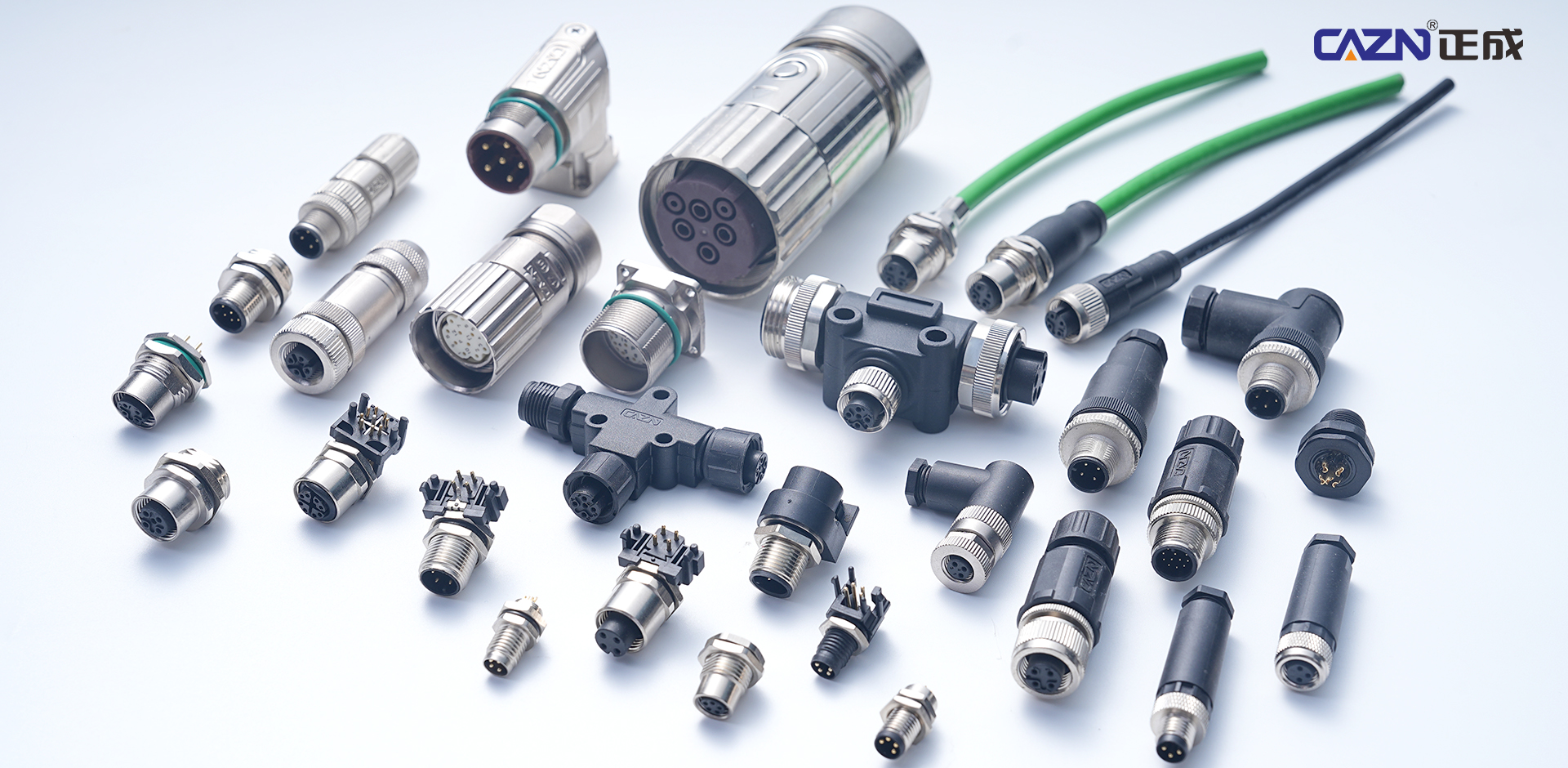

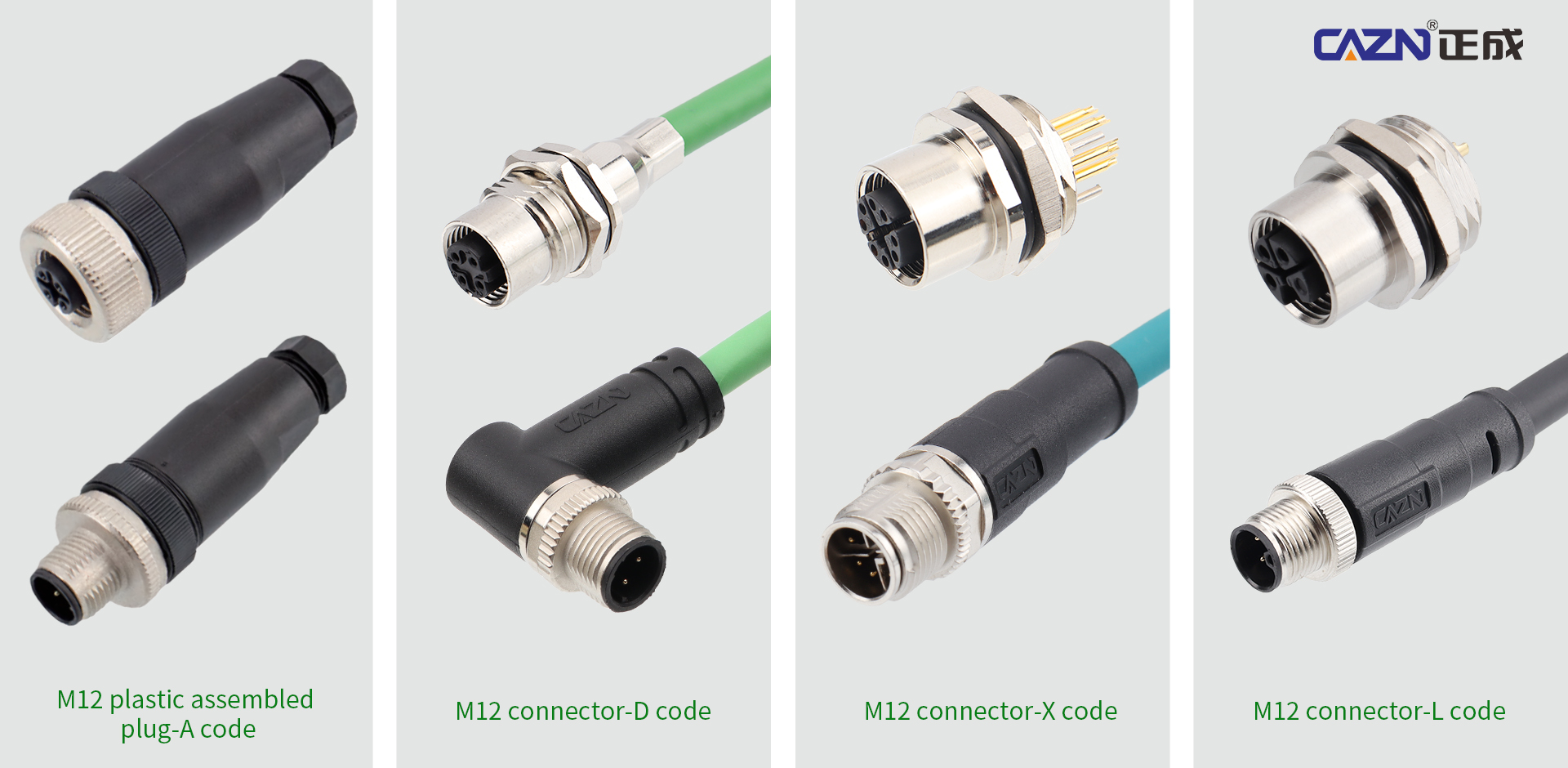

Main communication network: M12 X-coded connectors for high-speed Ethernet communication, featuring metal threaded locking mechanisms and IP67/IP69K protection. Shield grounding is implemented according to the system’s EMC design requirements.

Power supply and CAN bus: M12 A-coded connectors with 5-pin or 8-pin configurations, vibration-resistant threaded locking, and compatibility with ISO 11898-based CAN communication.

Analog and low-speed signals: M8 circular connectors or locking board-mounted connectors, with signal cables routed away from power harnesses and a recommended separation distance of at least 200 mm.

Antenna connections: GNSS and wireless data radio systems use TNC or N-type connectors to reduce the risk of loosening under vibration compared with SMA connections in demanding applications.

In our laboratory, we conduct 10–500 Hz random vibration testing, IP69K high-pressure washdown testing, and ±8 kV ESD contact-discharge testing. These tests help ensure that connectors themselves do not become additional sources of signal interference.

2.3 Edge Computing Layer: Coordinating Algorithms with Hardware Engineering

The onboard edge computing unit integrates heterogeneous computing resources, including CPUs, NPUs, and GPUs, to support CAZN’s proprietary software capabilities.

Multi-sensor fusion positioning engine: Tightly coupled GNSS/INS integration and LiDAR odometry help maintain positioning performance when satellite signals are unavailable, such as beneath dense tree canopies or inside greenhouses. The target is to maintain centimeter-level positioning for more than 30 minutes under specified operating conditions.

Crop recognition and segmentation models: Lightweight models trained for staple crops, fruits and vegetables, and commercial crops support application-specific recognition and segmentation, with OTA updates enabling continuous model improvement.

Functional safety monitoring module: The system monitors sensor health, data freshness, and connector status in real time. When an anomaly is detected, it triggers an appropriate degraded operating mode or initiates a safe stop.

2.4 Cloud and Operation Management Layer

The cloud platform supports map generation, task dispatch, operational data collection, and model updates.

Through web or mobile interfaces, farm managers can monitor operating trajectories, area coverage, abnormal alerts, and equipment health. Reports can also be generated by field, crop type, and growing season to support operational analysis and farm management decisions.

3. Why Choose CAZN for Smart Agriculture Solutions?

Application-driven system design: Rather than using excessive sensor configurations to compensate for engineering limitations, we select sensor combinations according to specific operating conditions and functional requirements.

Standardized connectivity engineering: CAZN’s M12 industrial connectivity and wiring harness specifications help suppress interference at the physical layer, establishing the foundation for reliable perception.

Integrated algorithm and hardware development: Perception, calibration, wiring harness design, and edge computing are developed and improved through coordinated engineering efforts, reducing integration gaps between different suppliers.

Repeatable deployment: From individual agricultural obots to fleet operations, and from open fields to greenhouses, our solutions are designed to support standardized implementation across diverse agricultural environments.

4. Building Agricultural Robots for Reliable Long-Term Operation

The ultimate measure of an agricultural robot is not how many sensors it carries, but how reliably it performs after a month of continuous operation in muddy and demanding conditions. Its positioning must remain stable, recognition results must remain consistent, and emergency braking must respond correctly without false activation.

CAZN’s comprehensive smart agriculture solutions address these challenges through systematic engineering, integrating sensor selection, reliable connectivity, edge computing, and intelligent control into a unified architecture.

By focusing on engineering consistency rather than sensor quantity alone, CAZN is working to make agricultural automation more reliable, scalable, and adaptable to real-world farming environments.
