CAZN | M8 6-Pin A-Coded Connector

The M8 6-pin A-coded connector is a compact industrial interconnection solution compliant with IEC 61076-2-104. Designed for multi-signal transmission in space-constrained applications, it features an M8 × 1 threaded locking mechanism and A-coded keying to prevent mismating with B-coded or D-coded M8 connectors. Its primary advantage is reliable transmission of six independent signal circuits within the compact M8 form factor.

Key Electrical Specifications

Pin Count: 6-pin, A-coded

Rated Voltage: 30 V AC/DC

Rated Current: 1.5 A per contact; contact resistance ≤ 5 mΩ; total current not exceeding 4 A. Due to reduced contact spacing, the 6-pin version has a lower current rating than 3-pin and 4-pin models.

Protection Rating: IP67 when properly mated and locked, providing protection against dust ingress and temporary immersion under specified conditions.

Wire Gauge: Typically 0.14 mm² (26 AWG), with 0.25 mm² (24 AWG) also available.

Operating Temperature: -40°C to +80°C

Contacts: Gold-plated copper, with a mating cycle life of at least 500 cycles.

Construction: Available in shielded and unshielded versions.

Wiring Configuration

Wire Color Abbreviations: BN = Brown, WH = White, BU = Blue, BK = Black, GY = Gray, PK = Pink.

Male and female contact layouts are mirror images of each other. The A-coded keying feature prevents incorrect mating, allowing the connector to mate only with compatible 6-pin M8 A-coded connectors, not B-coded or D-coded M8 connectors.

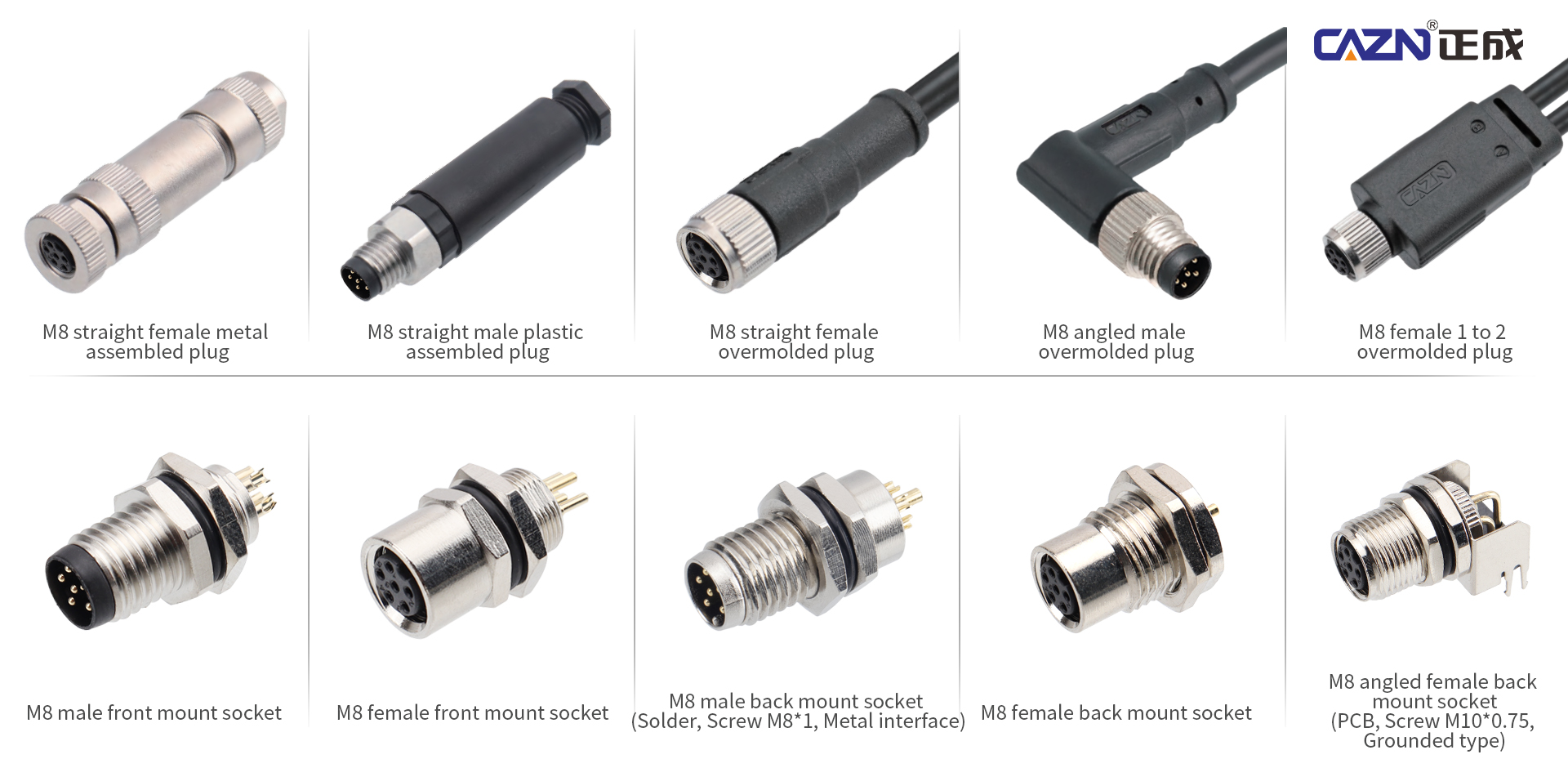

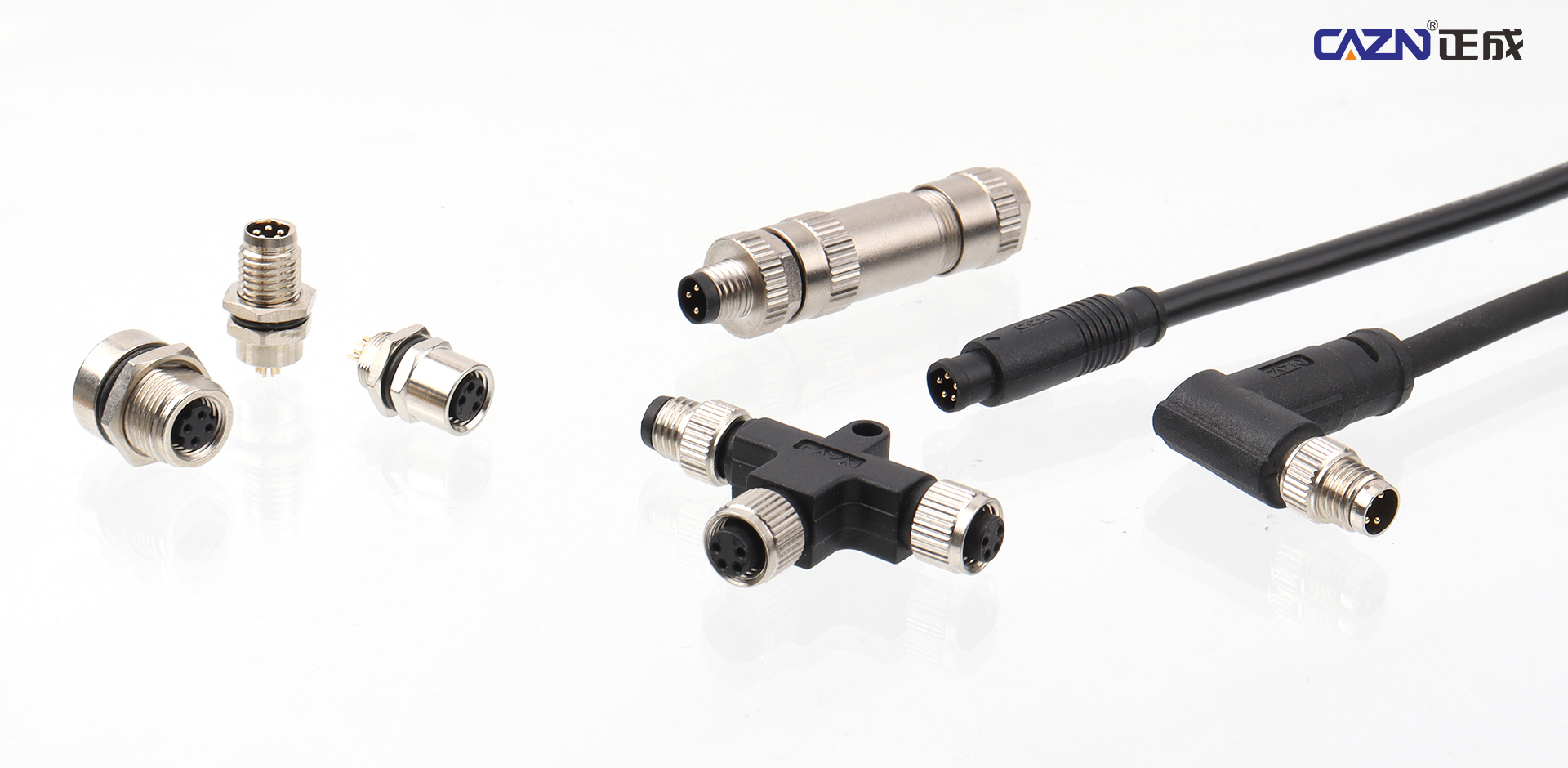

Available Connector Configurations

Molded Cable Type: Available with straight or 90-degree angled connectors and PVC or PUR cables. The cable and connector are integrally molded at the factory, making this the most common configuration.

Field-Wireable Type: Designed for on-site wiring without injection molding, making it suitable for commissioning, troubleshooting, and maintenance.

Panel-Mount Receptacles: Available in front-mount or rear-mount panel configurations, as well as PCB surface-mount (SMD) and solder-pin versions for direct integration into equipment circuit boards.

Male and Female Versions: Available with male contacts (pins) or female contacts (sockets) to meet different connection requirements.

Typical Applications

The M8 6-pin A-coded connector is a high-density interface for low-power signals, commonly used in:

• Compact rotary encoders

• Multi-channel sensors and measurement probes

• Miniature industrial cameras and electrostatic eliminators

• IO-Link modules for multi-signal acquisition

• Signal connections in equipment with extremely limited installation space

• Signal interfaces for compact actuators

• Multi-channel signal interconnections where a smaller alternative to larger M12 multi-pin connectors is preferred

CAZN M8 6-Pin A-Coded Connectors for Reliable Signal Transmission

As a compact, multi-signal interface, the M8 6-pin A-coded connector is an ideal choice for miniature encoders, IO-Link modules, and precision measurement equipment. CAZN’s connector series complies with the IEC 61076-2-104 standard and features gold-plated contacts for reliable electrical performance and vibration resistance, while balancing compatibility with environmental durability.

CAZN provides sample testing, connector selection guidance, and customized wiring harness services to help customers address equipment signal interconnection requirements through an integrated solution.
