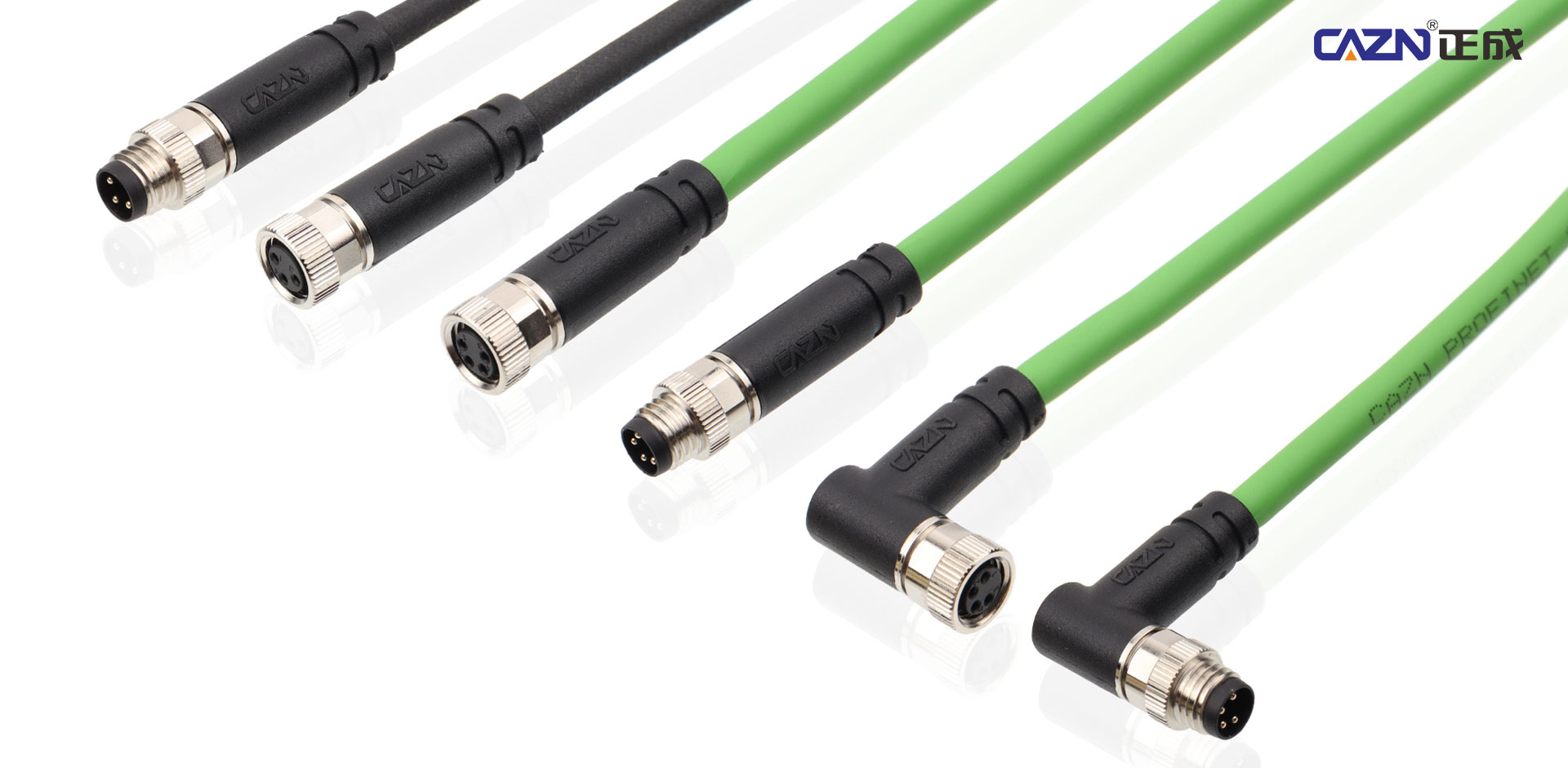

CAZN M8 Connector: Anti-Vibration Locking for Harsh Environments

In industrial automation, intelligent equipment, and new energy applications, M8 connectors serve as critical connection interfaces between sensors, actuators, and control cabinets. They are frequently exposed to high-frequency vibration, thermal cycling, oil contamination, and other demanding operating conditions. Traditional connectors may experience thread loosening, unstable contact resistance, or even signal interruption during long-term operation, potentially resulting in equipment failures and unplanned production downtime. With more than a decade of experience in industrial connectivity, CAZN has developed an upgraded anti-vibration and anti-loosening locking mechanism for M8 connectors. Through structural innovation and rigorous reliability testing, the solution is designed to deliver highly stable miniature connectivity for demanding industrial applications.

Industry Challenges: Why Traditional M8 Connectors Fail Under Harsh Conditions

In typical high-vibration environments such as CNC machine tools, AGVs, mobile robots, and outdoor photovoltaic monitoring systems, failures of conventional M8 connectors are generally concentrated in three critical areas.

First, conventional single-thread structures may experience microscopic relative movement between the mating threads under continuous vibration above 2,000 Hz. After 3,000 hours of operation, the loosening rate can reach 17%, potentially resulting in signal transmission interruptions.

Second, conventional sealing rings may harden and shrink at temperatures as low as -40°C, reducing sealing performance. Once moisture enters the connector, contact oxidation may occur, causing contact resistance to increase from 5 mΩ to more than 50 mΩ, which can lead to interface overheating and unstable power transmission.

Third, traditional foolproof designs often rely on a single keyway for positioning. In complex field wiring environments, this can result in partial mating. When the connector is not fully locked, its vibration resistance can decrease by as much as 70%.

These issues have long challenged industrial maintenance teams. According to industry statistics, unplanned downtime caused by connector loosening can result in annual losses exceeding RMB 800,000 per production line on average. As a result, highly reliable anti-vibration and anti-loosening connection solutions have become increasingly important for intelligent manufacturing applications.

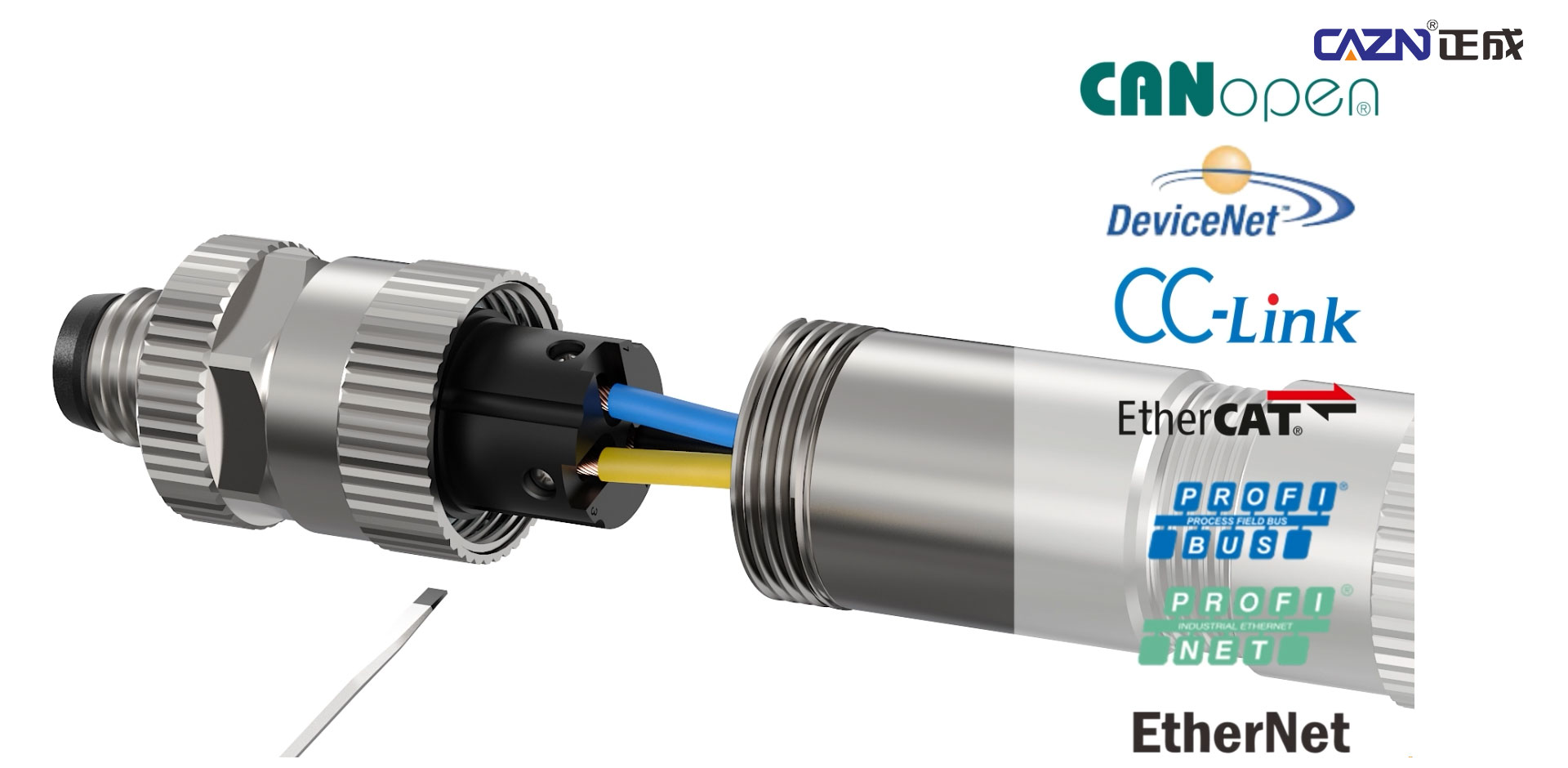

CAZN's Core Technology: Triple Locking Mechanism

To address these common industry challenges, CAZN has leveraged more than a decade of experience in industrial connectivity to develop an advanced triple locking mechanism combining thread locking, retaining-ring locking, and end-face engagement. The structure is designed to prevent loosening at its mechanical source.

High-Precision Trapezoidal Thread Design

CAZN replaces conventional metric threads with an optimized trapezoidal thread structure. The thread flank angle is controlled at 30°, while a micro-oxidation surface treatment is applied to enhance friction characteristics.

This design increases thread engagement friction by approximately 60%, significantly improving the self-locking capability of the threaded connection under continuous vibration and reducing the risk of rotational loosening.

Integrated Elastic Retaining-Ring Lock

An elastic retaining ring is integrated into the mating end of the connector.

When the connector is tightened to the preset torque range of 0.8–1.2 N·m, the retaining ring automatically engages with the corresponding groove, creating a dual mechanical locking structure combining the thread and retaining ring.

Even under severe impact conditions, the additional mechanical locking mechanism helps prevent reverse rotation of the threaded connection and minimizes the risk of loosening.

Serrated End-Face Engagement

CAZN also incorporates an annular serrated engagement structure on the mating end faces.

After mating, the serrated surfaces engage completely, helping eliminate small axial and radial movements.

Combined with a dual-layer FKM sealing ring, the structure provides secure mechanical engagement while maintaining end-face sealing performance, addressing both vibration resistance and water-ingress protection requirements.

Optimized Contact Structure for Stable Electrical Performance

CAZN has also optimized the internal contact structure to improve electrical reliability under vibration.

The connector uses gold-plated pins, with each individual pin incorporating 12 independent contact spring elements.

This structure helps maintain stable electrical contact even under vibration.

The contact resistance remains at ≤5 mΩ, reducing the risk of signal fluctuations, abnormal heating, and unstable power transmission at the connector interface.

Comprehensive Reliability Testing: Defining Industrial Performance Through Data

Every CAZN M8 connector equipped with the triple locking mechanism must undergo comprehensive reliability testing before delivery.

1,000-Hour Continuous Vibration Test

The connector is subjected to a composite vibration test at 10–2,000 Hz with an amplitude of 0.35 mm for 1,000 continuous hours.

The measured thread loosening rate is 0, while contact resistance fluctuation remains within 0.5 mΩ.

This exceeds the commonly used 500-hour industry testing duration and provides additional verification for long-term vibration resistance.

-40°C to +80°C Thermal Cycling Test

The connector undergoes 100 high-low temperature cycles between -40°C and +80°C.

After testing, the locking torque attenuation rate remains below 8%, while the sealing rings show no hardening or cracking.

The connector continues to maintain IP67 protection performance after thermal cycling.

500-Cycle Mechanical Mating Test

The connector completes 500 full mating and unmating cycles.

After testing, the locking structure shows no significant wear, and the retaining ring maintains its mechanical performance without fatigue failure.

The anti-loosening performance retention rate remains at 100%, providing a significantly extended mechanical service life compared with conventional industrial M8 connectors.

1,000-Cycle Live-Load Aging Test

Under a rated current of 3 A, the connector completes 1,000 mating and unmating cycles while energized.

No significant arc erosion is observed on the contacts, and contact resistance remains consistently below 5 mΩ.

This helps reduce the risk of excessive interface heating and electrical instability under higher-load operating conditions.

Traceable Quality Control

The CAZN M8 connector series has passed ISO 9001 and IATF 16949 quality management system certifications.

All testing processes are digitally recorded and traceable.

Each product is assigned a unique identification code, allowing customers to access its complete test and quality data.

The defective rate is controlled below 0.02%, supporting consistent quality for industrial applications requiring stable long-term operation.

Designed for Demanding Industrial Applications

From structural innovation to comprehensive reliability verification, CAZN develops its connector technology around real-world industrial operating conditions.

The upgraded M8 anti-vibration and anti-loosening locking mechanism is designed to benchmark against and provide compatible alternatives to major international connector brands such as Phoenix Contact, Weidmüller, and HARTING, while delivering targeted advantages in anti-loosening reliability and harsh-environment adaptability.

With continued investment in industrial connectivity technology, CAZN is committed to providing stable and cost-effective connection solutions for intelligent manufacturing, supporting customers in improving equipment reliability, reducing maintenance costs, and strengthening the resilience of industrial supply chains.
