CAZN | M8-D Code Ethernet Connector Automation Application Solutions

The CAZN M8-D Code Ethernet connector (IEC 61076-2-114) is a 100 Mbps industrial Ethernet miniature connectivity solution designed for PROFINET, EtherCAT, and EtherNet/IP applications. It addresses the need for network access in space-constrained automation equipment and densely distributed field nodes. Compared with M12-D connectors, the M8-D solution reduces the connector footprint by approximately 30%. It features threaded locking, IP67 protection, and 360° shielding for improved resistance to vibration and electromagnetic interference, with data transmission rates of up to 100 Mbit/s.

Why Choose M8 Ethernet Connectors for Industrial Automation?

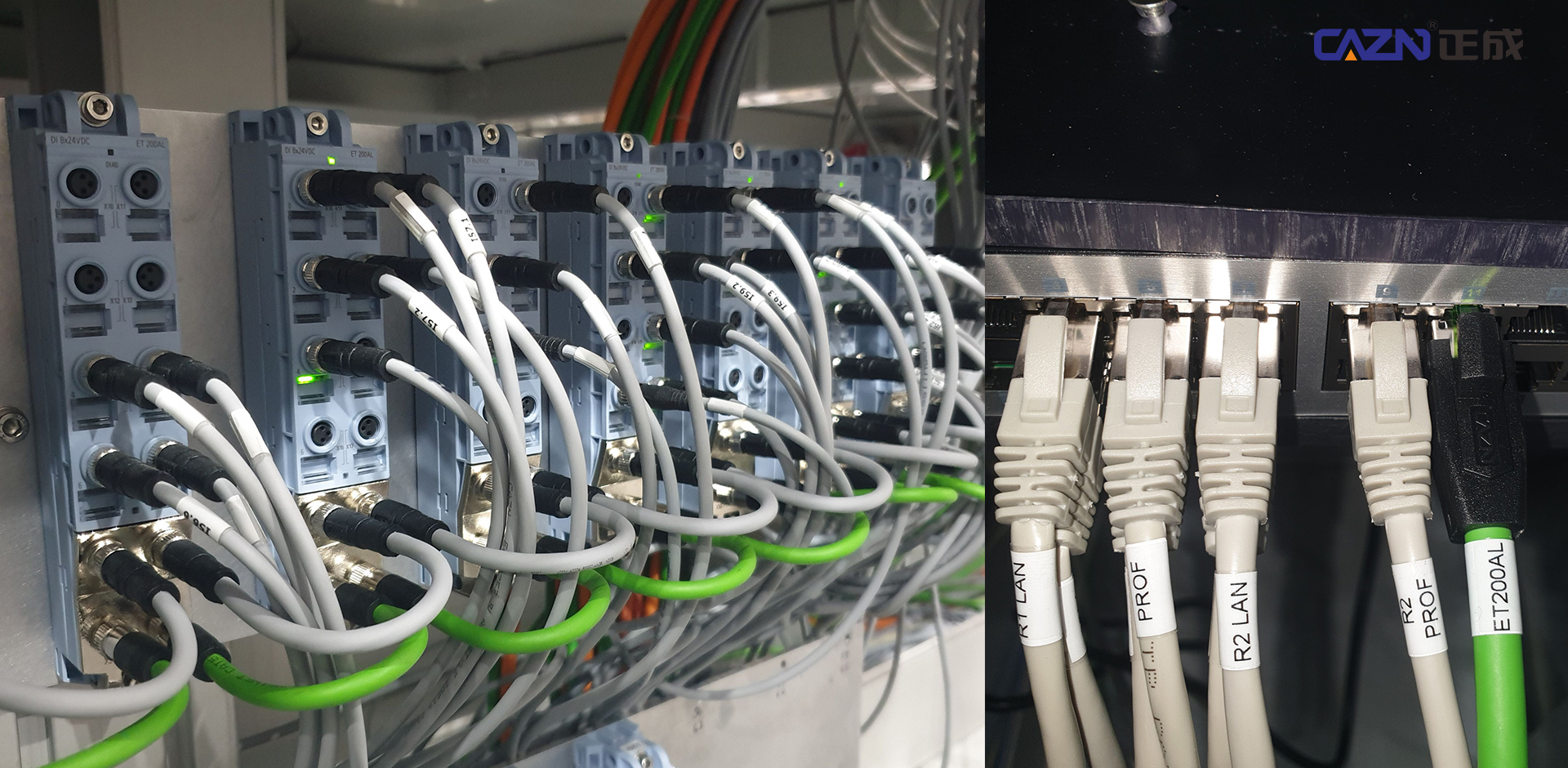

Industrial automation equipment is becoming increasingly compact while requiring higher levels of network connectivity. M8-D Ethernet connectors are particularly suitable for applications where conventional M12 connectors or RJ45 interfaces may be difficult to install.

1.Limited equipment space: Small distributed I/O modules, robot end effectors, compact vision systems, and AGV chassis often have insufficient physical space for M12 connectors.

2.High node density: 3C electronics, packaging, and logistics sorting lines may contain a large number of miniature Ethernet nodes, creating a demand for compact, plug-and-play interfaces.

3.Vibration and shock: Robots and mobile equipment are continuously exposed to vibration and movement. Compared with RJ45 latch connections, threaded locking provides a more secure mechanical connection.

4.Strong EMC interference: Frequency converters, servo drives, and other industrial equipment can generate significant electromagnetic interference. A fully shielded Ethernet connection helps maintain communication integrity.

5.Installation and maintenance efficiency: Pre-assembled cable assemblies can accelerate field installation and replacement, reduce control-cabinet wiring work, and simplify fault isolation.

Complete M8-D Ethernet System Architecture

A practical M8-D Ethernet solution can be configured as a backbone-and-branch distributed network. The main network can use PLCs or industrial Ethernet switches connected through M12-D or RJ45 interfaces, while M8-D cables are used for compact field branches.

The typical architecture is:

PLC / Industrial Ethernet Switch → M12-D / RJ45 Main Network → M8-D Branch Cables → Distributed I/O / Compact Industrial Cameras / EtherCAT Slaves

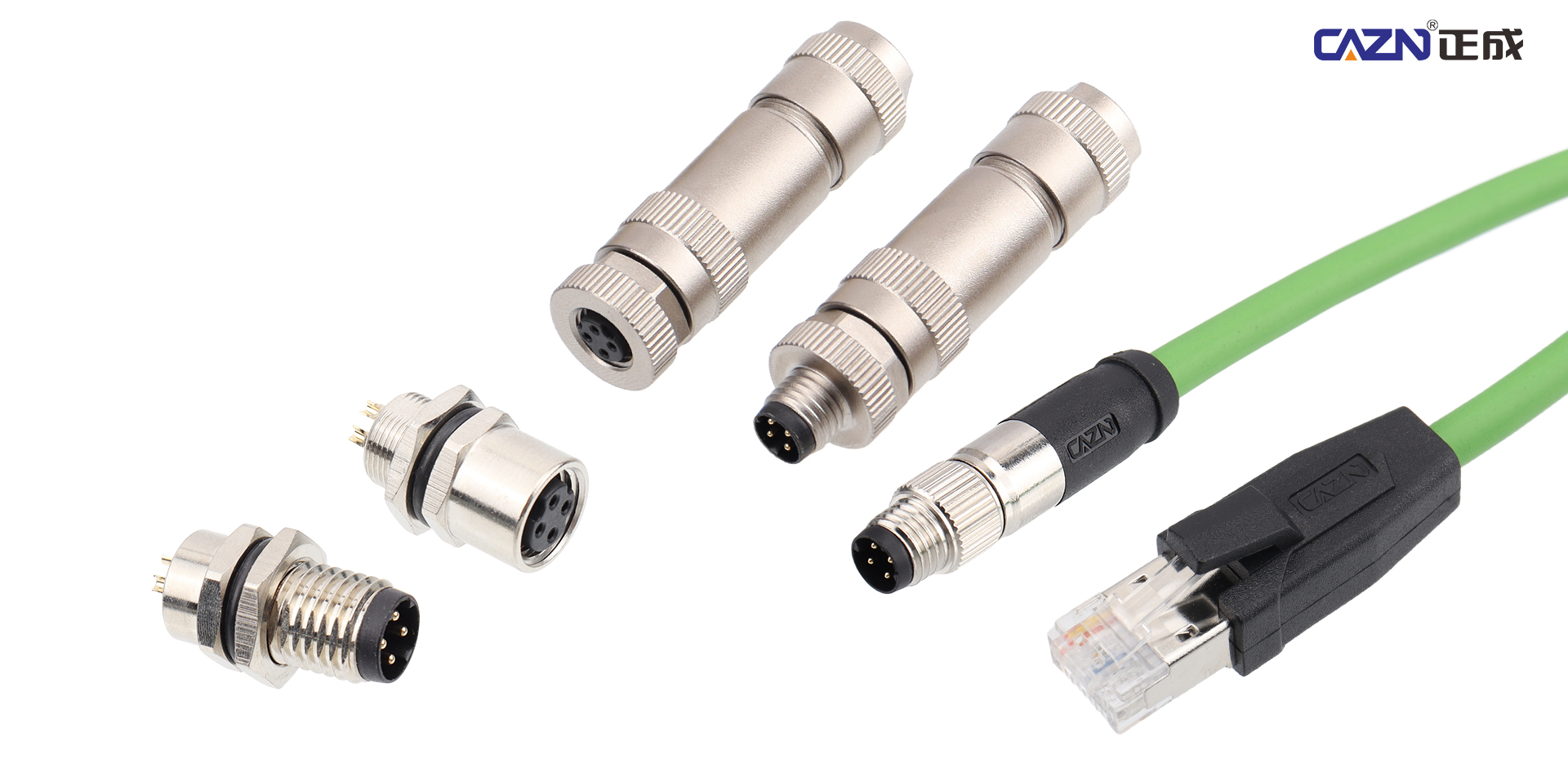

Two cable configurations can be selected according to installation requirements.

Pre-molded cable assemblies are the preferred choice for standardized projects. M8-D straight or right-angle connectors can be supplied in M8-D-to-M8-D and M8-D-to-RJ45 configurations. PUR high-flex cables are suitable for drag-chain and moving applications, while PVC cables are suitable for fixed installations.

Field-assembly connectors are useful during commissioning or when field wiring needs to be modified. Screw termination allows flexible installation, but the shielding must be correctly implemented with a complete 360° shield connection.

For equipment integration, M8-D panel connectors are available in wire-soldered or PCB-mounted configurations and can be installed directly on distributed I/O modules, camera housings, and other compact devices.

Shielding and Grounding Are Critical for Ethernet Stability

Industrial Ethernet performance depends not only on the connector's data transmission capability but also on the integrity of the shielding system. For M8-D Ethernet applications operating in environments with servo drives, motors, inverters, and other electromagnetic interference sources, 360° full-metal shielding is recommended.

Using only aluminum foil with a single-point grounding connection may provide insufficient high-frequency shielding performance and can contribute to communication errors or packet loss under demanding conditions. The cable's braided shield should be securely and continuously connected to the connector's shielding structure.

The equipment frame should use an appropriate grounding strategy to minimize unwanted ground-loop effects. For industrial Ethernet cabling, the cable impedance should be controlled at 100 Ω ±15% according to Cat5e industrial Ethernet requirements, with a total transmission distance of up to 100 m under the applicable network configuration.

For threaded M8-D connections, the recommended tightening torque is 0.4–0.6 Nm. Excessive tightening should be avoided, while connections installed on continuously vibrating equipment should be inspected and re-tightened periodically when required.

Application 1: Robot End Effectors

Collaborative robots and industrial robot wrists provide an excellent example of where M8-D Ethernet connectors can deliver a clear space-saving advantage. Grippers, compact vision cameras, force-control sensors, and other devices installed near the robot's sixth axis often have very limited installation space.

A fully shielded M8-D Code connector with a 90° right-angle configuration can reduce cable interference around the robot wrist. For applications involving repeated movement, a PUR high-flex cable and pre-molded connector assembly can improve cable-management reliability.

For EtherCAT communication, the cable should be routed with sufficient movement allowance and appropriate strain relief. A minimum bending radius of 5× the cable outer diameter should be maintained according to the stated application requirement.

Application 2: AGV and AMR Mobile Robots

AGVs and AMRs require reliable communication while continuously moving and experiencing mechanical vibration. Typical connected devices include distributed I/O, navigation and barcode-scanning modules, compact vision units, and other vehicle-mounted control components.

An IP67 M8-D Ethernet connector with threaded locking is suitable for compact chassis installations where space is restricted and vibration resistance is important. Right-angle connectors can help avoid interference with other components, while PUR cables provide better flexibility for repeated movement and demanding routing conditions.

The threaded connection also helps prevent accidental disengagement caused by continuous vehicle vibration compared with interfaces that rely only on a snap-fit mechanism.

Application 3: 3C, Packaging, and Logistics Automation

Automated production lines in 3C electronics, packaging, and logistics sorting typically combine high node density with limited installation space. Distributed remote I/O boxes, code readers, and compact vision inspection units may all require Ethernet connectivity within a relatively small footprint.

For fixed stations, straight M8-D pre-molded cables can provide a compact and standardized connection. Where installation space is restricted, right-angle versions can reduce cable-routing interference. Moving stations installed on drag chains should use PUR high-flex cables designed for repeated bending.

A practical network architecture can retain M12 or RJ45 connections for the main backbone, while multiple M8-D branches connect field devices. This approach can reduce the size of I/O enclosures, simplify equipment integration, and facilitate rapid replacement of individual field nodes.

Application 4: Ethernet Integration in Compact Equipment

For testing equipment, small special-purpose machines, and other compact systems, the Ethernet interface often needs to be integrated directly into the equipment housing.

An M8-D PCB panel connector can provide an external industrial Ethernet interface without requiring a larger RJ45 opening. The metal shield should be properly connected to the equipment chassis to maintain the intended EMC performance.

This configuration is particularly useful when equipment designers need to maintain a compact enclosure while still providing a mechanically secure and industrial-grade Ethernet interface.

CAZN M8-D: Compact Connectivity for Industrial Ethernet

The expansion of industrial Ethernet is increasing the demand for compact, reliable, and scalable connectivity solutions. CAZN's M8 series addresses this requirement with threaded locking, compact dimensions, IP67 protection, and configurations designed for industrial Ethernet data transmission.

The M8-D Code connector complies with DIN EN 61076-2-114 and is designed for applications where installation space, mechanical security, and reliable communication are all important. Its compact form factor makes it particularly suitable for miniature sensors, distributed I/O, robot end effectors, mobile equipment, and other space-constrained automation devices.

Technical Specifications

The CAZN M8-D Code Ethernet connector uses four D-coded contacts with symmetrical gold-plated contact arrangement. The connector supports more than 500 mating cycles, with a rated voltage of 48 V / 60 V AC/DC, rated current of 4 A, and an operating temperature range of -25°C to +80°C.

CAZN provides both shielded screw-termination versions and pre-molded cable assemblies with cable shielding. Available cable outlet diameters range from 4 mm to 5.5 mm, while supported conductor sizes range from 0.14 mm² to 0.5 mm². The pre-molded cable configuration uses 0.25 mm² (AWG 24) conductors.

In addition to Ethernet data transmission, the M8 D-coded hybrid connector can support power delivery for connected devices in accordance with IEEE 802.3at PoE+ requirements, enabling data and power connectivity within compact industrial automation systems.

For automation equipment where installation space is limited but Ethernet performance, EMC protection, vibration resistance, and maintenance efficiency remain essential, CAZN M8-D Code provides a compact industrial connectivity approach for modern distributed automation networks.
