CAZN | M8-B Code Connector

The CAZN M8-B Code connector is a specific type within the M8 circular connector family, featuring B-Coding and a 5-pin configuration. This design makes it particularly suitable for industrial automation applications that require reliable fieldbus communication in compact installation spaces.

The M8-B Code, compliant with IEC 61076-2-104, is a fixed 5-core miniature connector primarily positioned for PROFIBUS-DP fieldbus applications. Its mechanical keying prevents incorrect mating with A-Code and D-Code connectors. It is designed for fieldbus nodes where installation space is highly restricted. Compared with M8-A and M8-D connectors, the M8-B Code has a much smaller market volume, while M12-B Code remains the mainstream connector solution for PROFIBUS.

Core Specifications

Coding: B-Code, with a dedicated 5-pin keying configuration

Protocol: PROFIBUS-DP based on RS-485 differential bus communication; not suitable for Ethernet transmission

Rated Voltage: 30 V AC/DC

Rated Current: 3 A

Protection: IP67 when properly mated and locked

Operating Temperature: -25°C to +80°C

Mating Cycles: ≥500

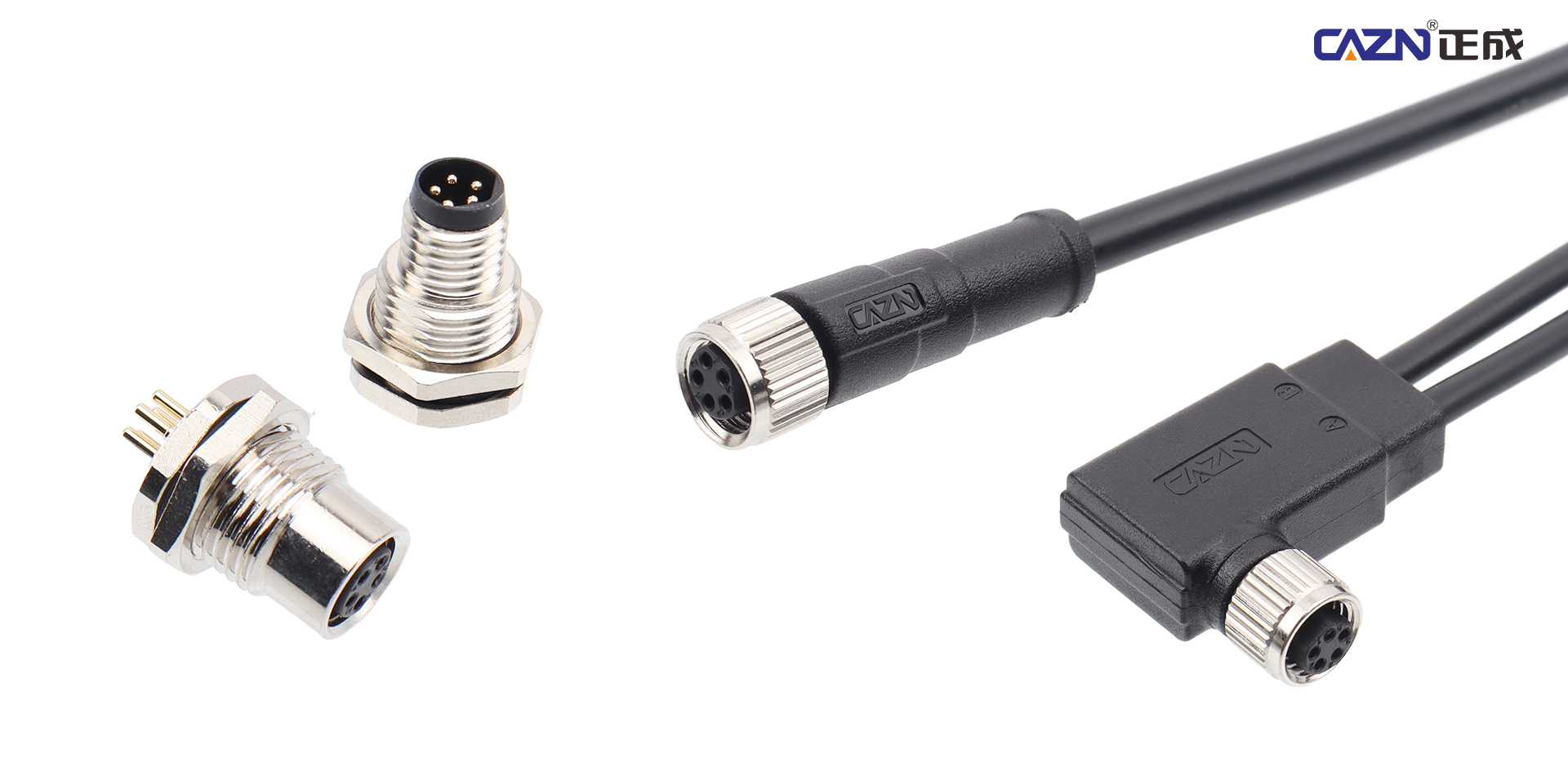

Configurations: Straight and 90° right-angle versions; male and female connectors; pre-molded cable assemblies, field-assembly versions, and PCB panel connectors

Shielding: Shielded versions available, primarily for reliable fieldbus transmission

Transmission Distance: Dependent on PROFIBUS baud rate, with distances up to 500 m at the applicable bus speed

What Is B-Coding?

The defining feature of an M8-B Code connector is its B-Coding. The coding mechanism provides mechanical polarization, preventing incompatible connector types from being incorrectly inserted.

The B-coded interface has a distinctive asymmetrical protrusion that corresponds to the matching groove on the socket. This physical keying prevents accidental mating with other M8 coding types, including A-Code and D-Code, helping reduce wiring errors during installation and maintenance.

According to IEC 61076-2-104, the keying position for B-Coded M8 connectors is typically located around the 7 o'clock position. This coding structure is particularly useful in industrial environments where multiple M8 connector types may be installed in close proximity.

Why Does M8-B Use 5 Pins?

The M8-B Code connector is primarily configured with 5 pins, providing the required contacts for PROFIBUS-DP and related fieldbus connection requirements.

The 5-pin configuration is also an important selection indicator. When evaluating an M8 connector for an existing automation system, the combination of 5 pins + B-Coding strongly points toward an M8-B Code design.

However, pin count alone should not be used to determine connector compatibility. The coding, electrical specification, protocol, and equipment interface must all be verified before installation.

M8-B Code vs. M8-D Code vs. M8-A Code

The three connector types serve distinctly different communication and automation functions.

M8-B Code: 5 pins, primarily for PROFIBUS-DP / RS-485 fieldbus applications.

M8-D Code: 4 pins, designed for 100 Mbps industrial Ethernet, including PROFINET, EtherCAT, and EtherNet/IP applications.

M8-A Code: Typically 3 or 4 pins, commonly used for general sensor I/O and power connections, rather than fieldbus or Ethernet communication.

This distinction is important when replacing an existing connector or designing a compact automation device. An M8-B Code connector cannot simply be substituted with an M8-D Code connector because their electrical interfaces and communication protocols are fundamentally different.

Typical Applications of M8-B Code Connectors

The primary application of the M8-B Code connector is PROFIBUS-DP fieldbus communication. It can also be used in certain sensor and servo-drive systems requiring dedicated shielding or feedback connections.

Typical equipment includes automated warehousing and conveyor systems, industrial robots, distributed I/O boxes, switches, actuators, and various industrial automation control devices.

The connector is particularly valuable when a PROFIBUS interface needs to be integrated into equipment where a conventional M12-B Code connector is physically too large.

Compact PROFIBUS-DP Applications

The M8-B Code is a relatively specialized choice within today's automation market. For new automation projects, M8-D Code is generally more appropriate when industrial Ethernet such as PROFINET or EtherCAT is required, while M12-B Code remains a more common option for PROFIBUS-DP networks.

M8-B becomes particularly useful in specific space-constrained applications. For example, a compact distributed I/O module may not have enough panel space for an M12-B interface. An M8-B connector can provide the required PROFIBUS-DP interface while maintaining a smaller equipment footprint.

It can also be found in compact legacy fieldbus sensors, encoders, and other devices with RS-485 PROFIBUS-DP outputs. In some equipment architectures, M8-B may be used internally while an M8-B-to-M12-B cable assembly provides the transition to the external PROFIBUS trunk network.

Mechanical Design for Industrial Environments

The mechanical structure of an industrial connector is just as important as its electrical interface. The M8-B Code uses a threaded locking mechanism to secure the mating connection, helping maintain connection stability in equipment exposed to vibration and mechanical movement.

When properly mated and locked, the connector can achieve IP67 protection, providing resistance against dust and temporary water exposure under the applicable test conditions. This makes it suitable for field-installed automation equipment where connectors may be exposed to industrial contaminants and moisture.

Available straight and 90° right-angle configurations also allow the connector to adapt to different cable-routing requirements. In compact equipment, the right-angle version can reduce cable interference and make better use of restricted installation space.

CAZN: Complete M8 Connectivity for Industrial Automation

As automation equipment becomes smaller and field nodes become increasingly dense, connectivity solutions need to provide both compact dimensions and reliable communication performance. CAZN covers the complete M8-A Code, M8-B Code, and M8-D Code range, supporting different requirements from sensor I/O and power connections to PROFIBUS-DP fieldbus communication and 100 Mbps industrial Ethernet.

CAZN provides multiple connector and cable configurations, including pre-molded cable assemblies, field-assembly connectors, PCB panel connectors, and customized cable harnesses. The product portfolio combines IP67 protection, 360° shielding, and threaded locking to address demanding industrial environments involving vibration, moisture, and electromagnetic interference.

These M8 solutions can be integrated into robot end effectors, AGVs, 3C production lines, compact I/O modules, and other space-constrained automation equipment while following relevant IEC standards for compatibility and reliable connection.

Beyond standard M8 connector products, CAZN provides OEM/ODM customization, connector selection evaluation, and complete cable harness solutions. By combining standardized products with application-specific connectivity services, CAZN helps simplify industrial wiring, reduce field connection failures, and improve the maintainability of automation communication and signal networks.

For compact PROFIBUS-DP nodes where an M12-B Code connector is too large, the CAZN M8-B Code connector provides a specialized 5-pin B-Coded interface for reliable fieldbus connectivity in space-constrained industrial equipment.
