CAZN | 7/8 Waterproof Connector Selection Guide

The CAZN 7/8 circular connector, featuring a 7/8-inch diameter and 7/8-16UNF thread, is an industrial-grade connector specifically designed for medium- to high-power transmission and combined power-and-signal transmission in industrial automation applications. Its key advantages include high current capacity of 8–13A, a rated voltage of 300V, strong vibration resistance enabled by threaded locking, and IP67 protection. The connector is widely used in wind power generation, high-speed rail, automotive manufacturing, intelligent transportation, smart manufacturing, and other industrial applications.

The CAZN 7/8 connector is compatible with major international brands and supports NMEA 2000 standard interfaces. Available configurations include 3-, 4-, 5-, and 6-pin versions, front- or rear-panel mounting, solder-wire or PCB connection, and IP65/IP67 protection options. The series follows the requirements of IEC 61076-2-101 and is designed to meet NMEA 2000 compatibility requirements.

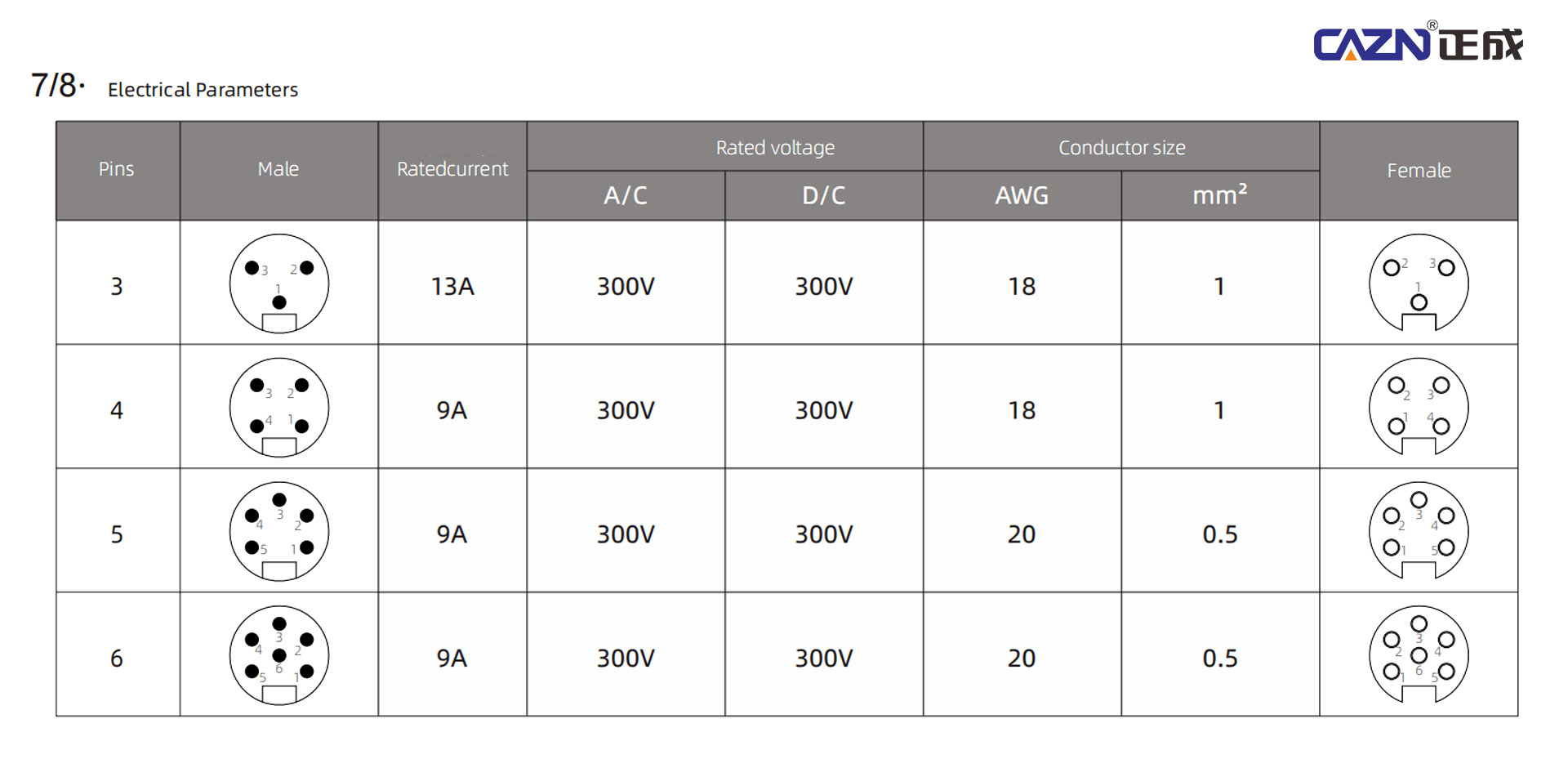

Selecting by Transmission Requirements: Pin Count

The number of pins directly determines the functions that the connector can support. Selection should therefore be based on the equipment's actual power and signal requirements.

3-Pin (2P+PE): Preferred for Power Transmission

The 3-pin configuration is primarily designed for power transmission and is suitable for standard power-supply applications requiring live, neutral, and protective earth connections. Typical applications include small and medium-sized motors, actuators, and basic sensor power supplies. With a maximum rated current of 13A, the 3-pin configuration provides the highest current capacity within the series.

4-Pin: Power + Auxiliary Circuit or Control Signal

The 4-pin configuration is suitable for applications that need power transmission together with a small number of auxiliary circuits or control signals. Typical applications include actuators requiring auxiliary power or simple feedback signals.

5-Pin: Integrated Power and Communication

The 5-pin configuration is suitable for applications requiring simultaneous power and communication transmission. Typical applications include fieldbus devices using protocols such as DeviceNet and CANopen, where specific pins can be allocated to communication signals such as CAN_H and CAN_L while keeping them separated from power connections.

6-Pin: Complex Control Applications

The 6-pin configuration is designed for more complex control requirements where multiple feedback signals or control circuits need to be transmitted through a single connector. It is suitable for sophisticated actuators and other equipment with multiple signal interfaces.

Selecting by Mounting Method and Connector Structure

The mounting position, cable exit direction, and wiring method should be considered according to the equipment structure and installation environment.

Mounting Position: Panel-Mounted, Field-Wireable, or Pre-Molded

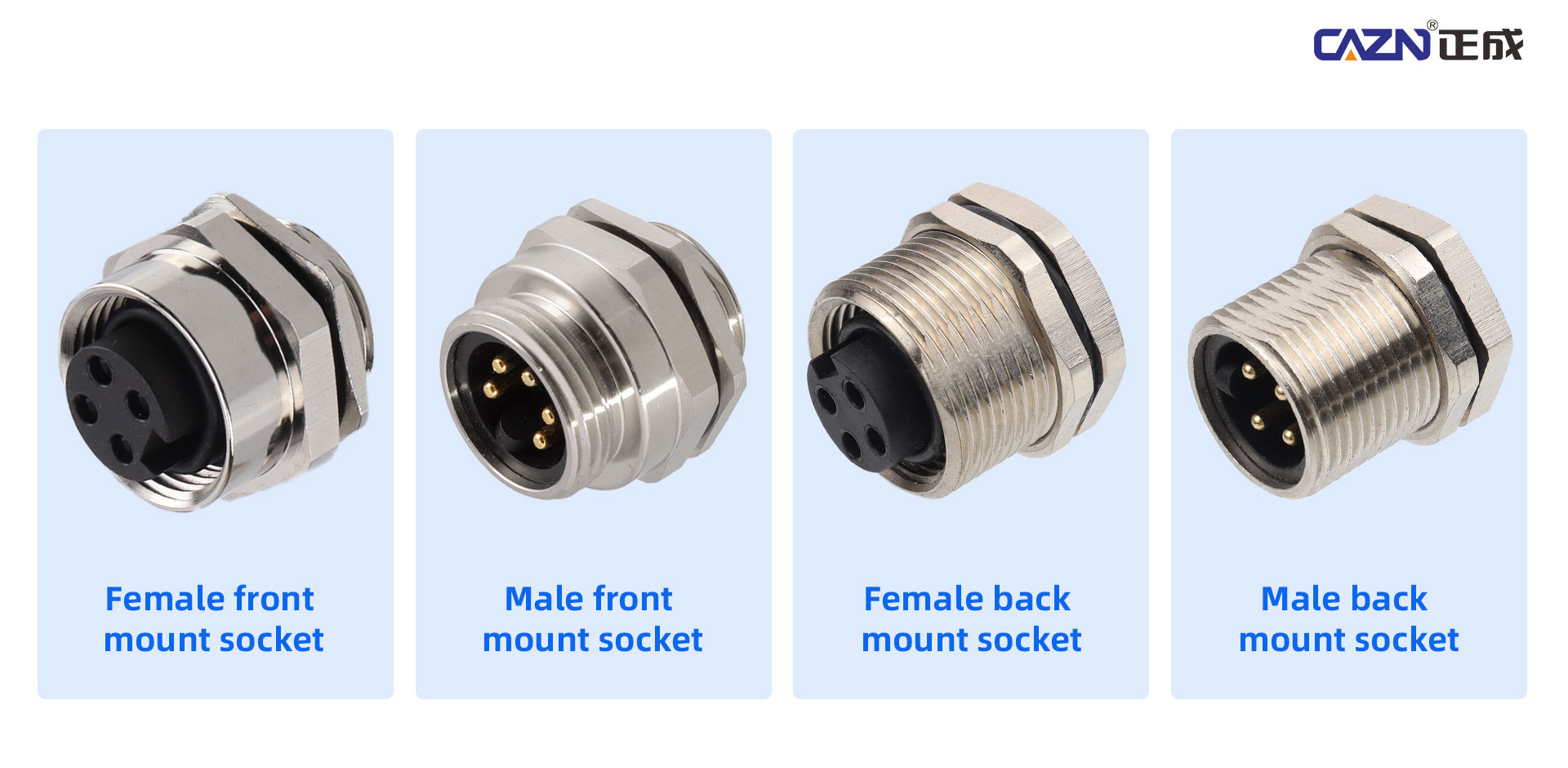

For equipment bodies and control cabinets, panel-mounted connectors can be installed from the front or rear of the panel and are suitable for control cabinets, I/O boxes, and other fixed equipment.

For temporary field wiring, equipment modifications, or equipment-end connections, field-wireable versions such as straight and right-angle configurations provide greater installation flexibility and can support screw-terminal wiring.

For high-volume production, pre-molded cable assemblies integrate the connector and cable through injection molding, reducing field wiring operations and improving production consistency.

Cable Exit Angle: Straight or 90° Right-Angle

For straight cable routing, a straight connector can help minimize axial installation space.

When cables need to exit through side walls, corners, or confined spaces, a 90° right-angle connector can provide better routing flexibility and reduce interference with surrounding components.

Wiring Method: Solder-Wire or Screw-Type

Solder-wire versions use crimping or soldering methods to establish a secure electrical connection and are suitable for fixed equipment and permanent installations.

Screw-type versions allow field wiring without soldering equipment, making them suitable for on-site installation, equipment modification, and flexible wiring requirements.

Selecting According to Environmental Protection Requirements

The operating environment is a critical factor when selecting a waterproof connector.

Standard Industrial Environments

For indoor, dry environments without strong corrosive exposure, IP65 or IP67 protection is generally sufficient to provide dust protection and resistance to water spray.

Harsh Industrial Environments

For outdoor installations, humid environments, dusty production areas, oily conditions, or applications requiring frequent washing, IP67 or higher protection should be considered. IP67 provides complete dust protection and resistance to temporary immersion. IP68 is more suitable for applications involving prolonged exposure to water or continuous immersion, subject to the manufacturer's specified test conditions.

High-Vibration Environments

Applications such as stamping machines, robotic joints, and AGVs require a secure mechanical connection. A 7/8-16UNF threaded locking structure provides a tight mechanical engagement that helps prevent loosening under repeated vibration. For these applications, threaded locking connectors are preferable to simple snap-fit structures.

Selecting by Cable and Housing Material

Cable material and connector housing material should be selected according to the operating environment and movement requirements.

Cable Jacket

For standard indoor applications, PVC cable provides a cost-effective solution with good flexibility.

For applications involving frequent bending, oil exposure, or continuous movement—such as AGVs and robotic arms—PUR cable is generally more suitable because of its improved abrasion resistance, flexing performance, and tensile resistance.

Housing Material

For conventional industrial environments, engineering plastics such as PA nylon or other plastic housings can provide an appropriate combination of insulation, mechanical performance, and cost efficiency.

For applications requiring higher impact resistance, corrosion resistance, or electromagnetic shielding, metal housings, such as nickel-plated brass, can provide additional mechanical protection and shielding performance.

Recommended Configurations for Different Applications

For pure power-supply applications, such as production-line power distribution and motor drive systems, a 3-pin, IP67 configuration is recommended, with a straight connector or pre-molded cable assembly depending on the installation requirements.

For combined power and signal transmission, such as fieldbus modules and distributed I/O systems, a 5-pin, IP67 configuration is recommended. A straight or right-angle connector can be selected according to the available installation space, while PUR cable is suitable for applications involving movement or frequent bending.

For outdoor or harsh environments, including photovoltaic energy storage systems, outdoor charging stations, and port machinery, a 3-pin or 5-pin, IP68 configuration can be considered together with PUR cable and a threaded locking structure.

CAZN 7/8 Series and Model Examples

The CAZN European-standard 7/8 connector series includes multiple configurations designed for different pin counts and structural requirements.

Representative models include:7/8-P3-GWB P13、7/8-P4-GWB P13、7/8-P5-GWB P13、7/8-P6-GWB P13

In general, the numerical designation within the model corresponds to the pin count and structural configuration. The exact specification should be confirmed against the equipment's electrical, mechanical, and environmental requirements before ordering.

Key Points for International Brand Replacement

The CAZN 7/8 connector series is designed to provide compatible replacement options for major international brands, including Phoenix Contact, Amphenol, TE Connectivity, and Binder.

The replacement design focuses on matching key mechanical and electrical interface requirements, including connector dimensions and pin configurations. For compatible applications, the existing equipment may not require modifications to the original mounting opening.

When selecting a CAZN replacement connector for an imported product, the three most important parameters to verify first are pin count, mounting method, and protection rating. These parameters can quickly narrow down the appropriate CAZN model.

However, before final replacement, the original connector's complete electrical rating, thread specification, pin assignment, cable configuration, mounting dimensions, and environmental requirements should also be verified to ensure full system compatibility.

Choosing the Right CAZN 7/8 Waterproof Connector

The correct CAZN 7/8 waterproof connector should be selected according to the actual combination of power requirements, signal requirements, installation structure, environmental conditions, cable movement, and mechanical stress.

A 3-pin connector is generally suitable for straightforward power transmission, while 5-pin and 6-pin configurations provide greater flexibility for combined power, communication, and control applications. IP67 is well suited to many industrial environments, while IP68 can be considered for applications involving more severe water exposure.

With its 7/8-16UNF threaded connection, 8–13A current rating, 300V rated voltage, multiple pin configurations, and IP65/IP67 protection options, the CAZN 7/8 series provides a flexible connection platform for industrial automation, smart manufacturing, transportation, energy, and other demanding applications.
