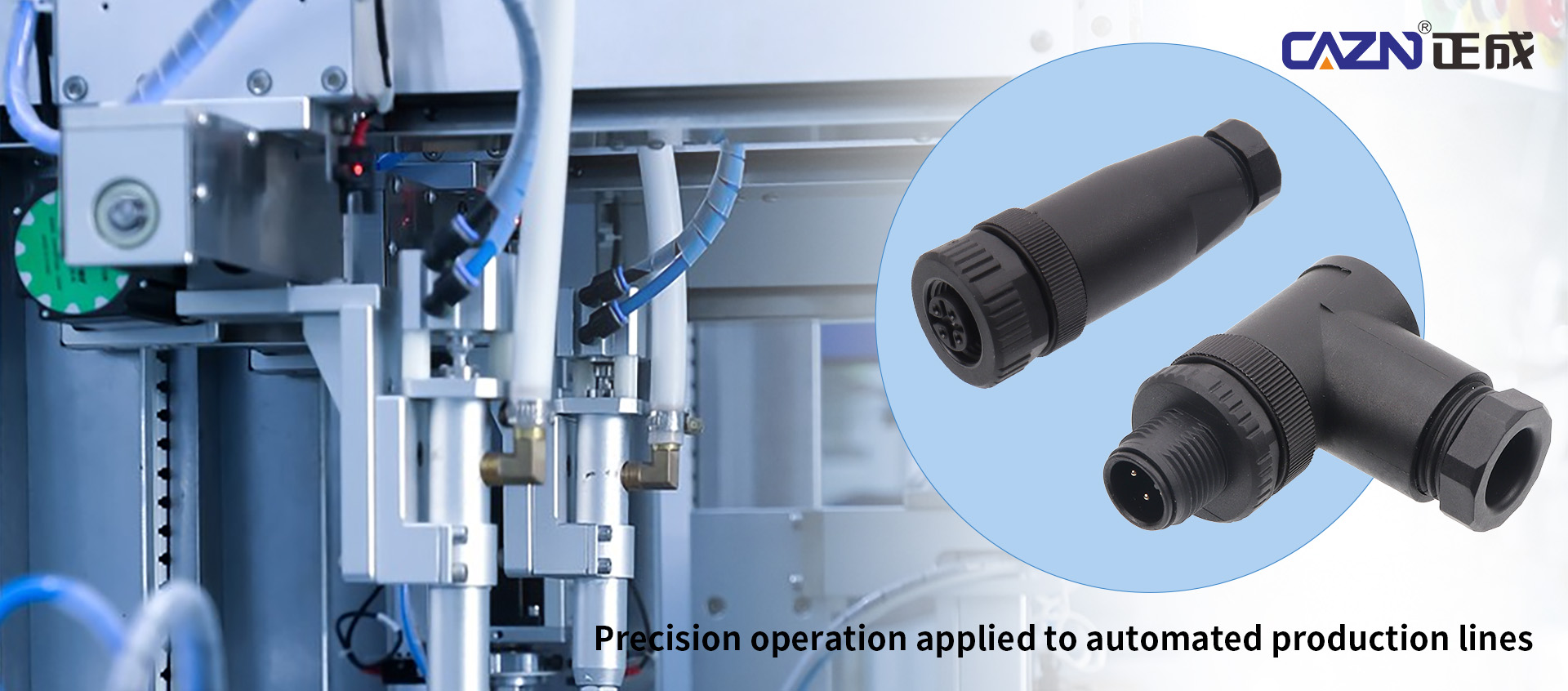

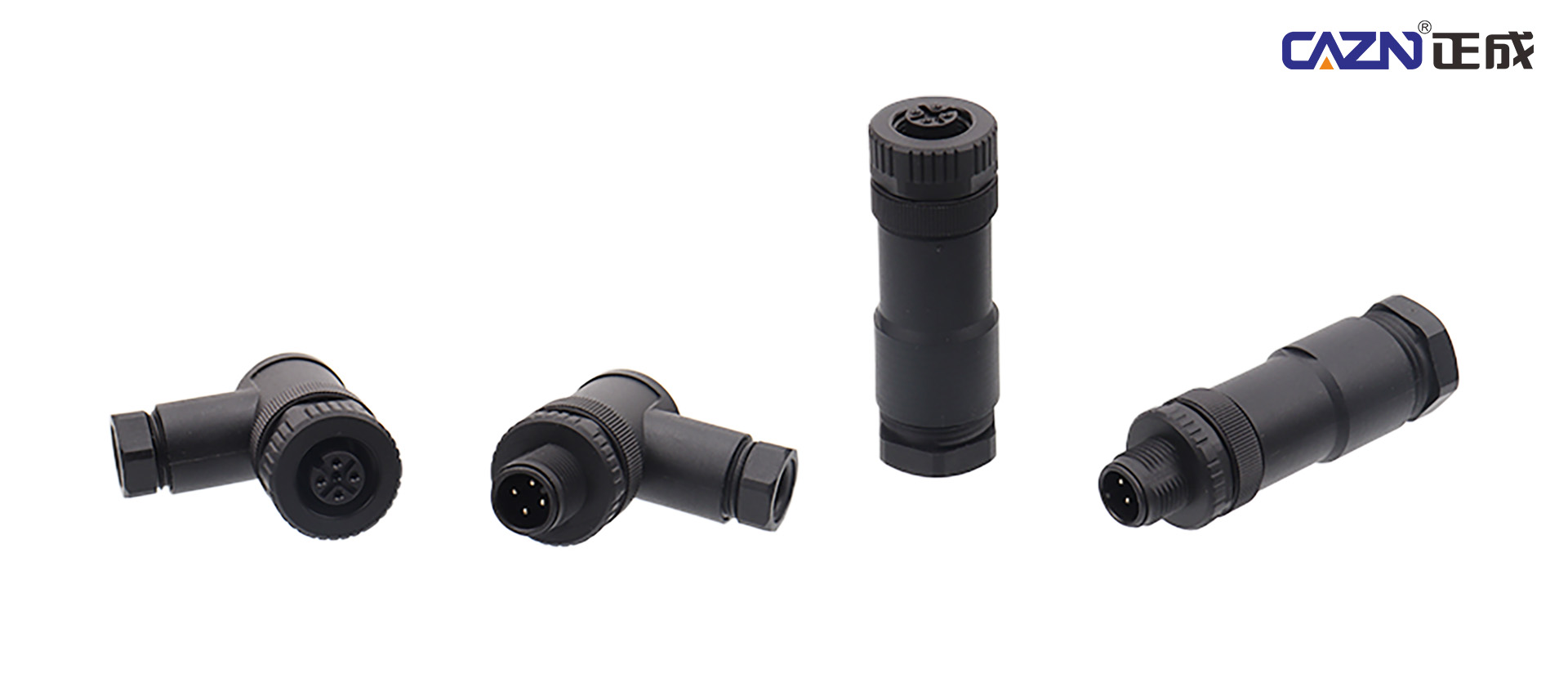

CAZN – M12 All-Plastic Connector

The M12 all-plastic connector is an M12 circular connector whose housing and main structure are entirely made of engineering plastics (such as PA66, PBT, or PA+GF). It differs from metal-housing or hybrid metal-plastic M12 connectors. It is widely used in industrial automation, sensor systems, lightweight equipment, and other applications with specific requirements for weight, cost, or insulation performance.

Main Features

Lightweight Design: Compared with metal versions, all-plastic connectors significantly reduce overall weight, making them suitable for mobile equipment or robots with strict load requirements.

Excellent Insulation: Plastic materials naturally provide excellent electrical insulation, effectively preventing the risk of short circuits or electrical leakage.

Strong Corrosion Resistance: Resistant to moisture, salt spray, weak acids, alkalis, and other chemical environments, making them suitable for corrosive applications such as food processing, chemical industries, and outdoor installations.

Cost Advantage: Lower material and manufacturing costs make them suitable for large-scale deployment.

High Protection Rating: By optimizing the sealing structure (such as O-rings and one-piece injection molding), protection ratings of IP67 and even IP68/IP69K can be achieved, providing excellent dustproof and waterproof performance.

One-Piece Injection Molding: Most all-plastic M12 connectors adopt a pre-molded (injection-molded) process, integrating the cable and connector into a single unit to improve sealing performance and tensile strength.

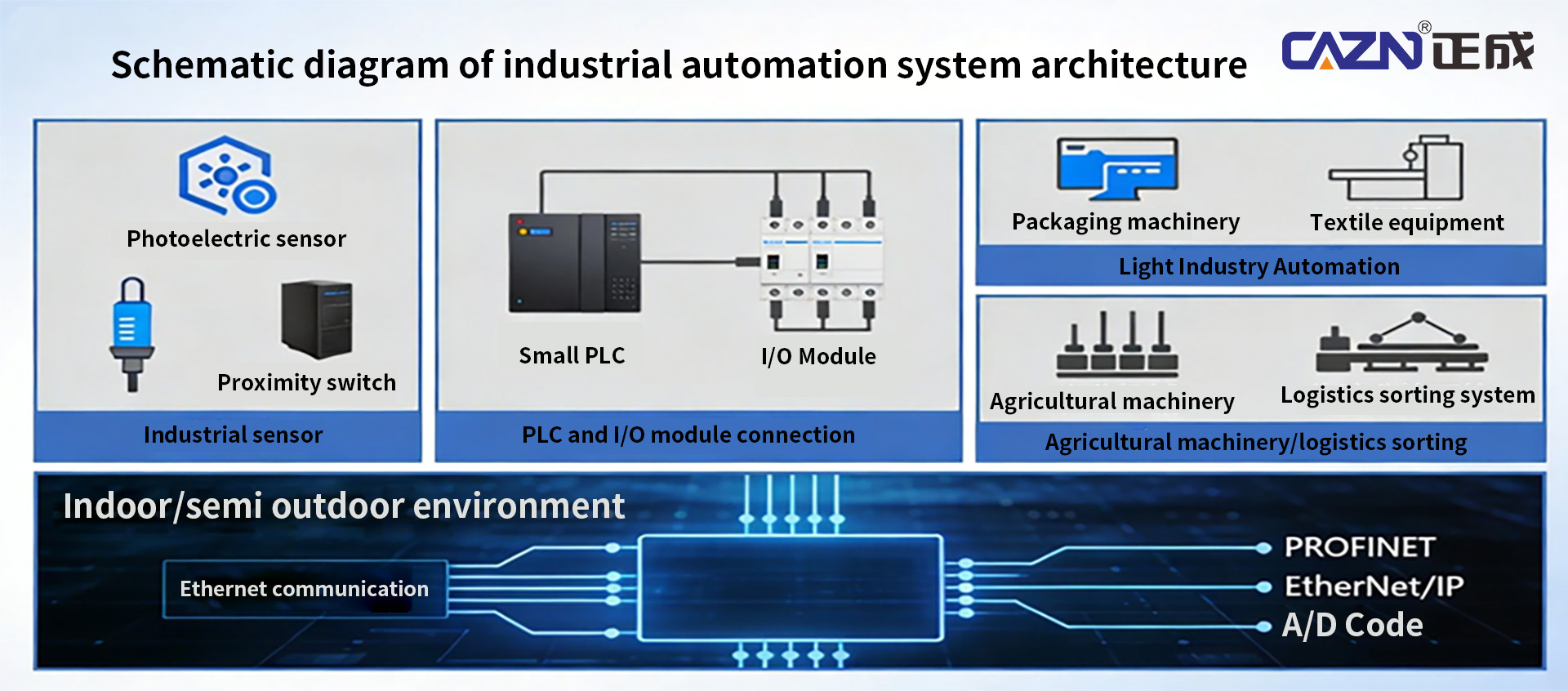

Applications

• Industrial sensors (photoelectric sensors, proximity switches, etc.)
• Small PLCs and I/O module connections
• Packaging machinery, textile equipment, and other light industrial automation systems
• Agricultural machinery and logistics sorting systems

• Indoor or semi-outdoor Ethernet communication (such as A-coded/D-coded connectors for PROFINET and EtherNet/IP)









The M12 all-plastic connector offers unique advantages in industrial automation and lightweight equipment applications thanks to its lightweight design, corrosion resistance, excellent insulation, and cost-effectiveness. When selecting a connector, it is recommended to evaluate the specific operating environment, electrical parameters, required protection rating, and long-term reliability requirements to determine whether an all-plastic structure is the most suitable choice. If both cost and performance need to be balanced, it is often an ideal solution.
