CAZN M Series Connector Selection Guide: Choosing the Right Solution from M5 to M40

M Series connectors are the foundation of industrial connectivity, but selecting the right connector is never simply about choosing a larger size. The real selection strategy is based on accurately matching three key factors: installation space, transmission requirements, and environmental resistance. Choosing an oversized connector may increase unnecessary costs and occupy valuable space, while improper installation stress can create hidden reliability risks.

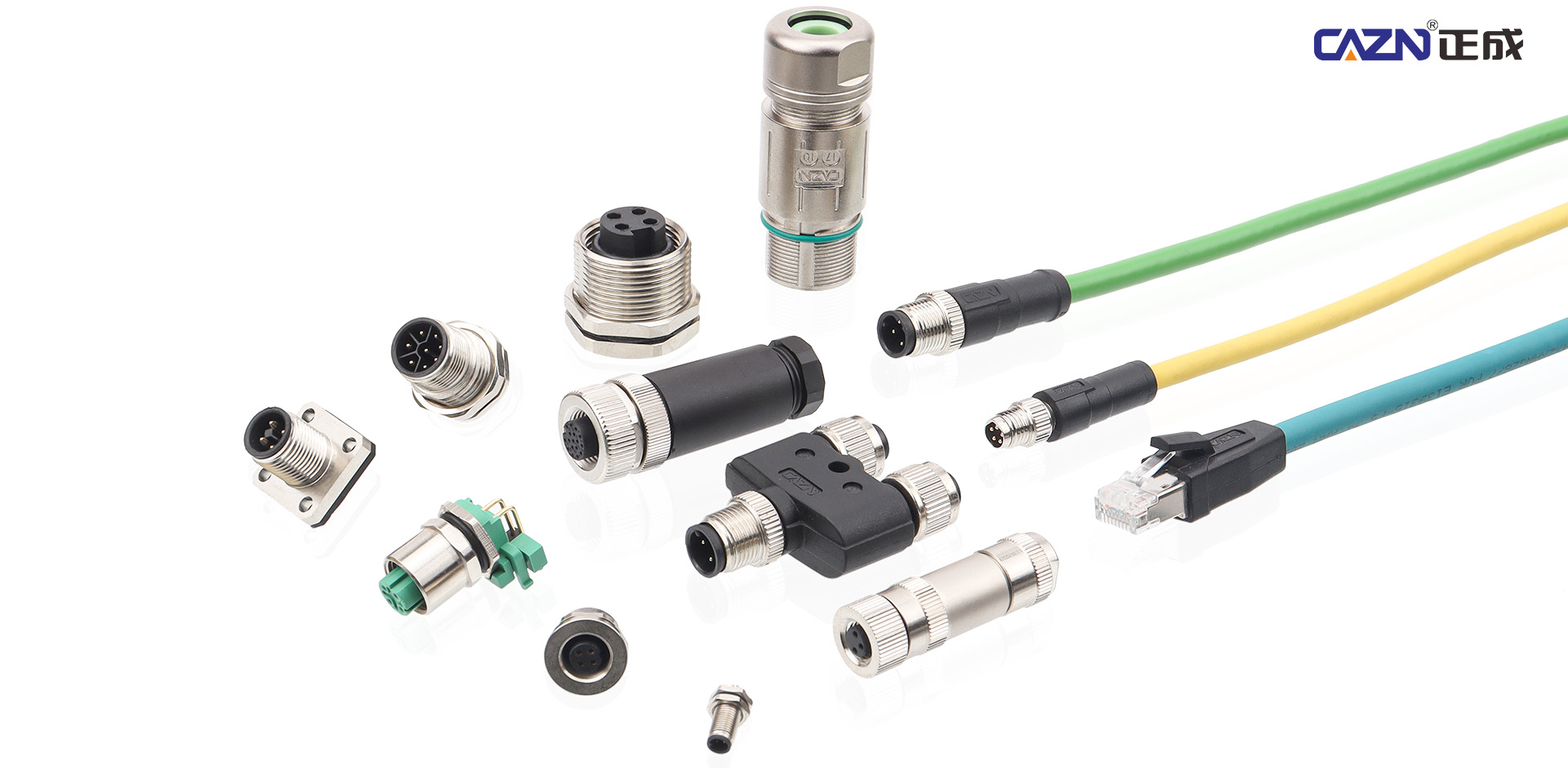

With a complete range of European-standard M Series connectors covering M5 to M40, CAZN provides precise connection solutions for applications ranging from miniature signal transmission to high-power industrial equipment. Supported by a 20,000 m² self-owned manufacturing facility and more than 30 patented technologies, CAZN combines advanced manufacturing capabilities with practical application experience to help customers reduce selection risks, improve equipment reliability, and optimize overall system performance.

This selection guide integrates CAZN’s product characteristics and engineering experience to help users make more accurate connector decisions during equipment design and procurement.

CAZN M Series Connector Selection: Start with Installation Space

Installation space is the first limitation when selecting an M Series connector because the available mounting area determines the maximum acceptable connector size. CAZN M Series connectors are designed according to metric thread diameters from 5 mm to 40 mm, with each size optimized for different industrial scenarios.

For extremely limited spaces, such as miniature sensors, compact control modules, and robotic joints, the CAZN M5 connector is an ideal solution. Featuring an M5 × 0.5 thread, a compact 5 mm diameter design, and support for 2–4 contacts, the M5 connector provides stable signal transmission with a rated current of 1A. Its threaded locking structure delivers excellent vibration resistance, making it suitable for applications where traditional connectors cannot be installed due to space limitations.

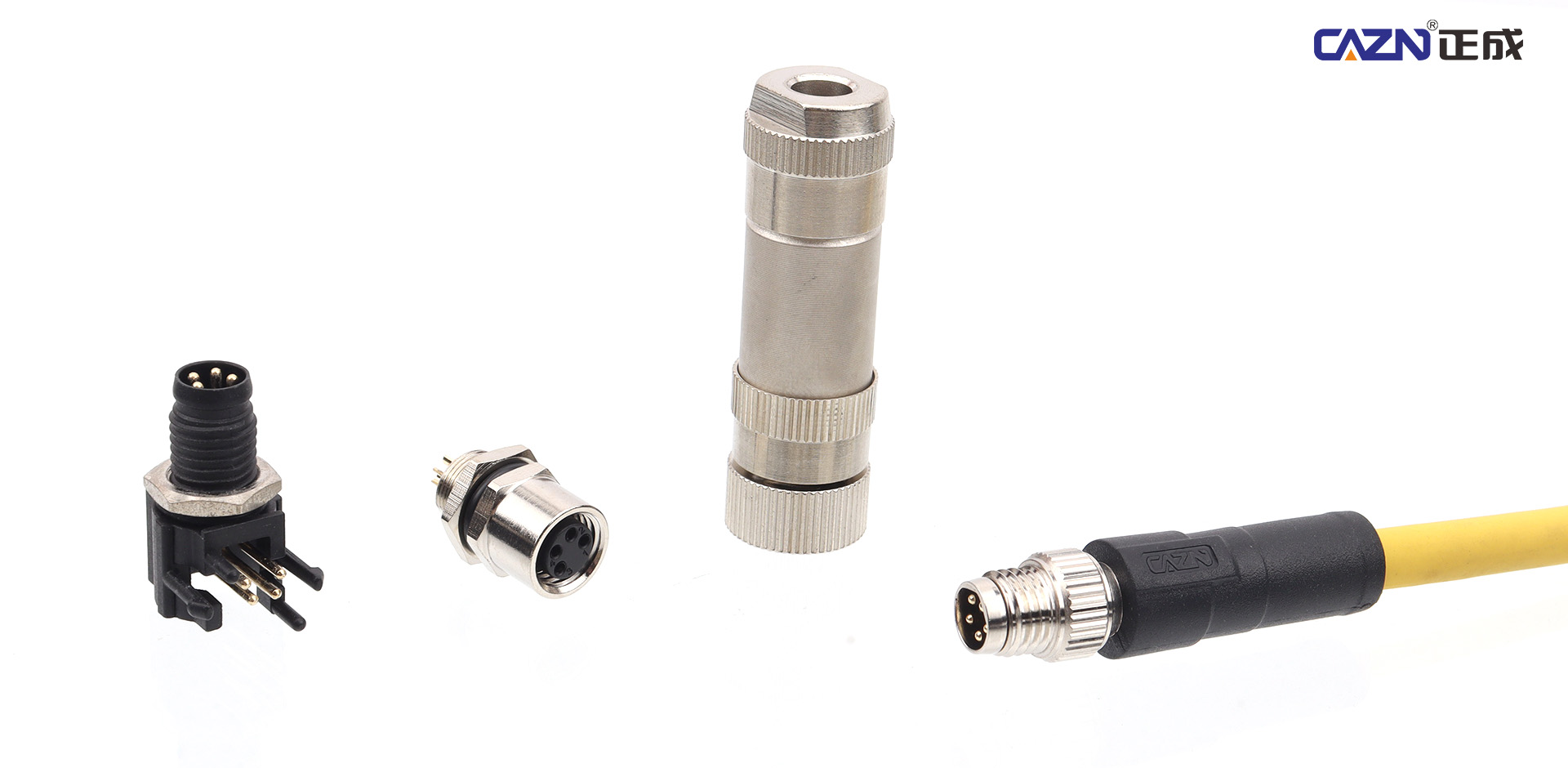

When slightly more connection capability is required in compact equipment, the CAZN M8 connector provides a balance between size and performance. With an M8 × 1.0 thread, support for 3–8 contacts, rated current from 1.5A to 4A, operating temperature from -25°C to +85°C, and IP67 protection, M8 connectors are widely used in industrial sensors, PLC I/O modules, and compact automation systems. Their resistance to oil, cold environments, and mechanical vibration makes them suitable for demanding industrial applications.

For applications requiring higher reliability within limited installation space, such as medical equipment, testing instruments, and compact control units, the CAZN M9 connector provides an intermediate solution between M8 and M12. It supports 2–8 contacts, rated current from 1A to 4A, and is available with either metal or plastic housings. The secure screw-locking mechanism ensures stable connection performance even under continuous vibration.

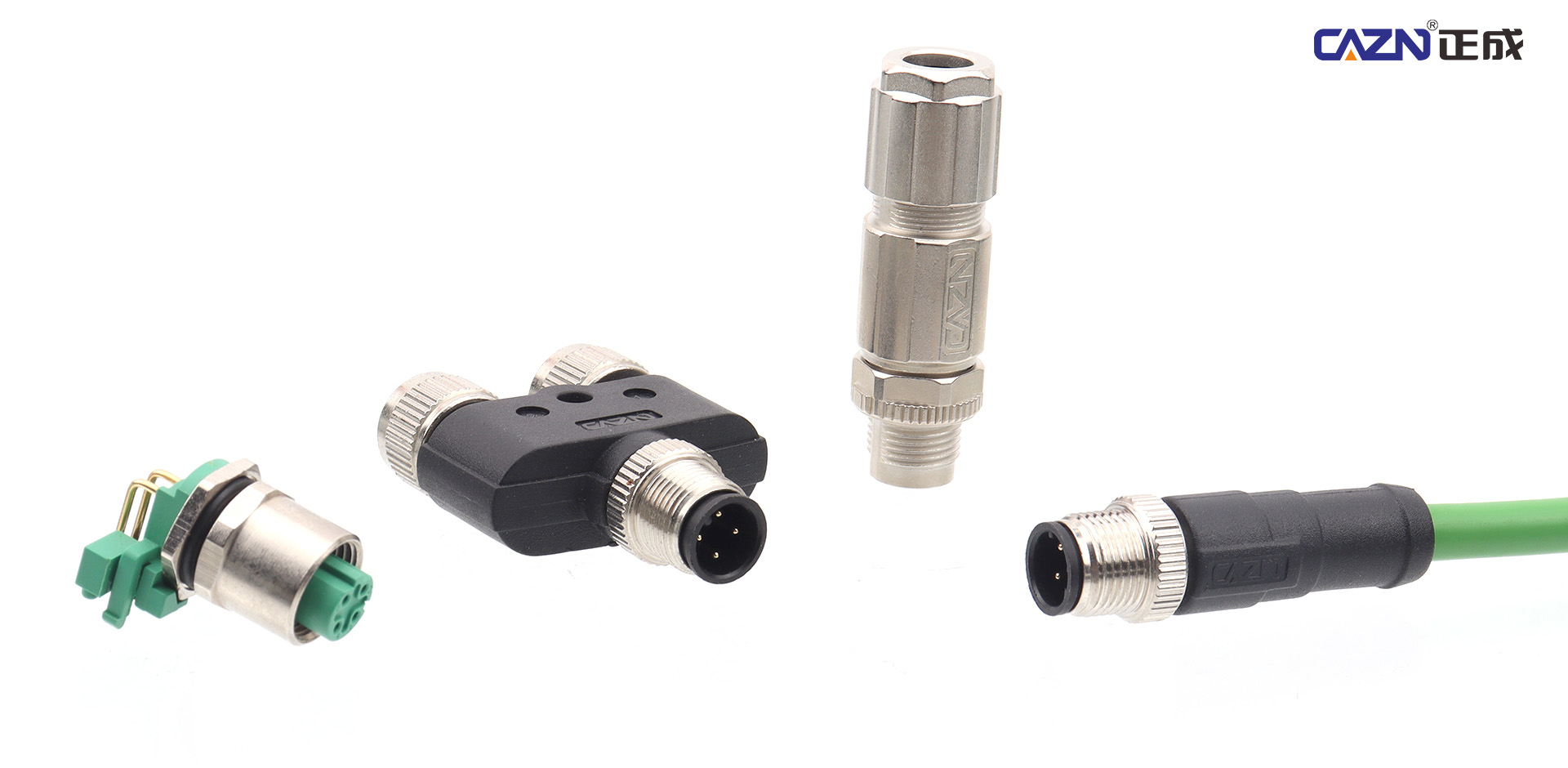

When installation space is sufficient, M12 and larger connectors become the preferred choice for general industrial applications. The CAZN M12 connector, featuring an M12 × 1.0 thread, has become one of the most widely adopted industrial connection standards due to its wide range of coding options, robust housing design, and compatibility with sensors, actuators, communication systems, and automation equipment.

It is important to understand that larger connectors are not always better. For example, using an M12 connector in a miniature device designed for M5 connectivity may significantly increase installation difficulty, cost, and system size without providing additional benefits. To support accurate evaluation, CAZN provides more than 3,000 product samples for installation testing before large-scale production.

Match Connector Selection with Electrical and Data Transmission Requirements

After confirming installation space, the next step is selecting the connector according to electrical requirements, including signal type, current rating, voltage level, and communication speed.

For low-current signal transmission below 1A, M5, M8, and M9 connectors are commonly selected. These compact connectors are designed for sensors, switches, and control signal applications where stable electrical performance and signal integrity are essential.

For medium current requirements between 1.5A and 10A, M8, M12, M14, and M16 connectors provide more flexible solutions. Among them, the CAZN M12 connector supports a wide range of electrical specifications, with rated current from 0.5A to 16A and voltage from 30V to 630V, making it suitable for industrial sensors, actuators, and small automation equipment.

The CAZN M14 connector supports rated current from 2A to 15A and is commonly applied in medium-power scenarios such as outdoor LED lighting systems. The M16 connector, designed according to IEC 61076-2-106, provides rated current from 1A to 7A with excellent EMI shielding capability, making it suitable for applications requiring reliable power and signal transmission.

For higher-power applications from 10A to 28A, M23 and 7/8 connectors are more suitable. The CAZN M23 connector supports rated current up to 28A, operating voltage up to 600V, and features 360° full metal shielding. It can transmit both power and signal within a single connector, making it an ideal choice for servo motors, drives, and industrial motion control systems.

The 7/8 connector supports rated current from 10A to 12A and is designed specifically for medium and high-power supply applications. It is commonly used in demanding industrial environments such as oil, chemical, and heavy manufacturing industries.

For high-speed industrial communication, M12 D-coded and X-coded connectors provide specialized solutions. The CAZN M12 D-coded connector is designed for 100 Mbps Industrial Ethernet, supporting protocols such as EtherCAT and PROFINET. The M12 X-coded connector supports transmission speeds up to 10 Gbps, making it suitable for machine vision, high-speed data acquisition, and advanced smart manufacturing applications.

For heavy-duty equipment requiring maximum power transmission, the CAZN M40 connector provides a dedicated solution. With a 40 mm thread size, 4–8 contacts, and maximum performance of 63A / 630V, it is designed for high-power robots, industrial drives, and large mechanical systems.

Contact quantity is another important consideration during selection. For example, an M5 connector supports a maximum of four contacts. If more signal channels are required, selecting an M8 or M12 connector with higher contact density is a better approach than forcing multiple signals through limited pins. CAZN’s M12 17-pin connector provides a compact high-density solution for complex automation systems and robotic applications.

Select Protection Level According to Operating Environment

The operating environment directly determines the required protection level, housing material, and sealing performance of the connector.

For standard industrial environments, IP67 protection is usually sufficient. CAZN M5, M8, and M12 standard connectors provide reliable dust protection and resistance against temporary water immersion, making them suitable for industrial automation, robotics, and general manufacturing equipment.

For applications exposed to continuous moisture or outdoor conditions, IP68 protection is recommended. CAZN M14, M16, and M23 connectors support IP68 protection and are suitable for demanding environments such as photovoltaic systems, outdoor control equipment, and wet industrial facilities. These products have demonstrated reliable performance in harsh conditions, with annual failure rates as low as 0.02% in verified applications.

For environments requiring frequent high-pressure cleaning, such as food processing and medical equipment, connectors with IP69K protection are required. CAZN M16 and M23 connectors supporting IP69K protection can withstand high-temperature and high-pressure water cleaning while maintaining reliable sealing performance.

In areas with strong electromagnetic interference, such as servo systems, railway equipment, and industrial automation environments, connectors with 360° shielding structures are essential. CAZN M23 and M12 X-coded connectors use full metal shielding technology to reduce electromagnetic interference and maintain stable power and data transmission performance.

Protection level selection must always match the actual application environment. Using an IP67 connector in an IP68-required application may lead to water penetration and electrical failure. In addition to connector design, sealing materials and installation processes also affect overall protection performance. CAZN provides customized testing services, including insertion and extraction cycle testing, vibration testing, and salt spray testing, with third-party verification data available within 24 hours.

CAZN M Series Connector Quick Selection Guide

For easier selection, the basic principles can be summarized as follows:

Small installation space requires smaller M sizes, while higher current applications require larger connectors. Signal applications should be selected according to contact quantity, while harsh environments require appropriate IP protection levels.

For general industrial automation, M12 is the most common choice.

For servo motors and motion systems, M23 provides reliable power and signal integration.

For high-speed industrial communication, M12 X-coded connectors deliver advanced data performance.

For heavy-duty power equipment, M40 provides maximum current capability.

With comprehensive certifications and engineering support, CAZN helps customers achieve reliable and efficient industrial connectivity.

Important Considerations for M12 Connector Coding Selection

M12 connectors are available in different coding types, including A, B, D, and X coding. Each coding structure has a unique mechanical design, meaning different coding types cannot be connected interchangeably.

Before selecting an M12 connector, the equipment interface and communication requirements must be confirmed.

A-coded M12 connectors are commonly used for sensors and standard signal transmission. CAZN M12 A-coded connectors support 2–17 contacts, making them suitable for various industrial automation applications.

B-coded M12 connectors are mainly designed for fieldbus communication systems such as PROFIBUS, ensuring stable industrial network transmission.

D-coded M12 connectors are optimized for 100 Mbps Industrial Ethernet, supporting real-time communication protocols including EtherCAT and PROFINET.

X-coded M12 connectors are designed for high-speed data transmission up to 10 Gbps and comply with IEC 61076-2-109. They are widely used in industrial vision systems, high-speed inspection equipment, and advanced data acquisition applications.

Selecting the wrong coding type may result in installation incompatibility or insufficient communication performance. CAZN provides professional technical support and sample testing services to help customers confirm the correct connector configuration before production.

Conclusion

CAZN M Series connectors provide a complete industrial connectivity portfolio, covering applications from miniature M5 signal connections to high-power M40 industrial systems. Through precise product selection based on installation space, transmission requirements, and environmental conditions, customers can achieve higher equipment reliability, longer service life, and reduced maintenance costs.

With a 20,000 m² manufacturing facility, annual production capacity exceeding 5 million units, and IATF 16949 certification, CAZN has established strong manufacturing capabilities and technical advantages in the industrial connector market. Standard products can be shipped within 48 hours, while customized solutions can be delivered within 7 days. With more than 70% repeat customers, CAZN continues to provide reliable connection solutions for global industrial applications.

For professional connector selection support, application consultation, or sample testing, CAZN’s technical team provides customized solutions to help customers achieve the optimal connection design for their equipment.
