Against the global backdrop of energy transition and climate change response, the photovoltaic industry, as a core driving force, is accelerating technological advancement at an unprecedented pace. Meanwhile, in the field of wind power generation, the pitch control system, as a key component responsible for controlling the blade pitch angle of wind turbines and achieving efficient wind energy capture and conversion, requires extremely high operational stability. In this process, CAZN relies on outstanding connection technologies and solutions to establish indispensable electrical and signal transmission links, providing solid and reliable technical support for the efficient and stable operation of wind turbine pitch control systems.

The wind turbine pitch control system is responsible for adjusting the blade pitch angle to optimize wind energy capture efficiency, control power output, and protect the turbine under extreme weather conditions. Since the pitch system must operate under complex and variable wind conditions with long-term, high-intensity operation, its connection solutions must feature high reliability, vibration and impact resistance, and adaptability to harsh environments. Currently, mainstream connection solutions for wind turbine pitch control systems mainly include the following key components:

Core Connector Selection Solutions

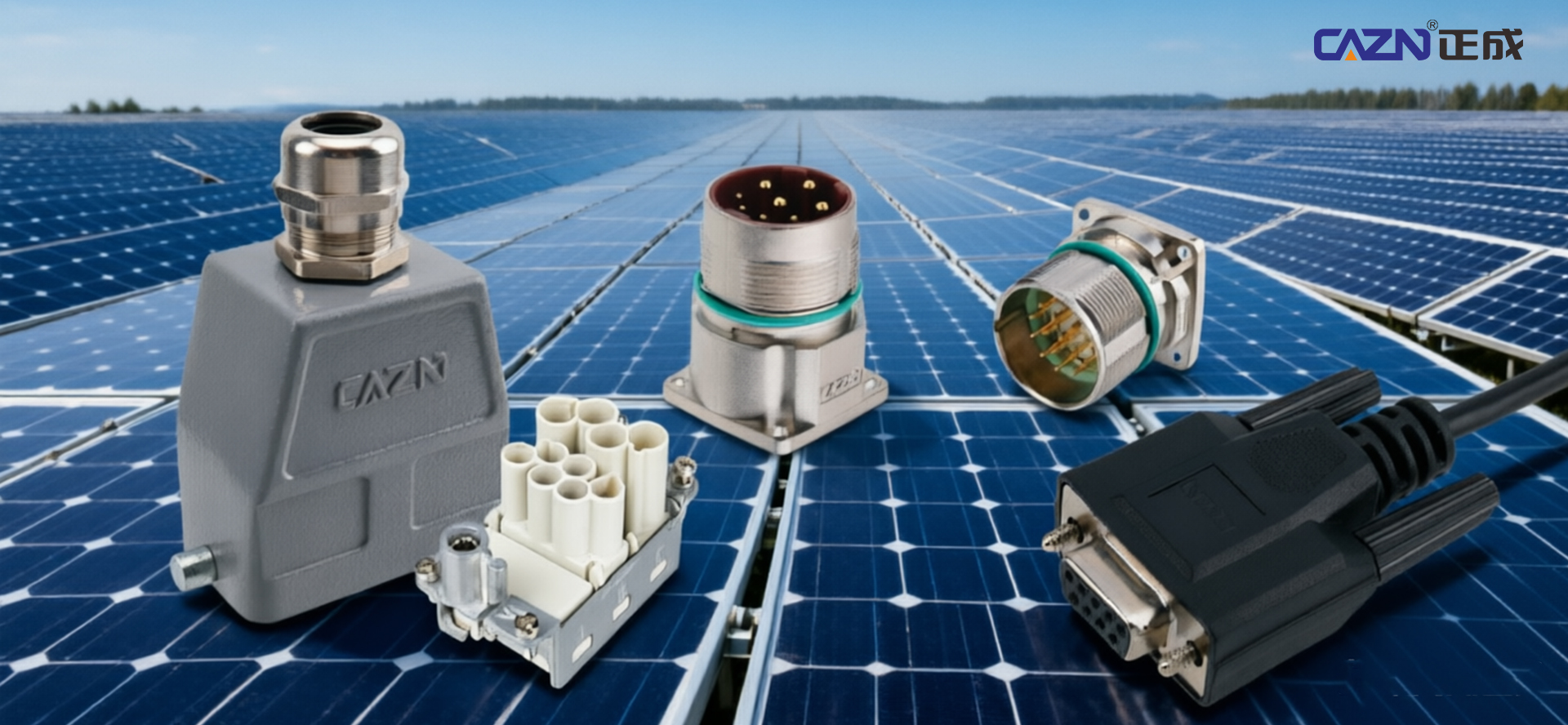

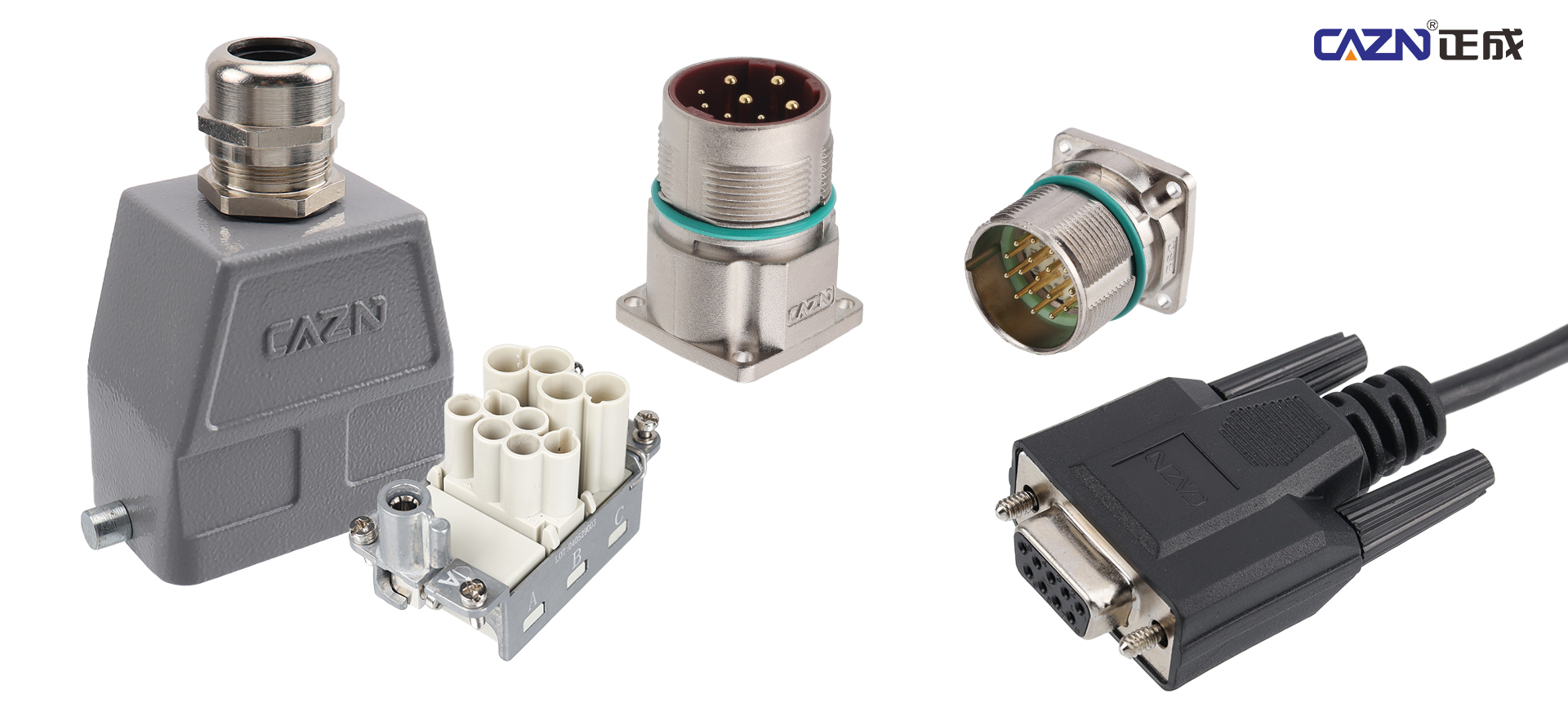

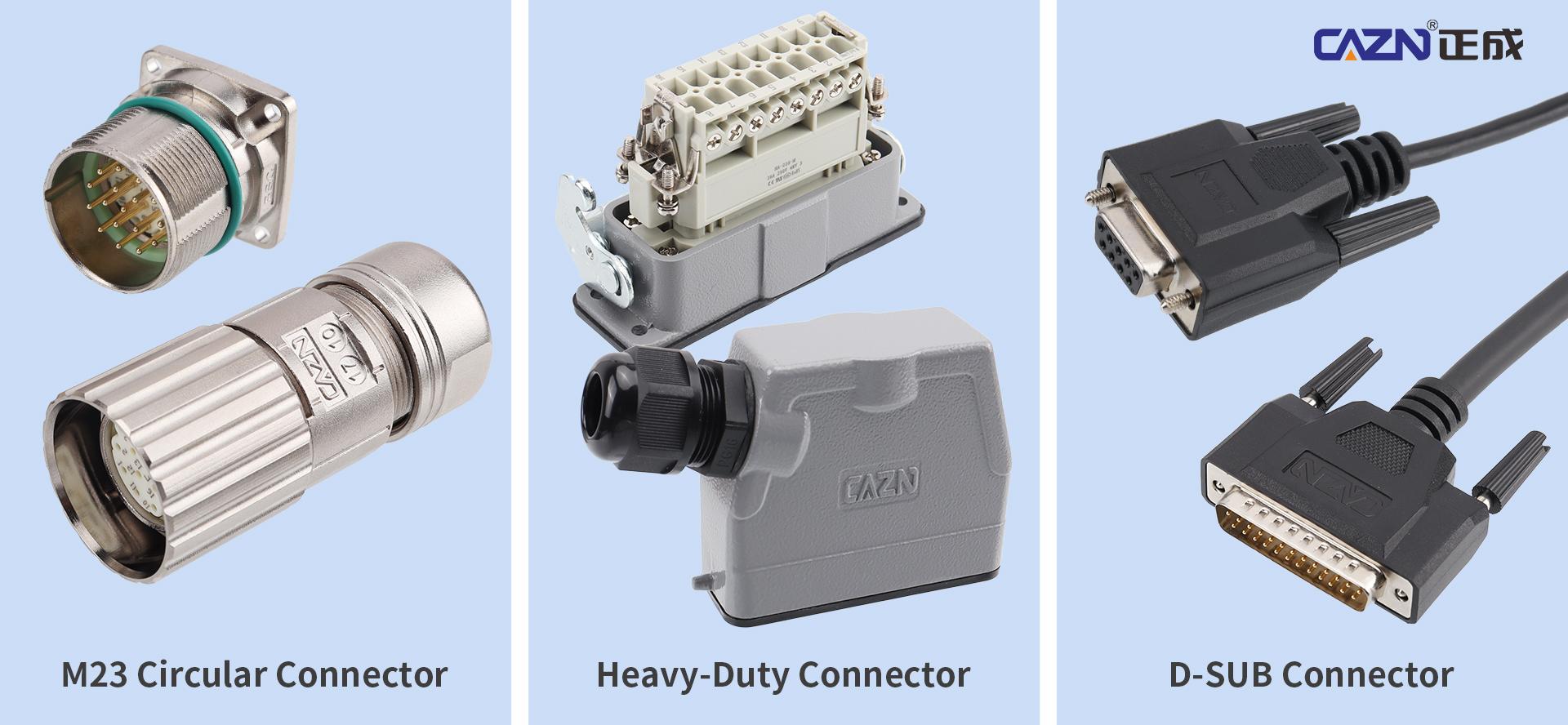

M23 Circular Connectors

M23 circular connectors are widely used for connecting drives, motors, encoders, sensors, and other components. These connectors feature high current-carrying capacity to meet the requirements of high-power current transmission. At the same time, they are responsible for transmitting control signals and monitoring data, ensuring dynamic and precise position control. In some high-end systems, M23 connectors can also serve as part of a redundant connection system to improve overall system safety.

● Powerful Power Transmission and Vibration Resistance

The core of a wind turbine pitch control system lies in the drive motor and controller, which require connectors with excellent high-power current transmission capabilities. M23 connectors and Heavy Duty Connectors, with their high current transmission performance, not only ensure stable and safe electrical connections but also demonstrate outstanding durability and reliability under long-term, high-intensity wind turbine operating conditions. In response to unavoidable wind forces and mechanical vibration impacts during turbine operation, these connectors adopt high-strength structural designs to effectively withstand external stress and ensure stable connection performance.

● Precise Signal Control and Redundant Protection

In addition to electrical transmission, M23 connectors also undertake the efficient transmission of control signals and monitoring data, which is essential for achieving dynamic and precise blade position adjustment. Their excellent signal integrity ensures accurate system control. Furthermore, for high-end pitch control systems pursuing maximum safety, M23 connectors can be seamlessly integrated into redundant configuration architectures, providing backup channels in the event of primary circuit failures and ensuring uninterrupted system operation.

● All-Weather Environmental Adaptability

Wind turbines are often installed in harsh natural environments such as high-altitude areas, strong winds and sand conditions, extreme temperature variations, and high salt spray environments. M23 circular connectors and Heavy Duty Connectors rely on special materials and sealing technologies to provide strong environmental resistance, effectively protecting against harsh conditions and ensuring the long-term stable operation of wind power equipment.

Heavy Duty Connectors

Heavy Duty Connectors are mainly used inside the control cabinets of wind turbine pitch control systems to connect various electrical components and controllers, enabling control and monitoring of the entire pitch system. Heavy Duty Connectors adopt impact-resistant cast aluminum structures and corrosion-resistant powder-coated surfaces. They support a maximum current of up to 500A, provide IP68 protection ratings and EMI standard protection, and can withstand harsh environments including high altitude, strong wind and sand, high humidity, and salt spray conditions.

D-SUB Connectors

As auxiliary connection components, D-SUB connectors are used together with M23 connectors and Heavy Duty Connectors to jointly ensure stable electrical and signal transmission.

Dedicated Electrical Connection Solution for Pitch Motors

To avoid potential loose connections caused by aging traditional plug-in connectors, some pitch motors adopt specially designed electrical connection solutions. This solution includes a terminal box (consisting of a terminal box cover, terminal box base, and terminal block) and waterproof connectors. External cables pass through the waterproof connectors into the internal cavity and are securely connected to the terminal block. This design effectively improves the reliability of the connection between the pitch motor and external cables, reducing the probability of wind turbine system failures.

Communication and Power Connection Solutions Between Nacelle and Pitch Cabinet

The pitch system and the main nacelle control system need to be connected through specific cables and connectors, which usually include three main parts:

Safety Chain Connection:A 5-core cable with shielding design is used to transmit 24VDC voltage and is responsible for transmitting safety chain signals from the nacelle to the pitch system.

Fieldbus Communication:The Profibus DP fieldbus is used, featuring a 2-core cable with shielding design, transmitting 10VDC voltage for data communication.

Power Supply Connection:A 5-core cable design is adopted to transmit 400VAC AC power, providing the main power supply for the pitch system.

Backup Power and Backup System Connection

Each pitch control cabinet is usually equipped with a backup power supply consisting of supercapacitors or batteries. When the grid voltage from the slip ring is interrupted, the backup power system can directly supply power to the pitch control system, ensuring that the blades can move from 0° feather position to 90° at a safe speed (such as 7°/s), achieving emergency shutdown protection.

The connection solution for wind turbine pitch control systems is an integrated system combining Heavy Duty Connectors, M23 connectors, dedicated terminal boxes, and multi-level cable systems. It is designed to ensure efficient, stable, and safe transmission of electrical power and signals under harsh industrial environments.

In the future, with the continuous development of wind power technology and the growing demand in the renewable energy market, CAZN will continue to uphold craftsmanship, continuously innovate and improve connection technologies, and provide customers with more efficient, reliable, and intelligent connection solutions.
