The 7/8 connector (usually referring to a circular connector with a 7/8-16UNF threaded coupling) is widely used in demanding industrial environments where high current capacity, vibration resistance, and high protection levels are required.

The CAZN 7/8 connector is specifically designed for reliable power transmission in medium and high-current industrial applications. It effectively solves the limitations of traditional wiring methods, such as poor reliability under harsh operating conditions, difficult maintenance, and unstable connections caused by vibration or environmental exposure.

CAZN 7/8 connectors are fully compatible with major international brands and support mainstream industrial communication protocols including PROFINET, EtherNet/IP, and EtherCAT, providing standardized power and signal connection solutions for industrial fieldbus and automation systems.

Product Characteristics and Application Positioning

From the perspective of product design and application scenarios, the 7/8" connector series is mainly developed for power and signal connections in industrial field environments.

Its key features include:

• High protection level: typically up to IP65/IP67

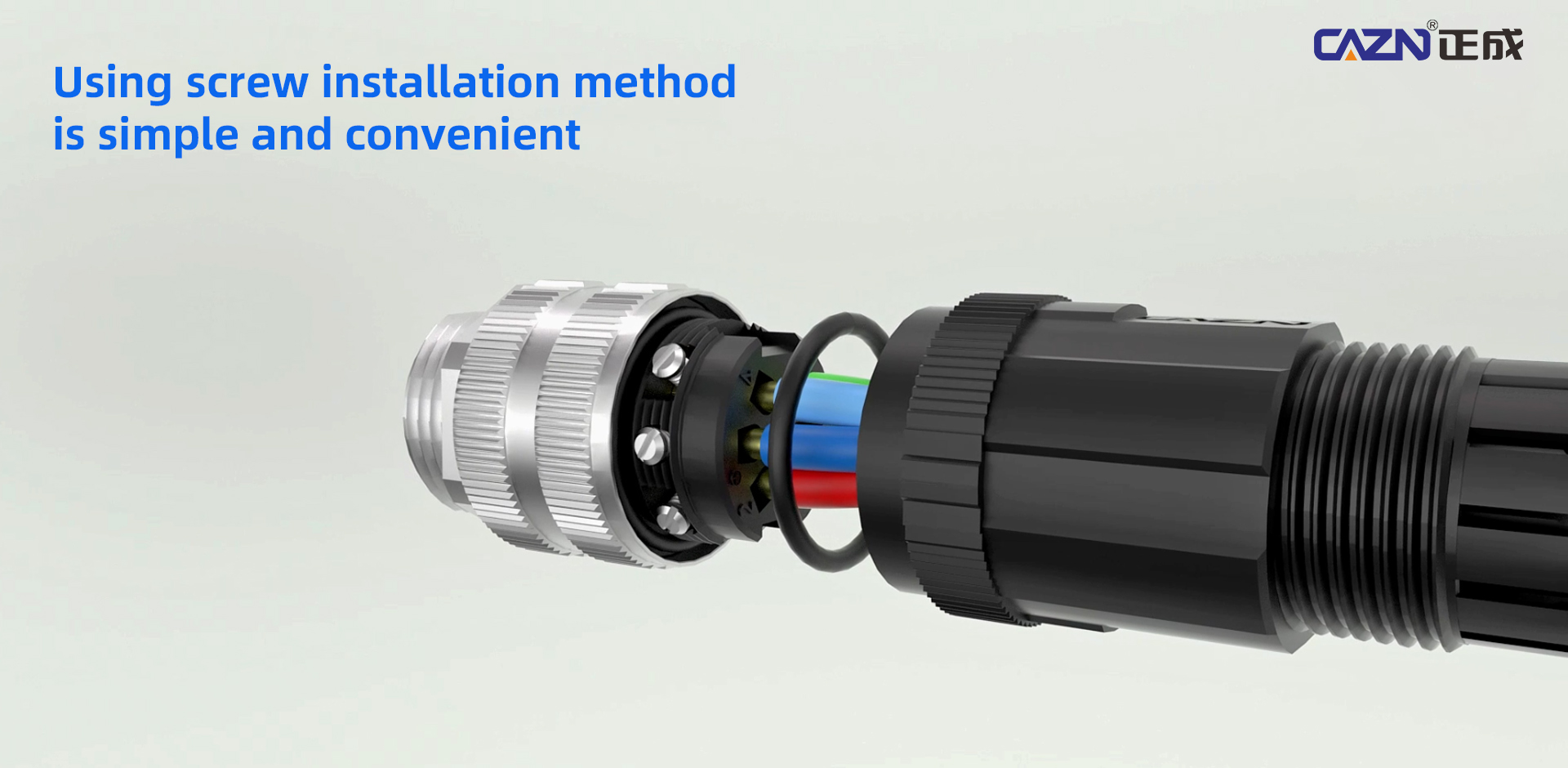

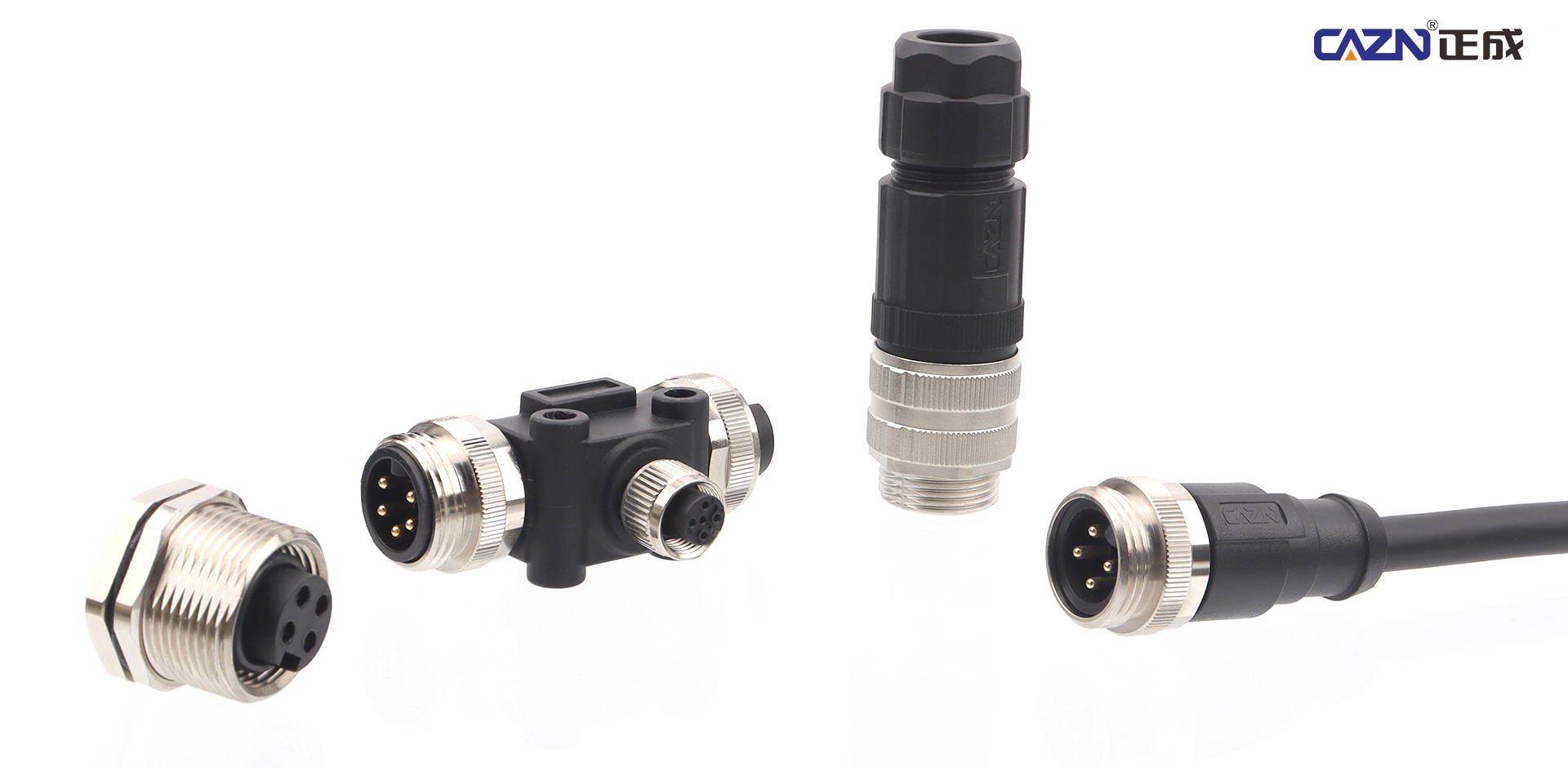

• Flexible installation options: including panel-mounted plugs, pre-molded cable assemblies, and field-installable versions
• Multiple contact configurations: commonly available in 3-pin, 4-pin, 5-pin, and 6-pin versions

• Clear industry standards: some products comply with interface specifications such as IEC 61076-2-101

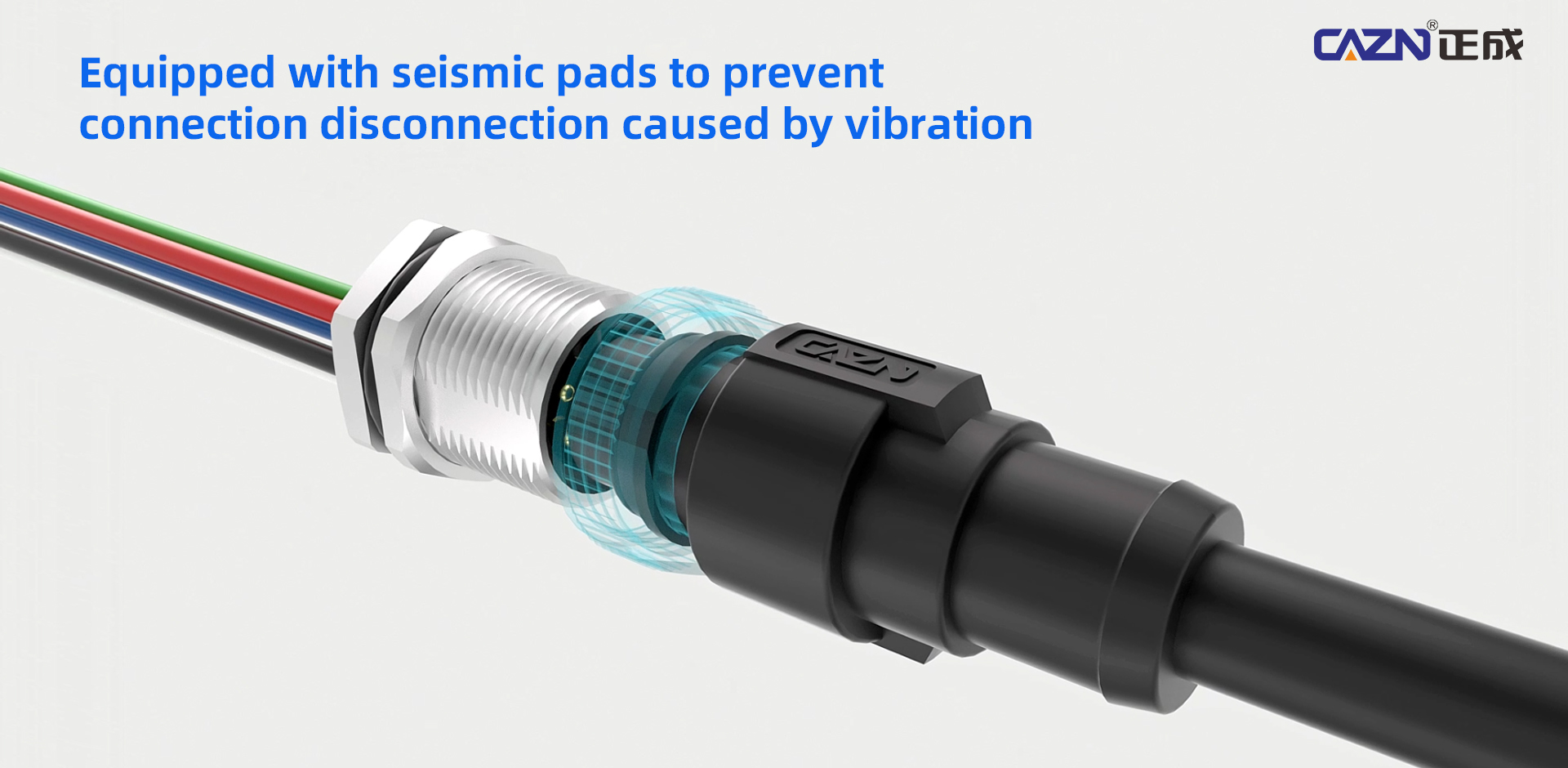

Unlike high-speed backplane connectors or data center interconnection systems, 7/8 connectors are designed to solve real-world factory challenges, including vibration resistance, oil resistance, easy installation, frequent connection cycles, and long-term operational reliability.

CAZN 7/8 Connector Product Specifications

When selecting a CAZN 7/8 connector, the following parameters should be carefully considered to ensure compatibility with the application requirements.

Core Application Areas of CAZN 7/8 Connectors

CAZN 7/8 connectors are widely used across multiple industries, especially in applications requiring reliable power delivery, stable signal transmission, and resistance to harsh environments.

Industrial Automation and Smart Manufacturing

In industrial automation systems, 7/8 connectors are commonly used for connecting sensors, actuators, motors, and control devices.

For industrial sensors and actuators, including temperature sensors, pressure sensors, position sensors, motors, and pneumatic cylinders, CAZN 7/8 connectors provide stable power and signal transmission. They support industrial communication systems such as DeviceNet and CANopen, enabling efficient data exchange and equipment control.

For motors and drive systems, 7/8 connectors provide reliable power transmission for small and medium-sized motors and servo drives. Their high-current capability meets the power requirements of automated production lines while maintaining a compact installation design.

In industrial robots and AGV (Automated Guided Vehicle) systems, these connectors are used for connecting joint motors, sensors, and control modules. Their vibration-resistant structure ensures stable performance under repeated robotic movements and continuous vehicle operation.

New Energy and Energy Storage Applications

The growth of renewable energy systems has increased demand for connectors capable of handling higher electrical loads while maintaining outdoor reliability.

In photovoltaic inverter systems, CAZN 7/8 connectors can be used for DC power connections between solar modules and inverter systems. Their high voltage and current capability supports efficient energy transmission in solar power installations.

In wind turbine pitch control systems, 7/8 connectors provide power and signal connections for pitch motors and control units. They are designed to operate reliably in challenging environments with high humidity, vibration, and elevated installation heights.

In energy storage systems, these connectors are used for battery module connections and interfaces between energy storage equipment, grids, and loads. They support stable charging, discharging, and control operations, helping improve overall system safety and reliability.

Marine and Offshore Engineering

Marine environments place strict requirements on connector durability due to salt spray, moisture, vibration, and mechanical impact.

For navigation and communication equipment, 7/8 connectors can be applied in systems following marine communication standards such as NMEA 2000, supporting connections for GPS, radar, sonar, and AIS (Automatic Identification System) devices.

For engine monitoring and sensor networks, these connectors provide power and signal connections for marine engine control units, fuel sensors, bilge water sensors, and other monitoring devices.

In offshore platforms and underwater exploration equipment, CAZN 7/8 connectors support connections between sensors, control systems, and power equipment while adapting to corrosive marine conditions, high humidity, and continuous mechanical stress.

Railway Transportation

Railway systems require connectors with exceptional reliability because equipment must operate continuously under vibration and environmental changes.

In train control systems, 7/8 connectors are used for connecting braking systems, traction systems, and signaling equipment. They transmit both control signals and power to ensure safe and accurate railway operation.

For onboard power systems, these connectors provide reliable power connections for lighting systems, air conditioning units, passenger information systems, and other electrical equipment.

In railway signaling applications, 7/8 connectors support connections between signal devices, track circuits, and communication equipment, ensuring stable communication between trains and ground-based systems.

Automotive Manufacturing and Construction Machinery

Modern manufacturing environments require connectors capable of supporting automated production while maintaining reliability under mechanical stress.

In automotive production lines, CAZN 7/8 connectors are widely used in welding, painting, and assembly processes for connecting robots, welding equipment, inspection systems, and automated control devices.

In construction machinery such as excavators, loaders, and cranes, these connectors connect engine systems, hydraulic controls, and electronic control units. Their vibration resistance, dust protection, and temperature tolerance make them suitable for demanding construction environments.

Outdoor and Special Industrial Environments

Outdoor and specialized industrial applications require connectors that can withstand exposure to water, dust, chemicals, and mechanical impact.

For outdoor LED lighting systems, CAZN 7/8 connectors provide reliable power connections. Their IP67 protection rating helps protect against rain, dust, and UV exposure, ensuring long-term lighting system stability.

In chemical and pharmaceutical industries, these connectors are used for connecting reactors, mixers, monitoring instruments, and automation equipment. Their corrosion-resistant design helps them operate reliably in environments containing chemical gases, liquids, and industrial contaminants.

In mining and tunnel engineering, 7/8 connectors are applied in heavy equipment such as tunnel boring machines, mining machinery, and ventilation systems. Their vibration resistance, corrosion protection, and high environmental sealing performance make them suitable for high-dust, high-humidity, and high-impact conditions.

CAZN Manufacturing Capability and Quality Assurance

As a national high-tech enterprise, CAZN ensures the reliability of its 7/8 connectors through strong R&D capabilities, advanced manufacturing systems, and strict quality control.

CAZN has an experienced R&D team with more than 10 years of development experience. The company invests 8% of annual revenue into research and development and has obtained more than 30 authorized patents. Advanced technologies such as elastic contact structures significantly improve connection stability and signal transmission performance.

In manufacturing, CAZN operates two production bases in Shenzhen and Huizhou equipped with automated injection molding machines, laser welding equipment, and digital production management systems. These capabilities ensure consistent quality and stable production capacity.

Quality control is integrated throughout the manufacturing process with 32 inspection procedures. Critical components are tested with accuracy up to 0.1%, and each product is assigned a complete lifecycle traceability code for quality verification.

CAZN products have passed ISO9001 quality management system certification and obtained international certifications including CE, RoHS, and UL. Products also comply with electromagnetic compatibility requirements under the EN 61000 series standards.

CAZN connectors have been successfully applied in industries including high-speed rail, wind power generation, and automotive manufacturing. For example, CAZN military-grade connectors have operated safely for more than 5 million kilometers in a specific high-speed rail application. The products have also provided core connection solutions for the Nanjing University of Science and Technology Formula Student team, demonstrating their reliability under high vibration and high-load conditions.

Conclusion

When an application requires medium and high-current power transmission, fieldbus power distribution, or reliable connectivity in harsh industrial environments, the CAZN 7/8 connector provides a proven and dependable solution.

By balancing current-carrying capability, compact design, environmental protection, and installation flexibility, the 7/8 connector successfully fills the gap between small connectors with limited power capacity and larger connectors with excessive size.

For industrial automation, renewable energy, transportation, marine engineering, and heavy equipment applications, CAZN 7/8 connectors provide stable, efficient, and long-lasting connectivity for modern industrial systems.
