CAZN Connectors | High-Performance Miniaturized MIL-DTL-26482 Series

As a core component in industrial and defense applications, the reliability of connectors directly determines system stability. Shenzhen Zhengcheng Electric Co., Ltd. (CAZN) offers MIL-DTL-26482 military-standard connectors (corresponding to GJB598 standard), featuring miniaturized design, high environmental adaptability, and quick-connect functionality. These connectors have become a preferred solution in aerospace, military equipment, and industrial automation due to their outstanding performance in extreme environments.

With a compact structural design, the MIL-DTL-26482 connector features reduced contact spacing and optimized shell dimensions, significantly saving installation space. For example, the shell diameter can be as small as 12 mm, while supporting 19 to 51 contacts, meeting high-density wiring requirements.

1. Core Technology: Extreme Performance Under Military Standards

1.1 Harsh Environmental Adaptability

Temperature Resistance & Sealing Performance:The connector adopts high-temperature vulcanized rubber inserts (175°C molding + 135°C secondary curing process), enabling stable operation in a wide temperature range from -55°C to +125°C.

It achieves IP67 waterproof and dustproof rating (no leakage after 30-minute immersion at 1 meter depth), and provides resistance to salt spray corrosion (48-hour test), mildew, and sand/dust exposure, fully compliant with GJB150 environmental testing requirements.

Structural Strength:The aluminum alloy shell (with cadmium plating / zinc-nickel alloy coating) is combined with a five-key anti-misplug positioning system. It withstands vibration (147 m/s²), shock (980 m/s²), and supports over 500 mating cycles, ensuring reliable connectivity under complex working conditions.

1.2 Miniaturization and High-Density Design

Compact Architecture:The volume is reduced to half of traditional connectors, supporting high-density configurations from 2 to 24 contacts (contact pitch: 1.27 mm), meeting the trend of equipment miniaturization.

Quick-Connect Mechanism:A bayonet-style three-lug locking structure (¼-turn fast mating/demating) supports blind-mate operation, significantly improving maintenance efficiency, especially in space-limited applications such as UAV internal wiring systems.

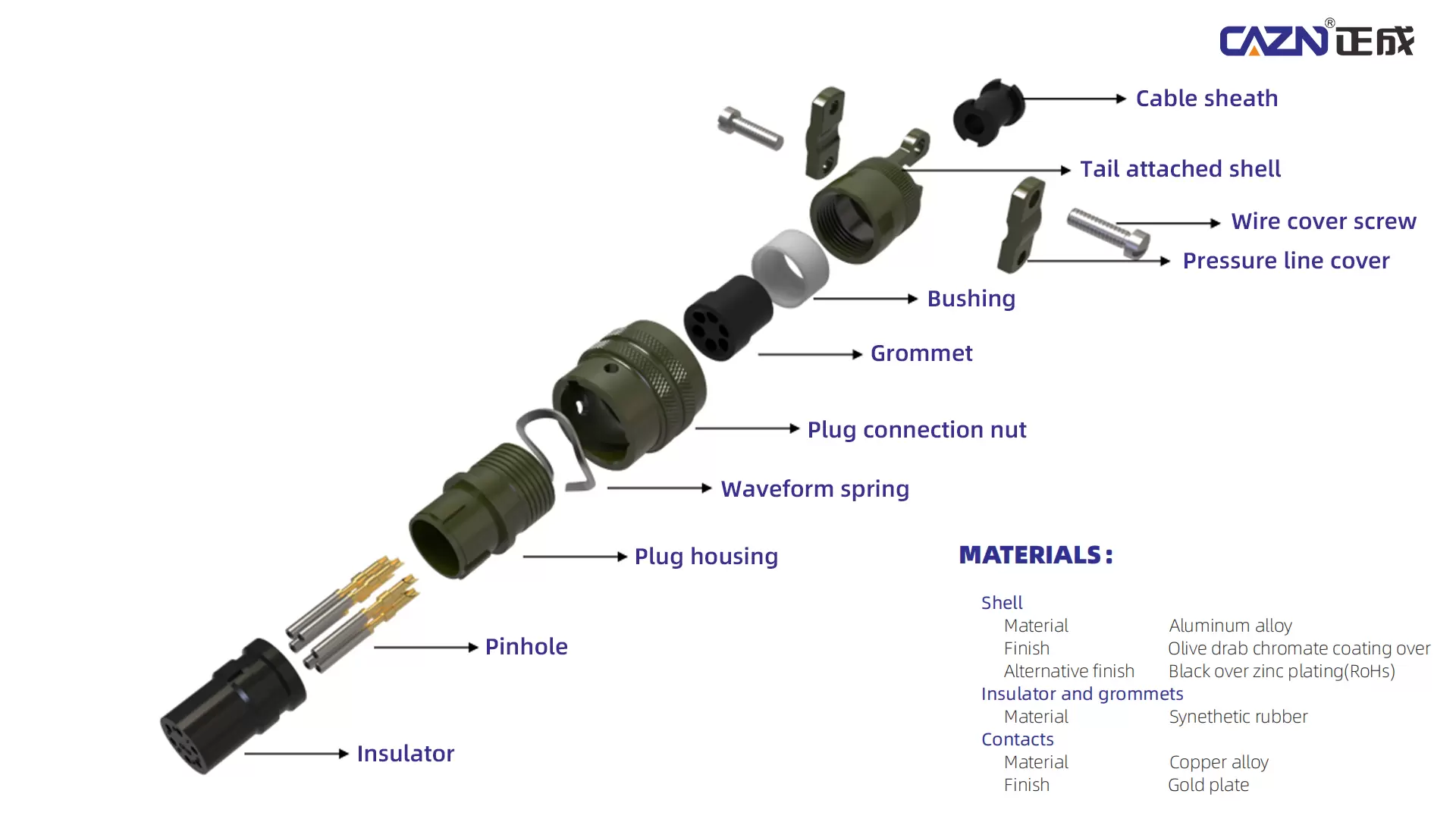

1.3 Precision Materials and Engineering Integration

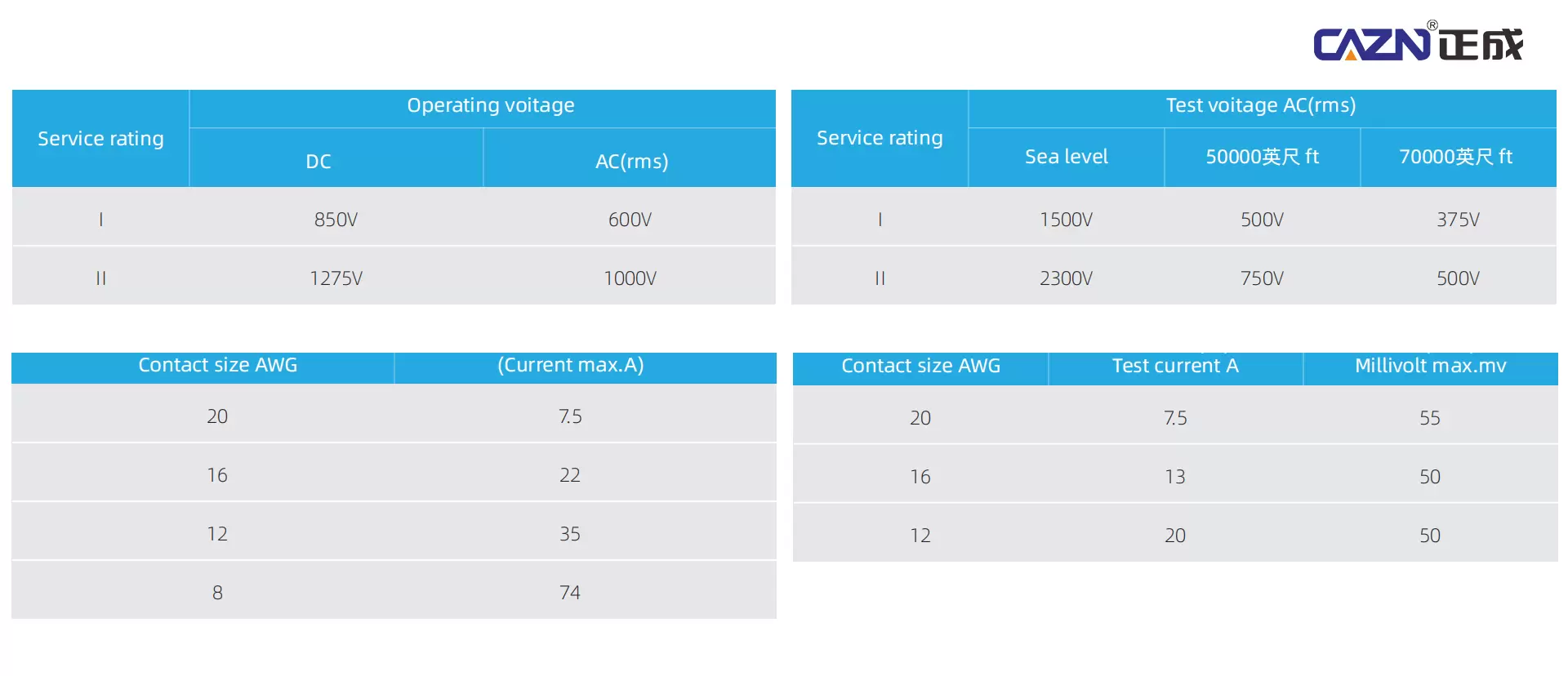

Conductive Components:Copper alloy contacts with 50μin gold plating ensure low resistance (≤5 mΩ) and strong corrosion resistance, supporting up to 10A per contact (#16 terminal).

Insulation and Shielding:Thermoset polymer insulators (temperature resistance up to 150°C) combined with metal shell shielding provide EMI suppression up to 60 dB, ensuring signal integrity in high-interference environments.

2. Product Portfolio: Standardization and Customization

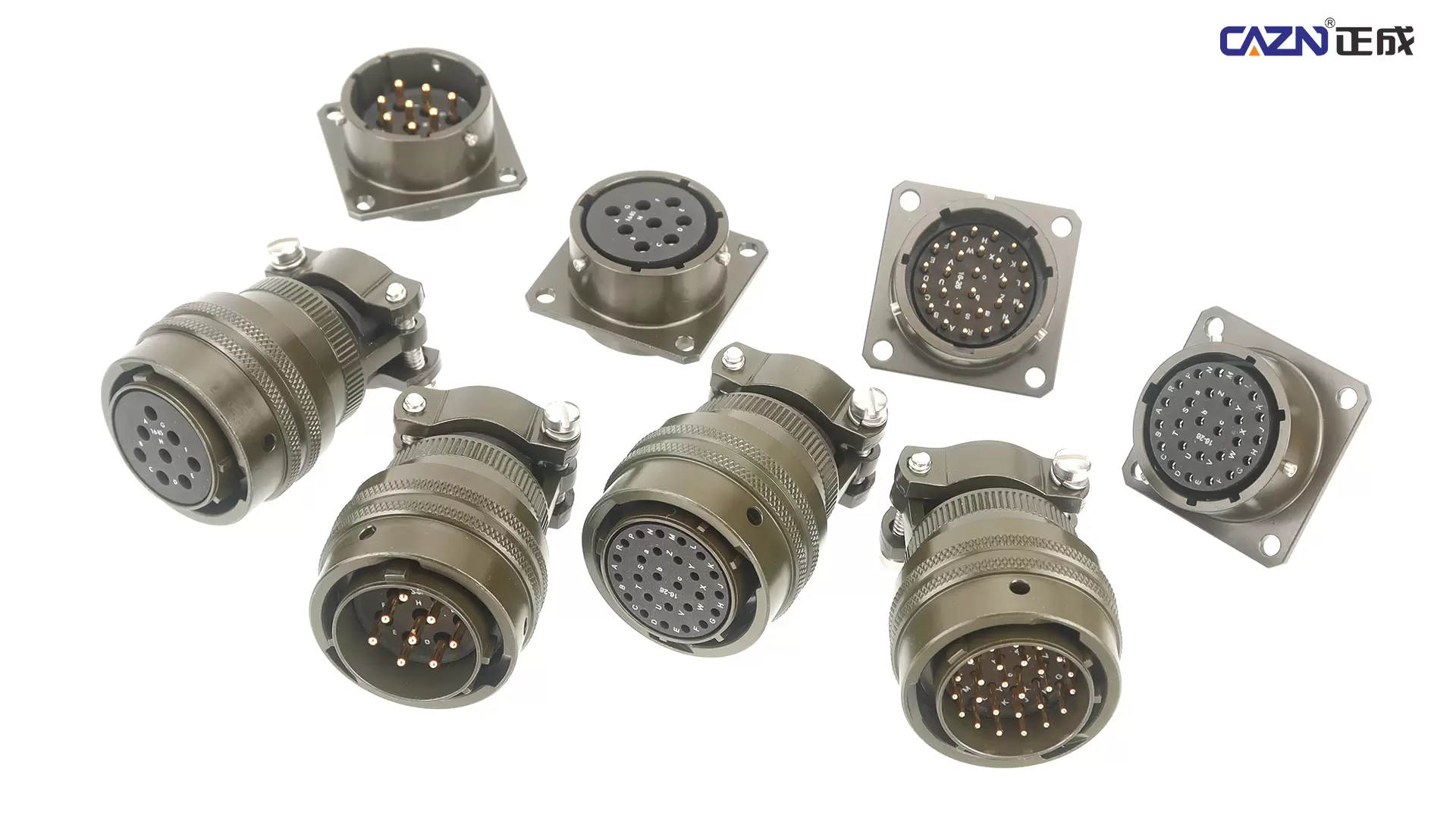

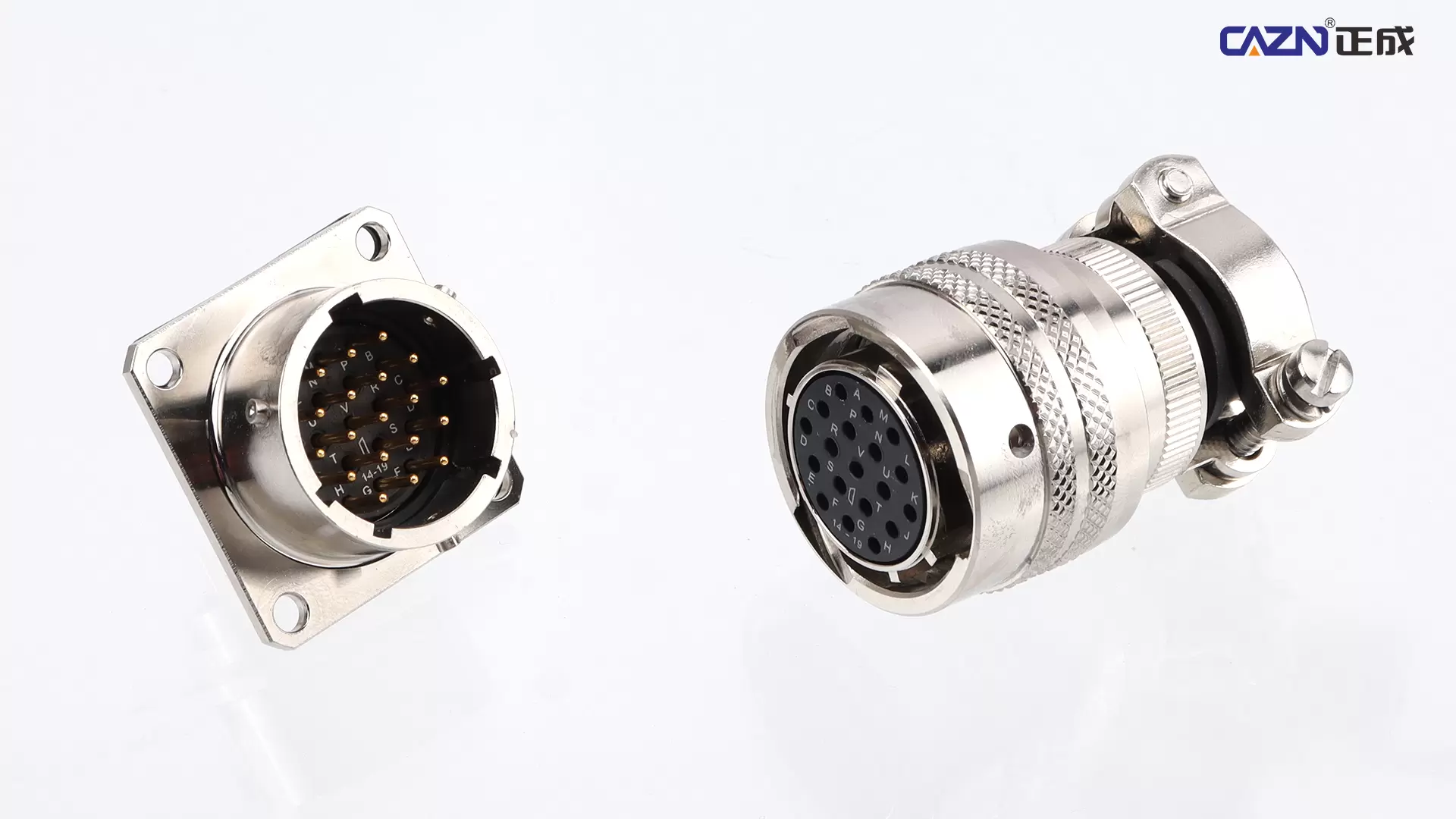

2.1 Classic Series (MIL-DTL-26482 Series I / II)

Standard Type:Available in threaded or bayonet coupling structures, supporting solder, crimp, and PCB termination methods. Suitable for general signal and power transmission applications (e.g., MS3112E 8-pin plug series).

Enhanced Sealing Type:IP67-rated with dual rubber sealing rings, designed for marine equipment and outdoor instrumentation requiring high waterproof reliability.

2.2 Specialized Models

High-Speed Data Type:Integrated Cat.6A shielded twisted pair supporting 10Gb/s transmission, suitable for UAVs and radar systems (e.g., Amphenol RJF military-grade RJ45 integrated solutions).

High-Voltage / High-Current Type:Supports 200V AC / 30A (#12 terminals), widely used in new energy systems and industrial robot power connections.

2.3 Customized Solutions

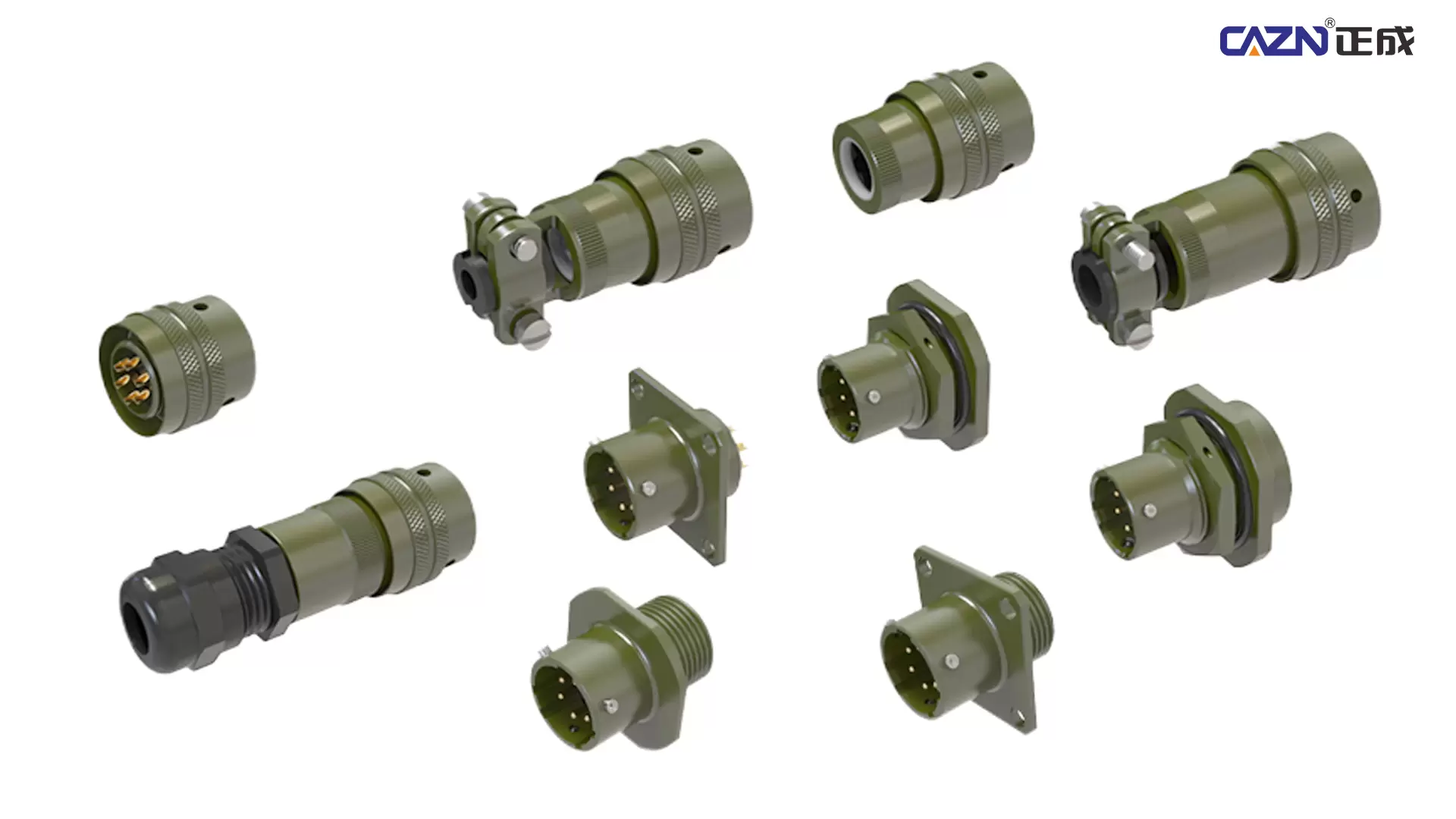

Structural Adaptation:Offers more than 10 mounting configurations including narrow/wide flange, cable-to-cable, and panel-mounted designs, with support for non-standard housing materials such as stainless steel.

Environmental Upgrades:Optional materials include UL94 V0 flame retardant and low-smoke zero-halogen (LSZH, EN45545 compliant), meeting safety requirements in rail transit and medical equipment applications.

3. Full-Scenario Applications

3.1 Military and Aerospace

UAV Systems:Lightweight design (single unit <50g) suitable for UAV platforms such as “Rainbow” and “Wing Loong”, supporting sensor and flight control interconnections in -55°C low-temperature environments.

Naval & Armored Vehicles:IP67 sealing combined with anti-vibration design ensures stable operation of shipborne radar and vehicle communication systems under salt spray and shock conditions.

3.2 High-End Manufacturing & Industrial Control

Robotics & Automation:Fast mating (<3 seconds) and high-density contacts support frequent cable replacement in multi-axis robots, compatible with ISO cleanroom standards (no particle shedding).

New Energy Equipment:High-voltage versions (1500V DC) are used in energy storage containers and EV charging systems, capable of withstanding temperature cycling from -40°C to +85°C (IEC62619 certified).

3.3 Specialized Industries

Rail Transit:EN45545-certified products used in high-speed rail signaling systems (e.g., interconnection between control centers and trackside equipment), operating reliably from -40°C to +70°C.

Medical Imaging:EMI shielding (<-30 dB) suitable for MRI systems, ensuring interference-free signal transmission compliant with ISO13485 medical standards.

4. CAZN: Quality Assurance System

4.1 Full Process Quality Control

Testing Standards:Compliant with MIL-DTL-26482 and GJB598A military standards. Each batch undergoes 100% airtight testing (100 kPa pressure differential, no leakage) and insulation resistance testing (>5000 MΩ at 25°C).

Material Traceability:RoHS and REACH compliance provided. Key materials (aluminum housing, gold-plated contacts) are fully traceable to original production batches.

4.2 Engineering & Customization Support

Co-Engineering Service:From connector selection optimization to harness integration (branching cables, shielding grounding design), CAZN provides 3D modeling and simulation validation services to shorten development cycles.

Fast Delivery Capability:Over 50 standard models in stock (e.g., MS26482-12-8P), with small-batch customization and sample delivery within 7 working days.

4.3 Industry Recognition & Applications

Customer Coverage:Serving major aerospace groups (e.g., AVIC), leading new energy enterprises (e.g., CATL), and industrial robotics manufacturers (e.g., Estun Robotics). Products comply with IATF16949 and AS9100D certifications.

Typical Applications:Flight control systems of UAVs, offshore wind power substation connections, and EV battery management systems (e.g., BYD).

5. Compatibility List

Compatible models include (partial list):

VG95328D1419SN, VG95328M1626SN, VG95328M1832PN, VG95328M1832SN, VG95328M2461PN, VG95328T1419SN, VG95328T83ASN, VG95328D1626SN, VG95328Z2C14, VG95328T1210SN, VG95328T1412SN, VG95328Z1C14, VG95328R106SN, VG95328R1419SN, VG95328R83APN, VG95328Z2A14, VG95328M83ASN, VG95328T106PN, VG95328T106SN, VG95328M1626PN, VG95328M2041PN, VG95328M2041SN, VG95328M2255PN, VG95328M2461SN, VG95328M123SN, VG95328M83APN, VG95328M1210PN, VG95328M123PN, VG95328M1412PN, VG95328M1419SW, VG95328D123SN, VG95328D1412PN, VG95328J106PN, VG95328M1412SN, VG95328K106SN, VG95328M106PN, VG95328M106SN, VG95328C106SN, VG95328C1210SN, VG95328C1412PN, VG95328C83ASN, VG95328D106SN, VG95328D1210SN, VG95328M1210SN, VG95328M1419PN, 51546063, 51546064, 51546065, VG95328C106PN, VG95328M12-10SNJ.

Conclusion

MIL-DTL-26482 connectors are not merely interconnect components—they are performance hubs in extreme environments. Through miniaturized architecture, high-performance materials, and multi-scenario adaptability, CAZN delivers lightweight, high-reliability connection solutions for global customers.

From UAVs operating at high altitude to precision industrial robots, CAZN ensures “military-grade precision and millimeter-level reliability” in every connection system, supporting safer, more efficient, and highly integrated electronic architectures across industries.
