Mini UHF Connector: Electrical Performance, Mechanical Reliability, and System Integration in RF Applications

In RF connectivity systems, connector selection is not simply a mechanical interface decision—it directly impacts signal integrity, impedance stability, and long-term system reliability. Among legacy yet still widely deployed RF interfaces, the mini UHF connector occupies a specific niche where moderate frequency performance, robust mechanical locking, and cost efficiency must be balanced.

While newer interfaces such as SMA or N-type connectors dominate high-frequency applications, mini UHF connectors continue to be used in communication systems, industrial RF modules, transportation electronics, and legacy infrastructure due to their durability and ease of installation. However, improper understanding of their electrical limitations and mechanical characteristics often leads to signal degradation and premature failure.

CAZN Electronic, as a manufacturer focused on industrial connectivity solutions, approaches mini UHF connector design from a system-level perspective—ensuring compatibility with real-world environments such as rail transit, wind power systems, and industrial automation.

Understanding the electrical characteristics of mini UHF connectors

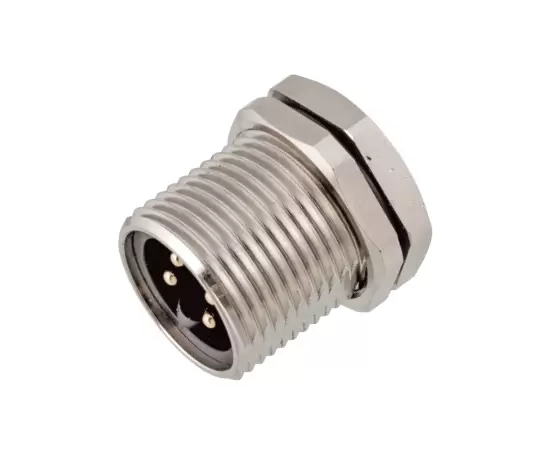

The mini UHF connector is a threaded RF connector derived from the standard UHF (PL-259/SO-239) family but with a more compact form factor. It is typically used in applications where space constraints and moderate frequency requirements coexist.

Frequency range and impedance behavior

Unlike precision RF connectors, mini UHF connectors are not constant impedance connectors. Their typical operating characteristics include:

• Frequency range: DC to approximately 2.5 GHz (practical range often <1 GHz for optimal performance)
• Nominal impedance: non-constant, typically around 50–60 ohms depending on geometry
• Return loss: varies significantly with frequency and assembly quality

This non-constant impedance behavior means that mini UHF connectors are not suitable for high-frequency or low-loss RF systems where impedance matching is critical.

However, in applications such as:

• Mobile radio systems
• Industrial RF communication modules
• Transportation communication equipment

the performance is often sufficient due to relatively lower frequency requirements.

Insertion loss and signal integrity

Insertion loss is influenced by:

• Contact resistance
• Surface plating quality
• Mechanical alignment

Typical insertion loss values:

• <0.1 dB at lower frequencies (<500 MHz)
• Increasing progressively at higher frequencies

Signal degradation becomes more pronounced when:

• Connectors are repeatedly mated and unmated
• Plating wear increases contact resistance
• Assembly tolerances are not maintained

CAZN Electronic controls plating thickness (e.g., gold or silver plating over brass) to maintain stable electrical performance over extended usage cycles.

Mechanical design and connection reliability

Where mini UHF connectors show clear advantages is in mechanical robustness.

Threaded coupling mechanism

Unlike push-on connectors, mini UHF connectors use threaded coupling, which provides:

• Strong vibration resistance
• Secure mechanical locking
• Reduced risk of accidental disconnection

This makes them particularly suitable for:

• Railway systems with continuous vibration
• Automotive and heavy equipment environments
• Industrial machinery with dynamic loads

Durability and mating cycles

Typical mechanical specifications include:

• Mating cycles: 500–1000 cycles depending on material and plating
• Contact resistance stability over repeated use
• Resistance to mechanical shock

Connector durability is directly linked to:

• Material hardness
• Surface treatment quality
• Precision machining of threads

CAZN Electronic ensures tight machining tolerances to maintain thread engagement consistency and prevent loosening over time.

Material selection and environmental resistance

Mini UHF connectors are often deployed in environments where temperature variation, humidity, and contamination are present.

Common materials

• Body: brass with nickel or silver plating
• Contacts: brass or phosphor bronze with gold plating
• Insulators: PTFE (Teflon) for high temperature and dielectric stability

Environmental performance

Typical operating conditions:

• Temperature range: -40°C to +85°C (extended ranges possible with material upgrades)
• Humidity resistance: suitable for industrial environments
• Corrosion resistance: dependent on plating quality

For outdoor or harsh environments, additional sealing or protective coatings may be required.

Comparison with alternative RF connectors

Understanding where mini UHF connectors fit requires comparison with other connector types.

Mini UHF vs SMA

SMA connectors:

• Constant 50-ohm impedance
• Frequency range up to 18 GHz or higher
• Higher precision and cost

Mini UHF connectors:

• Lower frequency capability
• More robust mechanical design
• Lower cost

Mini UHF vs N-type connectors

N-type connectors:

• Better high-frequency performance (up to 11 GHz)
• Larger size
• Higher sealing capability (IP-rated versions available)

Mini UHF connectors:

• More compact
• Easier installation in space-constrained systems
• Lower cost for medium-frequency applications

Application scenarios and system matching

Rail transit communication systems

In high-speed rail and metro systems:

• Continuous vibration requires secure connections
• Moderate frequency communication systems are common
• Maintenance accessibility is important

Mini UHF connectors provide reliable performance under mechanical stress.

Industrial automation and smart manufacturing

In factory environments:

• RF modules are used for wireless communication
• Equipment is exposed to vibration and dust
• Cost efficiency is critical

Mini UHF connectors offer a balance between performance and durability.

Automotive and transportation electronics

In vehicle-mounted systems:

• Compact size is essential
• Connectors must withstand temperature variation
• Resistance to mechanical shock is required

Mini UHF connectors meet these requirements effectively.

Installation considerations and performance optimization

Proper installation significantly affects performance.

Key practices include:

• Ensuring correct torque during tightening
• Avoiding over-tightening that damages threads
• Maintaining clean contact surfaces
• Using compatible cable assemblies

Improper installation can result in:

• Increased insertion loss
• Mechanical loosening
• Reduced lifespan

Manufacturing precision and quality control

Connector performance is highly sensitive to manufacturing accuracy.

Critical processes include:

• CNC machining of threads and contact surfaces
• Precision molding of dielectric components
• Controlled plating thickness for conductivity and durability

Quality control measures:

• RF performance testing
• Mechanical endurance testing
• Environmental simulation

CAZN Electronic integrates these processes to ensure consistent product quality.

Conclusion: where mini UHF connectors deliver the most value

The mini UHF connector remains a practical solution in RF systems where mechanical reliability, moderate frequency performance, and cost efficiency are prioritized.

While not suitable for high-frequency precision applications, it excels in environments requiring:

• Strong mechanical locking
• Resistance to vibration
• Reliable performance under industrial conditions

With proper material selection, manufacturing precision, and application matching, mini UHF connectors continue to play an important role in modern industrial connectivity systems.
