CAZN European Standard M23 Connector Series: The Precision Connection Hub for Industrial Automation

The CAZN European Standard M23 Connector Series is a high-performance circular connector specifically engineered for demanding industrial environments. With outstanding vibration resistance, a high protection rating, and a flexible modular design, it effectively addresses the challenges of power and signal transmission in complex operating conditions. As a result, it has become a critical connection hub for ensuring the reliable operation of advanced automation equipment.

Product Features

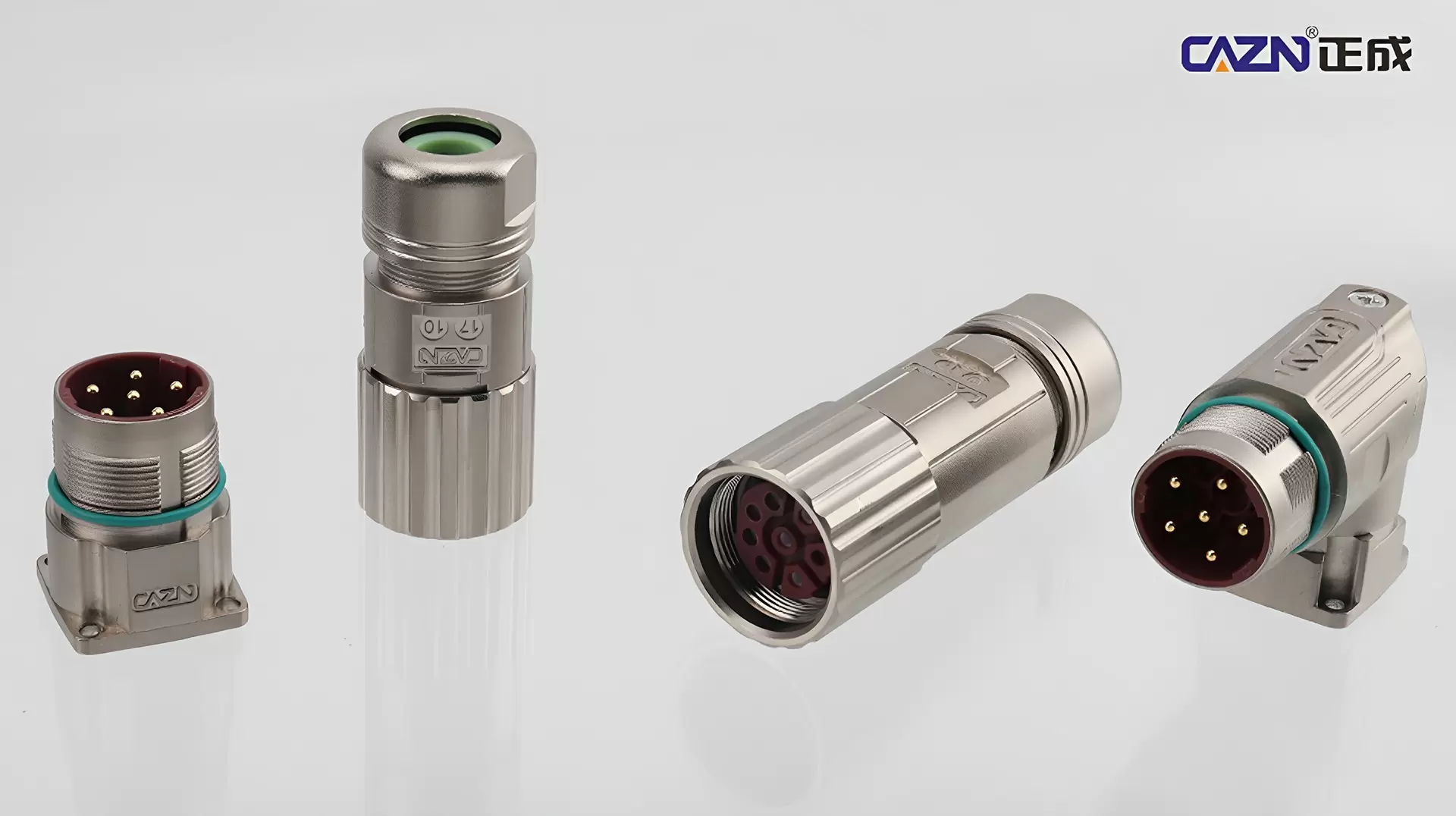

Robust Mechanical Strength and Environmental Adaptability:The M23 series features a rugged metal cylindrical housing that provides 360° electromagnetic shielding, effectively minimizing signal interference. Combined with a precision-engineered M23 metric threaded locking mechanism, the connector maintains a secure and stable connection even under severe vibration and shock conditions.

With an IP67 protection rating, the connector is fully protected against dust ingress and temporary immersion in water, making it ideal for humid, oily, and harsh industrial environments.

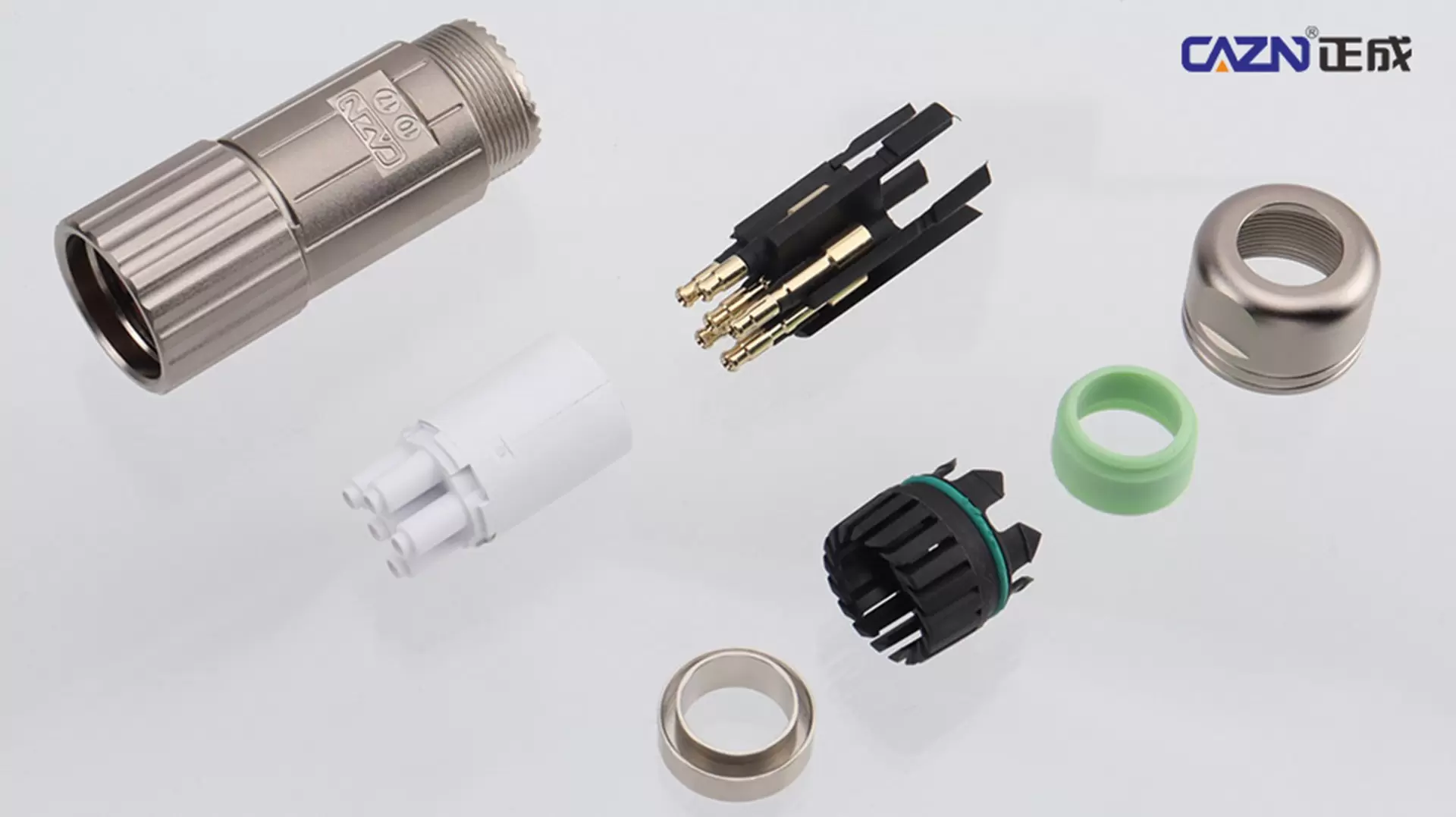

Flexible Modular Design and Hybrid Transmission:The M23 series supports highly flexible modular configurations. In addition to standard power and signal inserts, it offers advanced hybrid transmission capabilities, allowing high-voltage power and high-bandwidth data signals, such as Ethernet, to be integrated within a single compact connector.

This significantly reduces installation space requirements and simplifies wiring complexity, making equipment design more efficient and streamlined.

Excellent Electrical Performance:Utilizing highly reliable contact technology, including gold-plated contacts, the M23 series delivers exceptionally low contact resistance and an extended mating life.

Whether transmitting low-level sensor signals or powering high-performance motors, the connector ensures stable and reliable current and data transmission.

Main Specifications

Compatible Brands

The CAZN M23 Series strictly follows the design standards of European M-Series connectors and is compatible with equivalent M23 products from leading international manufacturers, including:Amphenol、Phoenix Contact、TE Connectivity、Binder

This compatibility allows users to integrate CAZN M23 connectors into existing systems with confidence and flexibility.

Representative M23 Connector Models

The CAZN M23 series includes a wide range of compatible models and configurations, including:

MA1CAE1200、MA1CAP1200、MA1JAE1200、MA1JAP1200、MA1LAE1200、MA1LAP1200、MA1CAE1200M-KIT、MA1CAE1200-KIT、1543925、1240740、1467143、1243700、1615068、1340694、1614082、1596866、1596859、1069323、1629164、1629214、1543932、1543934、1473127、1467145、1621434、1621435、1597096、1-796406-1、2103843-1、2103844-1、208071-1、208072-1、240-8935、99 4621 00 12、99 4621 10 12、99 4621 20 12、99 4621 30 12、99 4607 80 12、99 4607 90 12、99 4622 00 12、99 4622 10 12、99 4622 20 12、99 4622 30 12、M623-GRAP11(CAZN)、M623-GRAP9(CAZN)、M623-GRAP13(CAZN)、M623-LB-P-17(CAZN)、M623-LB-E-6(CAZN)、M623-LB-E-17(CAZN)、M623-GRKP11(CAZN)、M623-GRKP9(CAZN)、M623-LB-P-6(CAZN)、M623-LB-P-12(CAZN)、M623-LB-E-12(CAZN)、M623-LB-P-6(CAZN)、M623-LB-P-9(CAZN)、M623-LB-P-17(CAZN)、M623-LB-E-17(CAZN)、M623-LB-P-9X(CAZN)、M623-LB-E-12(CAZN)、M923-P8-GCK15(CAZN)

Application Scenarios

Industrial Automation and Robotics:Widely used in servo motors, encoders, robotic joints, and motion control systems, providing an integrated solution for both power and feedback signal transmission.

Smart Manufacturing and CNC Equipment:Ideal for CNC machine tools, automated production lines, and PLC control cabinets, ensuring synchronized transmission of high-speed data and stable power.

Renewable Energy and Rail Transportation:In wind power systems, high-speed rail signaling equipment, and intelligent transportation infrastructure, the M23 series delivers reliable performance under extreme temperatures and continuous vibration.

Conclusion

The CAZN European Standard M23 Connector Series combines rugged construction, flexible hybrid transmission capabilities, and stringent electrical performance standards to meet the modern industrial demand for both high reliability and compact design.

Whether deployed in sophisticated robotic systems, advanced manufacturing equipment, or harsh outdoor energy installations, the CAZN M23 series provides secure, stable, and efficient connectivity.

By choosing the CAZN M23 Series, you equip your industrial automation systems with a dependable connection solution that enhances operational reliability, improves efficiency, and ensures precise performance in every application.
