M923 Socket

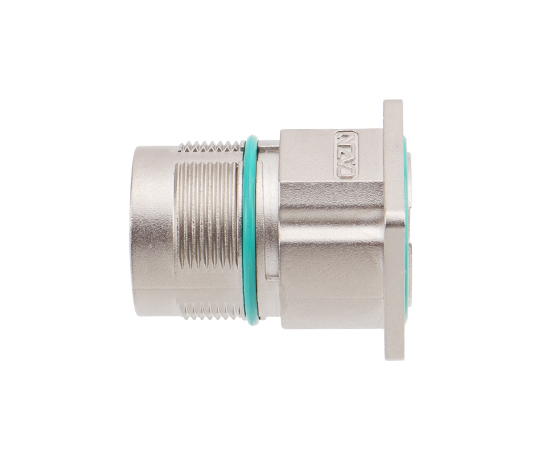

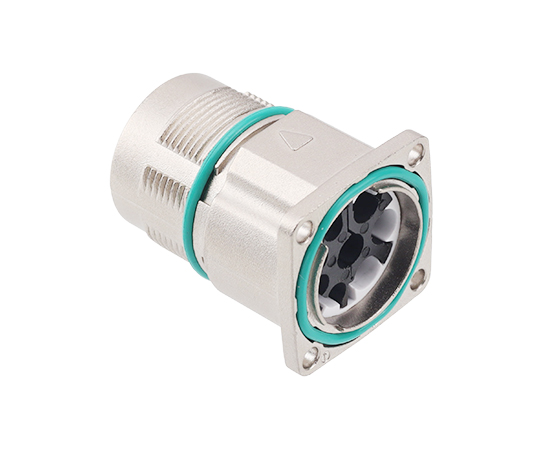

M923 Power Straight Male Socket (Crimp, Mount hole 19.8x19.8)
<>

European standard connector: M23 Series, Power Type

Structure type: Straight Square Flange Socket

Connection method: Crimp

Pin type:  Male

Contacts number: 6, 8pins

Shielded: Yes

Certification: CE, RoHS, UL

Product information
PRODUCT PARAMETERS
Shell material:Bass nickel plated
Insulator material:PBT/PA66
Sealing material: Epoxy resin/Rubber
Contact material:Brass/Phosphorus copper gold-plated
Waterproof grade:IP67
Wiring range:6~10mm
Contact impedance: ≤5 mΩ
Durability:≥ 500 cycles
Applicable temperature:-40℃ ~ +125℃

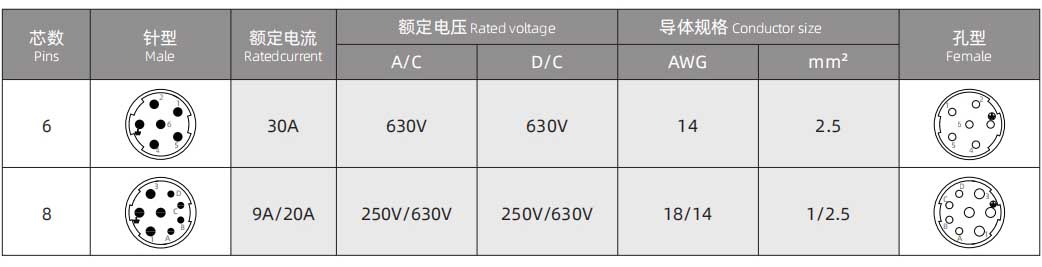

M923 SIGNAL TYPE ELECTRICAL PARAMETERS

Electrical diagram

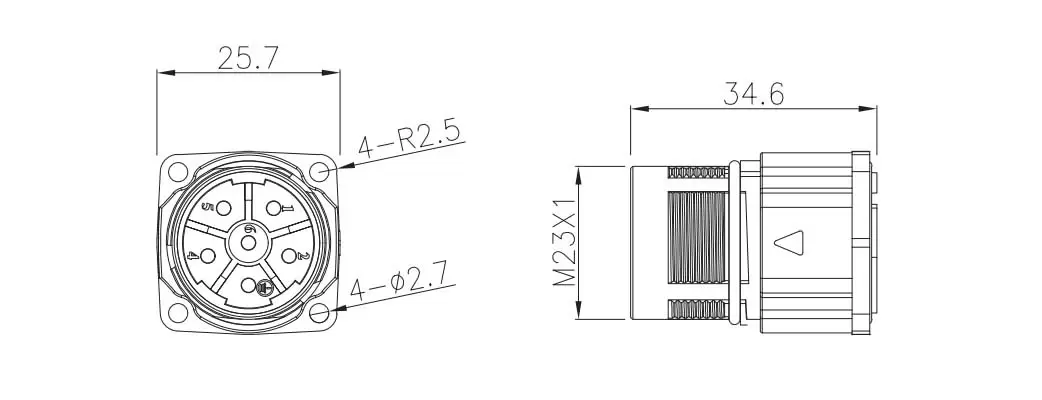

DIMENSION DRAWING

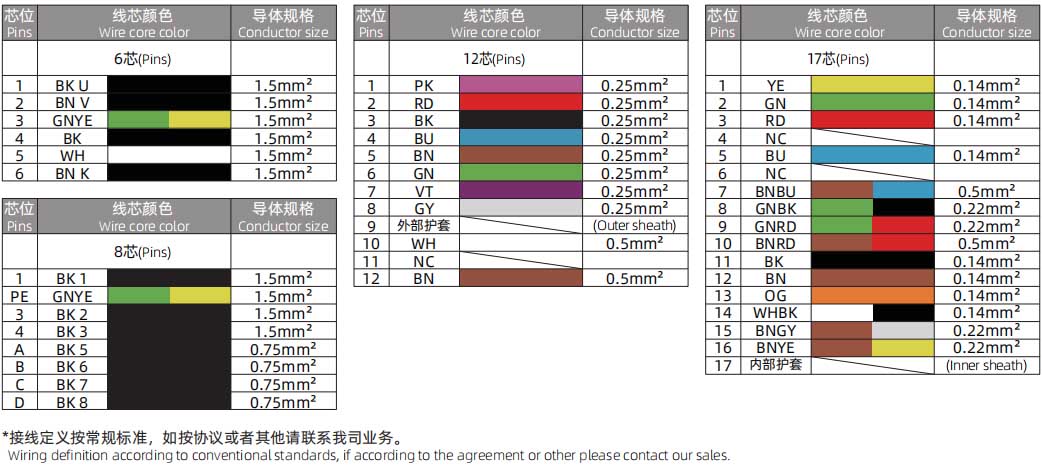

M923 WIRE DEFINITION

Product Ordering
Product NameProduct No. Pins 3D Download 2D Download
M923 Power Male Straight Square Flange Socket(Crimp)M923-P6-GCH6 Pin
M923 Power Male Straight Square Flange Socket(Crimp)M923-P8-GCH8 Pin

Downloads
Product Catalog CAZN-European Standard Product Selection Manual
CAZN Zhengcheng-RJ45 Industrial Network Signal Plug-2023-2 View
CAZN Zhengcheng NMEA Special Connector-N2023-1 View
CAZN Zhengcheng American standard connector-26482-MD2023-1 View
CAZN-RJ45 Industrial network signal plug-2023-2-English version View
CAZN-Proportional valve dedicated connector 23-1-English version View
CAZN-Connectors for Vibration Sensors 23-1-English version View
