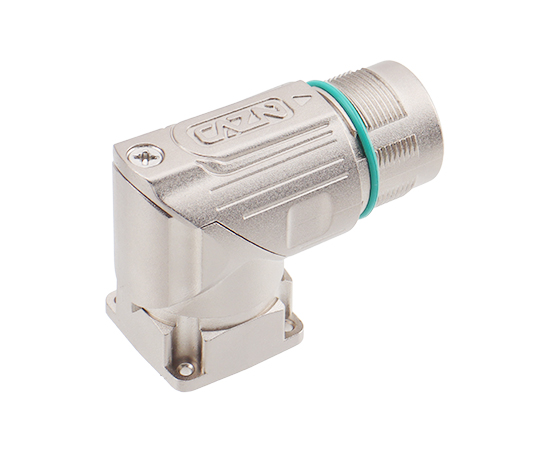

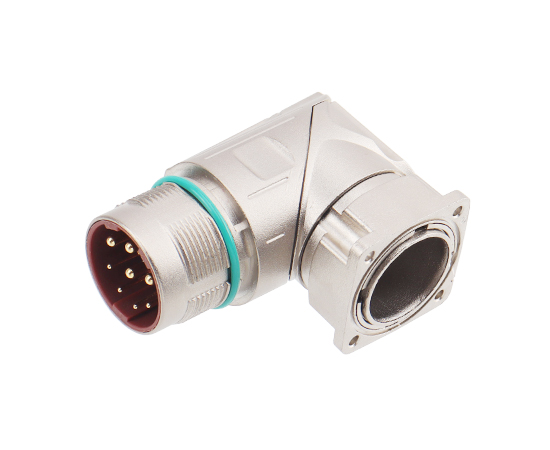

M923 Socket
European standard connector: M23 Series, Power Type
Structure type: Angled Square Flange Socket
Connection method: Crimp
Pin type: Male
Contacts number: 6, 8pins
Shielded: Yes
Certification: CE, RoHS, UL
Product information
PRODUCT PARAMETERS
| Shell material： | Bass nickel plated |
| Insulator material： | PBT/PA66 |
| Sealing material： | Epoxy resin/Rubber |
| Contact material： | Brass/Phosphorus copper gold-plated |
| Waterproof grade： | IP67 |
| Wiring range： | 6~10mm |
| Contact impedance： | ≤5 mΩ |
| Durability: | ≥ 500 cycles |
| Applicable temperature： | -40℃ ~ +125℃ |
M923 SIGNAL TYPE ELECTRICAL PARAMETERS
Electrical diagram

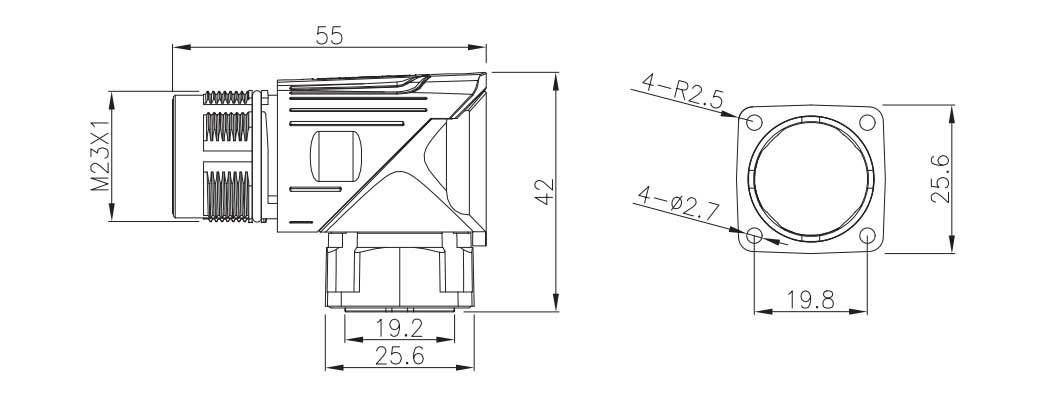

DIMENSION DRAWING
M923 WIRE DEFINITION
Product Ordering
| Product Name | Product No. | Pins | 3D Download | 2D Download |
| M923 Power Male Angled Square Flange Assembled Socket(Crimp) | M923-P6-GCL | 6 Pin | ||
| M923 Power Male Angled Square Flange Assembled Socket(Crimp) | M923-P8-GCL | 8 Pin |
Downloads
| Product Catalog | CAZN-European Standard Product Selection Manual |
| CAZN Proportional Valve Connector Manual | View |
| CAZN Zhengcheng Vibration Sensor Connector Manual | View |
| CAZN Zhengcheng - Heavy Duty Selection Manual - H2023-2 | View |
| CAZN Zhengcheng Plastic Waterproof Connector Selection Brochure-E2024-1 | View |
| CAZN Zhengcheng push-pull self-locking series selection manual T2023-2 | View |
| CAZN Zhengcheng European Standard Connector Selection Brochure-M2023-2 | View |
| CAZN Zhengcheng-RJ45 Industrial Network Signal Plug-2023-2 | View |
| CAZN Zhengcheng NMEA Special Connector-N2023-1 | View |
| CAZN Zhengcheng American standard connector-26482-MD2023-1 | View |
| CAZN-RJ45 Industrial network signal plug-2023-2-English version | View |
| CAZN-Proportional valve dedicated connector 23-1-English version | View |
| CAZN-Connectors for Vibration Sensors 23-1-English version | View |
