M923 Power Riveting Pressure Pin φ1

PRODUCT CENTER

M23 Contact

M923·Power Riveting pressure pin φ1

European standard connector: M23 Series

Structure type: Riveting pressure pin

Contacts diameter: 1.0mm

Connection method: Crimp

Riveting pressure pin:
Male Female
Length:
1mm
Merchant Code:
A120101-0235

INQUIRY

DOWNLOAD

Product information

PRODUCT PARAMETERS

Shell material：	Bass nickel plated
Insulator material：	PBT/PA66
Sealing material：	Epoxy resin/Rubber
Contact material：	Brass/Phosphorus copper gold-plated
Waterproof grade：	IP67
Wiring range：	6~10mm
Contact impedance：	≤5 mΩ
Durability:	≥ 500 cycles
Applicable temperature：	-40℃ ~ +125℃

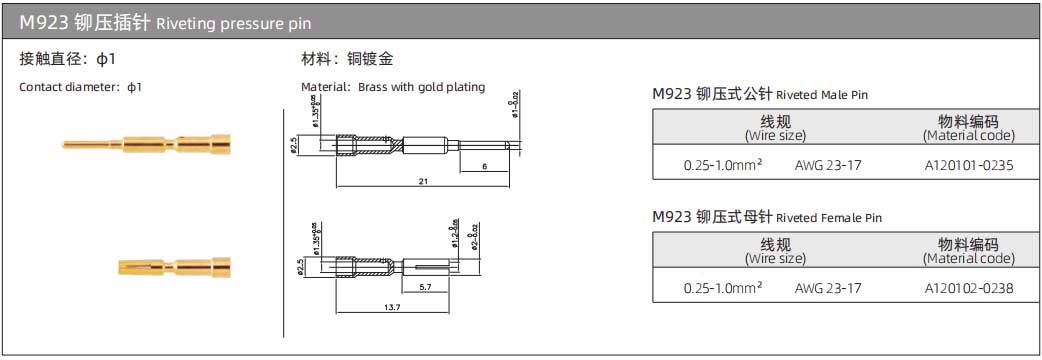

M923 POWER CONTACT PINS PARAMETERS

Electrical diagram

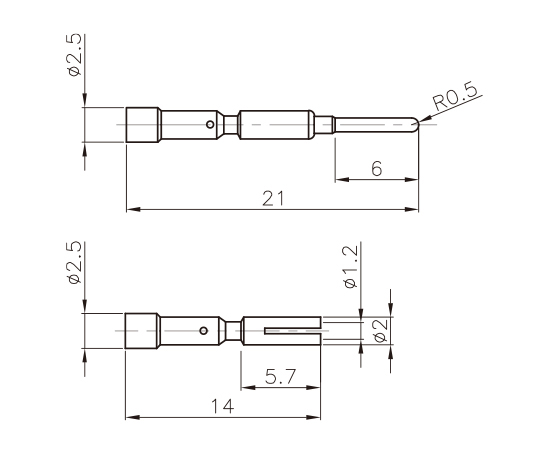

DIMENSION DRAWING

Product Ordering

Product Name	Product No.	Wire Size	3D Download	2D Download
M923 Riveted Male Pin 1mm	A120101-0235	0.25-1.0mm² AWG: 23-17
M923 Riveted Female Pin 1mm	A120102-0238	0.25-1.0mm² AWG: 23-17
