M623 Signal Riveting Pressure Pin φ2

PRODUCT CENTER

M23 Contact

M623·Signal Riveting pressure pin φ2

European standard connector: M23 Series

Structure type: Riveting pressure pin

Contacts diameter: 1.0mm

Connection method: Crimp

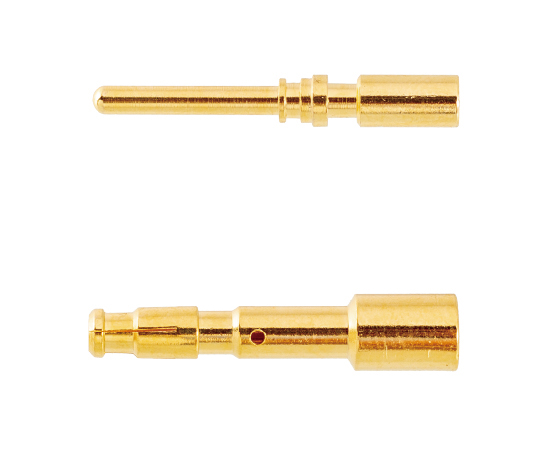

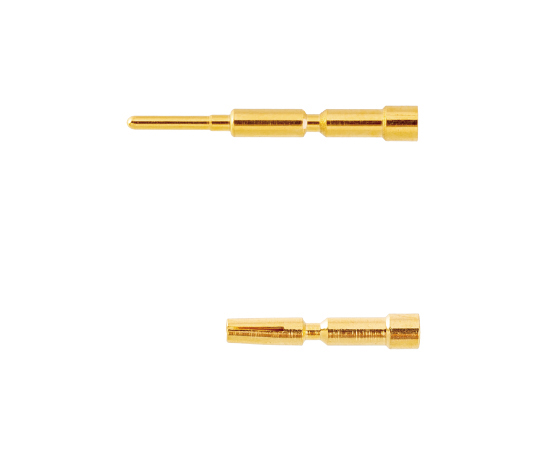

Riveting pressure pin:
Male Female
Length:
1mm
Merchant Code:
A120101-0125

INQUIRY

DOWNLOAD

Product information

PRODUCT PARAMETERS

Shell material：	Bass nickel plated
Insulator material：	PBT/PA66
Sealing material：	Epoxy resin/Rubber
Contact material：	Brass/Phosphorus copper gold-plated
Waterproof grade：	IP67
Wiring range：	6~10mm
Contact impedance：	≤5 mΩ
Durability:	≥ 500 cycles
Applicable temperature：	-40℃ ~ +125℃

M623 SIGNAL CONTACT PINS PARAMETERS

Electrical diagram

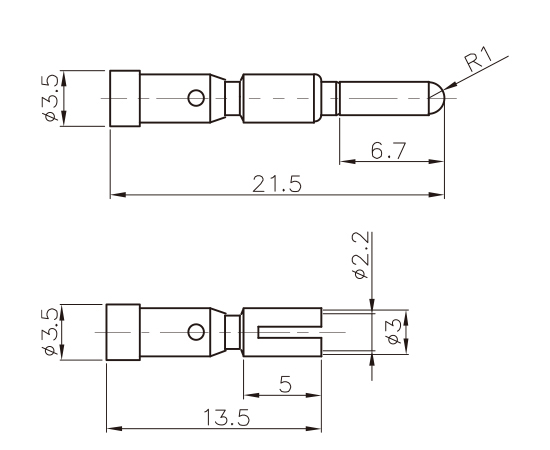

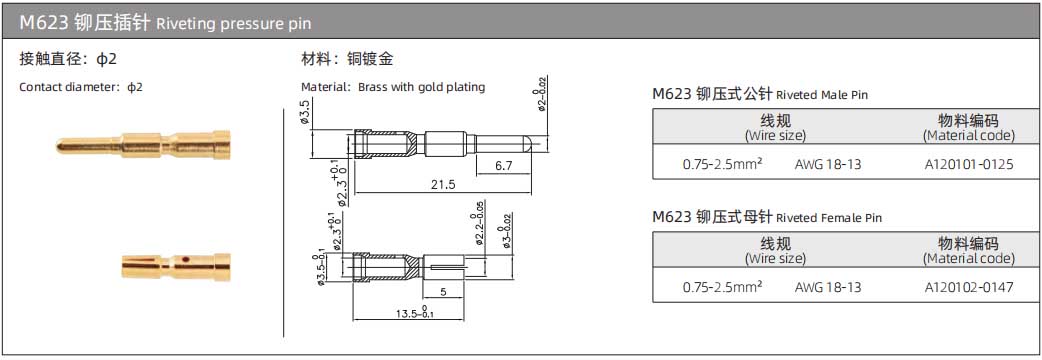

DIMENSION DRAWING

Product Ordering

Product Name	Product No.	Wire Size	3D Download	2D Download
M623 Riveted Male Pin 2mm	A120101-0125	0.75-2.5mm² AWG: 18-13
M623 Riveted Female Pin 2mm	A120102-0147	0.75-2.5mm² AWG: 18-13
