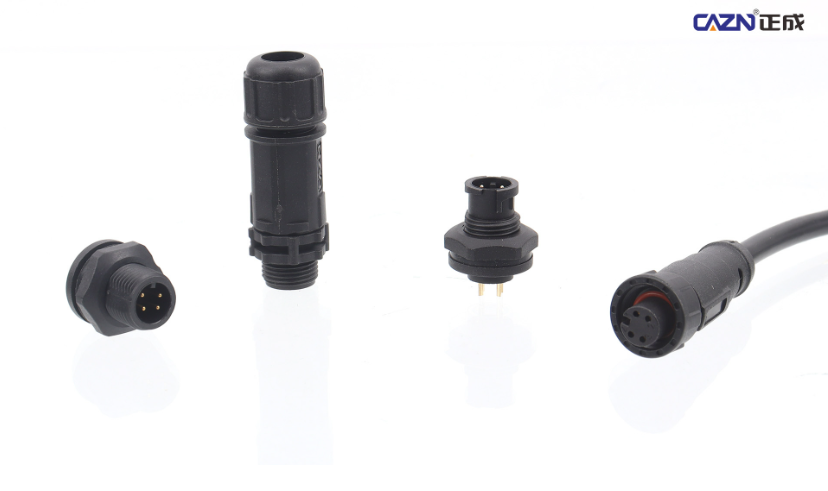

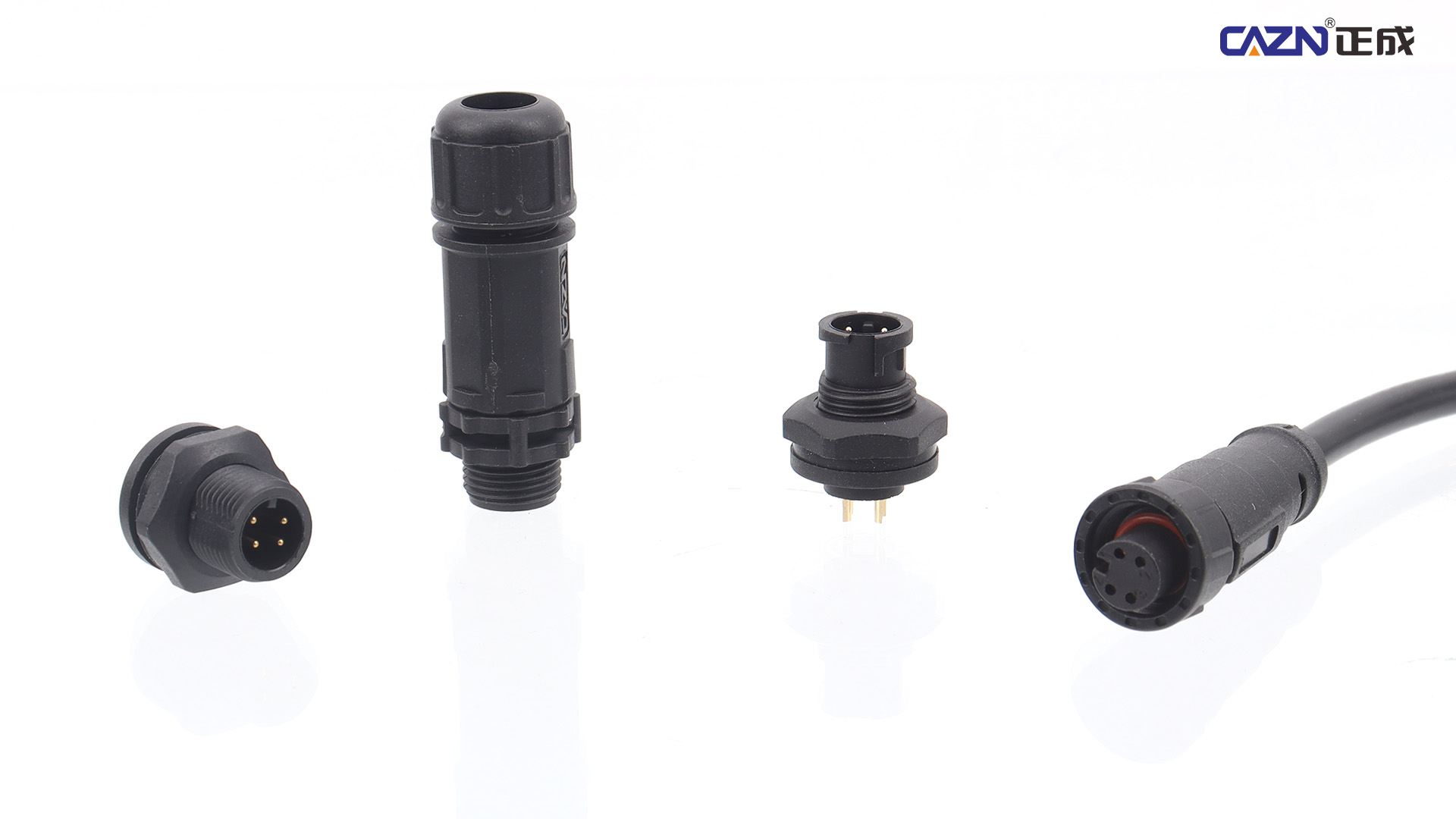

E7 Waterproof Connector: Outstanding Sealing Performance

The CAZN ZHENGCHENG E7 waterproof connector demonstrates outstanding performance in sealing protection. It adopts high-quality sealing ring materials and a precision-engineered sealing structure design, effectively blocking the ingress of water, dust, and other contaminants.

Whether in heavy rain, temporary submersion, or high-humidity environments, it ensures stable and reliable electrical connections inside the connector, preventing failures such as short circuits or open circuits caused by water ingress, thereby guaranteeing normal equipment operation. This advantage makes it widely applicable in outdoor electronic devices, marine engineering, and underwater detection systems.

Stable and Reliable Electrical Performance

The connector delivers excellent electrical performance. Its contact terminals are made of high-quality conductive materials and processed with precision machining and special surface treatments, featuring low contact resistance and high conductivity efficiency.

During current transmission, it effectively reduces energy loss and minimizes heat generation, ensuring stable power delivery. At the same time, it provides excellent signal transmission capability, ensuring signal integrity while reducing interference and attenuation, meeting the stringent electrical performance requirements of complex electronic systems.

Robust and Durable Structural Design

The CAZN ZHENGCHENG E7 waterproof connector features a rugged structural design with strong resistance to impact and vibration.

The housing is made of high-strength, corrosion-resistant materials, capable of withstanding physical damage and harsh environmental conditions. Even under frequent mating cycles and long-term use, it maintains stable structure and reliable performance.

In addition, its convenient locking mechanisms, such as the bayonet-style design, allow for quick installation and removal while ensuring secure connection stability, reducing the risk of failures caused by loosening.

Strong Environmental Adaptability

The connector is designed for wide environmental adaptability, capable of operating reliably under extreme conditions of temperature, humidity, and pressure.

Whether in high heat or freezing cold, high-altitude regions or deep-sea environments, it maintains stable performance. This makes it suitable for a variety of demanding applications. For example:

• In aerospace applications, it adapts to low-temperature and low-pressure high-altitude conditions
• In industrial automation, it withstands complex factory environments

High Cost-Effectiveness

Compared with similar high-end waterproof connectors, the CAZN ZHENGCHENG E7 offers a strong balance between performance and cost.

It delivers excellent waterproof capability, stable electrical performance, and robust structural durability at a reasonable price, providing an economical solution for users. This makes it highly competitive in the market, especially for applications requiring cost control without compromising performance.

Broad Application Compatibility

The CAZN ZHENGCHENG E7 waterproof connector offers wide compatibility with various devices and systems.

Its standardized interface design and multiple specification options enable it to meet the needs of different industries and applications, including:

• Communication equipment
• Lighting systems
• New energy systems
• Industrial control systems

It enables reliable electrical connections across diverse equipment types, reducing compatibility issues and lowering integration costs and complexity.

Benchmark Comparison

Product Engineering Advantages

Extreme Environmental Adaptability Design

The CAZN E7 series is engineered for harsh industrial environments. Inspired by top-tier global connector sealing architectures, it adopts a multi-layer O-ring axial sealing structure combined with a high-precision threaded locking mechanism, strictly compliant with IEC 60529 IP67/IP68 standards.

Laboratory validation shows that after 72 hours of 1-meter water immersion and 48 hours of neutral salt spray testing, the insulation resistance remains stable, effectively eliminating micro-short circuits caused by moisture ingress and achieving protection performance comparable to TE Connectivity industrial-grade products.

Low Impedance and High-Density Design

To meet the extreme space constraints of industrial automation equipment, the E7 series achieves low-impedance electrical performance within a compact housing.

Using gold-plated copper contacts, it significantly reduces contact resistance. Under high-current transmission conditions, temperature rise is notably lower than industry averages.

Compared with traditional heavy-duty connectors, the E7 supports up to 30A current transmission while reducing overall volume by approximately 20%, providing more flexible PCB mounting solutions for servo motors and sensor integration.

Enabling Smart Cities and Industry 4.0

In the era of Industry 4.0 and smart cities, outdoor PoE devices face combined challenges of lightning surges, heavy rain, and continuous vibration.

The E7 series provides a system-level protection solution:

• Zinc alloy housing with strong EMI shielding capability
• Anti-vibration locking structure to prevent loosening under long-term wind loads
• Stable signal and power transmission in harsh outdoor environments

Whether in offshore wind power systems exposed to salt spray or unmanned vessel underwater detection systems, the E7 ensures continuous and reliable performance, making it a strong alternative to high-end imported connector brands.

Environmental Context

In the wave of Industry 4.0 and new energy vehicles, connectors are exposed to increasingly extreme conditions—temperatures ranging from -25°C to 80°C, high humidity, and continuous mechanical vibration. Traditional connectors often struggle to balance cost efficiency and performance stability under such demanding conditions.
