CAZN Connectors Build a Reliable VCU Foundation for Electric Vehicles

In the electronic control architecture of new energy electric vehicles, the Vehicle Control Unit (VCU) serves as the “brain” of the vehicle, coordinating vehicle state management, power output, energy management, safety protection, and CAN bus communication. While much attention is often given to VCU algorithms and software optimization, a fundamental requirement is sometimes overlooked: even advanced control algorithms depend on stable physical connections to function reliably. With precise hardware compatibility, CAZN M-Series connectors provide a reliable connection foundation for VCU systems, supporting stable signal transmission and electrical integration throughout the vehicle.

Understanding the VCU in an Electric Vehicle

The VCU does not directly generate power. Instead, it functions as the vehicle control center responsible for “sensing, decision-making, command execution, and protection.”

In electric Baja racing vehicles, such as those participating in the electric category of the China Society of Automotive Engineers Baja competition, the VCU typically performs five key functions.

1.Vehicle state management — The VCU manages the sequence of high-voltage power-up and pre-charge, driving, charging, and fault shutdown. This helps prevent unsafe conditions caused by directly connecting the high-voltage system immediately after power-up.

2.Torque calculation and power distribution — The VCU converts accelerator and brake pedal signals into target torque commands for the motor controller, helping achieve smooth and predictable power delivery. Under demanding Baja off-road conditions, wheel-speed signals can also be used for torque limiting and traction control to reduce wheel slip during acceleration or obstacle crossing.

3.Energy management — The VCU works with the Battery Management System (BMS) to manage available power according to battery conditions. When the battery SOC is low or temperature and voltage exceed defined limits, the VCU can reduce power for protection while coordinating regenerative braking and energy recovery.

4.Safety monitoring — In electric Baja racing, the VCU continuously monitors functions such as the Brake System Plausibility Device (BSPD), High-Voltage Interlock Loop (HVIL), insulation monitoring, and emergency-stop circuits. When an abnormal condition is detected, the system can reduce power or disconnect the high-voltage system.

5.CAN communication and diagnostics — The VCU acts as a central communication hub, exchanging messages between the BMS, motor controller, instrument cluster, data acquisition system, and telemetry system. It also records fault codes to support post-race data analysis, troubleshooting, and vehicle calibration.

CAZN Connectors for VCU Applications

M16 and M12 connectors serve as critical external interfaces for the VCU. Sensor signals, communication data, and service or programming connections all rely on connectors to enter and leave the VCU.

Although connectors do not perform the VCU's computing functions, they provide the physical connection between the VCU and the vehicle's electrical subsystems. CAZN connectors support this architecture in three key ways.

1.M16 16/19-pin high-density interfaces

M16 16/19-pin connectors integrate multiple signal circuits through a single interface, reducing the number of individual connection points throughout the vehicle. Fewer connection points can simplify the wiring architecture and reduce potential failure points. This configuration is suitable for multi-channel signal and communication connections between the VCU, BMS, motor controller, and other systems.

2.M12 4-pin A-coded interfaces

M12 4-pin A-coded connectors provide standardized interfaces for sensors and CAN connections. They can be used with accelerator-pedal, brake, wheel-speed, temperature, and other sensors, enabling reliable transmission of real-time vehicle operating data to the VCU.

3.Shielding and vibration resistance

The electric motor and high-voltage system can generate significant electromagnetic interference, while off-road racing exposes electrical components to severe vibration and mechanical shock. Shielded cable assemblies help maintain signal integrity, while robust connector structures help maintain secure connections under demanding operating conditions.

The core value of the VCU lies in its closed-loop control process of “sensing, decision-making, command execution, and protection.” The prerequisite for this process is the real-time, accurate, and continuous transmission of various signals and data.

CAZN M12 and M16 connectors are designed to meet the connection requirements of VCU applications and provide the physical interface between the VCU and the vehicle's electrical systems. Standardized M12 4-pin A-coded interfaces connect with accelerator, brake, wheel-speed, temperature, and other sensors, providing real-time information about driver input and vehicle operating conditions for VCU torque calculation and control.

High-density M16 16/19-pin shielded connectors can carry communication signals between the VCU, BMS, motor controller, and onboard telemetry systems. By consolidating multiple circuits into high-density interfaces, they help simplify the vehicle's connection architecture and support reliable transmission of control commands.

CAZN Connectors Beyond the VCU

The VCU is only one part of an electric Baja racing vehicle's electrical architecture. Based on the complete vehicle electrical system, CAZN connector solutions can also be applied to other electrical connection points.

Among these potential applications, M12 platform extensions and M16 overmolded cable assemblies provide practical opportunities for further integration. Since the racing team has already used CAZN M12 and M16 products, the electrical architecture, crimping processes, and testing requirements have been practically validated. CAZN M8 sensor connectors, M12 D/X-coded connectors, M23 connectors, Ethernet solutions, and other products can therefore be considered for additional vehicle applications.

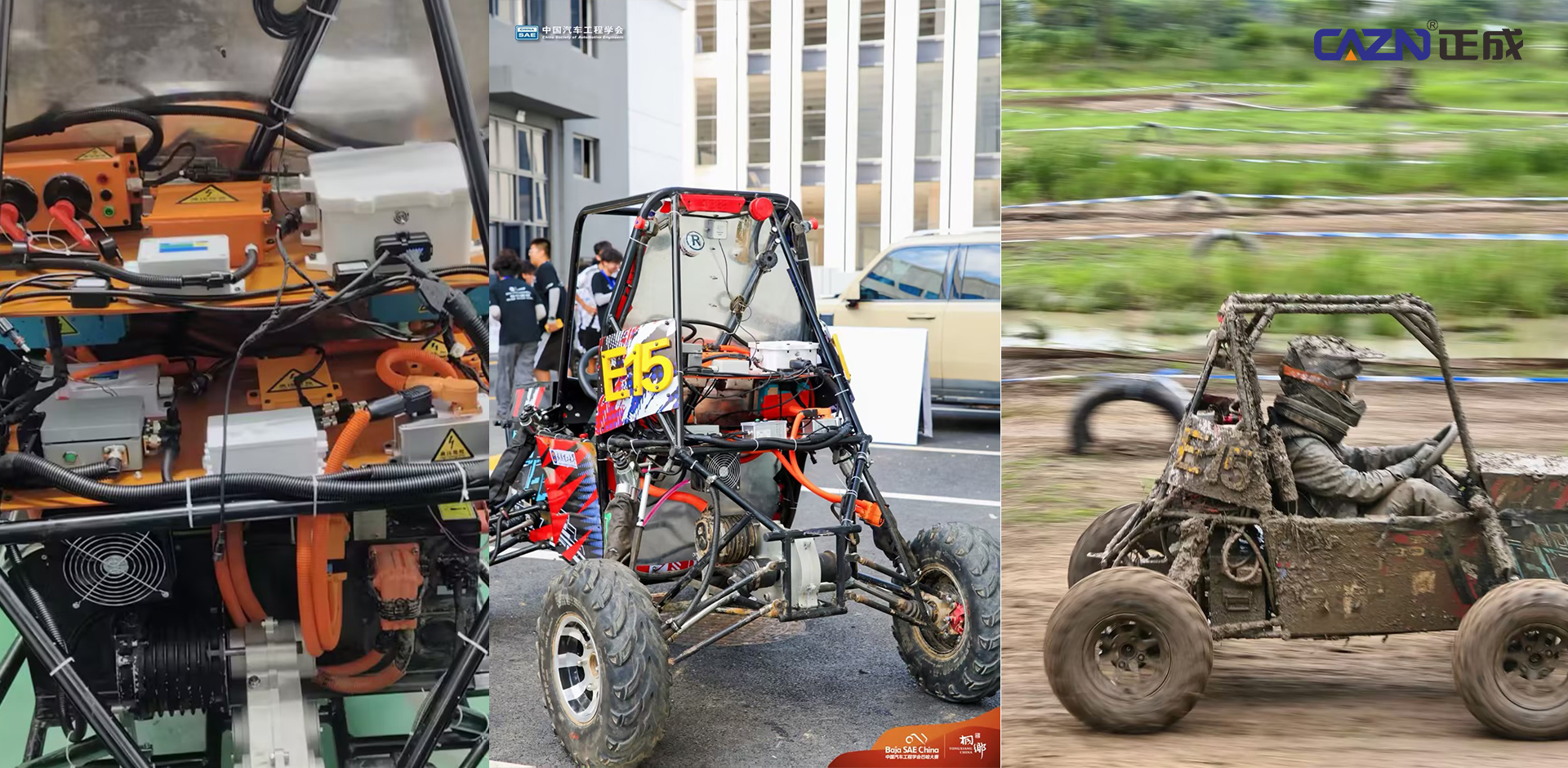

The WUTEB electric Baja racing vehicle adopts a fully electric powertrain. The electric motor serves as the power output unit, while a new-energy high-voltage battery provides the energy supply. The motor controller manages drive execution, and the core vehicle control unit is the self-developed VCU.

The VCU is responsible for forward and reverse driving, braking, gear selection, CAN communication, control algorithm execution, safety circuit protection, operating-log recording, and fault diagnosis. Reliable electrical connections are therefore essential to the stable operation of the vehicle's overall control system.

CAZN M-Series Connectors Verified in Electric Baja Racing

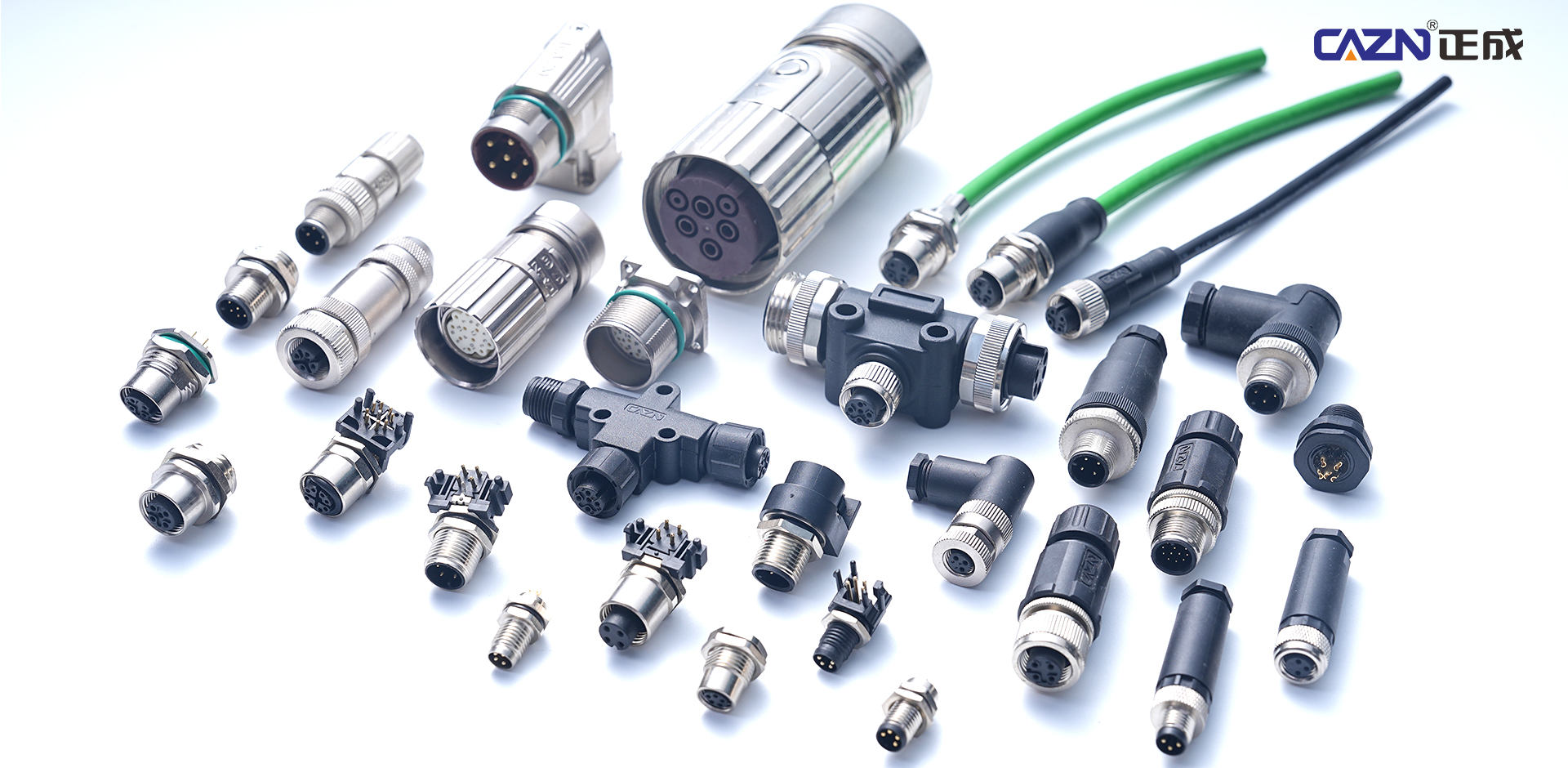

CAZN provides M-Series male and female connectors together with compatible cable assemblies. The products feature a compact design, stable connections, and resistance to water, vibration, temperature variation, and contamination.

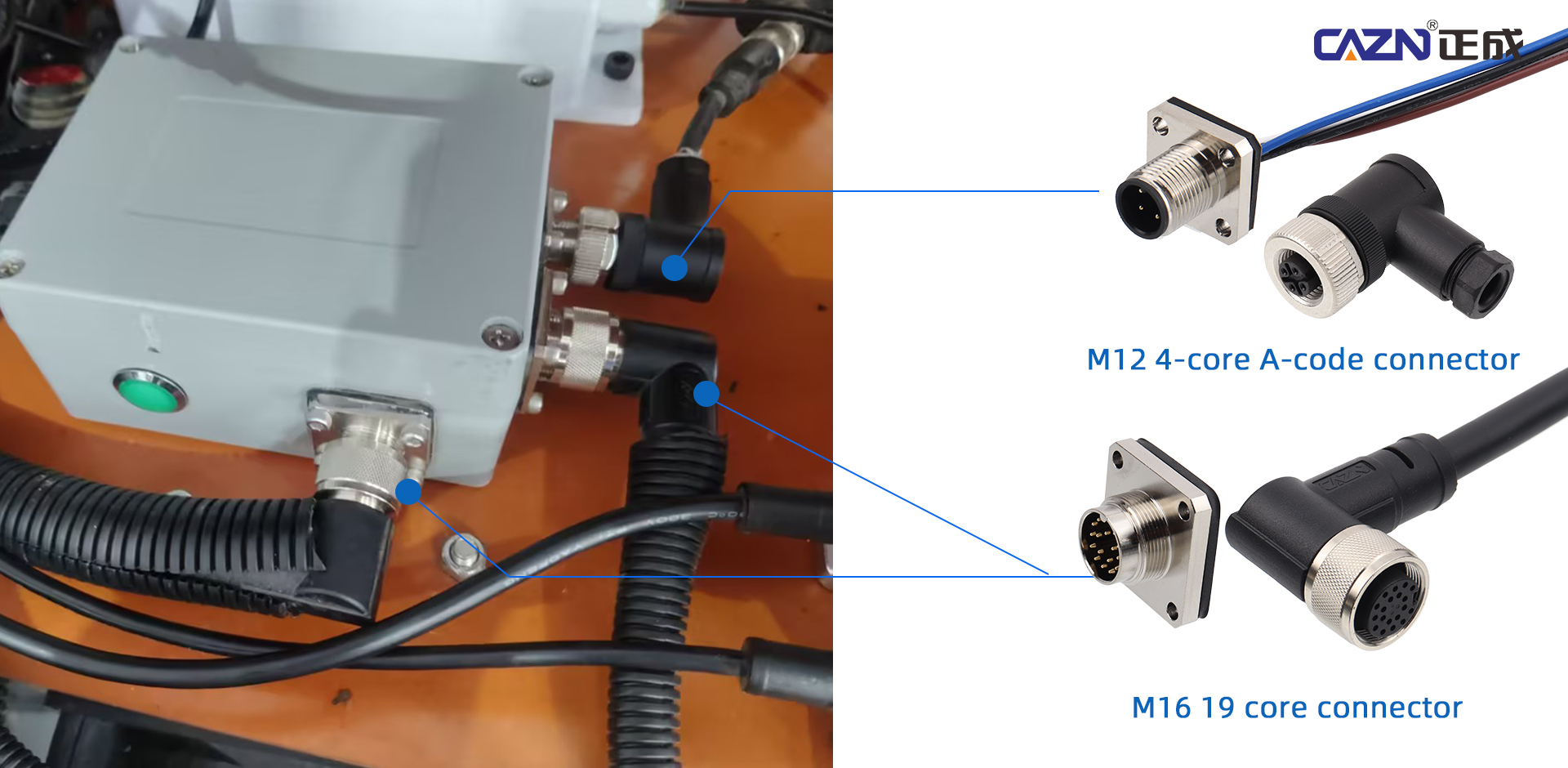

In the self-developed VCU assembly of the WUTEB electric Baja racing vehicle, CAZN M-Series connectors serve as key interfaces between the VCU and various electrical components. The vehicle's low-voltage wiring harness is integrated into the VCU assembly through CAZN connectors, helping maintain reliable electrical signal and power transmission and providing a solid hardware foundation for the vehicle's electronic control system.

The CAZN connection solution has withstood the demanding conditions of Baja off-road racing, with no connector-related failures observed during the practical application.

From high-voltage power-up and pre-charge to driving power output, regenerative braking, vehicle diagnostics, and safety protection, CAZN connectors provide the physical connection foundation required for stable VCU operation.

The practical validation on the Wuhan University of Technology electric Baja racing vehicle demonstrates the compatibility of the complete CAZN connection solution with the team's self-developed VCU assembly. By enabling the low-voltage wiring harness to be systematically integrated and reliably interconnected, CAZN helps support stable signal transmission in complex electronic control environments.

With signals as the pulse and connectivity as the foundation, CAZN provides high-quality automotive connector solutions that establish a reliable hardware foundation for EV VCU control systems, supporting the stable, intelligent, and efficient operation of new-energy electric vehicles.
