Back Mount Receptacle

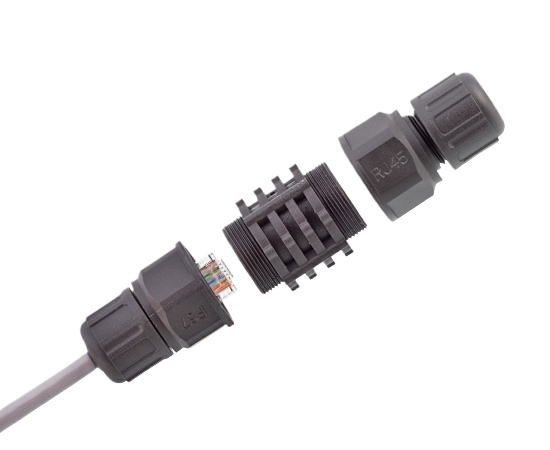

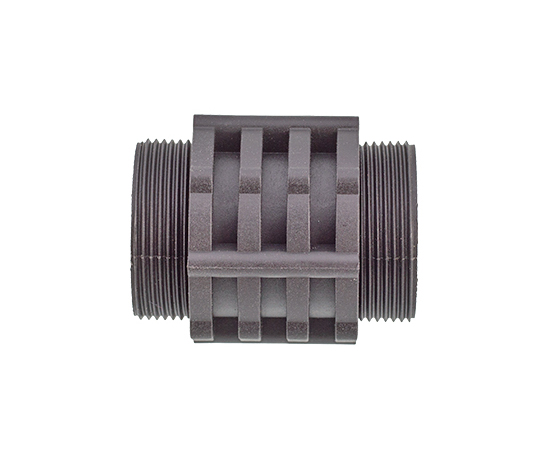

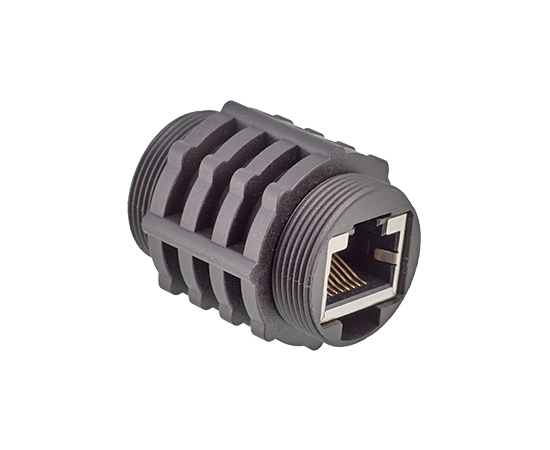

RJ45 Female to Female Relay Receptacle(Threaded)
<>

Plastic waterproof connector: E-RJ45 series

Structure type: Relay Receptacle

Pin type: Female

Coupling: Threaded(T)

Standard: CAT5e, CAT6a

Certification: CE、RoHS

  • Standard:
  • Merchant Code:

    E13T-FR6-PRR
Product information
PRODUCT PARAMETERS
Shell material:Thermoplastic plastic PA66, flame retardand grade: V-0
Contact material:Phosphorus copper gold-plated
Sealing material:Epoxy resin/Rubber
Conform standard:CAT5e, CAT6a
Durability:≥750 Cycles
Contact impedance:≤5mΩ
Wiring range:5.5mm~7.0mm
Waterproof grade:IP67
Applicable temperature: -30℃ ~ +105℃
Electrical diagram

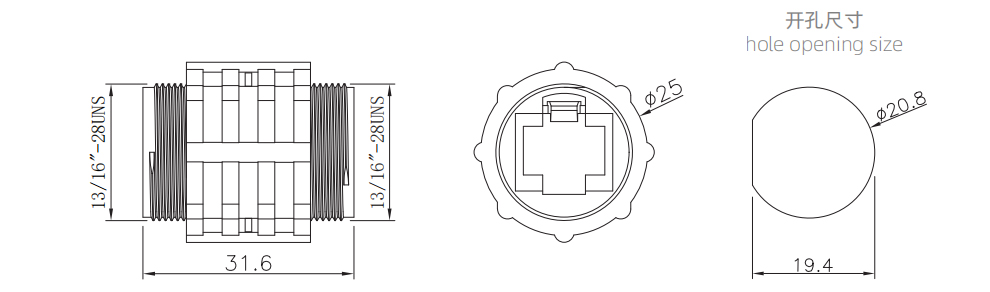

DIMENSION DRAWING


Product Ordering

Product NameSpecificationP/N 3D Download 2D Download

RJ45 Female to Female Relay Receptacle(Threaded

6AE13T-FR6-PRR

*If need to order other collocation or wire, please consult customer service
