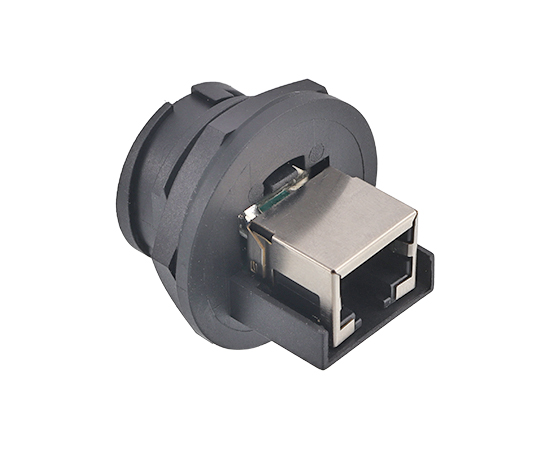

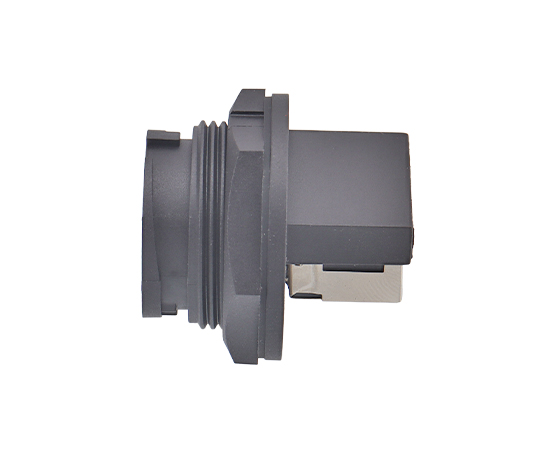

Back Mount Receptacle
Plastic waterproof connector: E-RJ45 series
Structure type: Back Mount Receptacle
Pin type: Female to Female
Connection method: RJ45 dual network port 180°
Coupling: Bayonet(B)
Standard: CAT5e, CAT6a
Shielded: Yes
Certification: CE、RoHS
-
Standard:
-
Merchant Code:
E16B-FR6-PRF-180
Product information
PRODUCT PARAMETERS
| Shell material： | Thermoplastic plastic PA66, flame retardand grade: V-0 |
| Contact material： | Phosphorus copper gold-plated |
| Sealing material： | Epoxy resin/Rubber |
| Conform standard: | CAT5e, CAT6a |
| Durability： | ≥750 Cycles |
| Contact impedance： | ≤5mΩ |
| Wiring range: | 5.5mm~7.0mm |
| Waterproof grade： | IP67 |
| Applicable temperature： | -30℃ ~ +105℃ |
Electrical diagram

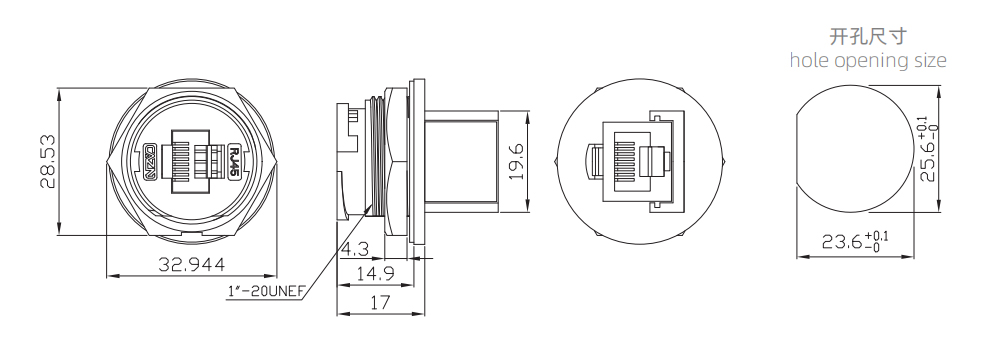

DIMENSION DRAWING
Product Ordering
| Product Name | Specification | P/N | 3D Download | 2D Download |
| RJ45 Female to Female(180°) Back Mount Receptacle(Bayonet) | 6A | E16B-FR6-PRF-180 |
*If need to order other collocation or wire, please consult customer service
