Home / Products / E Waterproof Connector / E13 Waterproof Connector / Socket(Threaded) / E13 Front Mount Solder Female Receptacle (Threaded)
Socket(Threaded)

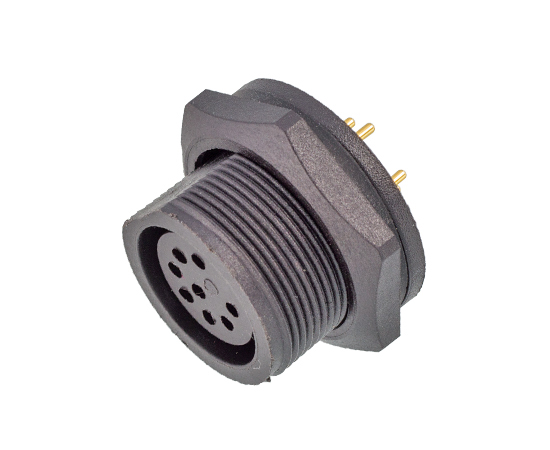

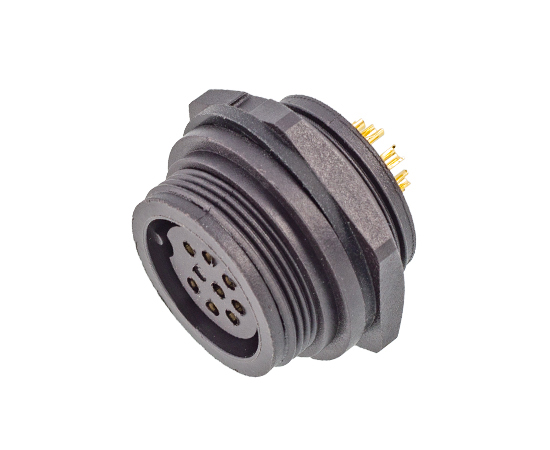

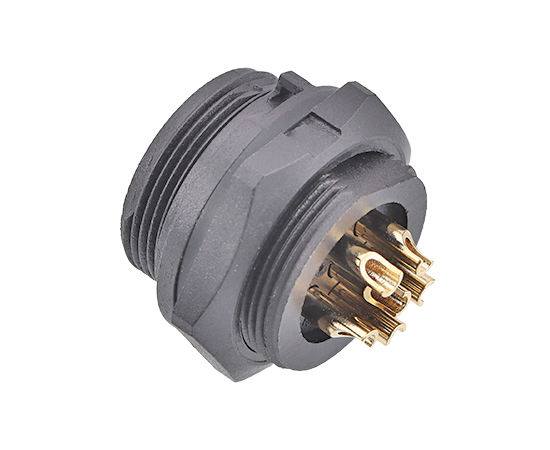

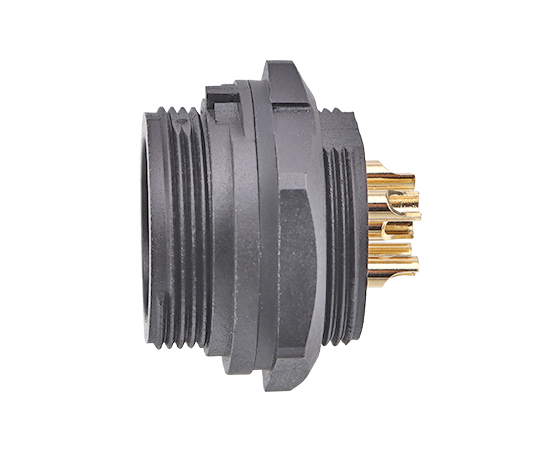

Plastic waterproof connector: E13 series
13/16"-28UNS U.S. standard screw
Structure type: Straight Female Socket Front Mount
Pin type: Female
Coupling: Threaded(T)
Number of cores: 2, 3, 4, 5, 6, 7, 8, 9, 10, 12, 14, 18pins
Termination way: Solder
Shielded: No
Certification: CE、RoHS
-
Merchant Code:
E13T-S2-PWB
Product information
PRODUCT PARAMETERS
| Shell material： | Thermoplastic plastic PA66, flame retardand grade: V-0 |
| Contact material： | Copper gold-plated |
| Pins number： | 2-18 pins，Current: high current、low current and Mix-current |
| Coupling: | Thread (T); Bayonet(B) |
| Termination Way: | Solder |
| Insulation impedance： | 2000 mΩ |
| Cable diameter: | 6.0mm~10.0mm |
| Durability： | ≥500 Cycles |
| Applicable temperature： | -40℃ ~ +105℃ |
| Waterproof grade： | IP67，IP68 |
| Screw size: | 13/16"-28UNS |

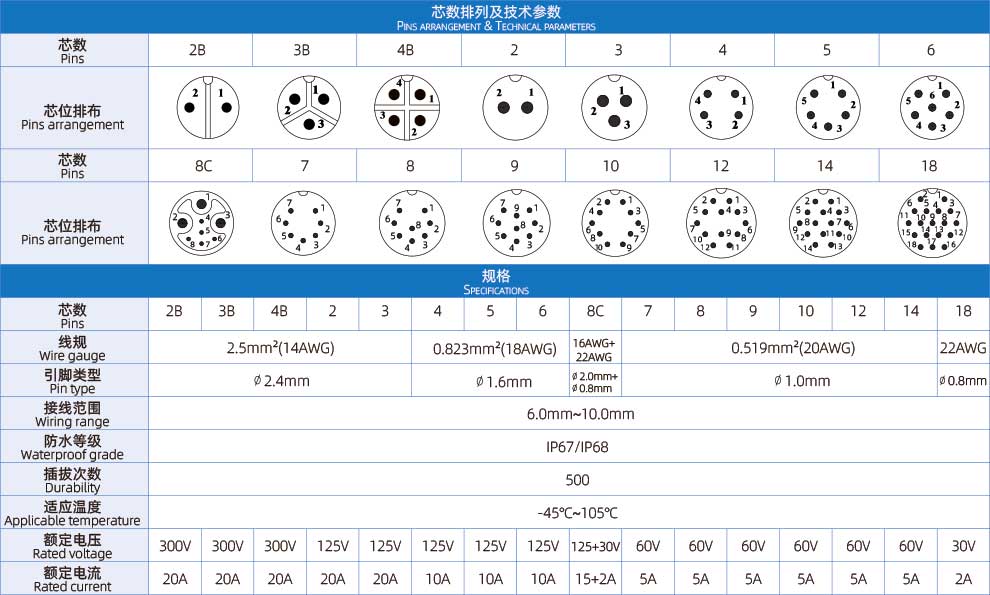

E13 ELECTRICAL PARAMETERS
Electrical diagram

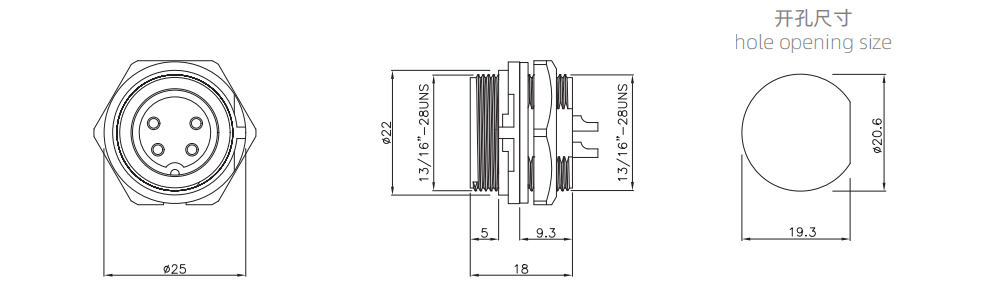

DIMENSION DRAWING
Product Ordering
| Product Name | Rated Voltage | Rated Current | P/N | Pins | 3D Download | 2D Download |
| E13 Front Mount Female Receptacle (Threaded) | 125V | 20A | E13T-S2-PWB | 2 | ||
| E13 Front Mount Female Receptacle (Threaded) | 125V | 20A | E13T-S3-PWB | 3 | ||
| E13 Front Mount Female Receptacle (Threaded) | 125V | 10A | E13T-S4-PWB | 4 | ||
| E13 Front Mount Female Receptacle (Threaded) | 125V | 10A | E13T-S5-PWB | 5 | ||
| E13 Front Mount Female Receptacle (Threaded) | 125V | 10A | E13T-S6-PWB | 6 | ||
| E13 Front Mount Female Receptacle (Threaded) | 60V | 5A | E13T-S7-PWB | 7 | ||
| E13 Front Mount Female Receptacle (Threaded) | 60V | 5A | E13T-S8-PWB | 8 | ||
| E13 Front Mount Female Receptacle (Threaded) | 60V | 5A | E13T-S9-PWB | 9 | ||
| E13 Front Mount Female Receptacle (Threaded) | 60V | 5A | E13T-S10-PWB | 10 | ||
| E13 Front Mount Female Receptacle (Threaded) | 60V | 5A | E13T-S12-PWB | 12 | ||
| E13 Front Mount Female Receptacle (Threaded) | 60V | 5A | E13T-S14-PWB | 14 | ||
| E13 Front Mount Female Receptacle (Threaded) | 30V | 2A | E13T-S18-PWB | 18 | ||
| E13 Front Mount Female Receptacle (Threaded) | 300V | 20A | E13T-S2B-PWB | 2B | ||
| E13 Front Mount Female Receptacle (Threaded) | 300V | 20A | E13T-S3B-PWB | 3B | ||
| E13 Front Mount Female Receptacle (Threaded) | 300V | 20A | E13T-S4B-PWB | 4B | ||
| E13 Front Mount Female Receptacle (Threaded) | 125+30V | 15+2A | E13T-S8C-PWB | 8C |
