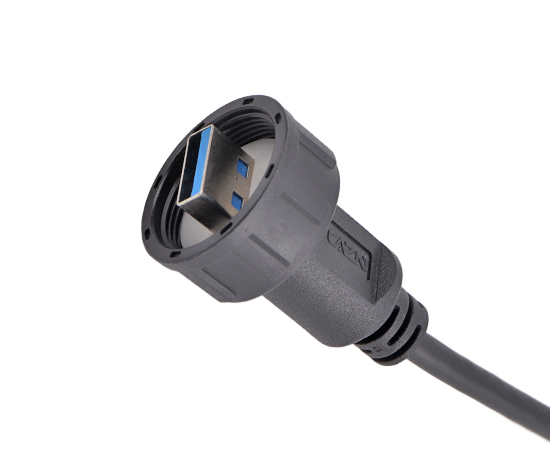

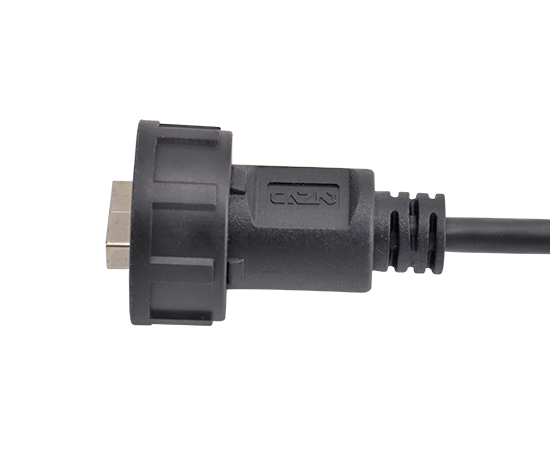

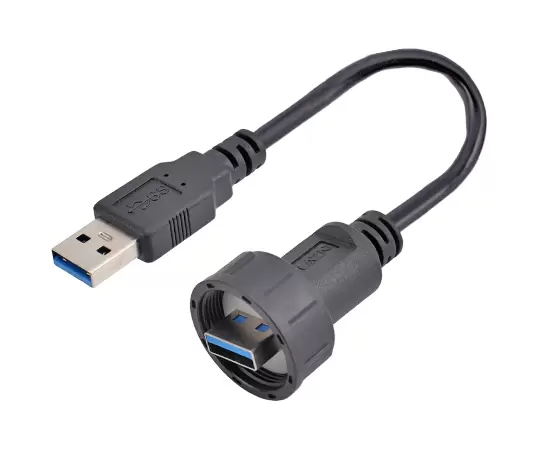

USB3.0 Plug
Plastic waterproof connector：E-USB series
Structure type: Straight Overmolded Plug
Gender: Male to Male with Cable
Coupling: Threaded(T)
Standard: USB 2.0、USB 3.0
Shielded: Customization
Certification: CE、RoHS
Product information
PRODUCT PARAMETERS
| Shell material: | Thermoplastic plastic PA66, flame retardant grade: V-0 |
| Contact material: | Brass |
| Cable material: | PVC |
| Coupling: | Thread (T); Bayonet(B) |
| Waterproof grade: | IP67，IP68 |
| Rated voltage | 30V |
| Rated current | 1.5A |
| Insulation resistance: | 2000 mΩ |
| Applicable temperature: | -40℃ ~ +105℃ |
| Durability: | ≥500(Cycles) |
Electrical diagram

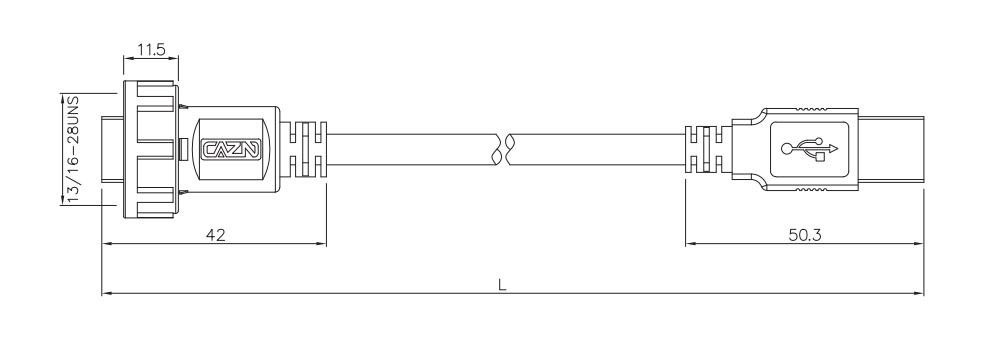

DIMENSION DRAWING
Product Ordering
| Product Name | Standards | Wire Length | P/N | 3D Download | 2D Download |
| USB Male to Male Overmolded with Cable(Threaded) | USB 2.0 | 0.3M | E13T-MU2-MWA/NWA-0.3PV-S | ||
| USB Male to Male Overmolded with Cable(Threaded) | USB 2.0 | 0.5M | E13T-MU2-MWA/NWA-0.5PV-S | ||
| USB Male to Male Overmolded with Cable(Threaded) | USB 2.0 | 1M | E13T-MU2-MWA/NWA-1PV-S | ||
| USB Male to Male Overmolded with Cable(Threaded) | USB 2.0 | 2M | E13T-MU2-MWA/NWA-2PV-S | ||
| USB Male to Male Overmolded with Cable(Threaded) | USB 2.0 | 3M | E13T-MU2-MWA/NWA-3PV-S | ||
| USB Male to Male Overmolded with Cable(Threaded) | USB 3.0 | 0.3M | E13T-MU3-MWA/NWA-0.3PV-S | ||
| USB Male to Male Overmolded with Cable(Threaded) | USB 3.0 | 0.5M | E13T-MU3-MWA/NWA-0.5PV-S | ||
| USB Male to Male Overmolded with Cable(Threaded) | USB 3.0 | 1M | E13T-MU3-MWA/NWA-1PV-S | ||
| USB Male to Male Overmolded with Cable(Threaded) | USB 3.0 | 2M | E13T-MU3-MWA/NWA-2PV-S | ||
| USB Male to Male Overmolded with Cable(Threaded) | USB 3.0 | 3M | E13T-MU3-MWA/NWA-3PV-S |
*If need to order other collocation or wire, please consult customer service
