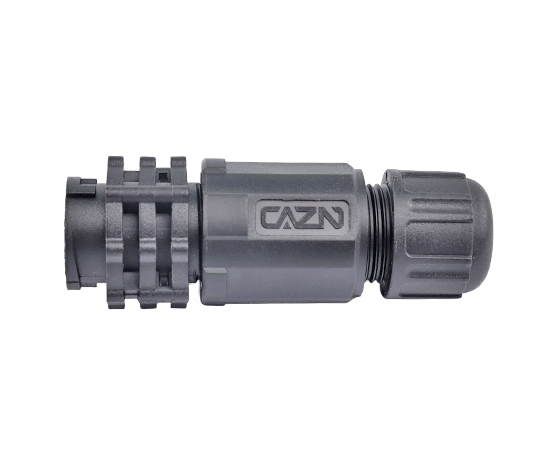

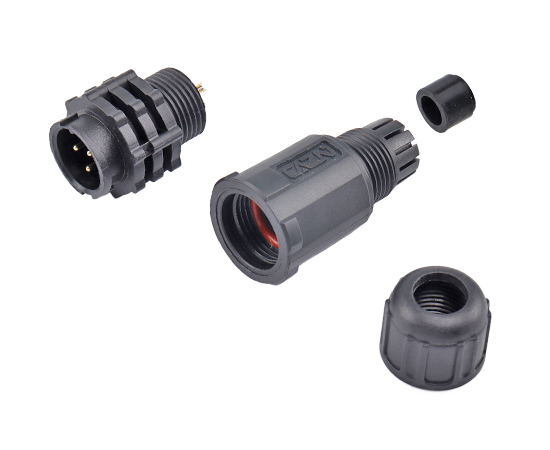

Plug(Bayonet)
Plastic waterproof connector: E10 series
5/8 "-27UNS U.S. standard screw
Structure type: Straight Field Installable Mating Plug
Pin type: Male
Coupling: Bayonet(B)
Number of cores: 2, 3, 4, 5, 6, 7, 8, 10, 12 pins
Termination way: Solder
Shielded: No
-
Merchant Code:
E10B-P2-PWK06
Product information
PRODUCT PARAMETERS
| Shell material： | Thermoplastic plastic PA66, flame retardand grade: V-0 |
| Contact material： | Brass/Phosphorus copper gold-plated |
| Pins number： | 2-12 pins，Current: high current and low current |
| Coupling: | Thread (T); Bayonet(B) |
| Termination Way: | Solder |
| Insulation impedance： | 2000 mΩ |
| Cable diameter: | 4.0mm~8.0mm |
| Durability： | ≥500 Cycles |
| Applicable temperature： | -40℃ ~ +105℃ |
| Waterproof grade： | IP67，IP68 |
| Screw size: | 5/8"-27UNS |
E10 ELECTRICAL PARAMETERS
Electrical diagram

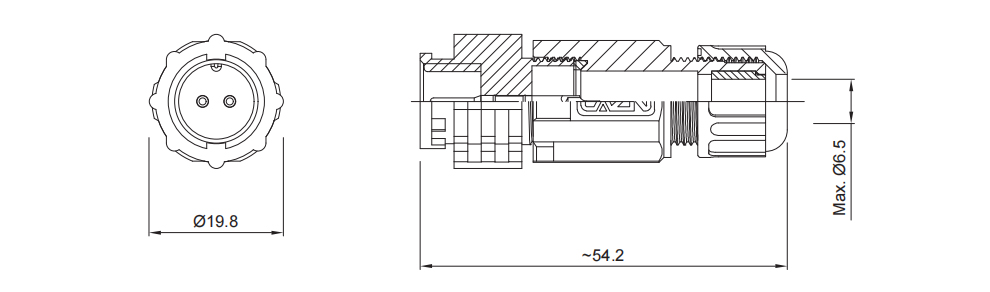

DIMENSION DRAWING
Product Ordering
| Product Name | Rated Voltage | Rated Current | P/N | Pins | 3D Download | 2D Download |
| E10 Straight Male Field Installable Mating Plug(Bayonet) | 60V | 5A | E10B-P2-PWK06 | 2 | ||
| E10 Straight Male Field Installable Mating Plug(Bayonet) | 60V | 5A | E10B-P3-PWK06 | 3 | ||
| E10 Straight Male Field Installable Mating Plug(Bayonet) | 60V | 5A | E10B-P4-PWK06 | 4 | ||
| E10 Straight Male Field Installable Mating Plug(Bayonet) | 60V | 5A | E10B-P5-PWK06 | 5 | ||
| E10 Straight Male Field Installable Mating Plug(Bayonet) | 60V | 5A | E10B-P6-PWK06 | 6 | ||
| E10 Straight Male Field Installable Mating Plug(Bayonet) | 60V | 5A | E10B-P7-PWK06 | 7 | ||
| E10 Straight Male Field Installable Mating Plug(Bayonet) | 60V | 5A | E10B-P8-PWK06 | 8 | ||
| E10 Straight Male Field Installable Mating Plug(Bayonet) | 30V | 2A | E10B-P10-PWK06 | 10 | ||
| E10 Straight Male Field Installable Mating Plug(Bayonet) | 30V | 2A | E10B-P12-PWK06 | 12 | ||
| E10 Straight Male Field Installable Mating Plug(Bayonet) | 300V | 10A | E10B-P2B-PWK06 | 2B | ||
| E10 Straight Male Field Installable Mating Plug(Bayonet) | 300V | 10A | E10B-P3B-PWK06 | 3B | ||
| E10 Straight Male Field Installable Mating Plug(Bayonet) | 300V | 10A | E10B-P4B-PWK06 | 4B | ||
| E10 Straight Male Field Installable Mating Plug(Bayonet) | 125V | 10A | E10B-P2C-PWK06 | 2C | ||
| E10 Straight Male Field Installable Mating Plug(Bayonet) | 125V | 10A | E10B-P3C-PWK06 | 3C | ||
| E10 Straight Male Field Installable Mating Plug(Bayonet) | 125V | 10A | E10B-P4C-PWK06 | 4C |
